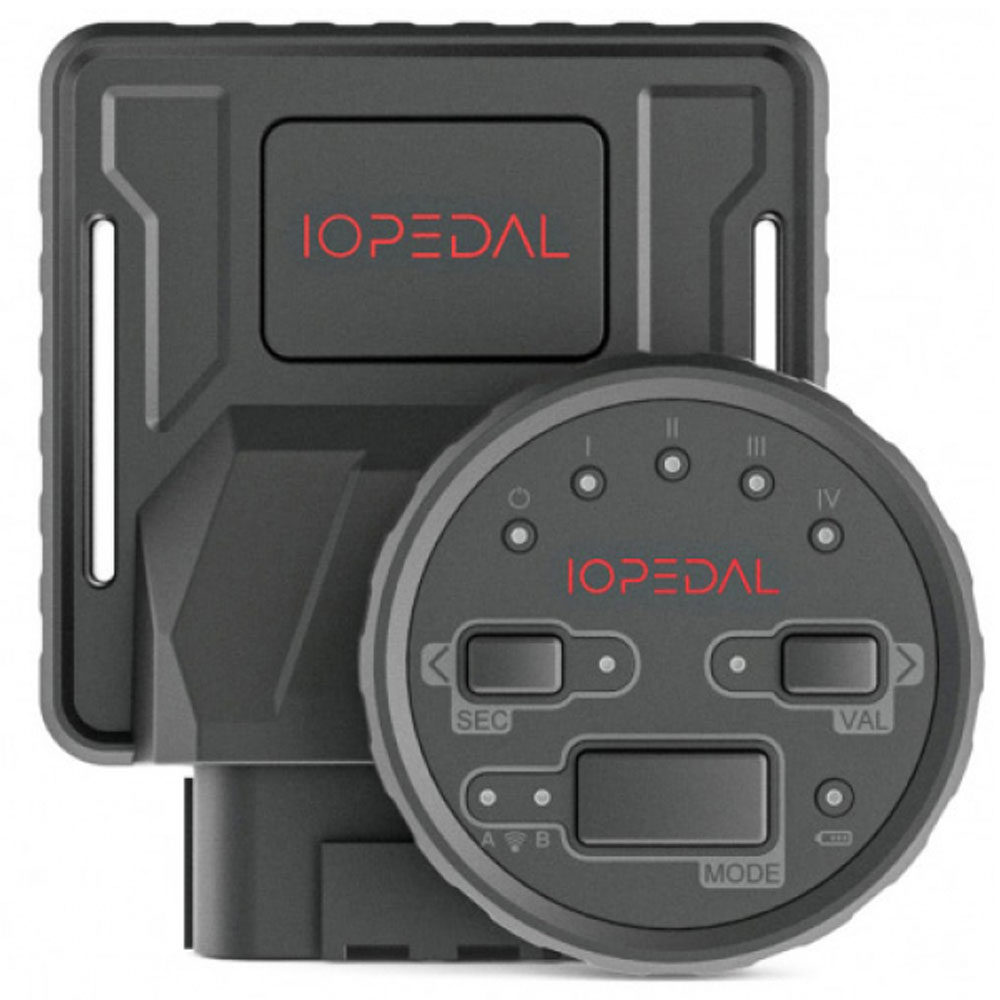

IOPEDAL throttle tuner module and wireless remote for the Mercedes Sprinter

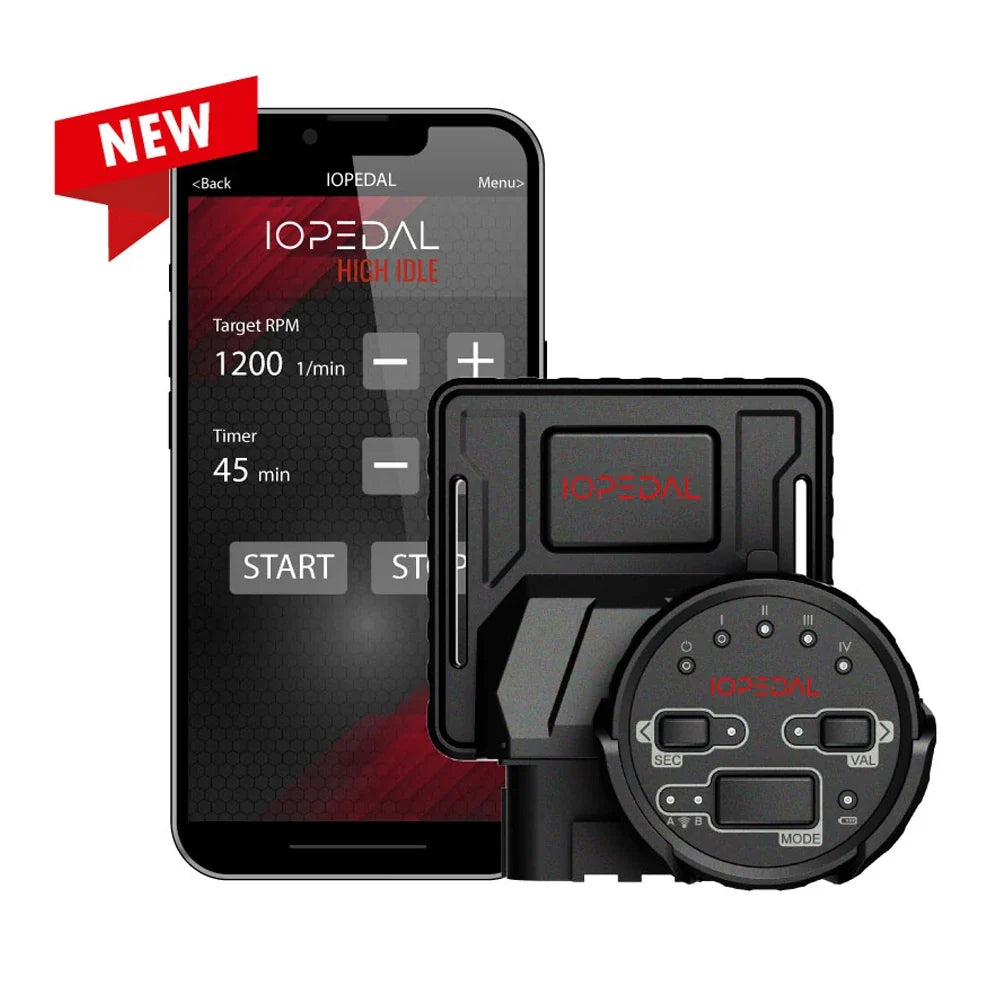

IOPEDAL High Idle app, module and remote for a Mercedes Sprinter diesel

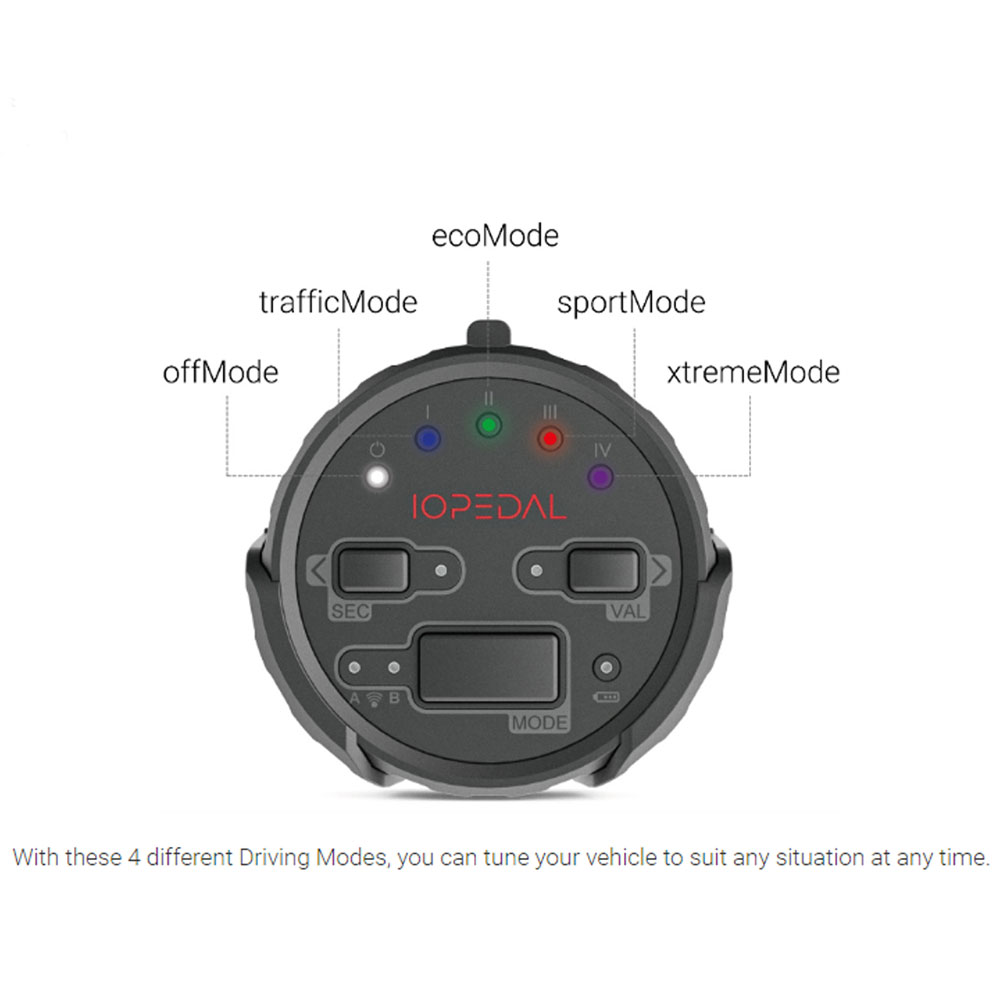

IOPEDAL remote showing the off, traffic, eco, sport and xtreme driving modes

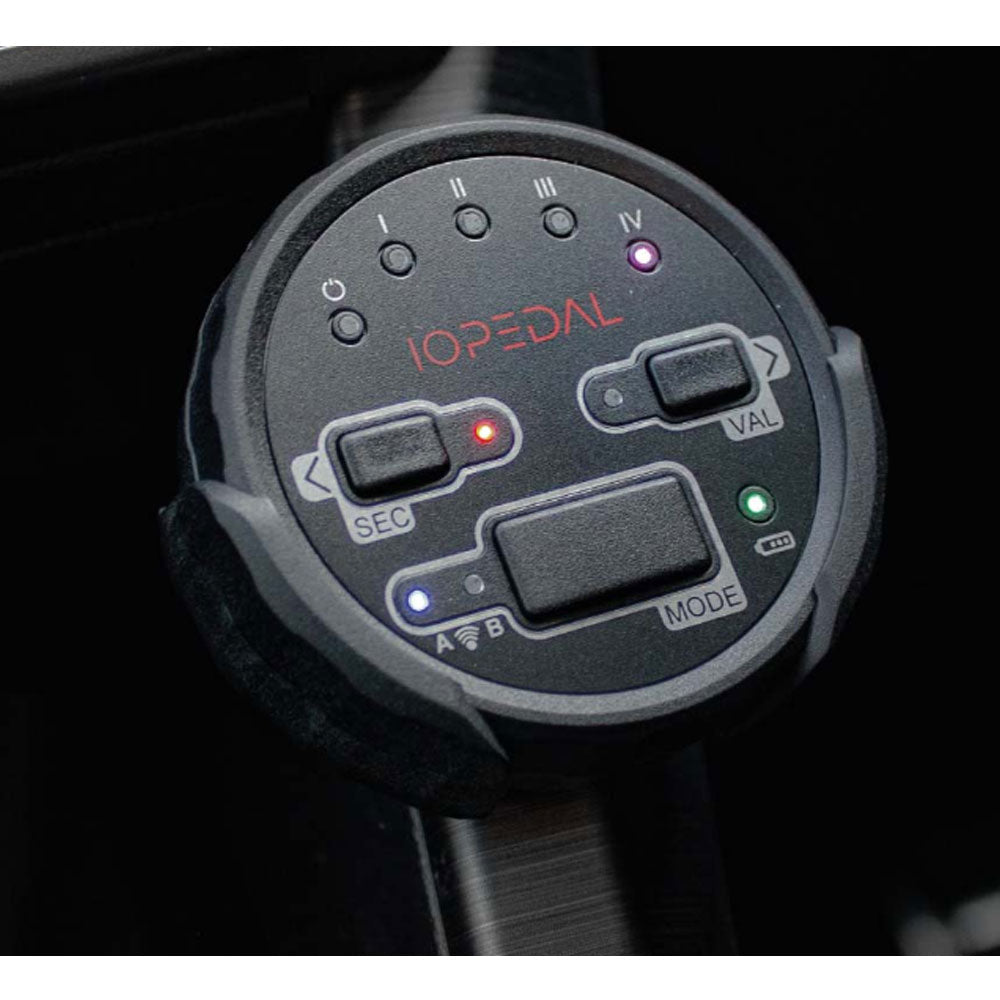

IOPEDAL wireless remote mounted on a Mercedes Sprinter dash

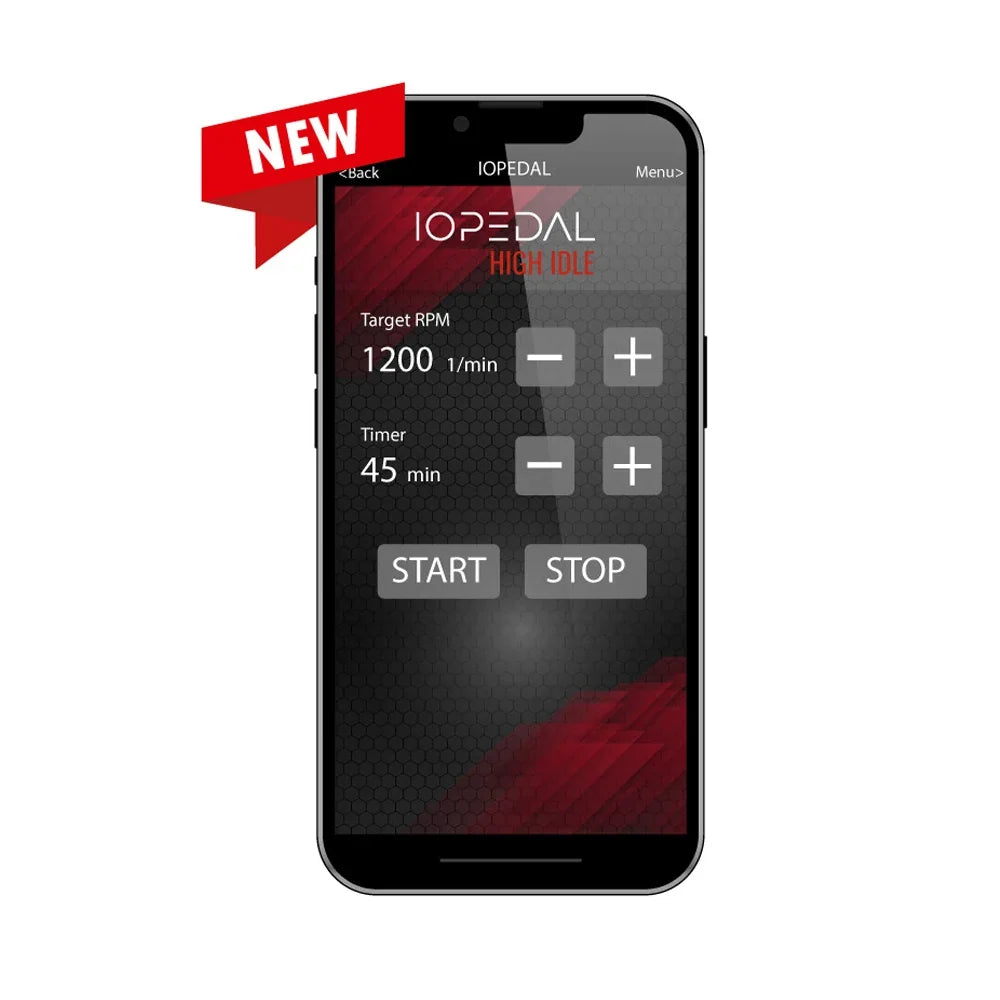

IOTuning app High Idle screen with target RPM and timer

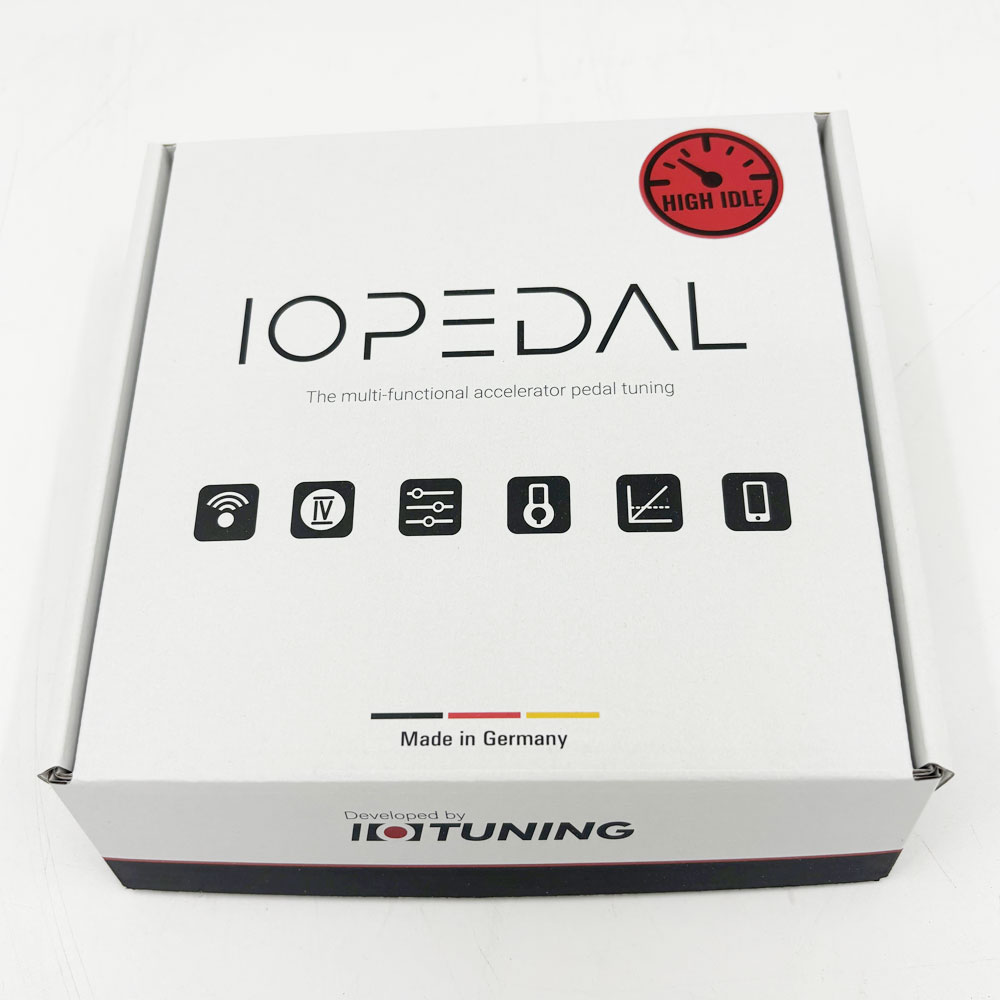

IOPEDAL High Idle box, made in Germany by IOTuning

Agile Offroad

IOPEDAL Throttle Tuner with High Idle for Mercedes Sprinter Diesel

$499.99

Shop 5.0 Shop rating (174) on Google

Own this? Write the first review

Product variants

Pickup available at Sandy Vans HQ

Usually ready in 2-4 days

Wake up the pedal on the road, then let the engine charge your batteries while you're parked.

The IOPEDAL from IOTuning (made in Germany) plugs in at your Sprinter's accelerator pedal and changes how quickly the engine answers your foot. Pick from four driving modes with five levels each, switch on the fly from a small wireless remote or the free IOTuning app, and lock the pedal out with secureMode when you walk away. This High Idle version adds a parked idle you can set from 1,200 to 2,000 RPM, so a secondary alternator can put real charge into your house battery system.

Fits: Mercedes Sprinter diesel, 2023+ 2.0L four-cylinder (OM654) and 2007 to 2022 3.0L V6 (OM642), 2WD, 4x4 and AWD. For 2007 to 2013 vans, reach out to confirm before ordering. Not compatible: gas Sprinters, eSprinter, and the 2.1L four-cylinder diesel.

High Idle, 1,200 to 2,000 RPM: set the target RPM and a run timer in the app. It only runs parked, with the parking brake on.
Four driving modes plus stock: trafficMode, ecoMode, sportMode and xtremeMode, each with five fine-tune levels.
Wireless remote and app: a dash-clip remote with color LEDs, plus the IOTuning app for iOS and Android.
secureMode and valetMode: disable the pedal without the remote, or cap power when someone else drives.
Plug-in install: no ECU changes, no cutting, fully reversible.

Choose your variant

4-cyl Diesel 2023+: 2023 and newer Sprinters with the 2.0L four-cylinder diesel (OM654).
6-cyl Diesel 2007-22: 2007 to 2022 Sprinters with the 3.0L V6 diesel (OM642).

Not sure which engine you have? Check the engine cover or your registration, or email products@sandyvans.com.

Charging a house battery from the engine? See the BCDC Alpha50 R DC Battery Manager.

See it on your van. Add the IOPEDAL Throttle Tuner with High Idle for Mercedes Sprinter Diesel to your build in our 3D Van Builder and preview it on a real Sprinter before you buy.

Product Details

Why the IOPEDAL High Idle makes sense in a van

Stock pedal mapping is set up to suit every driver. The IOPEDAL lets you set it for how you drive a loaded build: a soft, smooth pedal for stop-and-go traffic and long highway days, or a quick, sharp one for merging and climbing grades. You change it from the remote without pulling over.

High Idle for parked charging

IOTuning built High Idle so a secondary alternator can make enough power to charge your battery system while the van sits. Set a target from 1,200 to 2,000 RPM in 100 RPM steps, set a run timer, and the engine holds that speed. It only works parked, with the parking brake fully set and the transmission in neutral or Park. The pedal is disabled while High Idle runs, and a light tap on the pedal turns it off.

The driving modes

offMode (white): stock pedal response.
trafficMode (blue): gentle response for city driving and traffic.
ecoMode (green): smooth, efficient response for long days on the highway.
sportMode (red): quicker response for merging and passing.
xtremeMode (purple): the most responsive setting.

Every mode has five levels, and Flavor Select adds Normal, Power or Precise versions of all of them.

Security built in

secureMode disables the accelerator pedal on the next start, so the van won't drive without the remote. valetMode caps power at one of five levels for a valet, a new driver, or anyone else behind the wheel. Both stay set across key cycles until you turn them off.

Made in Germany

The IOPEDAL is designed and built by IOTuning in Germany and carries IOTuning's 24-month limited warranty. Questions before or after you order? Email products@sandyvans.com or call (619) 812-1903 and talk to our team in San Diego.

Fitment & Compatibility

Fits: Mercedes Sprinter diesel: 2023+ 2.0L 4-cyl (OM654) and 2007-2022 3.0L V6 (OM642)

Drivetrains: 2WD, 4x4 and AWD

Not compatible with: Gas Sprinters, eSprinter, 2.1L 4-cyl diesel

Also fits these Sprinter-platform RV & upfitter builds:

Winnebago Revel
Storyteller Overland (MODE, Beast Mode)
Outside Van
Airstream Interstate & Atlas
Grech RV (Strada, Turismo, Terreno)
Pleasure-Way Plateau
Leisure Travel Vans (Unity, Wonder)
Coachmen Galleria
Midwest Automotive Designs
Jayco Terrain
Tiffin Wayfarer
Thor Tranquility

Fitment depends on your exact model, year, suspension lift, and body kit. Confirm with our team before ordering.

Not sure your build qualifies? Reach out to our team.

Specifications

Manufacturer	IOTuning, made in Germany
Fits	Mercedes Sprinter diesel: 2023+ 2.0L 4-cyl (OM654), 2007-2022 3.0L V6 (OM642). For 2007-2013, reach out to confirm
Not compatible	Gas Sprinters, eSprinter, 2.1L 4-cyl diesel
Variants	4-cyl Diesel 2023+ or 6-cyl Diesel 2007-22
Driving modes	offMode (stock), trafficMode, ecoMode, sportMode, xtremeMode; 5 levels each
Flavor Select	Normal, Power or Precise response for all modes
High Idle range	1,200 to 2,000 RPM in 100 RPM steps, with run timer
High Idle conditions	Parked only: parking brake set, neutral or Park; tap the pedal to cancel
Controls	Wireless remote with dash clip, plus IOTuning app (iOS 15.2+, Android 7.0+)
Security	secureMode pedal lockout, valetMode with 5 power limits
Vehicle connections	Accelerator pedal (6-pin) and camshaft sensor (3-pin)
ECU changes	None; plug-in and reversible
Remote battery	CR2032 coin cell
Warranty	24-month limited warranty from IOTuning

What's in the Box

IOPEDAL throttle module
Wireless remote with dashboard clip
Vehicle-specific wiring harness with High Idle camshaft sensor lead
Cable ties and adhesive pads
T8 screwdriver for the remote battery

DIY FriendlyModerate: plug-in harness plus an engine bay connection

Drilling RequiredNo

This is a plug-in install with no cutting and no ECU changes, and it unplugs to return the van to stock. There are two connections. The main harness goes between the accelerator pedal and its factory plug in the driver footwell. The High Idle lead runs through the firewall grommet at the upper left of the driver footwell to the camshaft sensor on top of the engine, and the air filter housing comes out to reach it.

IOTuning has a separate install guide for the 2.0L four-cylinder (OM654) and the 3.0L V6 (OM642). We don't post them here. Email products@sandyvans.com and we'll send the one for your engine. IOTuning doesn't publish an install time, so reach out if you'd like help planning the job or want it installed.

Mistakes to avoid

Starting right after you shut the van off. Wait at least 10 minutes with the ignition off.
Leaving a keyless key nearby. Keep it well out of range so the pedal doesn't wake up while you work.
Plugging the camshaft sensor connector in upside down. It can mate rotated 180 degrees, which can cause faults or damage. Match the orientation to the guide photos.
Leaving the module loose. Zip-tie it firmly in the cabin, clear of the pedals and steering column.
Routing the High Idle lead near hot or moving engine parts. Tie it along the bulkhead.
Leaving the V6 oil filler opening uncovered. Cover it with a clean cloth while the neck is off.
Skipping auto-ranging. Press the pedal slowly to full throttle, including kick-down, hold about 2 seconds, and repeat twice.

Tools You'll Need

Basic hand tools for the air intake hose clamp and oil filler neck
Flashlight
Clean cloth to cover the oil filler opening
Cable ties (included)

See all Sandy Vans install videos & manuals →

How to choose a throttle tuner for your Sprinter

1. Engine and year

Throttle tuners use engine-specific harnesses, so fitment comes first. The two IOPEDAL High Idle variants cover the 2023+ 2.0L four-cylinder diesel and the 2007 to 2022 3.0L V6 diesel.

How to choose: match the variant to your engine. Gas Sprinters, the eSprinter and the 2.1L four-cylinder diesel are not supported. For 2007 to 2013 vans, reach out first.

2. Do you need High Idle?

A throttle tuner on its own changes pedal response. High Idle adds a parked idle speed, which IOTuning designed for vans running a secondary alternator to charge a house battery system.

How to choose: if you charge house batteries from a secondary alternator, get a tuner with High Idle. If you only want sharper pedal response, a tuner without it covers that.

3. How you want to control it

Some tuners are app-only. Others give you a physical remote you can reach without looking at a phone.

How to choose: if you'll switch modes while driving, pick one with a dash-mounted remote and keep the app for setup.

4. Install comfort

Pedal-only tuners plug in at the footwell. A High Idle unit also needs a connection at the camshaft sensor in the engine bay, which means removing the air filter housing.

How to choose: if you're comfortable pulling the air box and routing a lead through the firewall, it's a DIY job. If not, plan for help.

5. Security

A van full of gear parked at a trailhead or on a city street is a target. A pedal lockout adds a layer on top of the factory immobilizer.

How to choose: if your van spends nights in public places, look for a tuner with a pedal lockout mode.

Before you order

Confirm your engine: 2.0L four-cylinder (2023+) or 3.0L V6 (2007 to 2022).
Have a 2007 to 2013 van? Reach out to confirm fitment.
Know your charging setup if you plan to use High Idle.
Check your phone runs iOS 15.2+ or Android 7.0+ for the IOTuning app.
Pick a spot on the dash for the remote clip that you can reach while driving.

How the IOPEDAL High Idle stacks up

Fitment: two engine-specific variants covering diesel Sprinters from 2007 on.
High Idle: 1,200 to 2,000 RPM in 100 RPM steps with a timer, parked only.
Control: wireless dash remote with color LEDs plus the free IOTuning app.
Install: plug-in harnesses, no ECU changes, fully reversible.
Security: secureMode pedal lockout and five-level valetMode.

Charging from the engine? Pair it with the BCDC Alpha50 R DC Battery Manager.

Which IOPEDAL variant do I need?

Pick 4-cyl Diesel 2023+ for 2023 and newer Sprinters with the 2.0L four-cylinder diesel (OM654). Pick 6-cyl Diesel 2007-22 for 2007 to 2022 Sprinters with the 3.0L V6 diesel (OM642). For a 2007 to 2013 van, or if you are not sure which engine you have, email products@sandyvans.com before ordering.

Does it fit a gas Sprinter or the eSprinter?

No. The IOPEDAL High Idle is made for the diesel engines listed above. Gas Sprinters, the eSprinter and the 2.1L four-cylinder diesel are not supported.

How does High Idle work?

With the van parked, the parking brake fully set and the transmission in neutral or Park, set a target from 1,200 to 2,000 RPM and a run timer in the IOTuning app. The pedal is disabled while High Idle runs, and a light tap on the pedal turns it off.

Do I need a second alternator to use High Idle?

IOTuning designed High Idle to let a secondary alternator make enough power to charge a house battery system. If your charging setup is different, reach out and we will talk through whether it helps your build.

Does the IOPEDAL modify my ECU?

No. It plugs in between factory connectors at the accelerator pedal and the camshaft sensor, with no cutting and no ECU changes, and unplugs to return the van to stock.

Can I install it myself?

Yes, if you are comfortable working in the footwell and removing the air filter housing to reach the camshaft sensor. We send IOTuning's engine-specific install guide on request. If you would rather have help, reach out.

Is it legal to use on the street in California?

IOTuning's manual states that in the USA, and California in particular, the IOPEDAL is intended only for racing vehicles not operated on public roads. Check the rules where you live, and reach out with any questions.

What does secureMode do?

secureMode disables the accelerator pedal on the next start, so the van will not drive until the paired remote connects. IOTuning recommends not leaving the remote in the van while secureMode or valetMode is on.

Will it fit my Sprinter-based RV?

Many Class B RVs ride on the diesel Sprinter chassis, so the IOPEDAL often fits. Fitment depends on the engine, year and trim, so send us your VIN or build details and we will confirm.

What warranty does it have?

IOTuning covers the IOPEDAL with a 24-month limited warranty against defects in materials and workmanship for the original purchaser. Reach out and we will help with any claim.

Do you install products for customers?

Yes. Many SV products can be professionally installed at our San Diego shop. Reach out to our team to schedule. Email products@sandyvans.com or call 619-812-1903.

What is your shipping and return policy?

Most SV products ship free. For returns, see our Returns & Refunds policy or reach out to our team at products@sandyvans.com.

Can I reach a real person with questions?

Always. We are a small team in San Diego. Email products@sandyvans.com or call 619-812-1903 and you'll get a real answer, not a chatbot.

Where are you located?

9393 Trade Pl, San Diego, CA. Come visit the shop, we'd love to show you around.

Still have a question? Email the team and you'll get a real answer.
