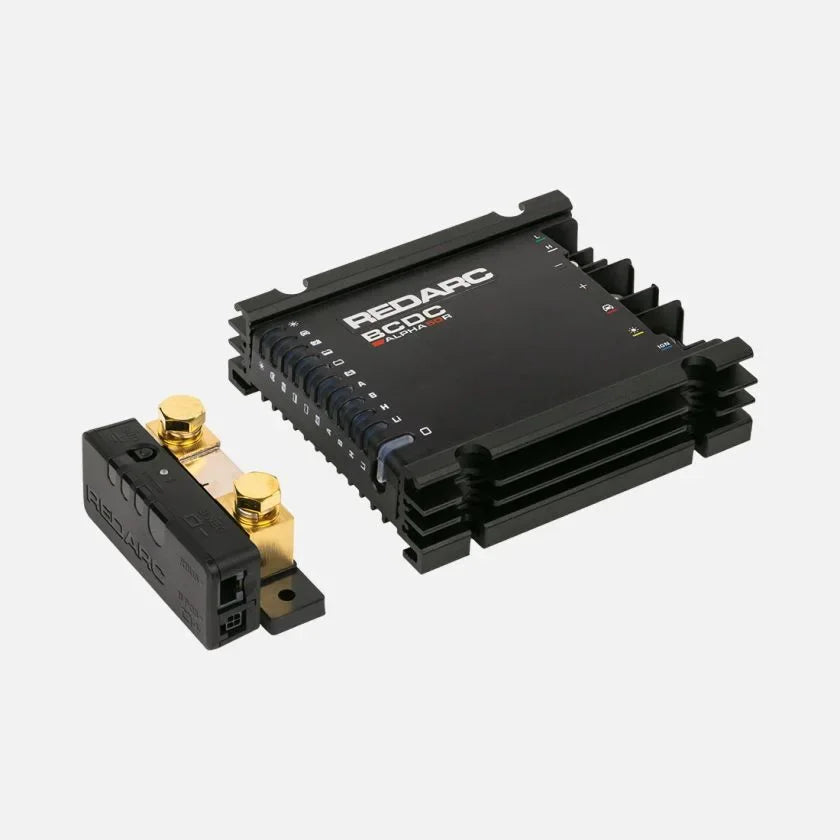

BCDC Alpha50 R DC Battery Manager

REDARC BCDC Alpha50 R

Always charged. Never stranded.

Stay powered wherever the road takes you with the REDARC BCDC Alpha50 R — a 50A DC-to-DC charger designed to intelligently manage both your start and secondary batteries.

Whether you’re charging from your alternator while driving or soaking up solar at camp, the Alpha50 R automatically optimizes charging performance for maximum efficiency and battery life.

Smarter Charging, Longer Battery Life

Unlike standard DC chargers, the Alpha50 R continuously adjusts in real time based on your battery’s needs. It functions as a true battery manager — not just a charger — delivering the correct charge profile for AGM, lead acid, Gel, standard and heated Lithium (LiFePO4).

Its built-in Green Power Priority™ automatically prioritizes solar input first, reducing strain on your alternator and helping improve fuel efficiency.

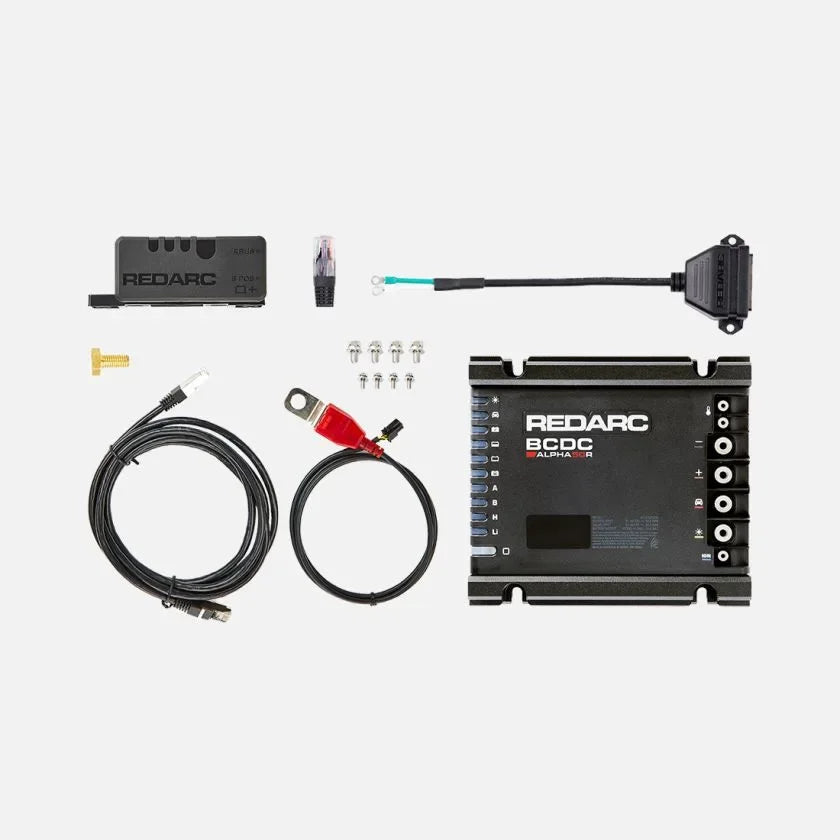

When paired with the included Smart Battery Monitor, the Alpha50 R can distinguish between energy going to your battery and power being used by your system loads. If charge current is set below maximum, it redirects unused capacity to run your loads directly — reducing battery cycling and extending lifespan.

Less battery stress. More adventure.

Start Battery Recovery

Dead start battery? No problem.

Recover a flat start battery in as little as 15 minutes with the push of a button — or remotely through the RedVision app.

Excess solar? The Alpha automatically tops off your start battery once your secondary battery is fully charged, so nothing goes to waste.

Simple, Clean Installation

The Alpha50 R features:

• Pushbutton interface

• Secure screw terminal connections

• No soldering required

• Clean, straightforward wiring

With available mounting brackets and wiring kits, install is efficient and installer-friendly.

Advanced Monitoring

Stay connected to your system with:

• State of charge percentage

• Time remaining

• Real-time charger performance

• Bluetooth monitoring via the RedVision app

Over-the-air updates ensure your system stays current.

Total System Integration

Fully compatible with REDARC RedVision and TVMS systems for complete power management control.
(Note: RedVision display screen requires TVMS Rogue or TVMS Prime — it cannot be powered directly by the Alpha50 R.)

Key Features

• 50A DC-to-DC charging from alternator and solar

• Compatible with AGM, Lead Acid, Gel, and Lithium (LiFePO4 — standard & heated)

• Green Power Priority™ solar optimization

• Start battery recovery in ~15 minutes

• Remote monitoring & control via Bluetooth

• Input current limiting to protect modern alternators (ideal for smart alternator, hybrid, and low surplus vehicles)

• Over-the-air firmware updates

• Simple pushbutton interface and screw connections
