Sprinter Side Wall Mounting Plate & L-Track Kit

$1,999.00 $1,699.00 Save 15%
Own this? Write the first review
Type

Turn bare Sprinter walls into a structural backbone.

This kit pairs pre-drilled, load-spreading mounting plates with 6.8 mm flanged L-track to give your 2019+ high roof Sprinter continuous, load-bearing anchor points for beds, overhead cabinets and wall-mounted gear.

Fits 2019+ Mercedes Sprinter high roof cargo vans only. Not compatible with standard roof or passenger Sprinters.

Fits: 2019+ Mercedes Sprinter cargo van, high roof, 144 or 170 in wheelbase. Not compatible: standard roof, passenger vans, 2018 and older Sprinters.

  • Rated 77 lb (35 kg) per mounting point, 441 lb (200 kg) distributed across a full plate
  • Integrated rivnuts give fixed threads with no spin or jam
  • Plates labeled in install order and pre-drilled, no layout guesswork
  • 6061-T6 aluminum 6.8 mm flanged L-track, anodized
  • Designed for an easy solo install

Choose your variant: 144 in or 170 in wheelbase.

Need more track? The kit uses our 6.8mm BEEFY Flanged L-Track. Add L-Track O-Ring Stud Fittings for tie-down points.

See it on your van. Add the Sprinter Side Wall Mounting Plate & L-Track Kit to your build in our 3D Van Builder and preview it on a real Sprinter before you buy.

Product Details

Why a wall system

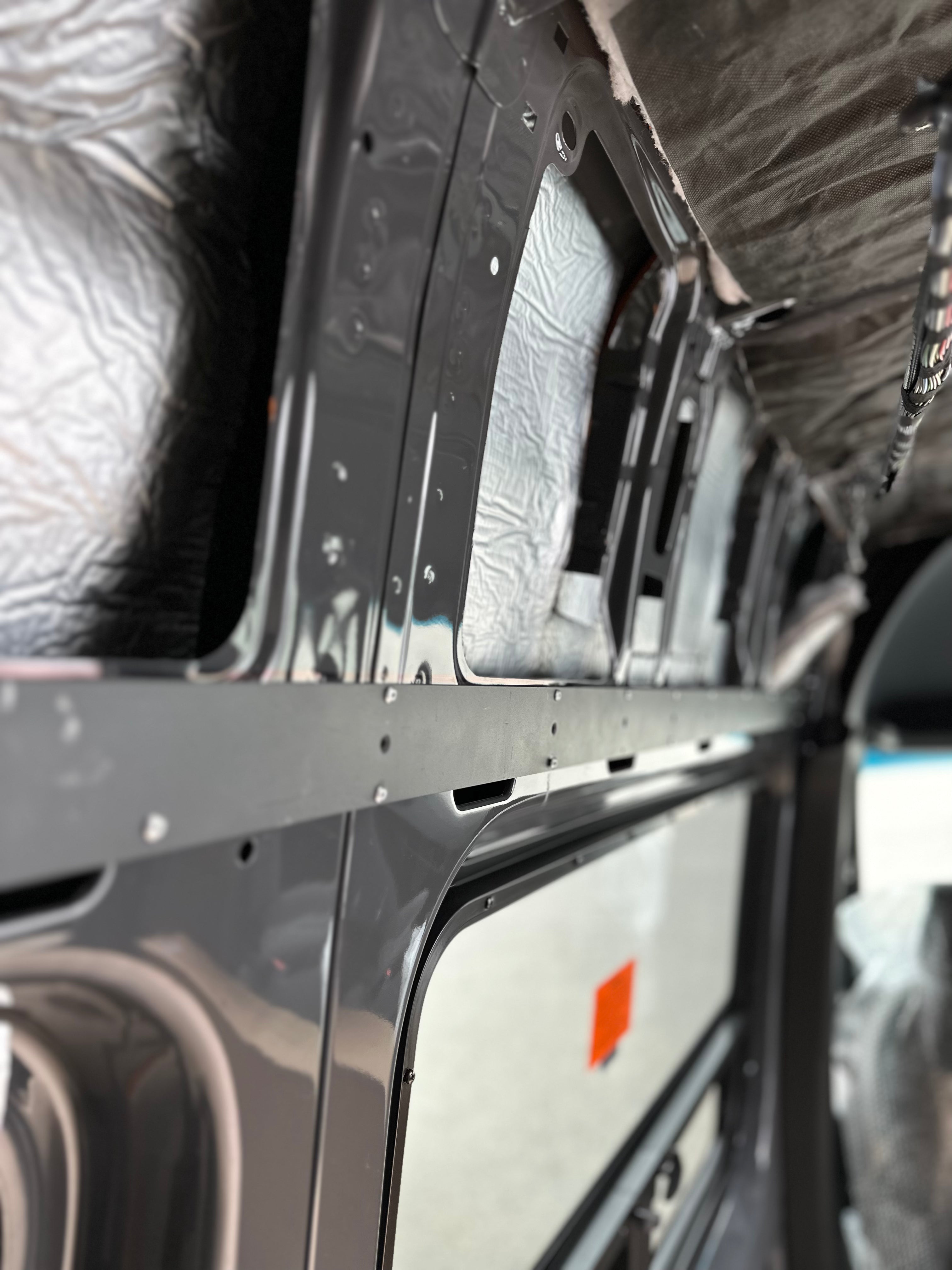

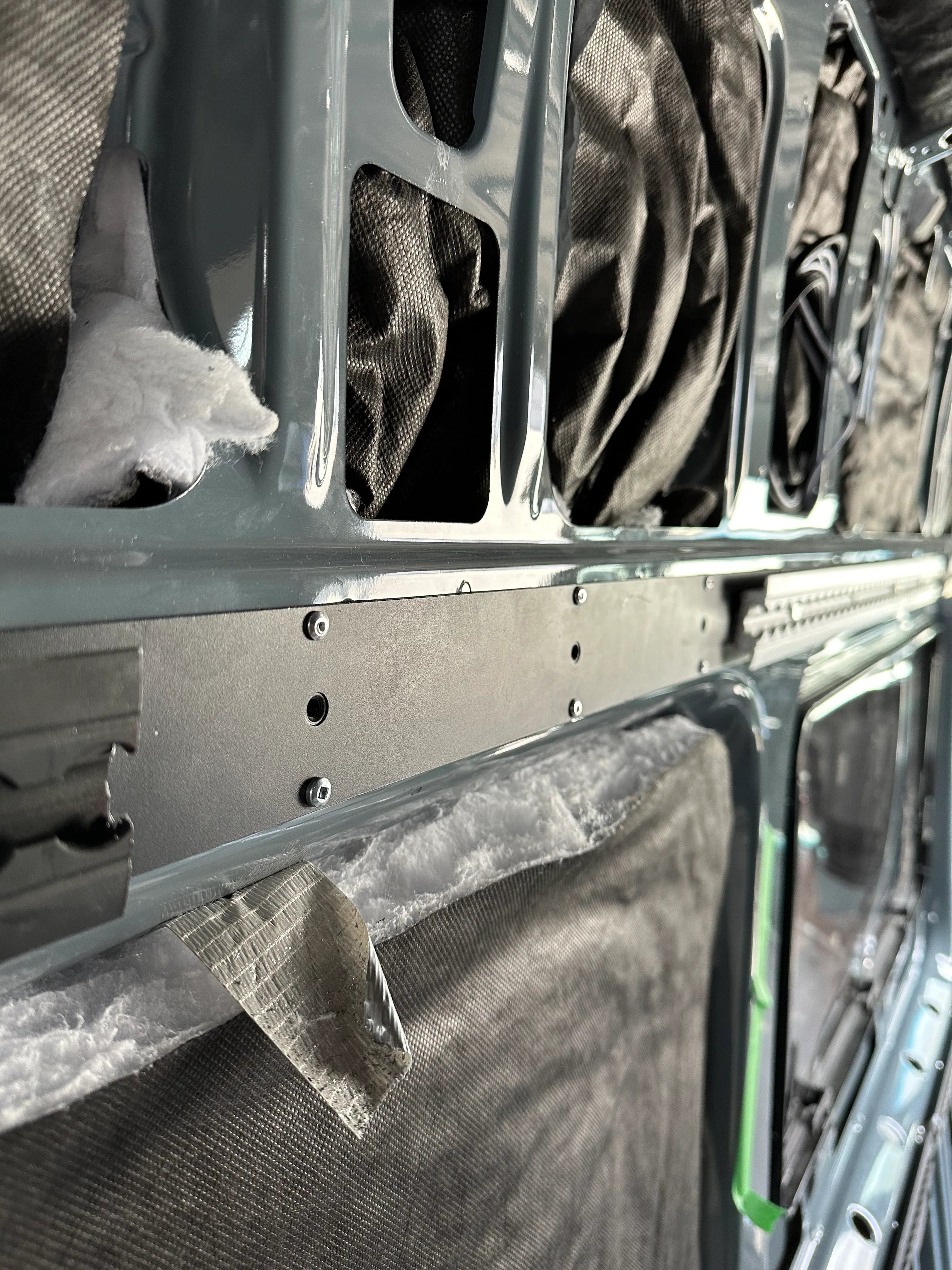

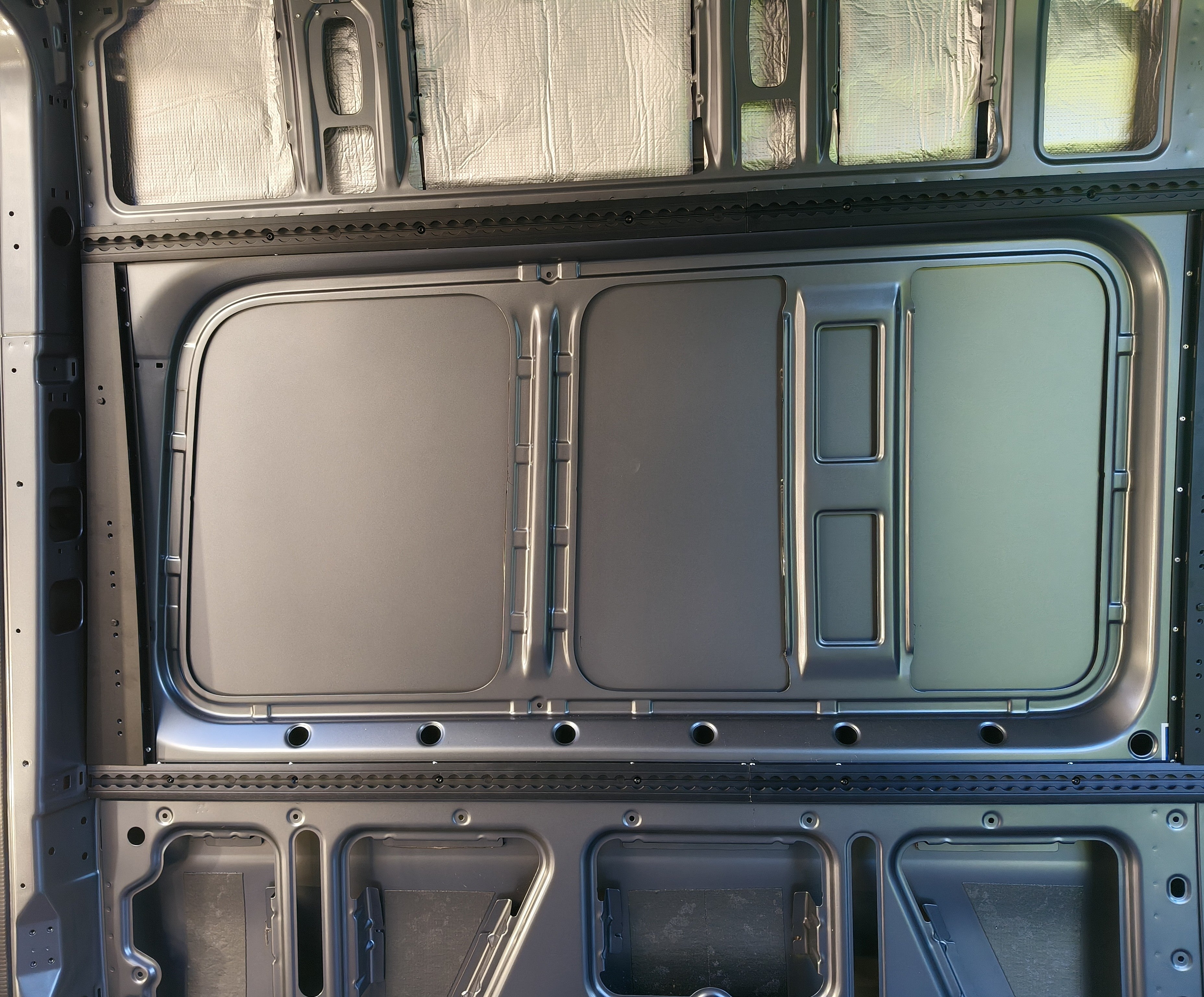

Sprinter sheet metal flexes, and rivnuts set straight into it can spin or pull through. This kit lays load-spreading plates across the wall first, then runs flanged L-track over them, so every bed rail and cabinet bolt lands on reinforced, fixed threads.

Mounting zones repeat the same way on every van, which makes layouts predictable whether it's your first build or your tenth.

What you get

  • Pre-drilled mounting plates with integrated rivnuts, labeled in install order
  • 6.8 mm flanged L-track sections sized to your wheelbase

Good to know

  • Built by Tec Vanlife.
  • Panels are not included; the track flanges are made to hold 1/2 in or 3/8 in panels.

Fitment & Compatibility

Fits: Mercedes Sprinter 2019+ cargo van, high roof, 144 or 170 in wheelbase

Not compatible with: Standard roof, passenger vans and 2018 and older Sprinters

Not sure your build qualifies? Reach out to our team.

Specifications

Fits2019+ Mercedes Sprinter cargo van, high roof
Wheelbase144 in or 170 in (choose variant)
Load rating77 lb (35 kg) per point, 441 lb (200 kg) distributed per plate
PlatesPre-drilled, load spreading, integrated rivnuts, labeled in install order
L-track6.8 mm flanged, 6061-T6 aluminum, anodized
Panel thickness1/2 in or 3/8 in recommended
Not compatibleStandard roof, passenger vans, 2018 and older

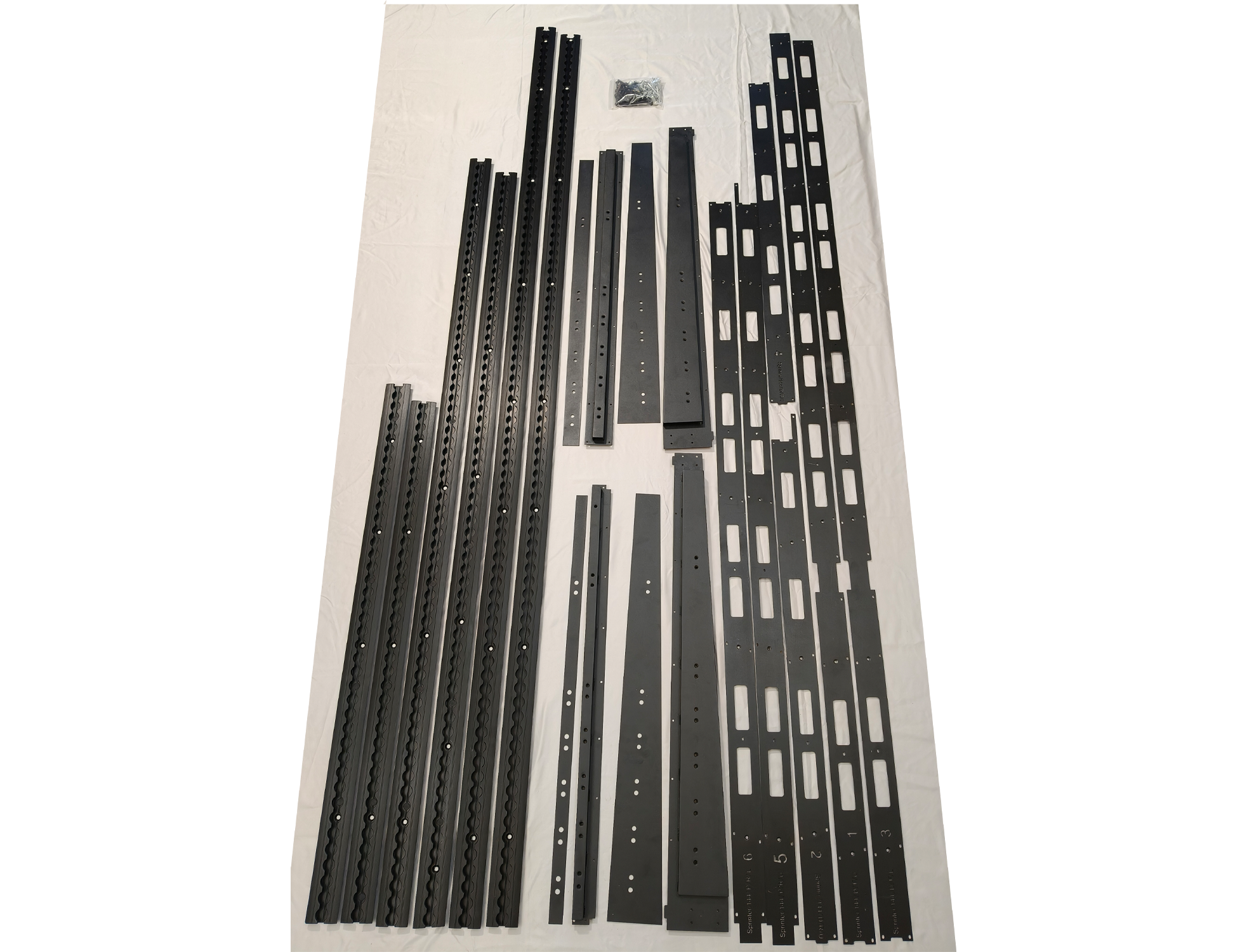

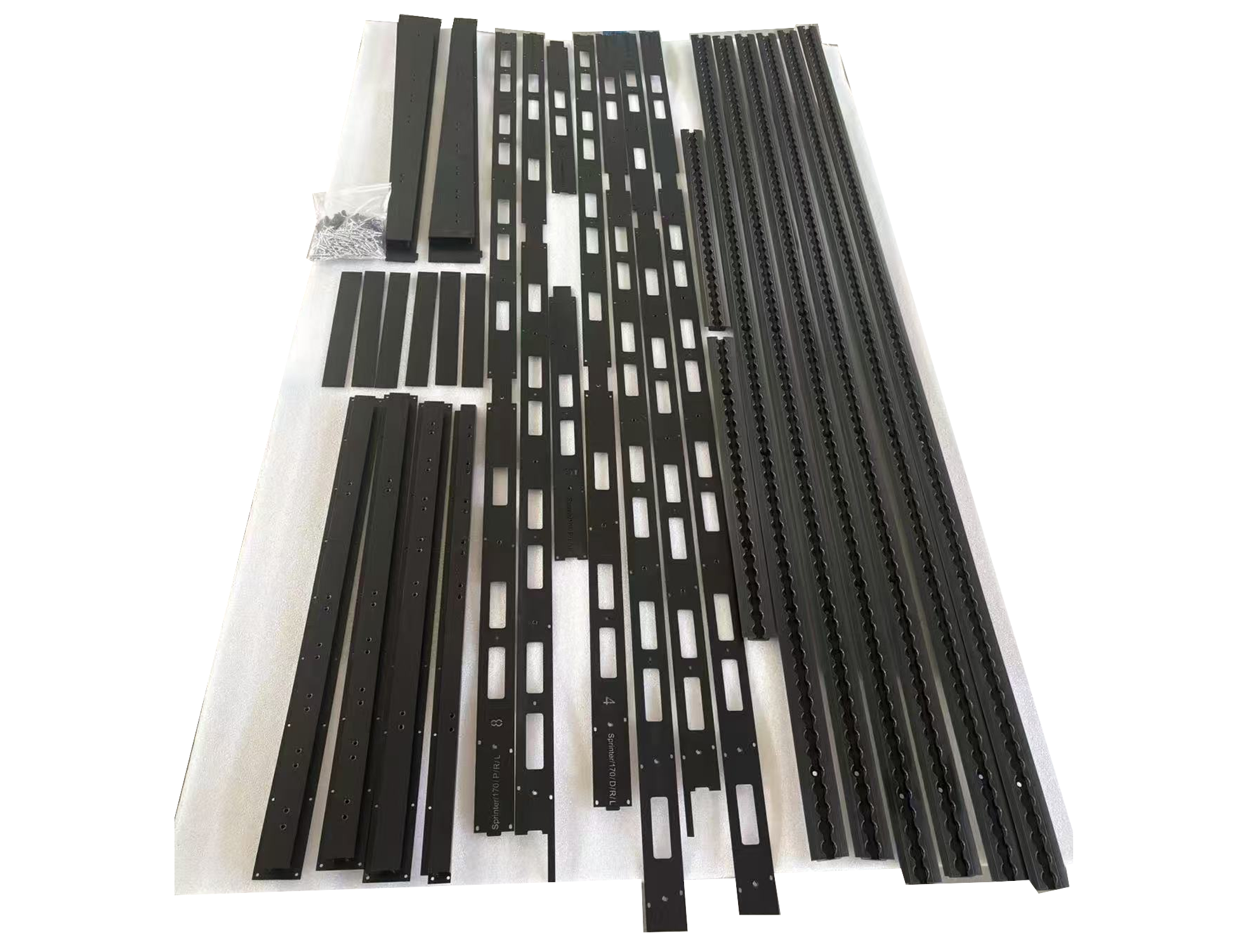

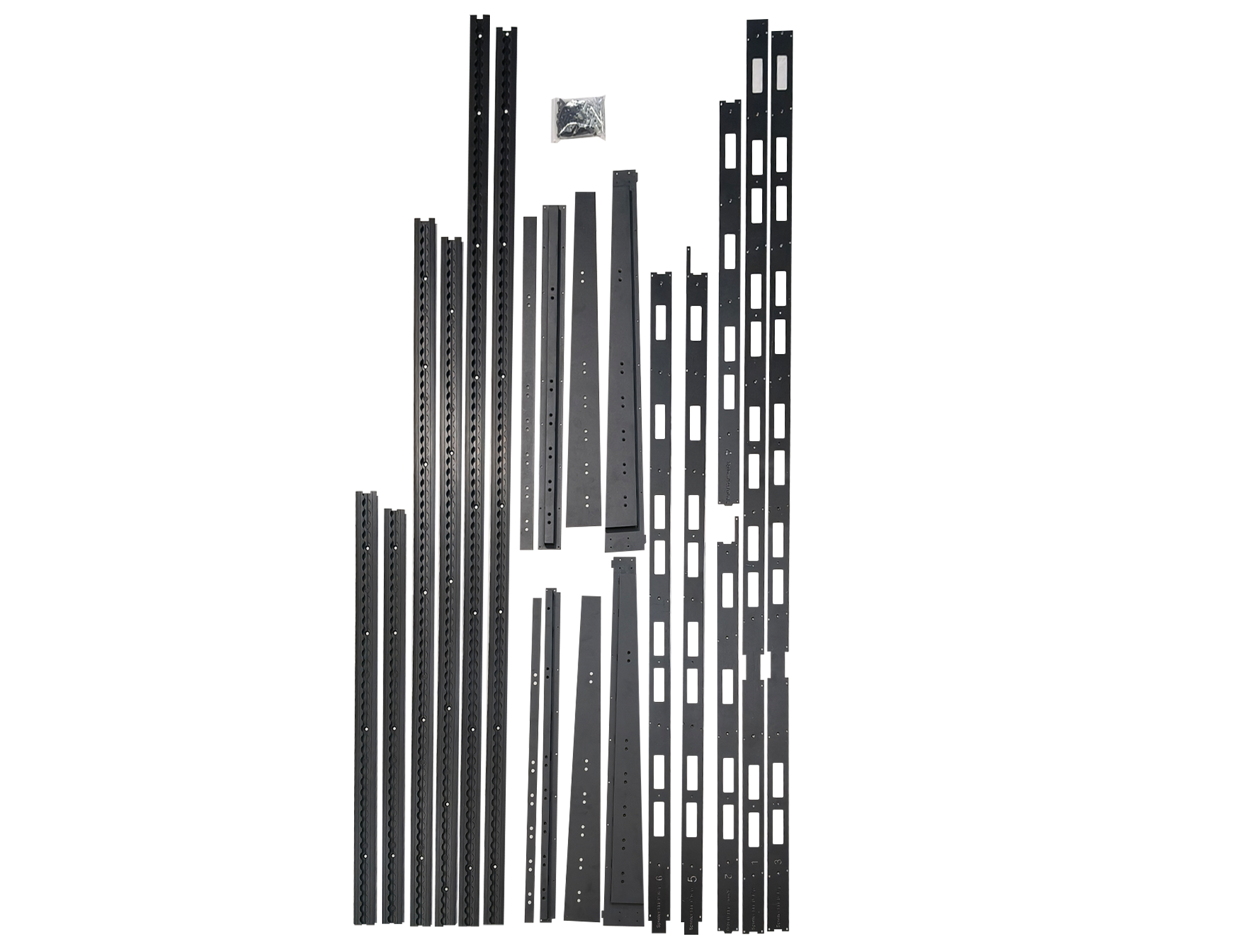

What's in the Box

  • Pre-drilled mounting plates with integrated rivnuts (labeled)
  • 6.8 mm flanged L-track sections
DIY FriendlyIntermediate

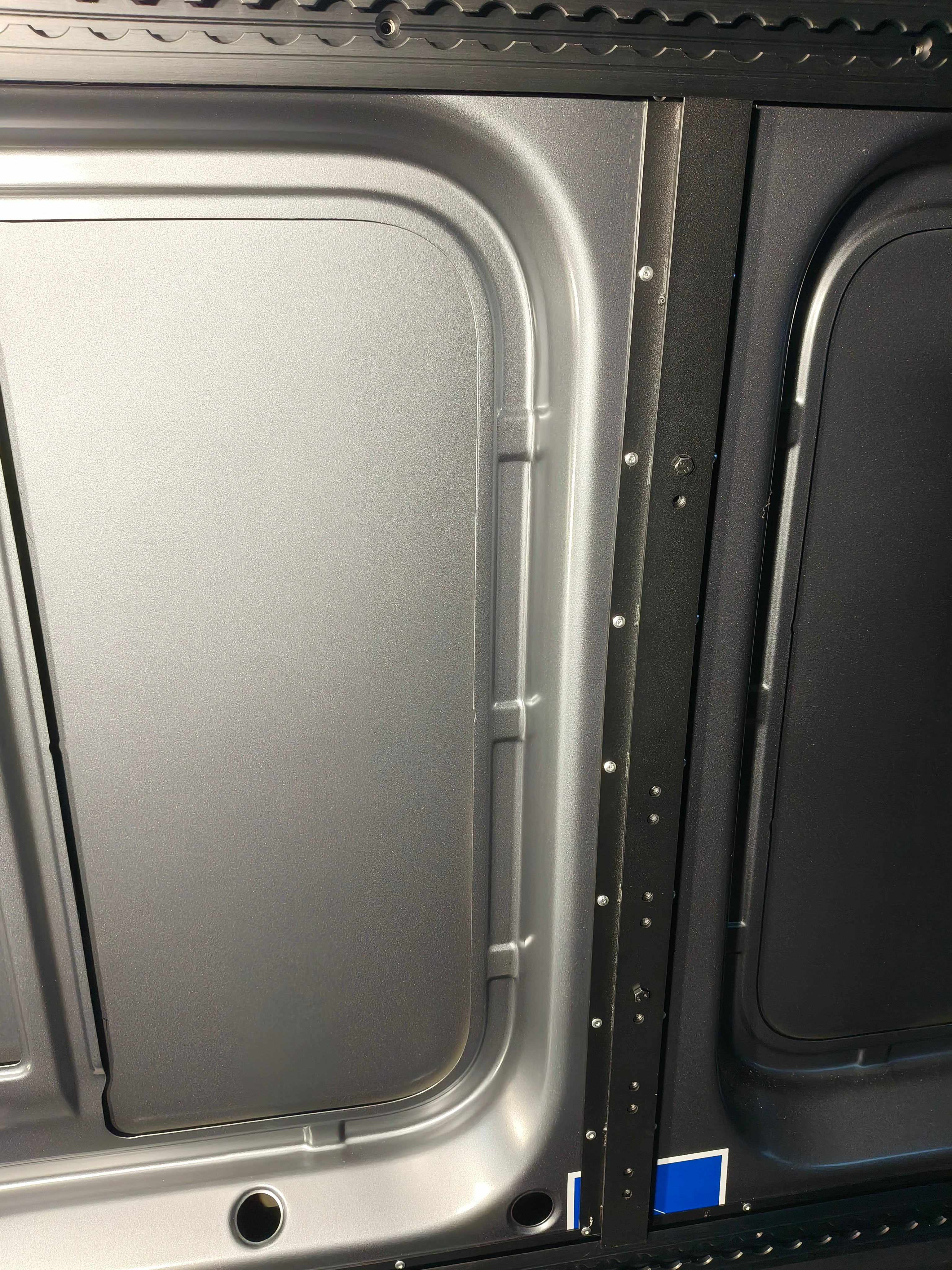

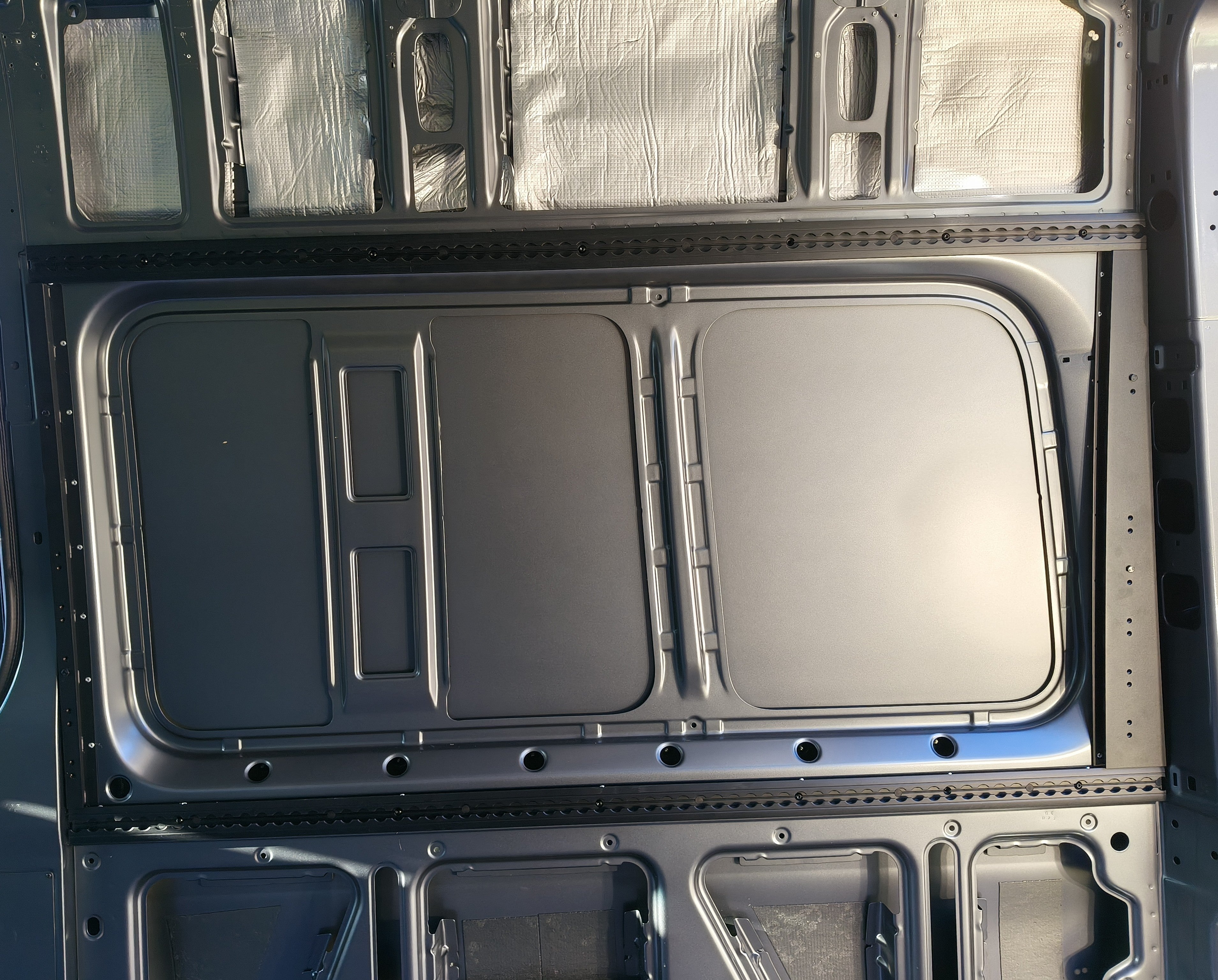

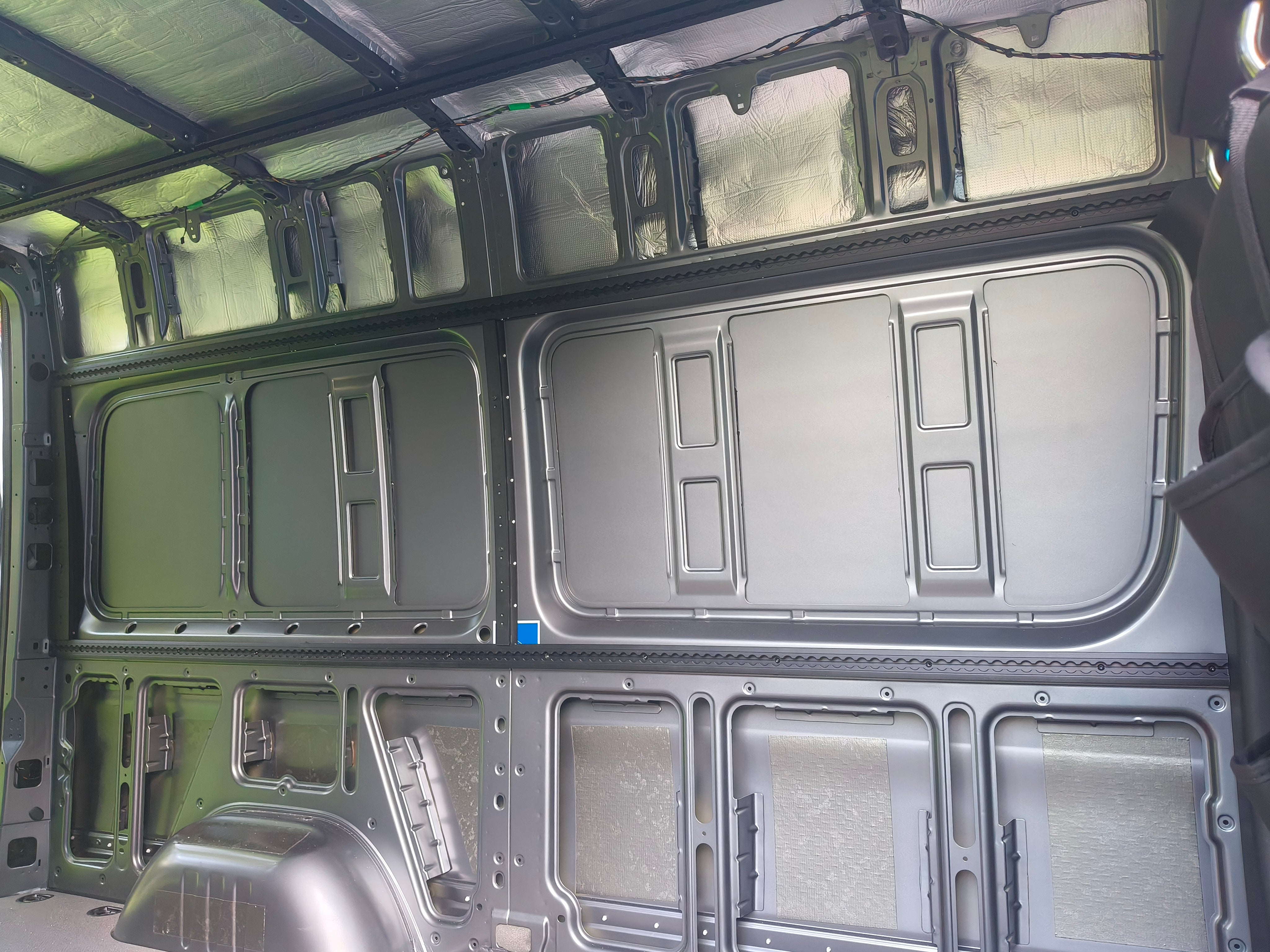

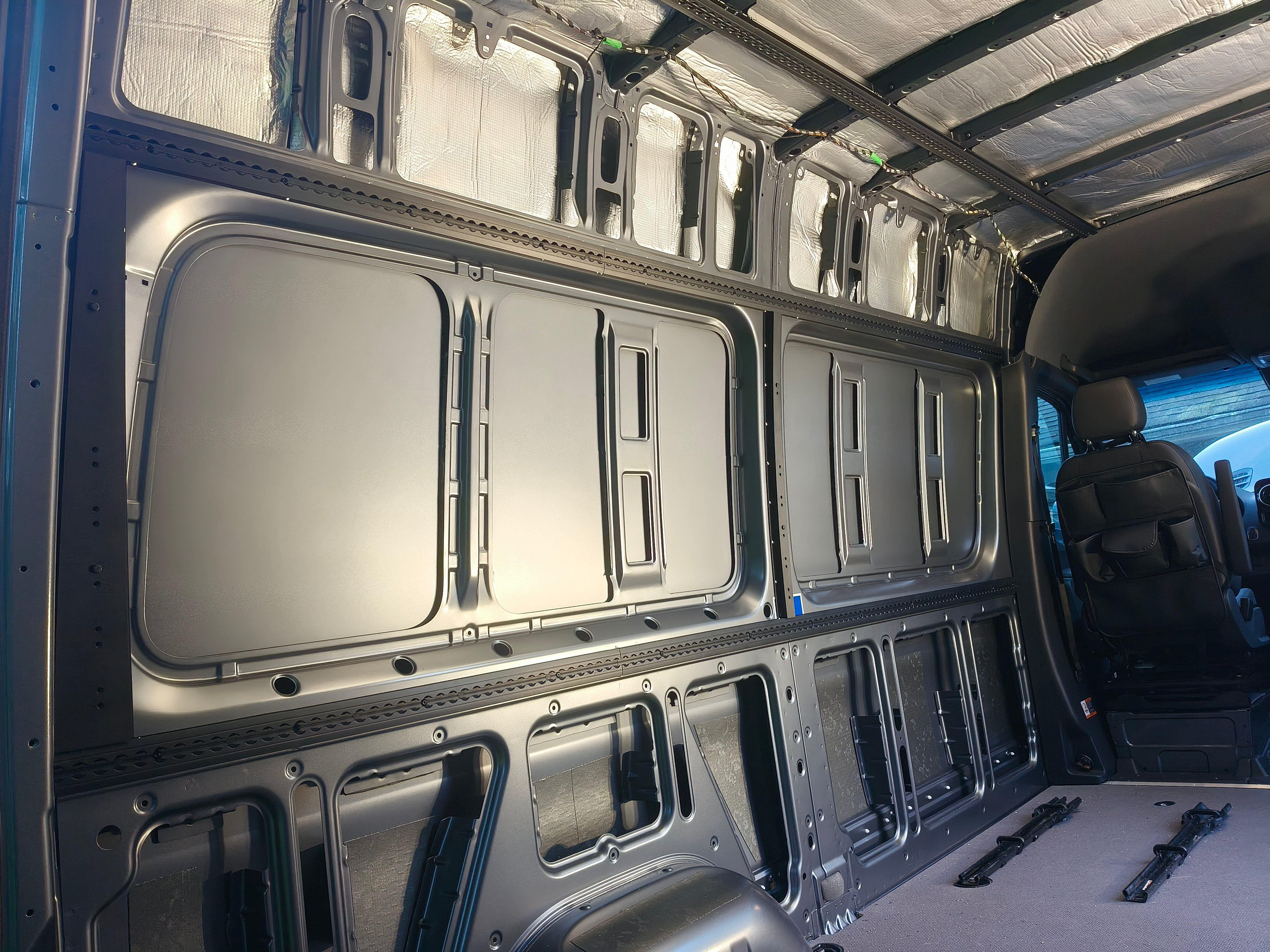

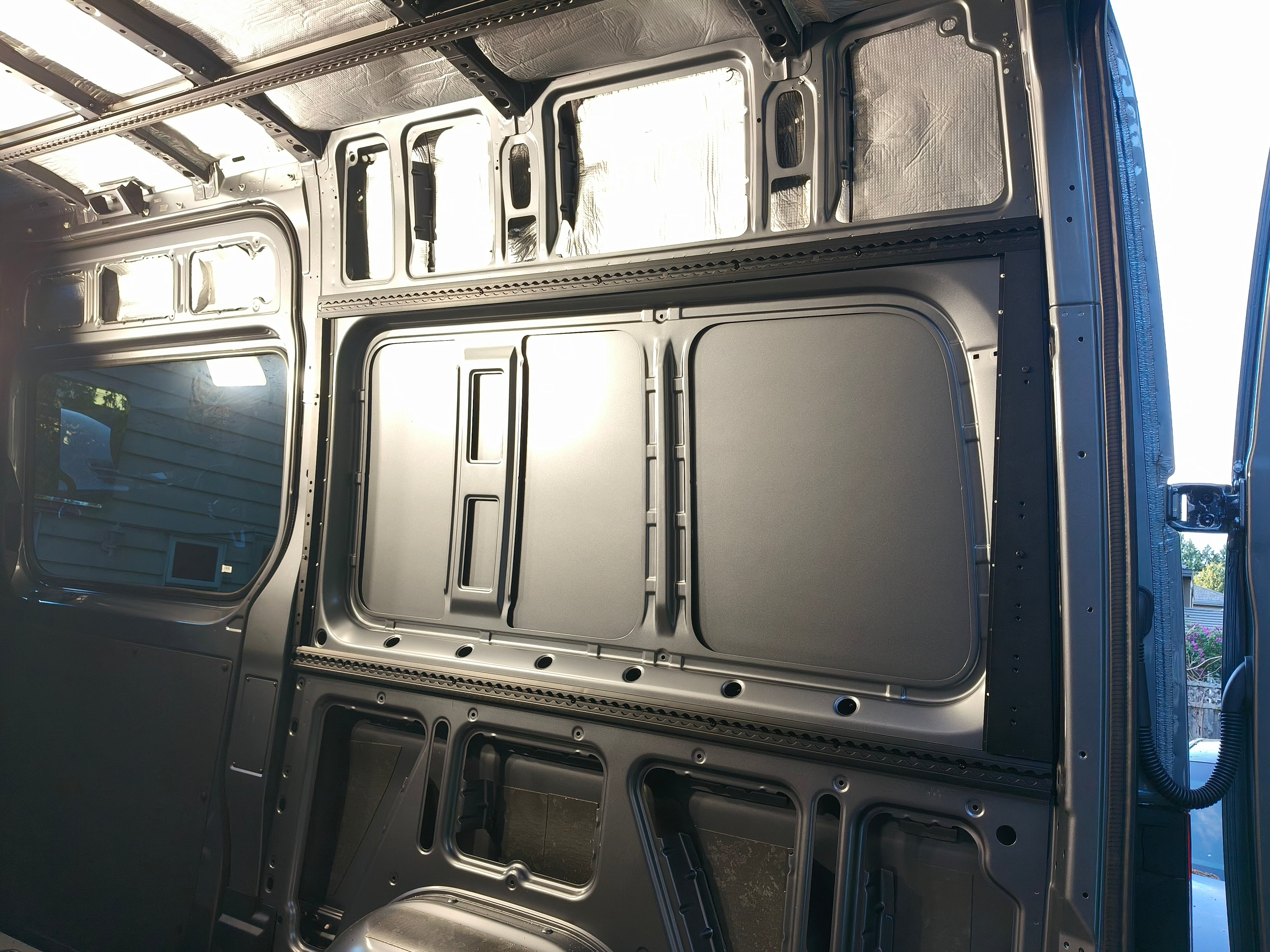

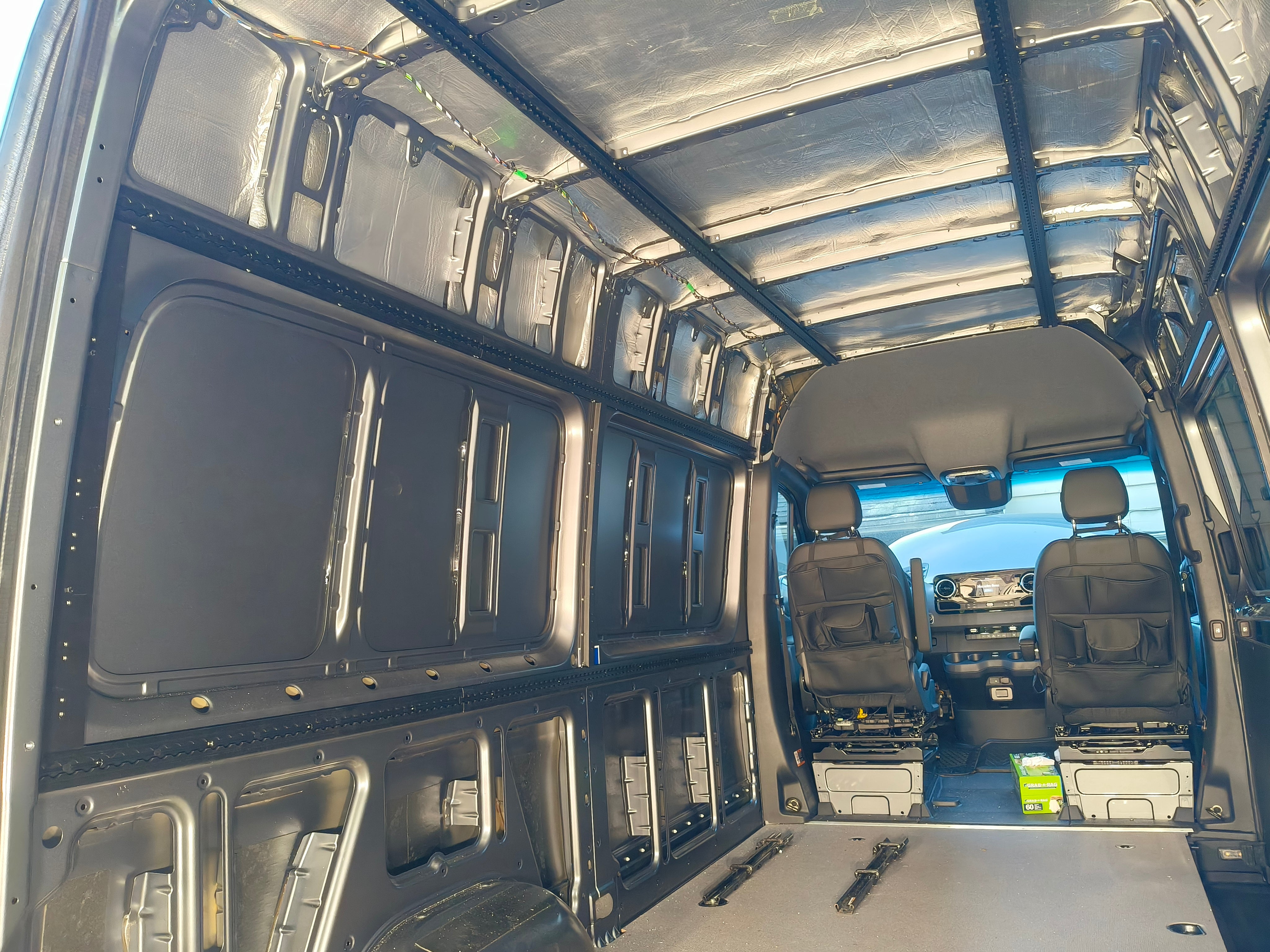

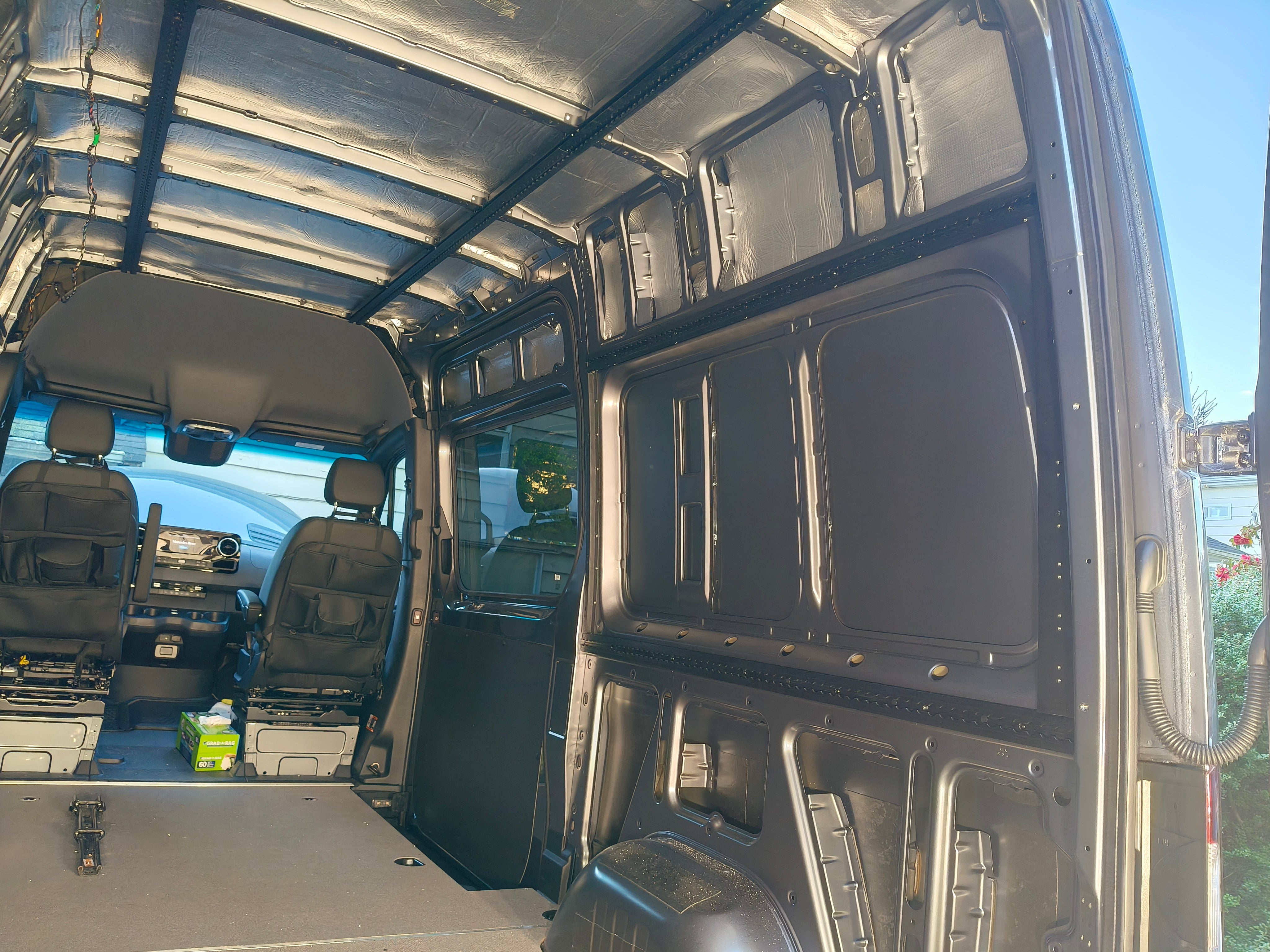

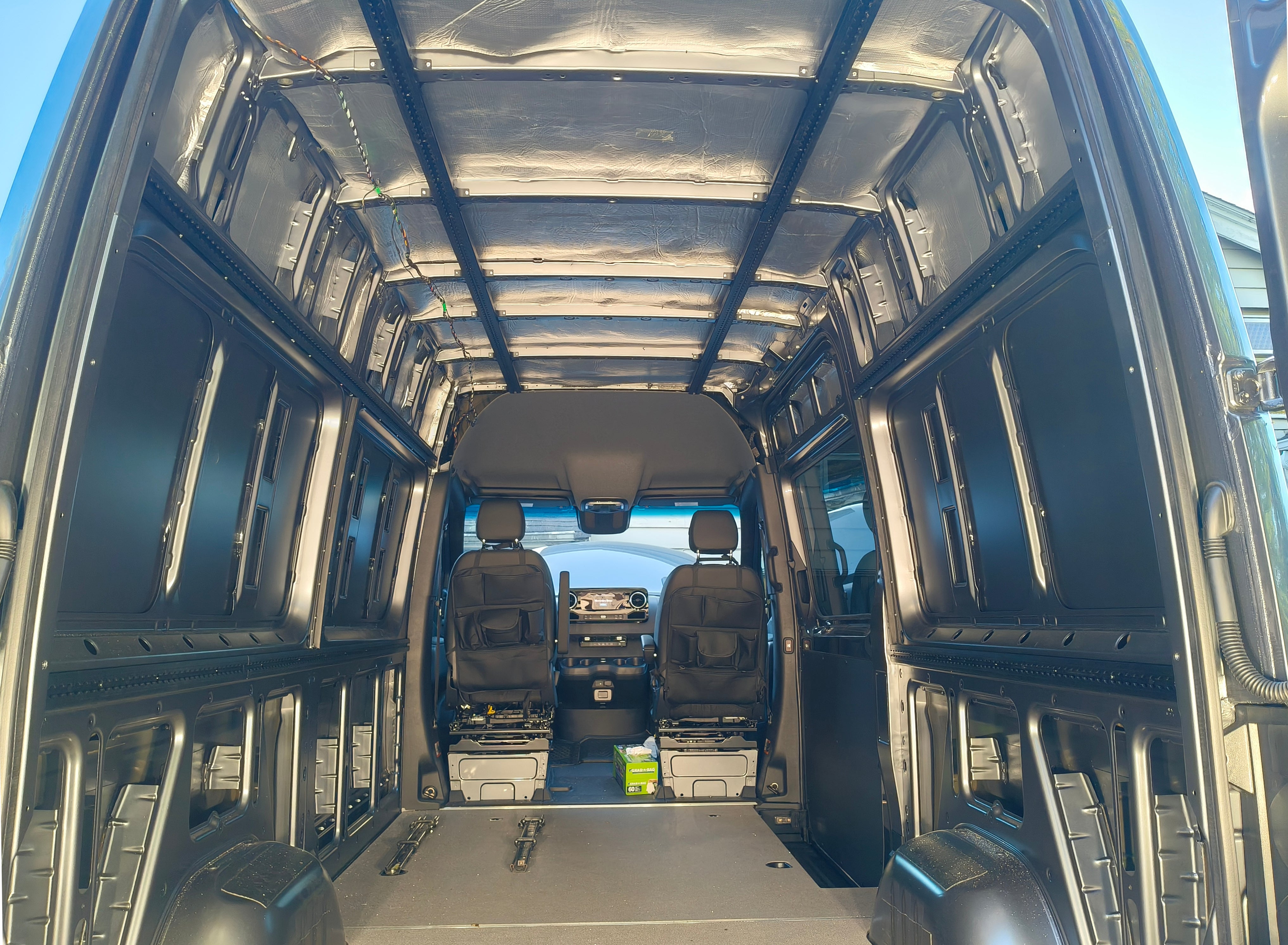

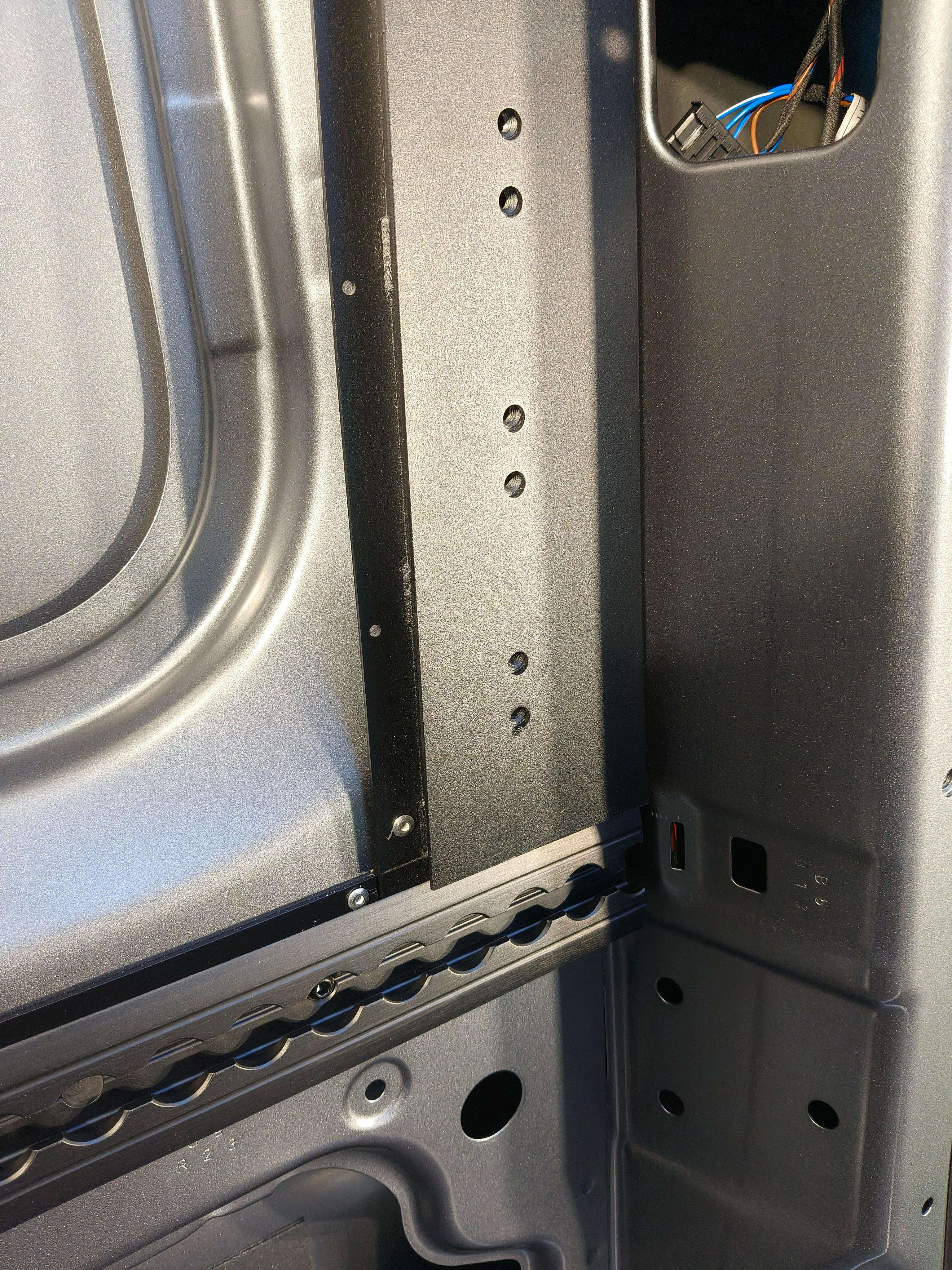

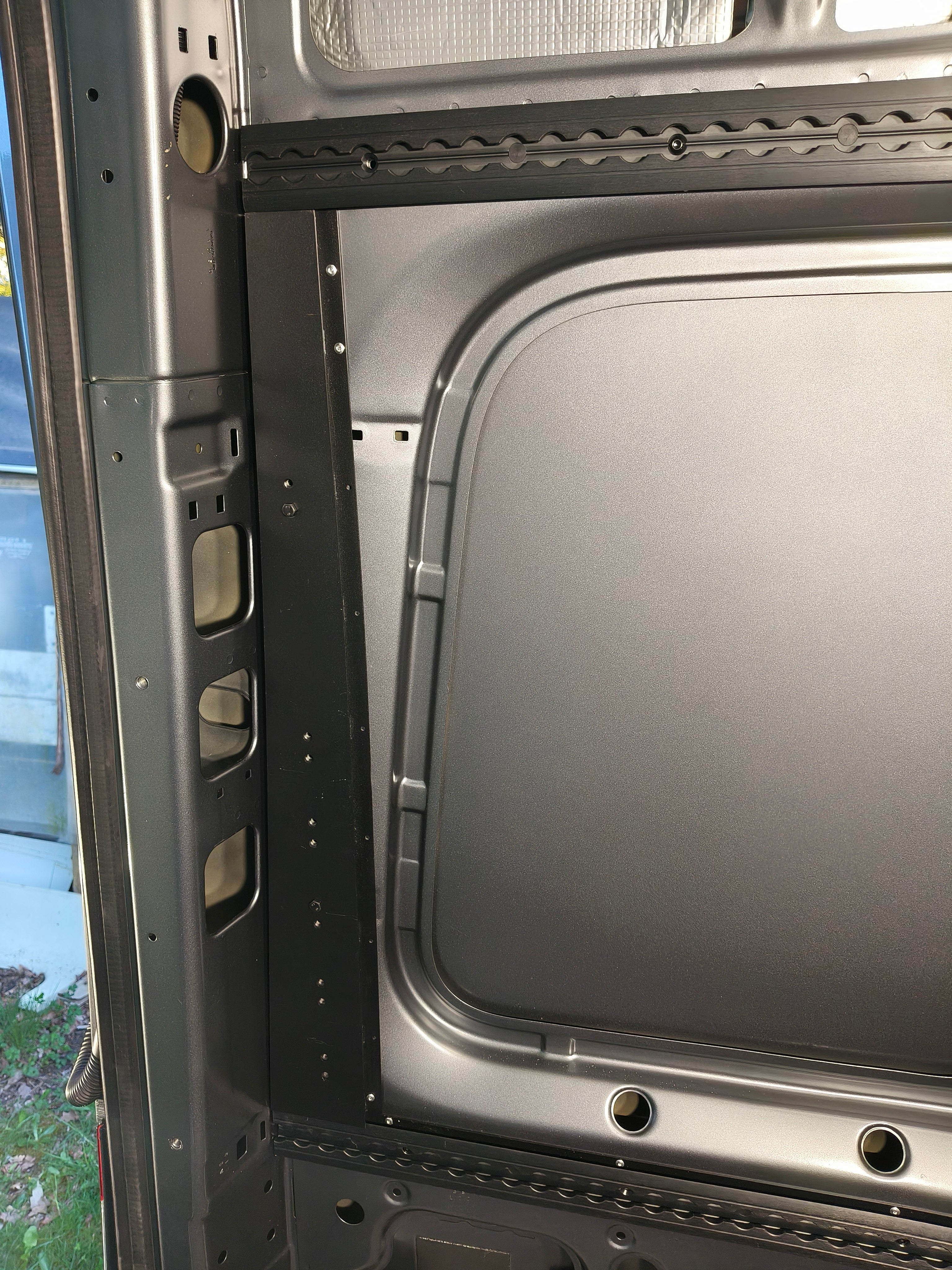

Plates mount to the bare wall first in the labeled order, then the 6.8 mm flanged L-track runs over them and clamps your wall panels as you go. It's designed for one person. Reach out to our team at products@sandyvans.com or (619) 812-1903 for panel cutout dimensions, install questions or a shop install in San Diego.

Mistakes to avoid

  • Ordering for a standard roof or passenger van; it's high roof cargo only
  • Using 1/4 in panels under the flange

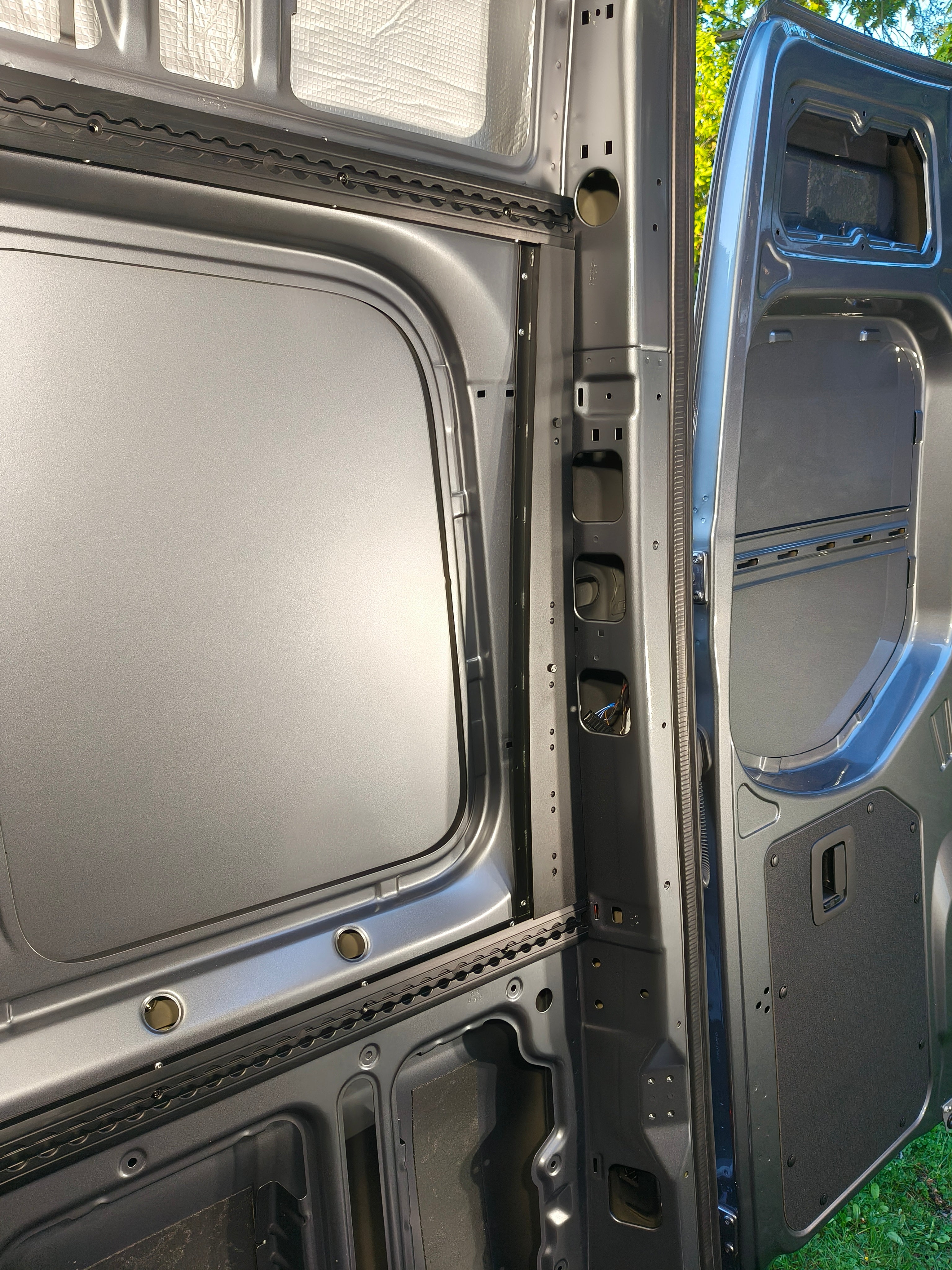

  • Adding track to the vertical frames, which breaks the flush line

Tools You'll Need

  • Drill or impact driver
  • Screws for the L-track
  • Rubber mallet
  • Step ladder

See all Sandy Vans install videos & manuals →

How to choose L-track for your van

1. Flanged or flat

Flanged track has wings that clamp the edges of your wall and ceiling panels, so the track and paneling go in as one system. Flat profiles (squared and rounded) sit on top of the surface.

How to choose: Running 1/2 in or 3/8 in panels? Go flanged. Mounting to a finished wall, the floor or furniture? Go squared or rounded.

2. Load

The 2 mm flanged track carries a 500 lb working load limit. The 6.8 mm flanged, squared and rounded tracks carry 1,000 lb (manufacturer ratings).

How to choose: Beds, overhead cabinets and heavy gear get a 1,000 lb track. Light panels and soft storage are fine on 2 mm.

3. Profile and look

Squared track is 1.18 in (30 mm) wide with a crisp edge. Rounded track is 1.95 in (49.4 mm) wide with tapered sides that blend into the surface. Both come in anodized black or satin silver.

How to choose: Pick squared for a clean, narrow line; rounded where hands, feet or gear will brush past it.

4. What's behind the wall

Every track uses the same 12 hole pattern (8 in on center, 3 1/2 in for the middle pair), which lines up with the steel L-track back framing.

How to choose: Use back framing on any run that carries weight. It spreads the load and replaces rivnuts in thin sheet metal.

5. How many sections

Plan on 84 in sections with two rows of L-track per side. Sprinter 144: 4 driver side, 2 passenger side, 4 ceiling. Sprinter 170: 4, 2, 4. Transit 130: 3, 2, 3. Transit 148 and 148 Extended: 4, 2, 4. Two 84 in tracks cover the length of a 170 Sprinter or 148 Extended Transit; a 144 Sprinter or standard 148 Transit takes one full track plus a half section.

How to choose: Count your rows, then order 2 or 3 packs to match.

Before you order

  • Decide panels first: flanged track needs them, flat track doesn't.
  • Count rows and 84 in sections per wall and ceiling.
  • Order M6 or 1/4-20 flat head screws (not included).
  • Add back framing for load-bearing runs.
  • Pick a finish: black or silver.

How this track stacks up

  • 2mm Flanged L-Track: 2mm Flanged L-Track Flanged, 500 lb, the lightest option for paneled walls and ceilings.
  • 6.8mm BEEFY Flanged L-Track: 6.8mm BEEFY Flanged L-Track Flanged, 1,000 lb, the heavy-duty paneled option and the track used in the side wall kit.
  • High Capacity Squared L-Track: High Capacity Squared L-Track Flat, 1,000 lb, narrow 30 mm profile.
  • High Capacity Rounded L-Track: High Capacity Rounded L-Track Flat, 1,000 lb, wide 49.4 mm profile with tapered sides.
  • L-Track Back Framing: L-Track Back Framing Steel plate behind the wall with built-in threads.
  • Sprinter Side Wall Mounting Plate & L-Track Kit: this page. Complete 2019+ high roof wall system with plates and track.
Does it fit standard roof or passenger Sprinters?
No. The kit is designed only for 2019+ Mercedes Sprinter cargo vans with the high roof.
144 or 170?
Order the variant that matches your wheelbase. For a 170 Extended, reach out to our team before ordering.
Can I put L-track on the vertical frames?
You can, but the manufacturer doesn't recommend it. The vertical frames already have mounting points you can bolt to, and track there sits higher than the plates, so the joint won't look flush.
Can I install wall panels with it?
Yes. The L-track flanges clamp the panel edges. Tec Vanlife can share cutout dimensions after purchase for cutting your own 1/2 in plywood panels.
What panel thickness should I use?
1/2 in or 3/8 in panels. 3/8 in is the best alternative to 1/2 in because it closely matches the flange's 0.36 in clearance and sits snug against the sheet metal. 1/4 in panels are too thin to fill the space under the flange.
What L-track is included?
The 6.8 mm flanged L-track, the same as our 6.8mm BEEFY Flanged L-Track.
How does shipping work on this item?
This item ships direct from the manufacturer, Tec Vanlife. Shipping is calculated at checkout for your address and may arrive separately from other items in your order.
Do you install products for customers?
Yes. Many SV products can be professionally installed at our San Diego shop. Reach out to our team to schedule. Email products@sandyvans.com or call 619-812-1903.
What is your shipping and return policy?
Most SV products ship free. For returns, see our Returns & Refunds policy or reach out to our team at products@sandyvans.com.
Can I reach a real person with questions?
Always. We are a small team in San Diego. Email products@sandyvans.com or call 619-812-1903 and you'll get a real answer, not a chatbot.
Where are you located?
9393 Trade Pl, San Diego, CA. Come visit the shop, we'd love to show you around.
Does Sandy Vans offer financing?
Yes. Many financing options are available. Set up a call with a sales associate to learn more.
