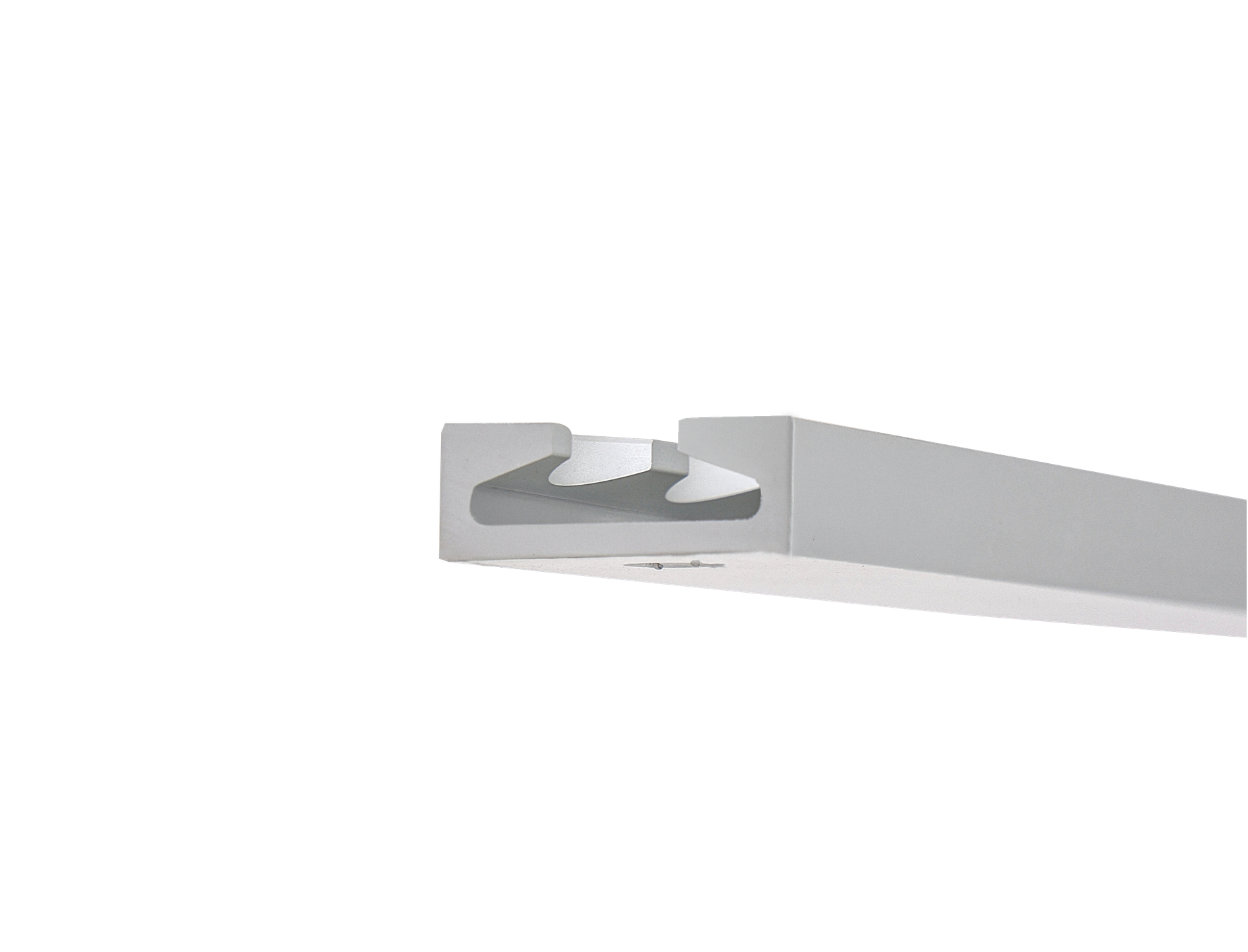

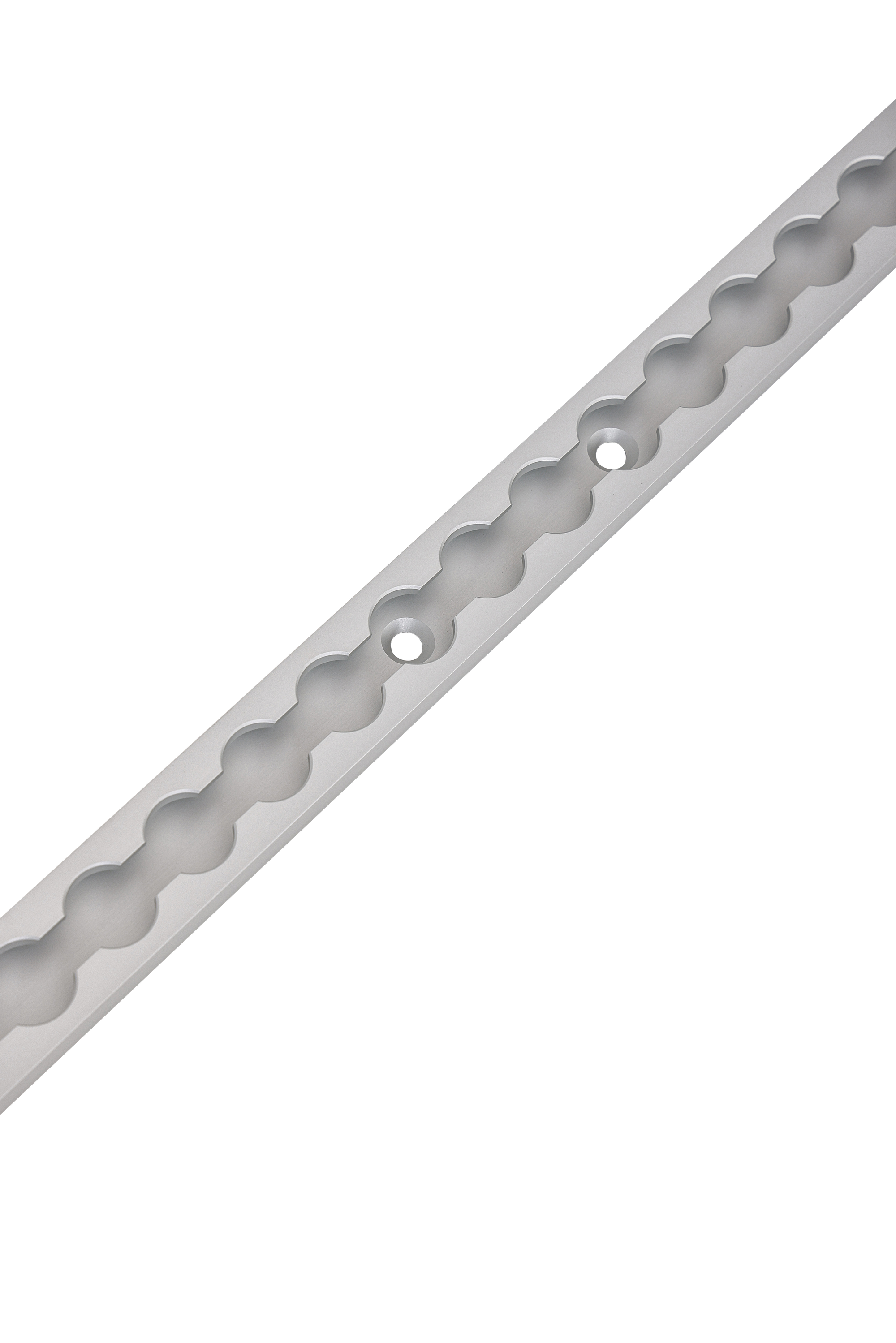

Top view of satin silver squared L-track

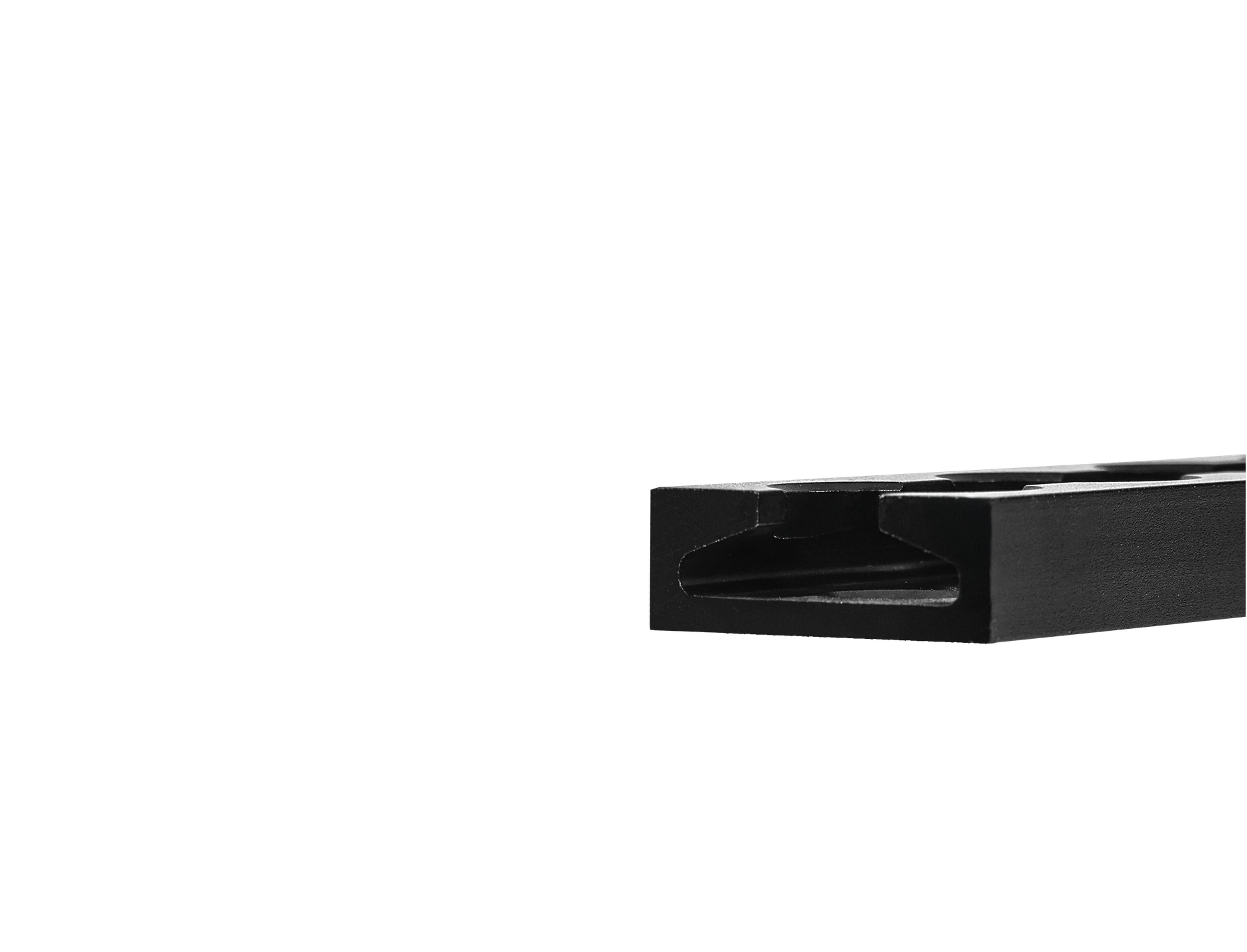

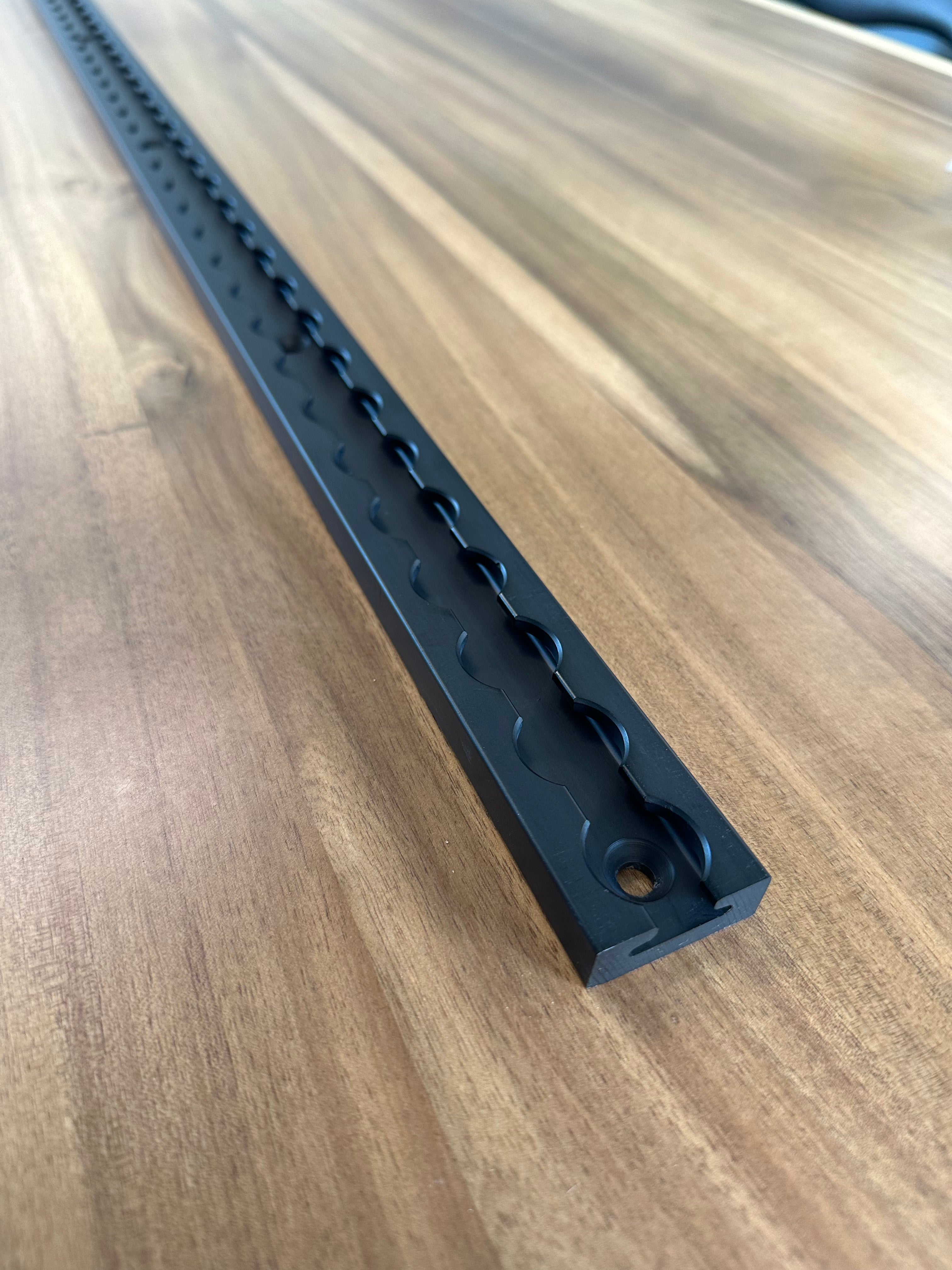

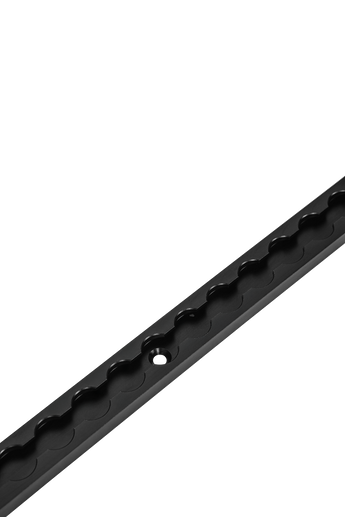

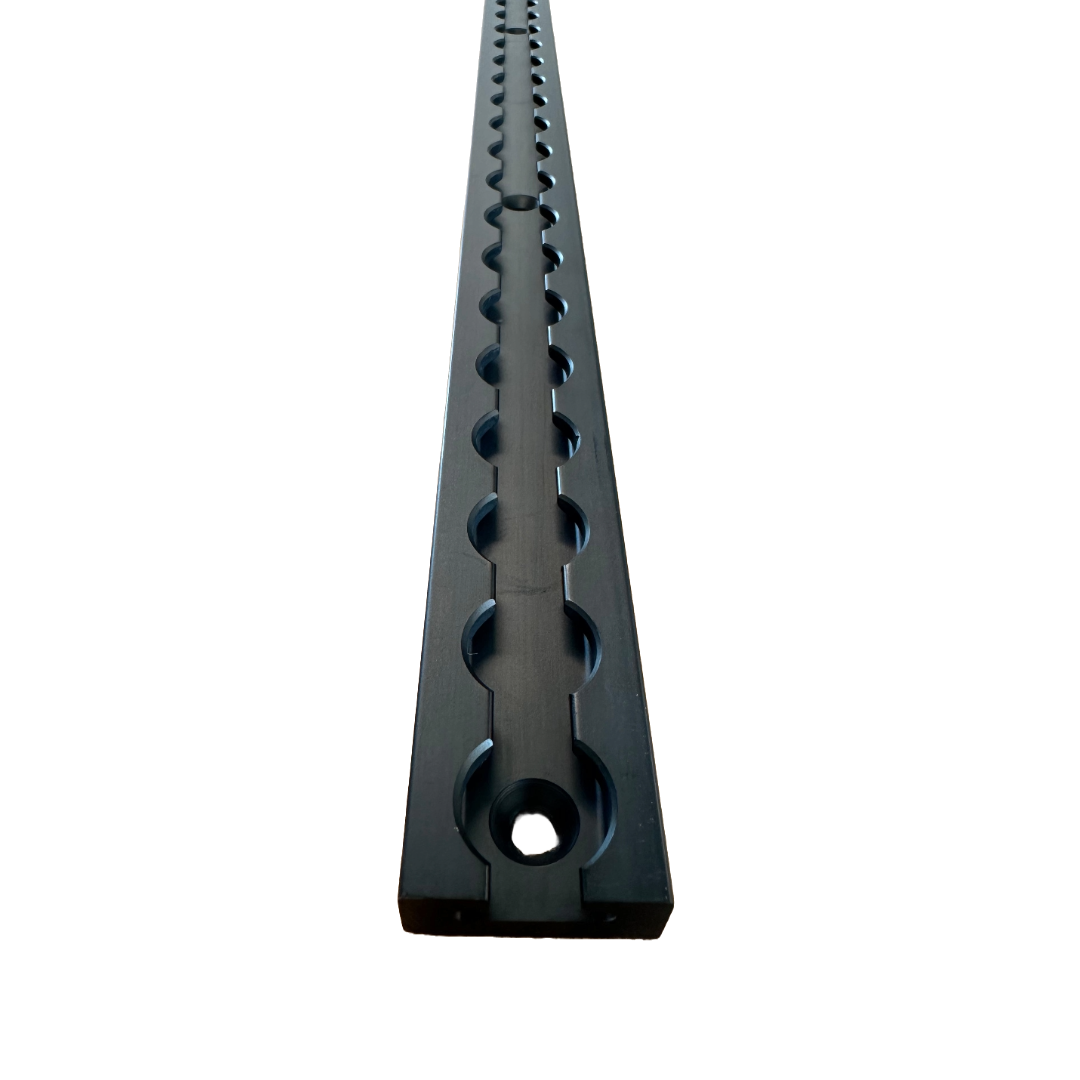

Black squared L-track section with mounting hole

Tec Vanlife USA

High Capacity Squared L Track

~~$159.00~~ $134.40 Save 15%

Shop 5.0 Shop rating (174) on Google

Own this? Write the first review

Color: Anodized Black

Anodized Black Satin Silver

Product variants

Narrow, strong and clean on any surface.

This flat L-track sits on top of the surface with a crisp 30 mm profile and a 1,000 lb working load. Mount it to walls, ceilings, floors or furniture anywhere you want tie-down points.

Fits: Universal, any van (walls, ceilings or floor subframes; laid out for Sprinter and Transit runs). Not included: mounting screws.

1000 lb working load limit (manufacturer rating)
2.8 mm (7/64 in) channel in high strength anodized aluminum

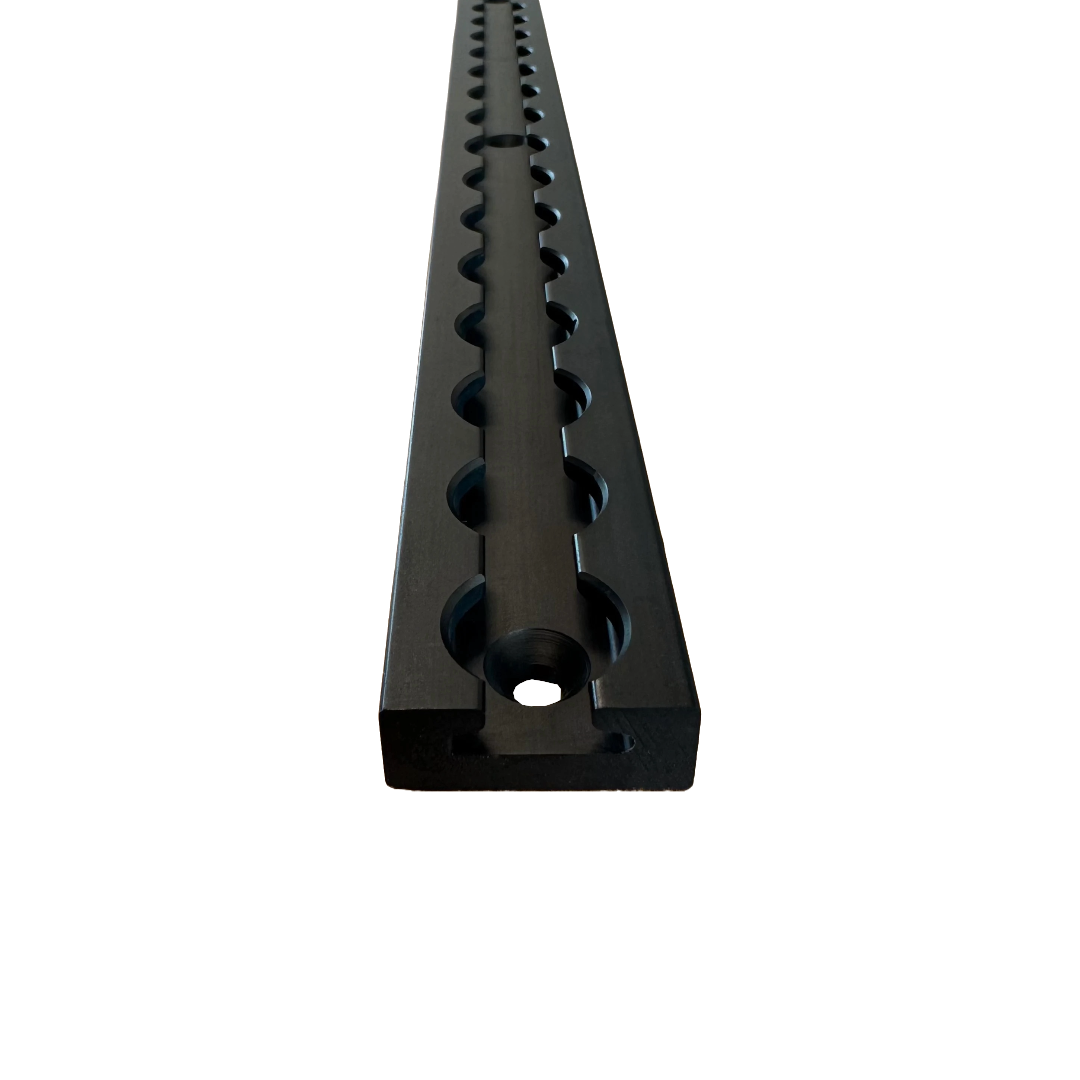

84 in (2133 mm) sections with 12 countersunk mounting holes
Fits all standard single and double stud L-track fittings
Narrow 30 mm profile

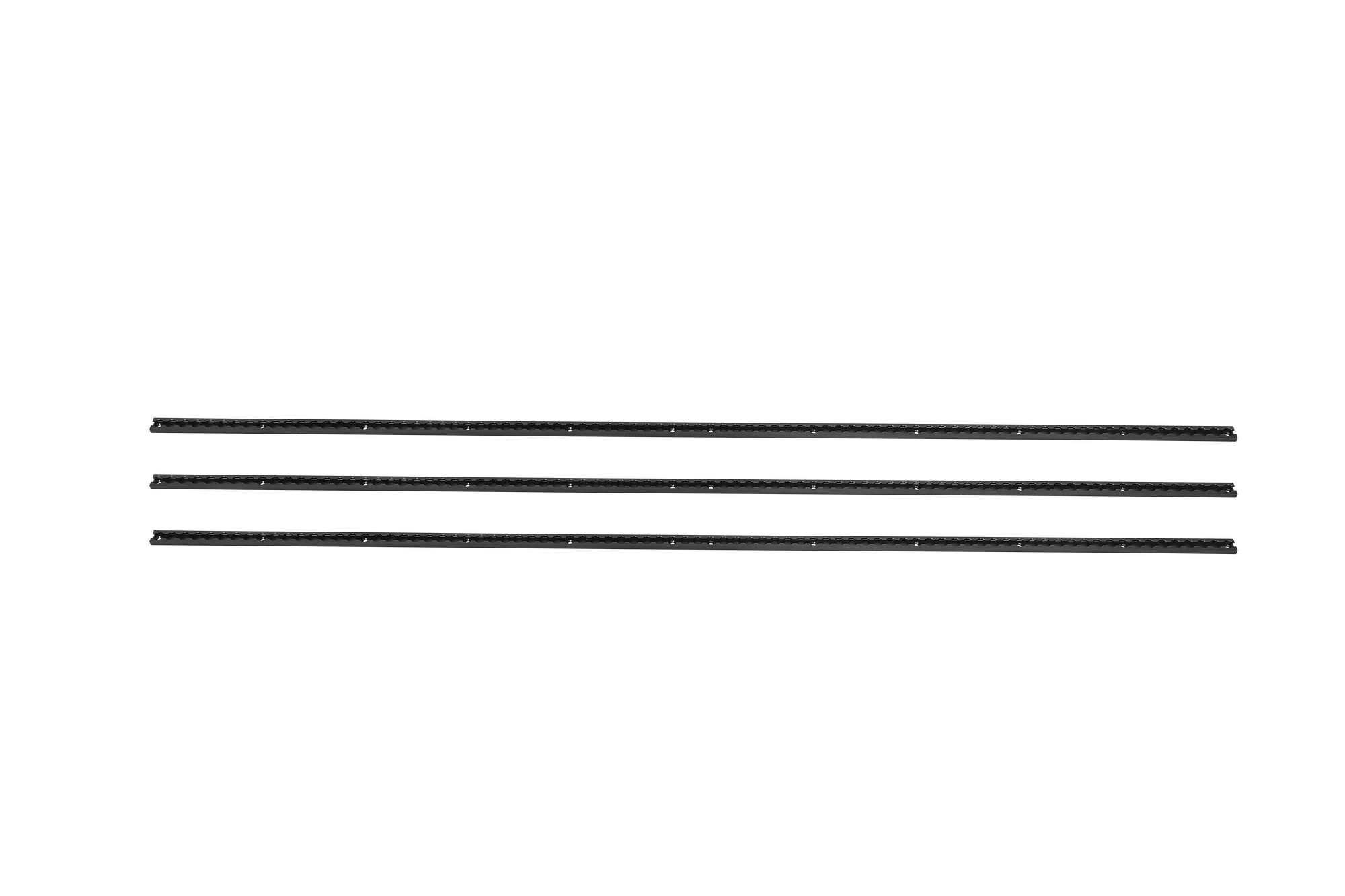

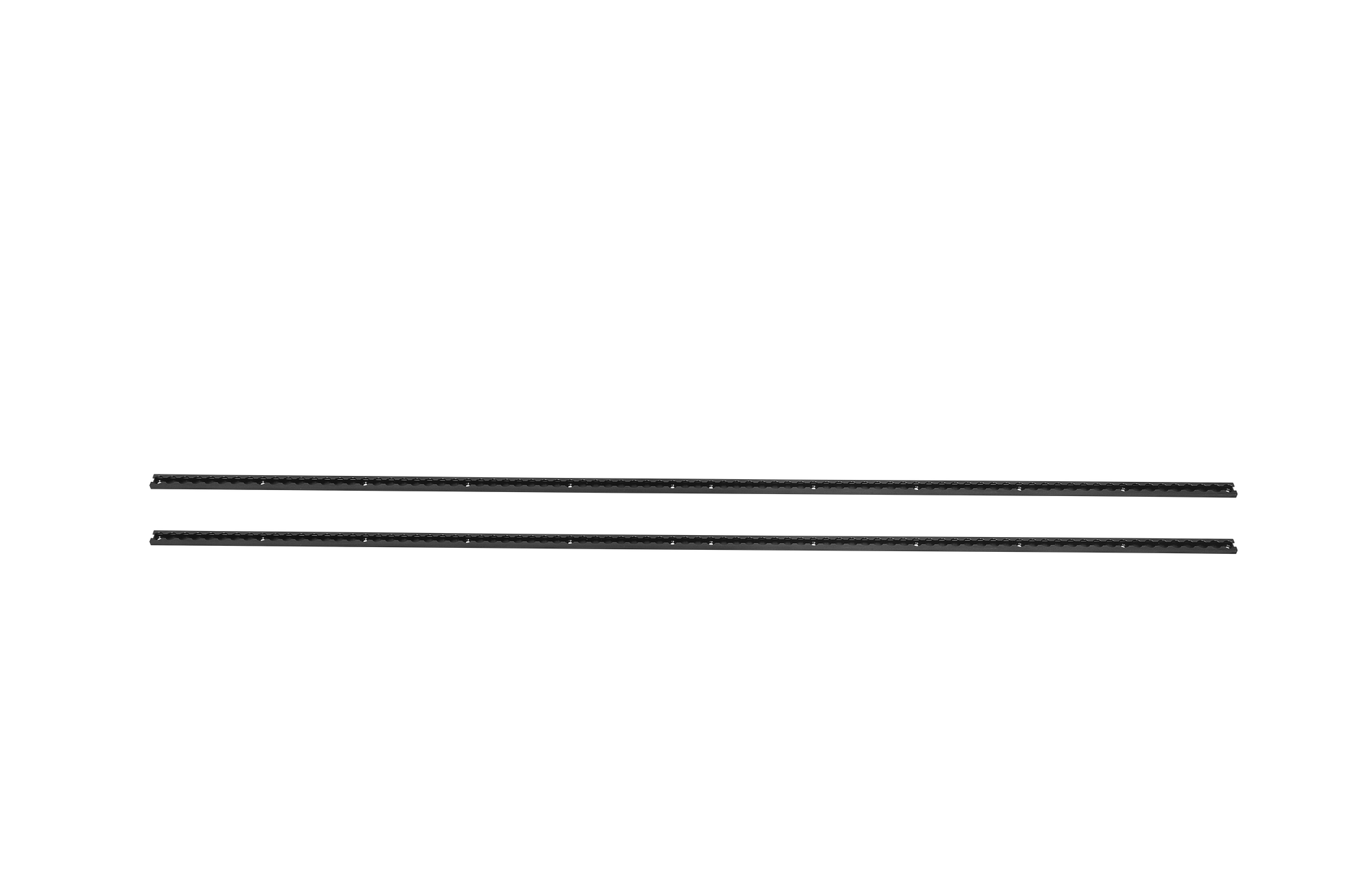

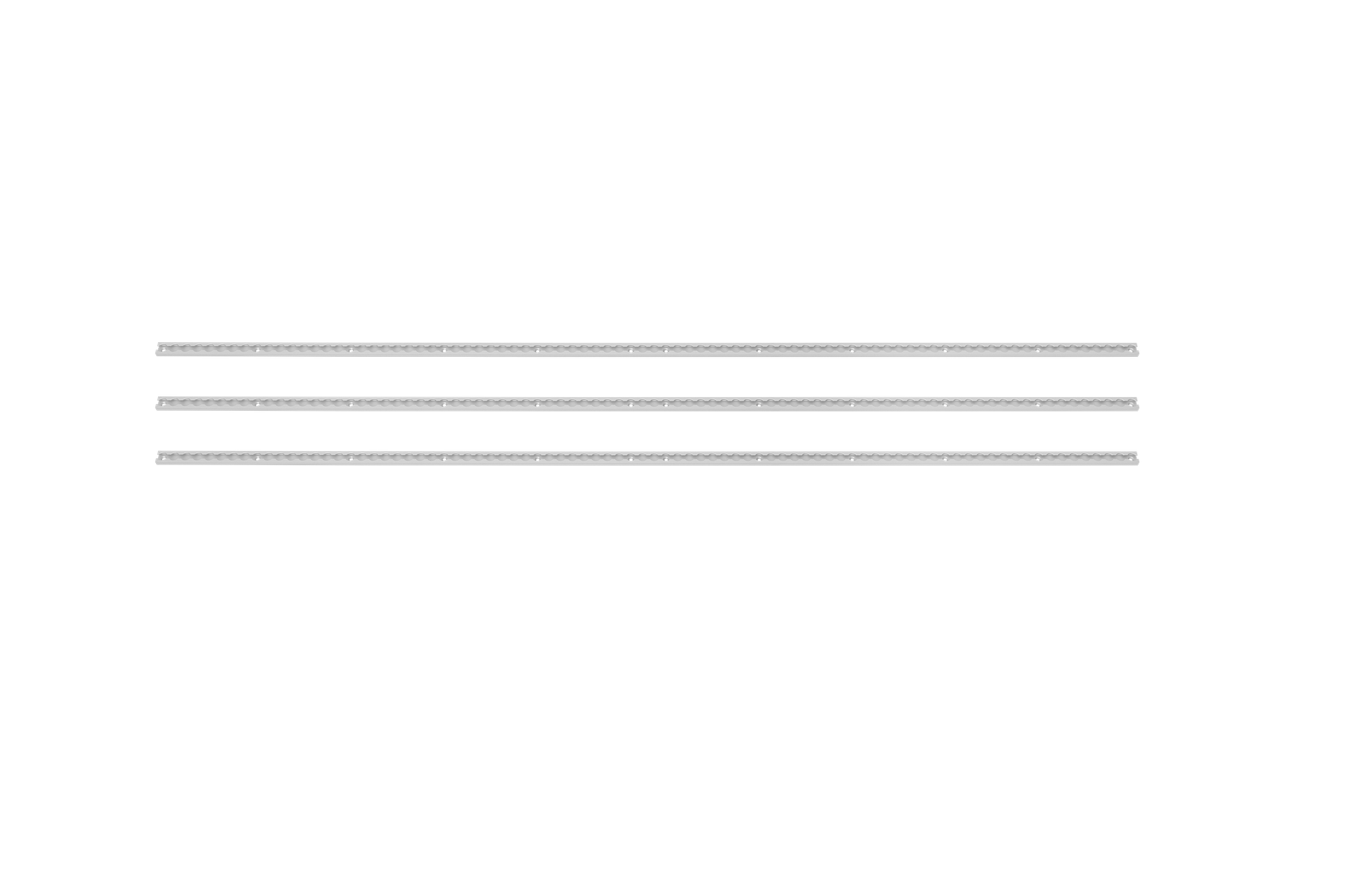

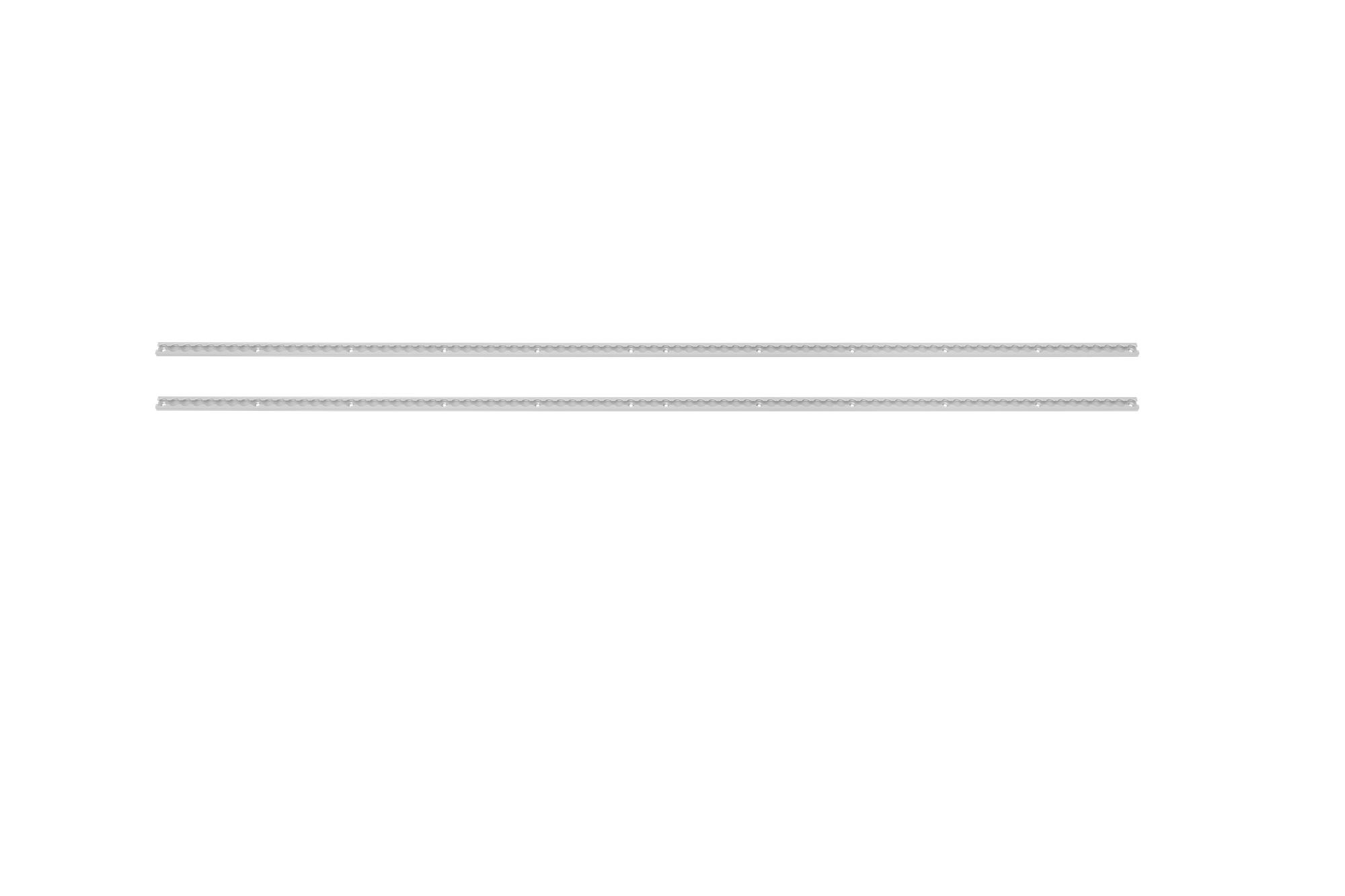

Choose your variant: 2 pack or 3 pack of 84 in sections, in anodized black or satin silver.

Pair it with the L-Track Back Framing behind the wall and our L-Track O-Ring Stud Fitting for tie-down points.

See it on your van. Add the High Capacity Squared L Track to your build in our 3D Van Builder and preview it on a real Sprinter before you buy.

Product Details

Why the High Capacity Squared L-Track

No flange means this track mounts to any finished surface: a paneled wall, cabinet face, floor or bed platform.

The squared profile keeps a tight, narrow line while the 2.8 mm channel carries a 1,000 lb working load.

What you get

2 or 3 L-track sections, 84 in each, depending on the pack

Good to know

Mounting screws are not included.
Cut sections to length for shorter runs.
Built by Tec Vanlife. Questions on layout? Reach out to our team at products@sandyvans.com or (619) 812-1903.

Fitment & Compatibility

Fits: Universal, any van (laid out for Mercedes Sprinter and Ford Transit)

Not sure your build qualifies? Reach out to our team.

Specifications

Material	High strength aluminum, anodized
Profile	Flat, no flange
Channel	2.8 mm (7/64 in) channel
Working load limit	1000 lb (manufacturer rating)
Length	84 in (2133 mm) per section

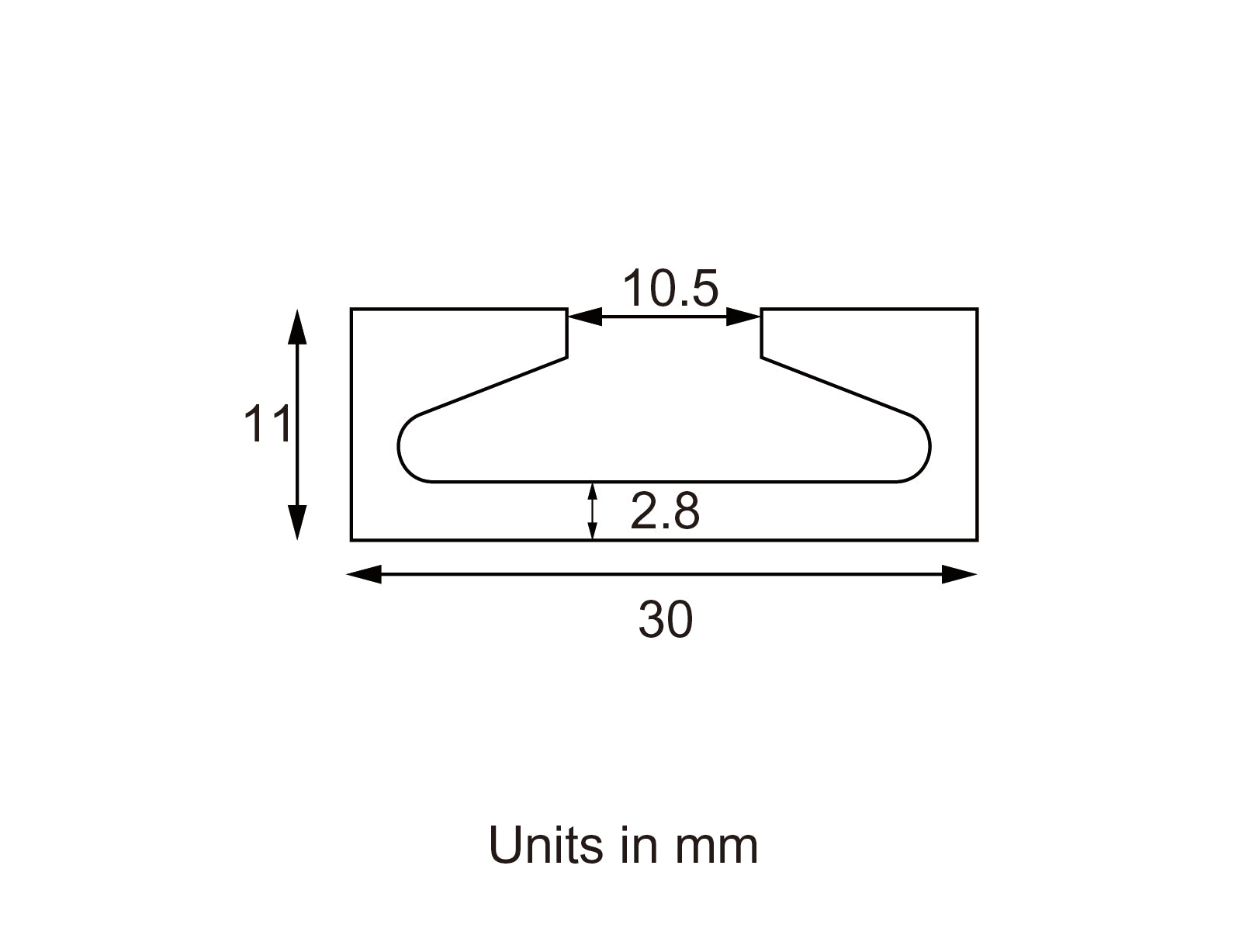

Width	1.18 in (30 mm)
Height	0.43 in (11 mm)
Mounting holes	12, outer six 8 in on center, middle two 3 1/2 in on center
Screws	M6 or 1/4-20 flat head, 90 degree countersink (not included)
Finish	Anodized black or satin silver
Packs	2 pack or 3 pack
Fitment	Universal, any van

What's in the Box

L-track sections, 84 in (2 or 3 per pack)

DIY FriendlyIntermediate

Drilling RequiredDepends on your build

L-track mounts through its 12 countersunk holes into back framing or rivnuts in the van's sheet metal. Tec Vanlife doesn't publish a separate manual for the track, so use the steps below. Reach out to our team at products@sandyvans.com or (619) 812-1903 with layout questions, or ask about a shop install in San Diego.

Mistakes to avoid

Hanging beds or cabinets on rivnuts alone; add back framing
Forgetting to order screws; they're not in the box

Tools You'll Need

Drill or impact driver
M6 or 1/4-20 flat head screws
Rivet tool (for back framing or rivnuts)
Saw with a non-ferrous blade for cutting to length
Tape measure and level

See all Sandy Vans install videos & manuals →

How to choose L-track for your van

1. Flanged or flat

Flanged track has wings that clamp the edges of your wall and ceiling panels, so the track and paneling go in as one system. Flat profiles (squared and rounded) sit on top of the surface.

How to choose: Running 1/2 in or 3/8 in panels? Go flanged. Mounting to a finished wall, the floor or furniture? Go squared or rounded.

2. Load

The 2 mm flanged track carries a 500 lb working load limit. The 6.8 mm flanged, squared and rounded tracks carry 1,000 lb (manufacturer ratings).

How to choose: Beds, overhead cabinets and heavy gear get a 1,000 lb track. Light panels and soft storage are fine on 2 mm.

3. Profile and look

Squared track is 1.18 in (30 mm) wide with a crisp edge. Rounded track is 1.95 in (49.4 mm) wide with tapered sides that blend into the surface. Both come in anodized black or satin silver.

How to choose: Pick squared for a clean, narrow line; rounded where hands, feet or gear will brush past it.

4. What's behind the wall

Every track uses the same 12 hole pattern (8 in on center, 3 1/2 in for the middle pair), which lines up with the steel L-track back framing.

How to choose: Use back framing on any run that carries weight. It spreads the load and replaces rivnuts in thin sheet metal.

5. How many sections

Plan on 84 in sections with two rows of L-track per side. Sprinter 144: 4 driver side, 2 passenger side, 4 ceiling. Sprinter 170: 4, 2, 4. Transit 130: 3, 2, 3. Transit 148 and 148 Extended: 4, 2, 4. Two 84 in tracks cover the length of a 170 Sprinter or 148 Extended Transit; a 144 Sprinter or standard 148 Transit takes one full track plus a half section.

How to choose: Count your rows, then order 2 or 3 packs to match.

Before you order

Decide panels first: flanged track needs them, flat track doesn't.
Count rows and 84 in sections per wall and ceiling.
Order M6 or 1/4-20 flat head screws (not included).
Add back framing for load-bearing runs.
Pick a finish: black or silver.

How this track stacks up

2mm Flanged L-Track: 2mm Flanged L-Track Flanged, 500 lb, the lightest option for paneled walls and ceilings.
6.8mm BEEFY Flanged L-Track: 6.8mm BEEFY Flanged L-Track Flanged, 1,000 lb, the heavy-duty paneled option and the track used in the side wall kit.
High Capacity Squared L-Track: this page. Flat, 1,000 lb, narrow 30 mm profile.
High Capacity Rounded L-Track: High Capacity Rounded L-Track Flat, 1,000 lb, wide 49.4 mm profile with tapered sides.
L-Track Back Framing: L-Track Back Framing Steel plate behind the wall with built-in threads.
Sprinter Side Wall Mounting Plate & L-Track Kit: Sprinter Side Wall Mounting Plate & L-Track Kit Complete 2019+ high roof wall system with plates and track.

Will this L-track fit my van?

Yes. It's a universal track that mounts to any van wall, ceiling or floor subframe. The 84 in length and hole spacing were laid out for Mercedes Sprinter and Ford Transit runs.

How many tracks do I need?

Do I need the L-track back framing?

Not required, but recommended. The back framing has the threaded nuts built in and lines up with the track's 12 hole pattern, so you skip setting rivnuts in the van's sheet metal, where a rivnut can spin or fail to set.

What screws do I need?

M6 socket flat head (metric) or 1/4-20 flat head screws with a 90 degree countersink. Screws are not included.

What fittings work with it?

Any standard single or double stud L-track fitting, including our L-Track O-Ring Stud Fitting for straps, bungees and carabiners.

Black or silver, 2 pack or 3 pack?

Finish is a style choice; both are anodized for corrosion resistance. 2 pack or 3 pack of 84 in sections, in anodized black or satin silver.

How does shipping work on this item?

This item ships direct from the manufacturer, Tec Vanlife. Shipping is calculated at checkout for your address and may arrive separately from other items in your order.

Do you install products for customers?

Yes. Many SV products can be professionally installed at our San Diego shop. Reach out to our team to schedule. Email products@sandyvans.com or call 619-812-1903.

What is your shipping and return policy?

Most SV products ship free. For returns, see our Returns & Refunds policy or reach out to our team at products@sandyvans.com.

Can I reach a real person with questions?

Always. We are a small team in San Diego. Email products@sandyvans.com or call 619-812-1903 and you'll get a real answer, not a chatbot.
