L Track Back Framing
Solid threads behind the wall, no spinning rivnuts.

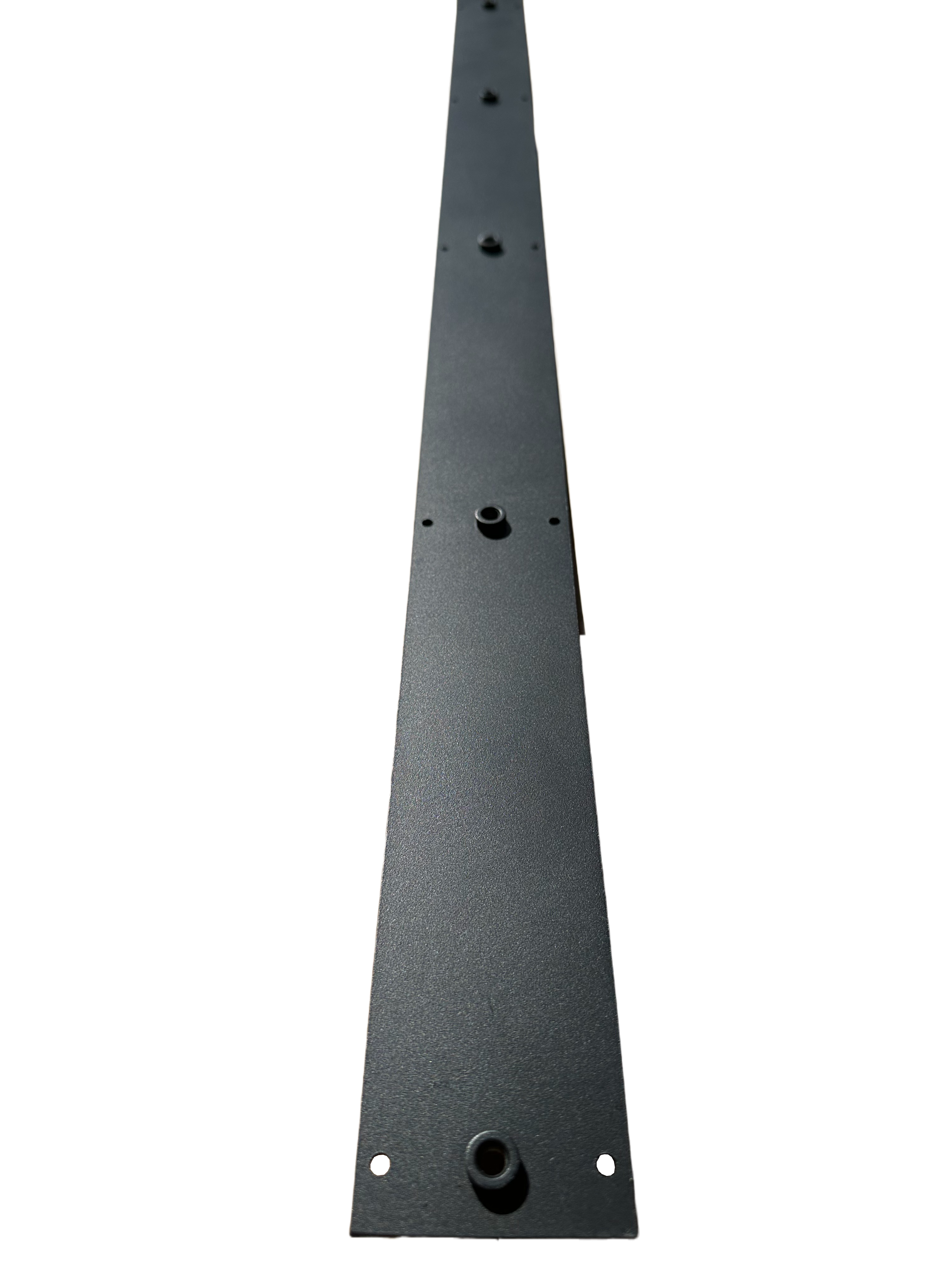

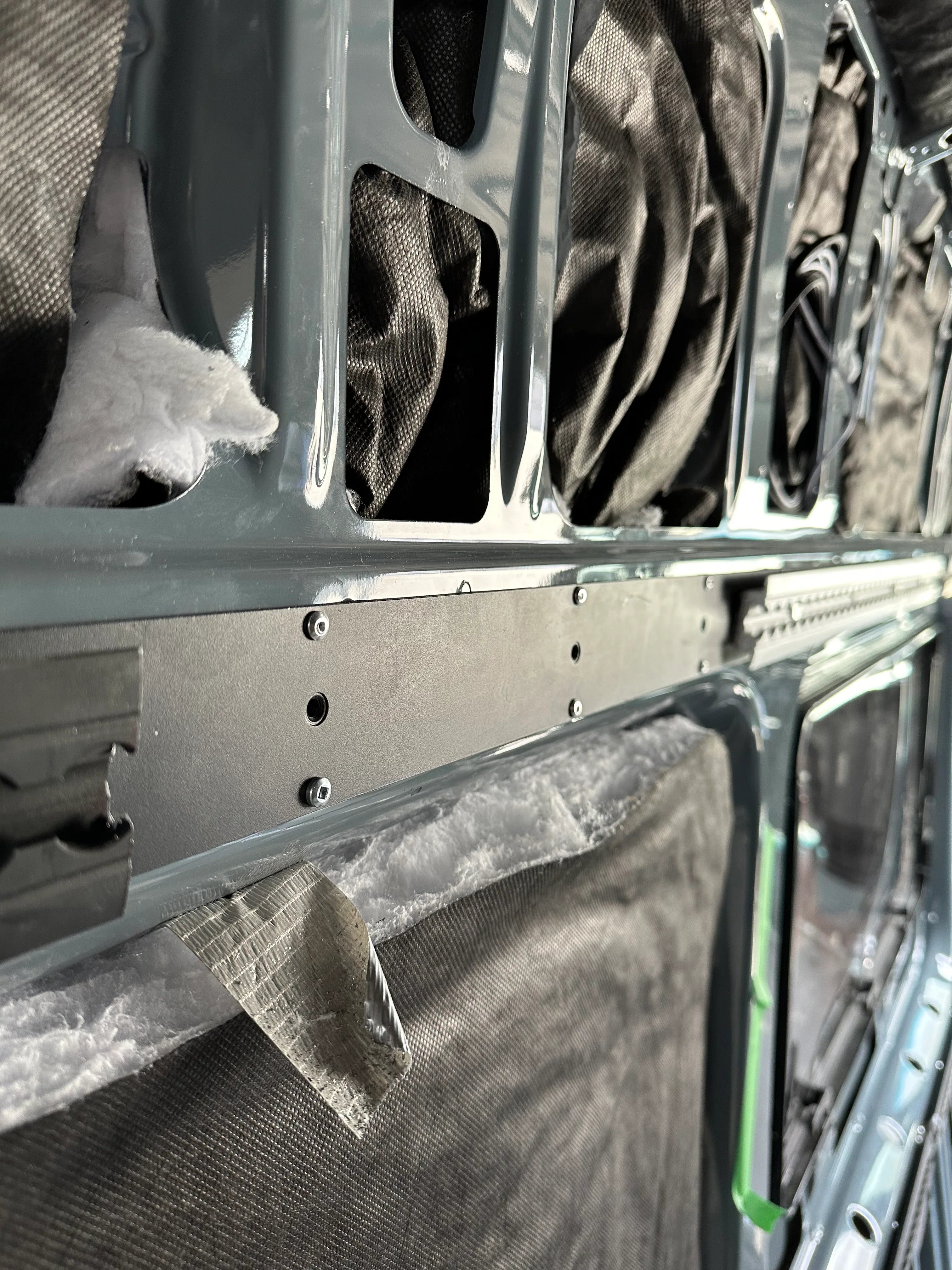

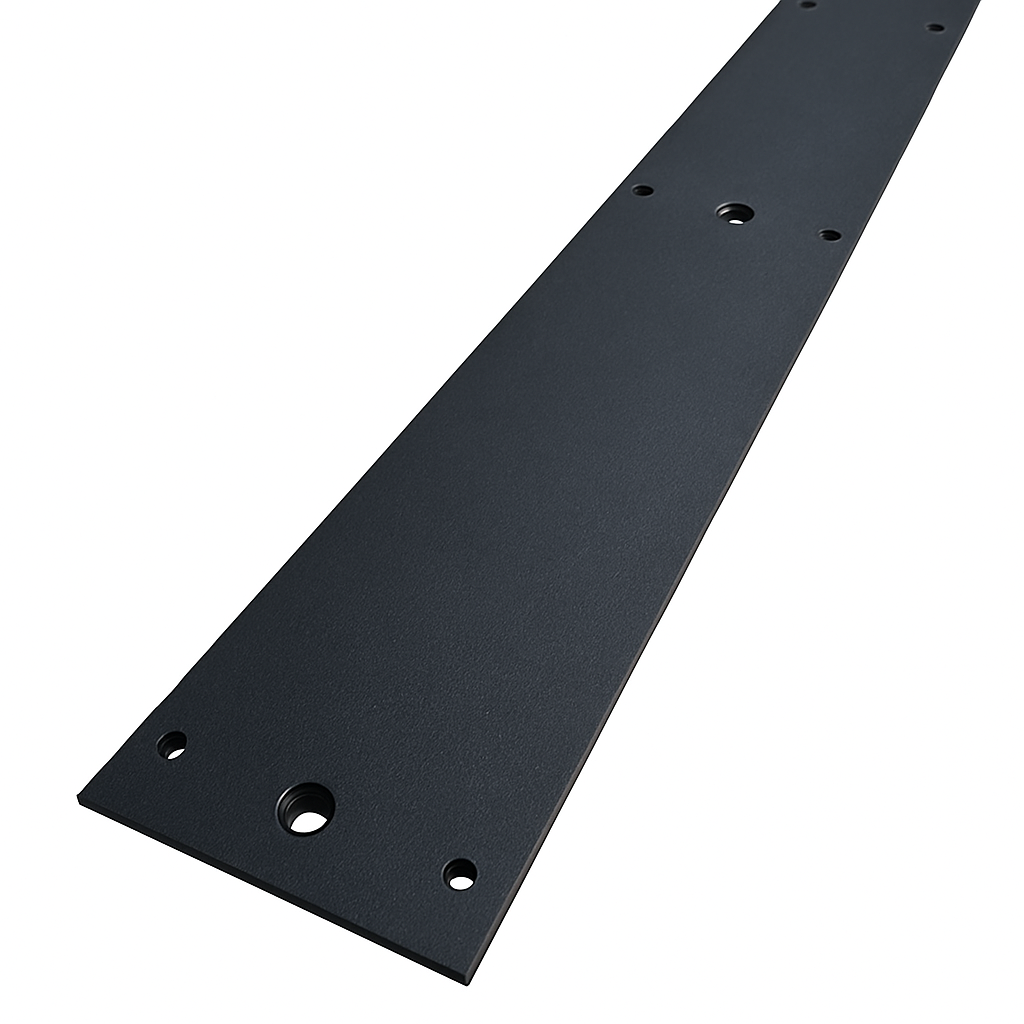

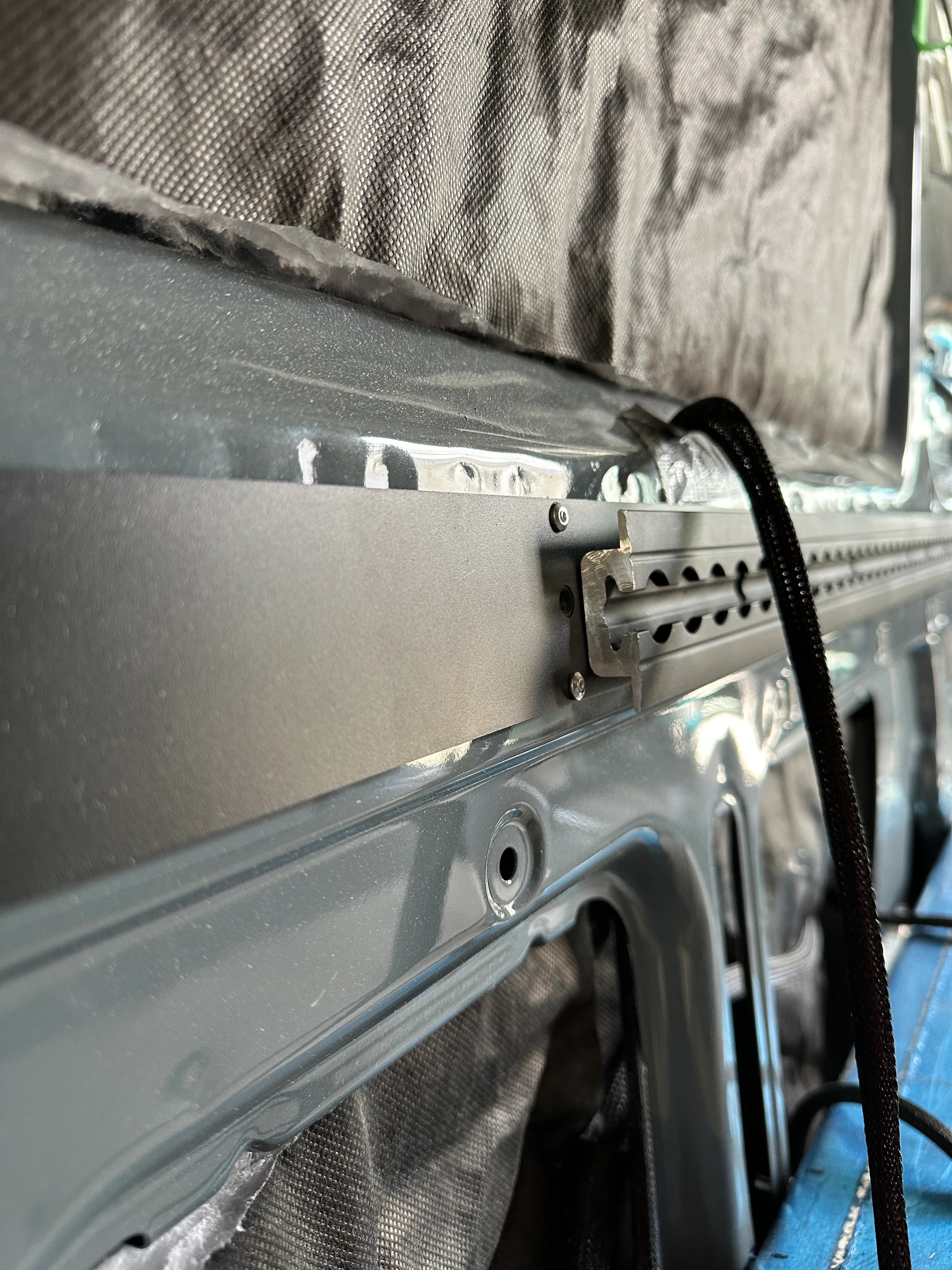

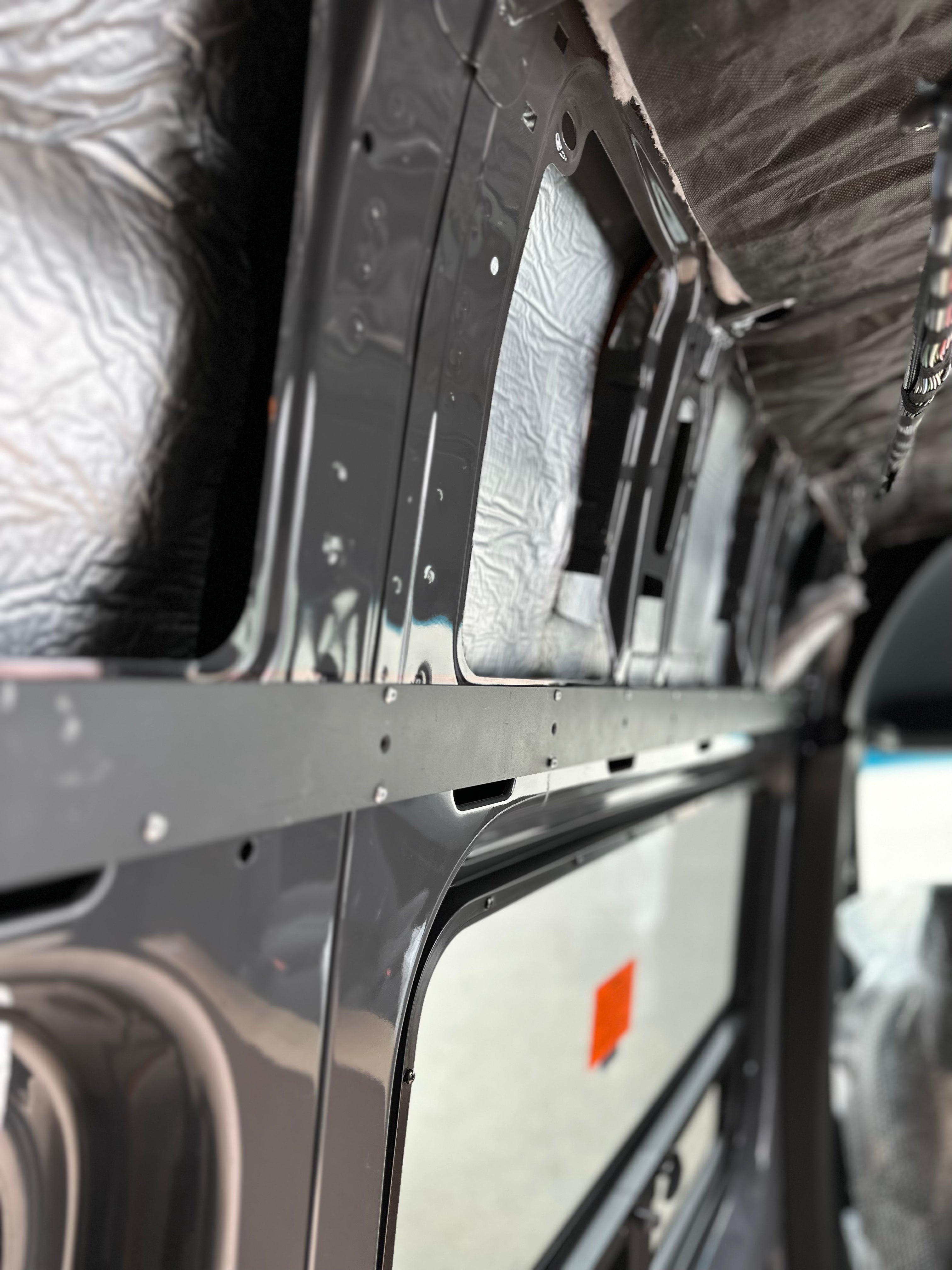

This powder coated steel plate mounts behind your L-track and gives every screw a built-in threaded nut to bite into. Its wide 2 1/8 in profile spreads the load across the van's sheet metal for a flat, stable anchor.
Fits: Universal, any van; matches the 12 hole pattern of all our 84 in L-track. Not included: mounting screws and rivets.
- High tensile steel with a powder coated finish
- Built-in threaded nuts end rivnut spin and jam
- 84 in (2133 mm) long, 2 1/8 in (55 mm) wide
- 12 pre-drilled holes that line up with the track
Choose your variant: 2 pack or 3 pack of 84 in plates.
Pairs with the 2mm Flanged, 6.8mm BEEFY Flanged, Squared and Rounded L-track.
Product Details
Fitment & Compatibility
Fits: Universal, any van
Not sure your build qualifies? Reach out to our team.
Specifications
| Material | High tensile steel, powder coated |
|---|---|
| Length | 84 in (2133 mm) |
| Width | 2 1/8 in (55 mm) |
| Threads | Built-in nuts at each track hole |
| Mounting holes | 12, outer six 8 in on center, middle two 3 1/2 in on center |
| Recommended hardware | M6 stainless flat head screws and 1/8 in rivets (not included) |
| Packs | 2 pack or 3 pack |
| Fitment | Universal, any van |
What's in the Box
- Steel back framing plates, 84 in (2 or 3 per pack)
Tools You'll Need
- Drill
- Rivet tool and 1/8 in rivets
- M6 stainless flat head screws
- Tape measure and level
