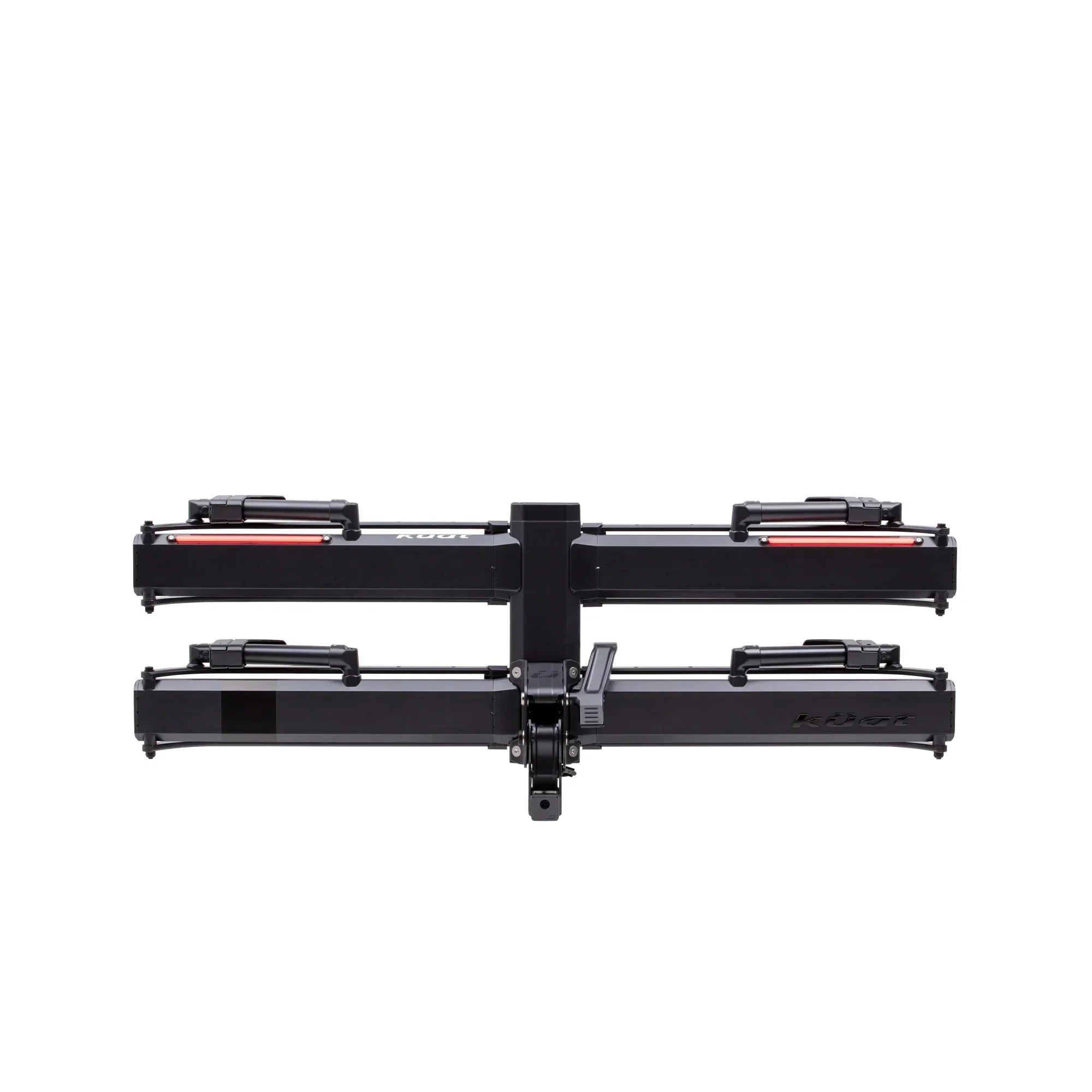

KUAT Piston Pro X 2-bike hitch rack seen from the rear with both trays and arms

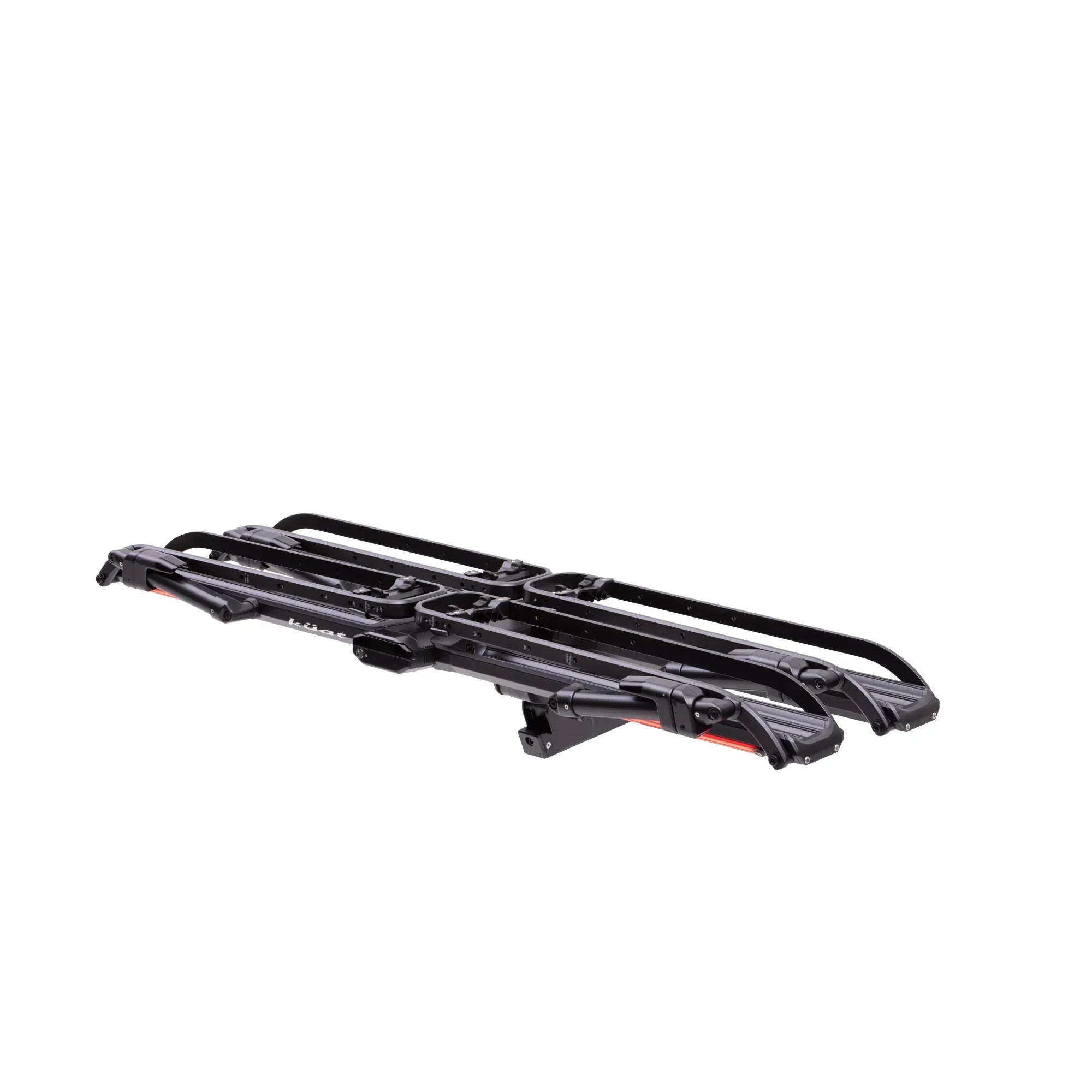

KUAT Piston Pro X hitch rack three-quarter view with two bike trays and a hitch shank

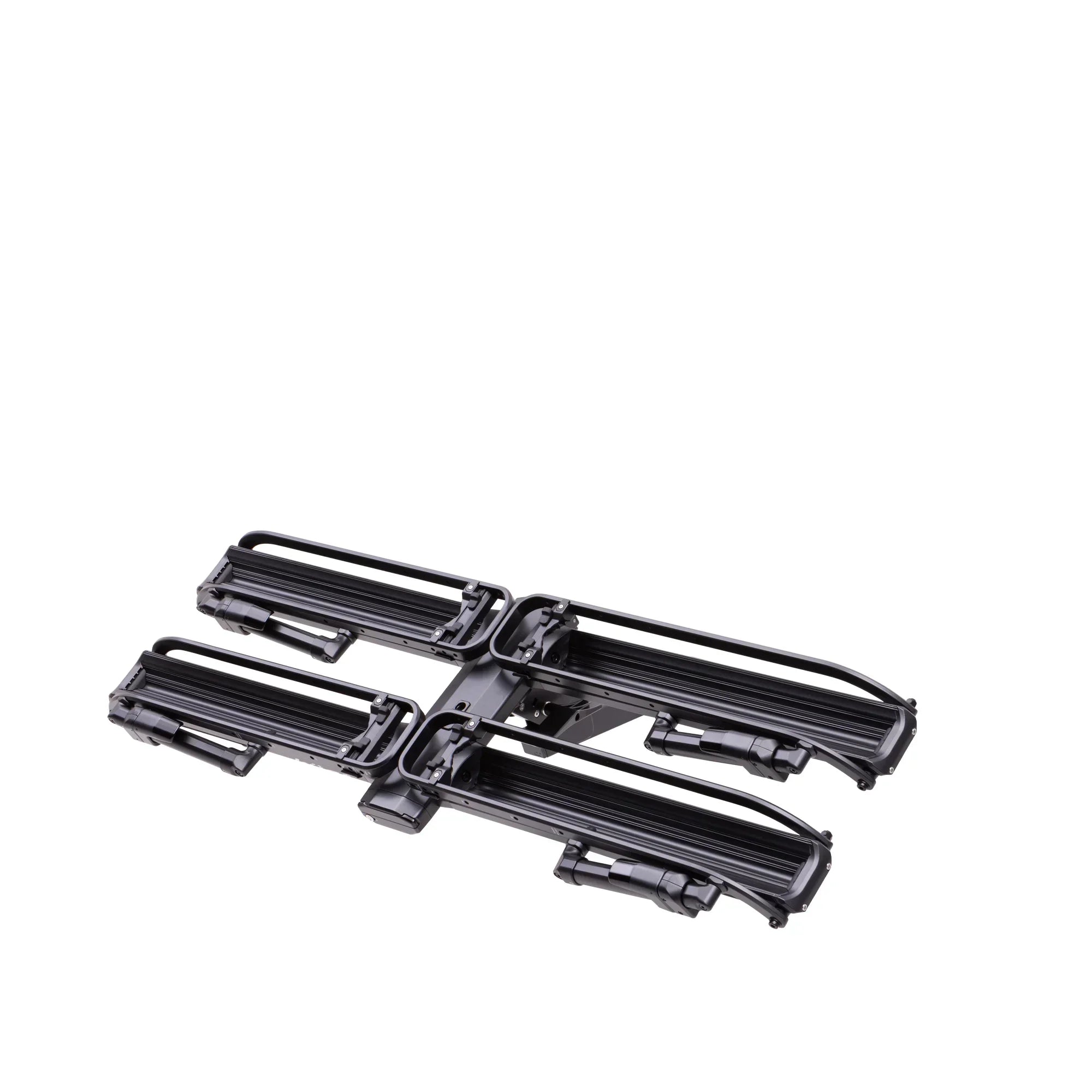

Top-down angled view of the Piston Pro X 2-bike hitch rack trays and wheel chocks

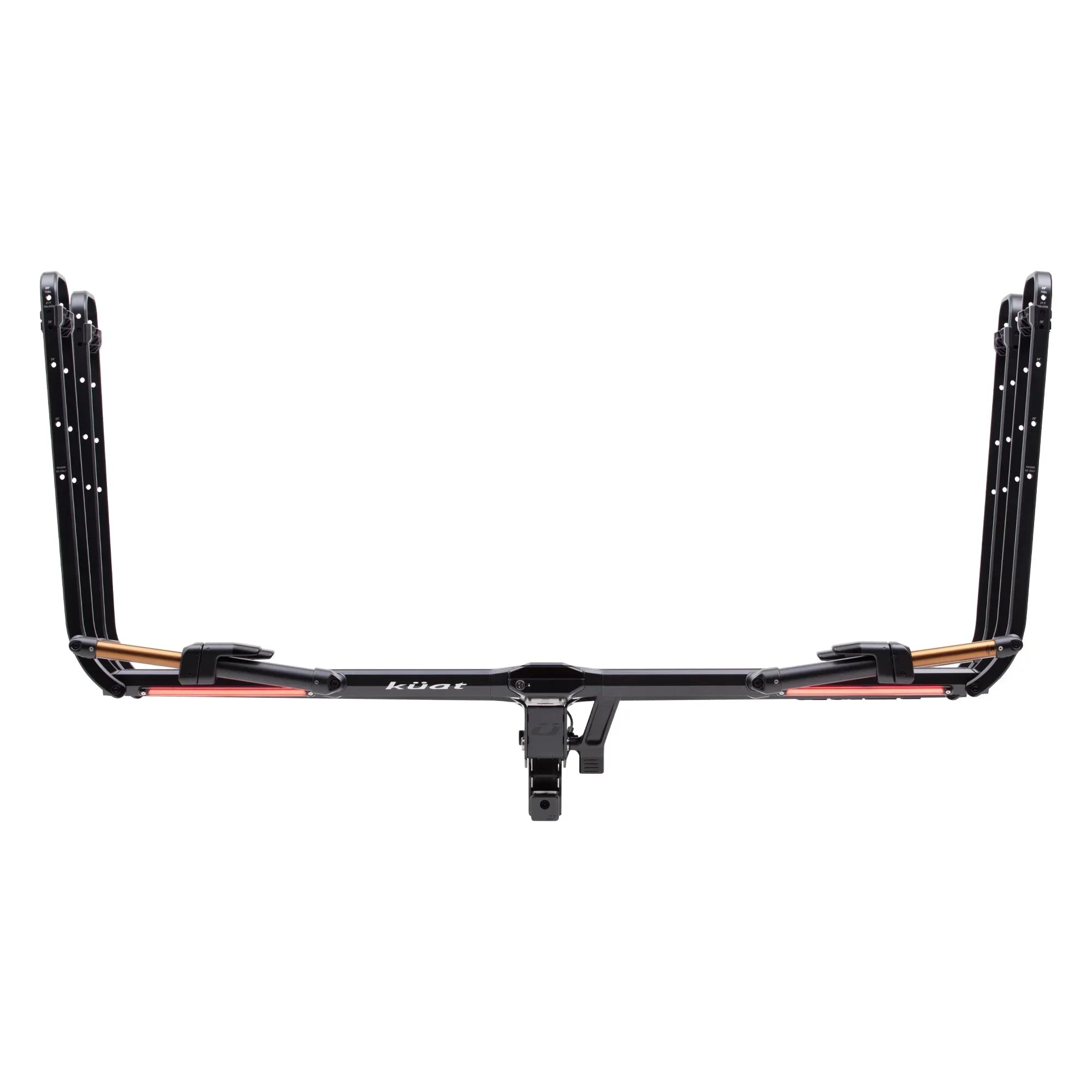

KUAT Piston Pro X with tire arms raised on both trays, front view with hitch shank

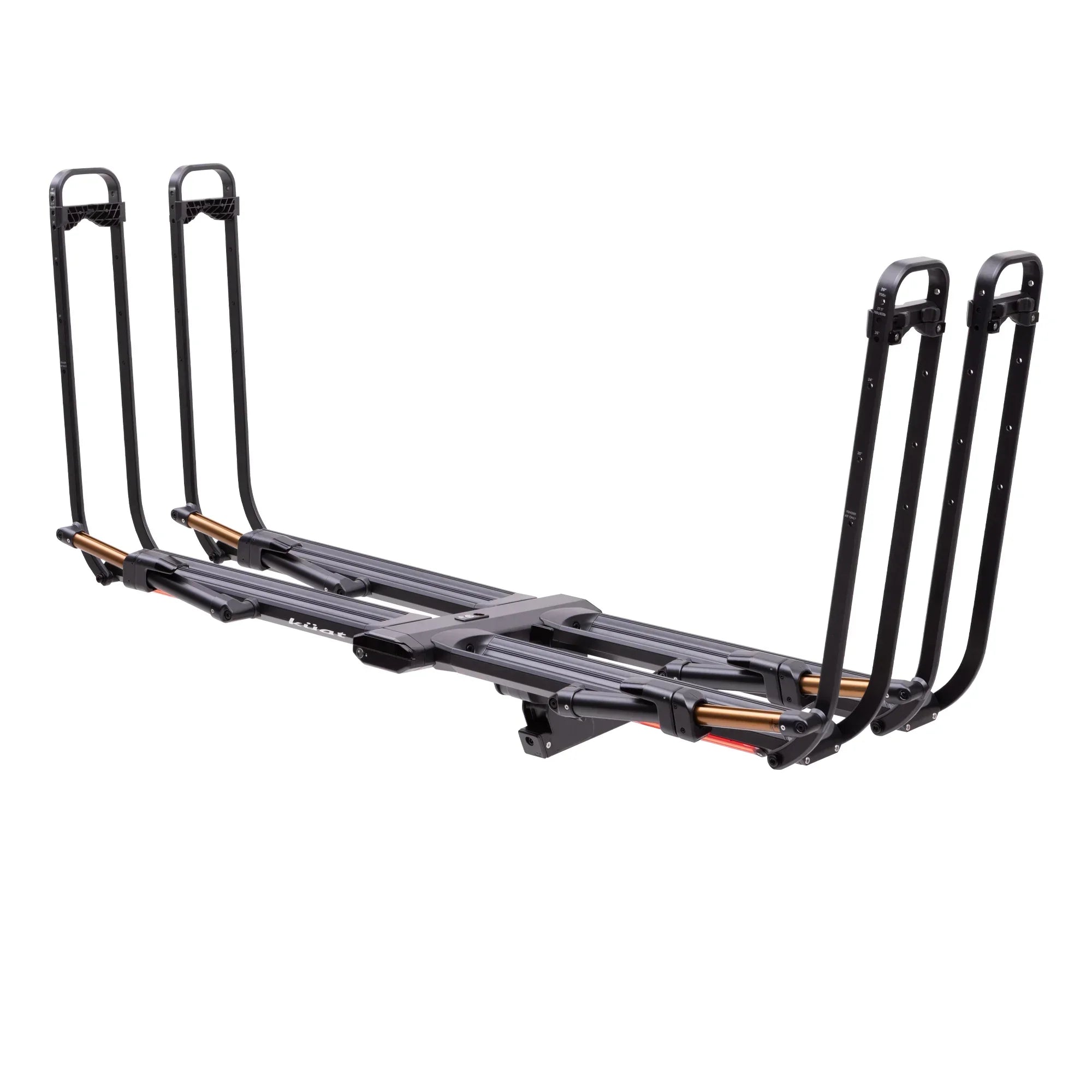

Piston Pro X hitch rack with the pneumatic arms raised, angled view

Piston Pro X 2-bike hitch rack from above showing the two trays and hitch connection

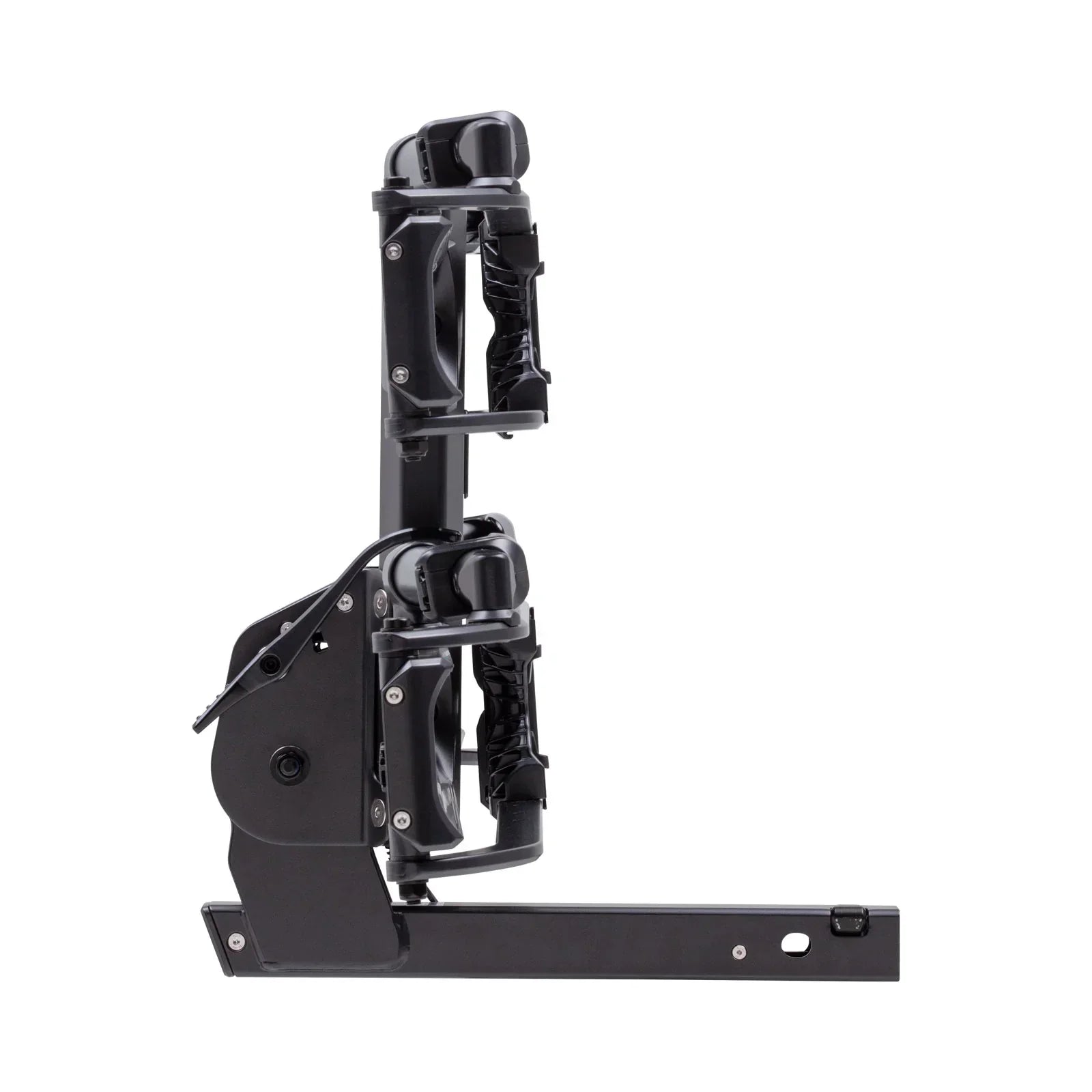

Piston Pro X hitch rack folded up vertically with its arms closed, side view

Kuat

Piston Pro X (2 bike - 2 inch)

Name: Piston Pro X (2 bike - 2 inch)
SKU: KUAT-PX22G
Price: 1589.0 USD

$1,589.00

Shop 5.0 Shop rating (174) on Google

Own this? Write the first review

Product variants

Pickup available at Sandy Vans HQ

Usually ready in 2-4 days

The full-dress Piston: LED taillights, Kashima struts and room for e-bikes.

The KUAT Piston Pro X is Kuat's top 2-bike hitch rack. Everything in the Piston Pro, plus integrated LED taillights, genuine Kashima-coated struts, a Galaxy Gray finish and a security tool that locks into the rack. It carries bikes and e-bikes up to 67 lb each on a 2-inch receiver.

Fits: Universal, any van with a 2-inch hitch receiver, including the Mercedes Sprinter. Not compatible: 1.25-inch receivers (this listing is the 2-inch version); lights need a flat 4-pin connection and a 12V system.

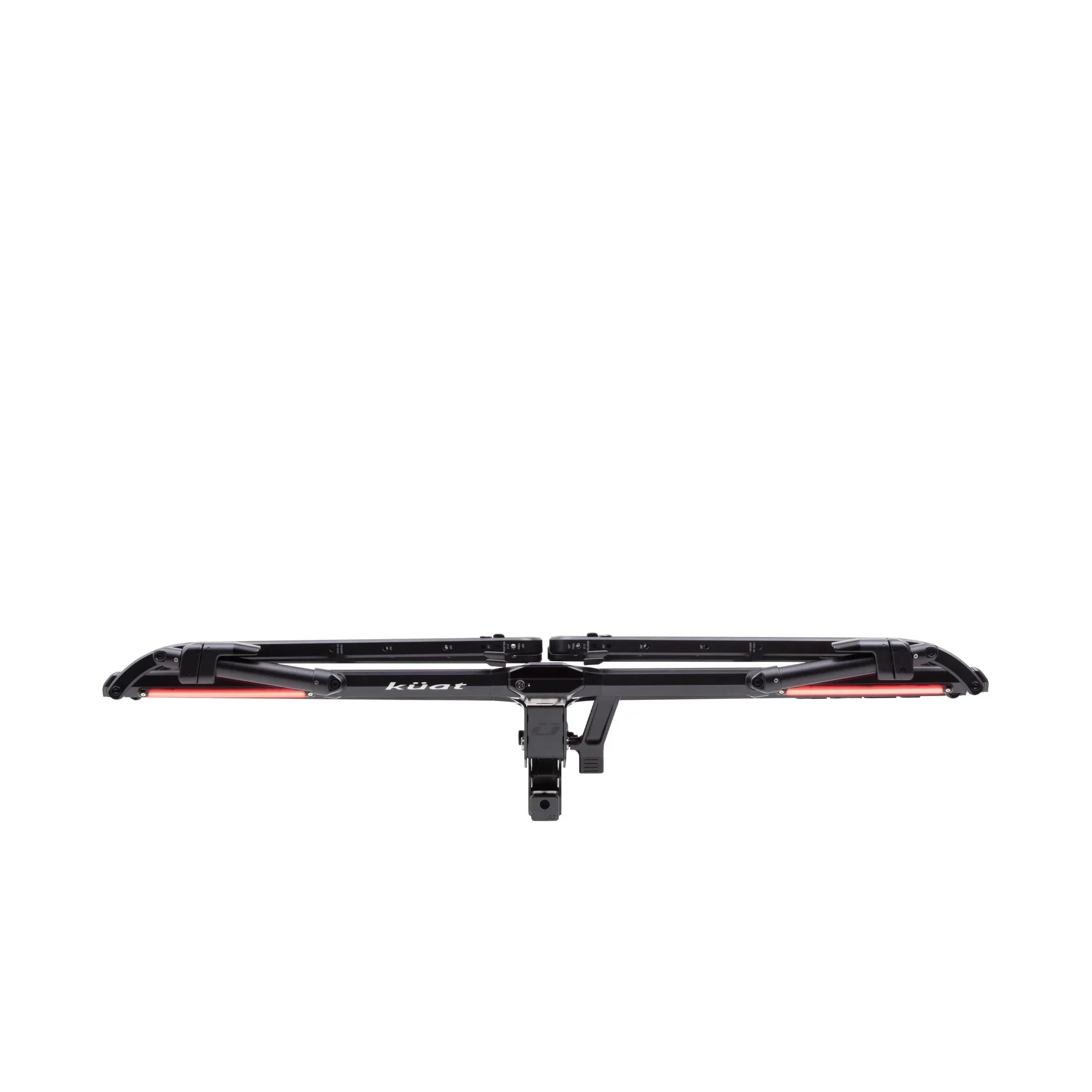

Integrated LED taillights that connect with the included flat 4-pin plug
67 lb per bike on the 2-inch 2-bike setup, e-bikes included
OneTap arms, no frame contact, with Kashima-coated struts
FastFit chocks for 18 to 32 in wheels
Locks: 12mm cable lock (110 in), stainless hitch lock, locking security tool
Expandable to 4 bikes with pre-wired Add-Ons

Pair it with: KUAT Pivot XD swing-away · Piston E-Bike Ramp. No lights needed? See the Piston Pro.

See it on your van. Add the Piston Pro X (2 bike - 2 inch) to your build in our 3D Van Builder and preview it on a real Sprinter before you buy.

Product Details

Why we carry the Piston Pro X

Two bikes on the back of a Sprinter can hide the taillights. The Pro X brings its own LED lights, wired into the trays, so drivers behind you still see you brake and turn.

What makes the Piston family different

OneTap arms: tap the lever and the tire arms open on their own. Push them down until they click.
No frame contact: the arms hold the tires, so carbon frames and fresh paint stay untouched.
FastFit chocks: squeeze and slide to fit 18 to 32 in wheels, no tools.
Pedal pivot: fold the rack up or down with your foot.
Flatlock hitch cam and hitch lock: a tight, rattle-free fit in the receiver, locked.

Built to grow

The 2-inch Piston Pro X takes Kuat's 1-bike and 2-bike Add-Ons, up to 4 bikes total. Capacity per bike drops as you add trays: 67 lb with 2 bikes, 50 lb with 3, 40 lb with 4. Ask our team about Add-Ons.

Piston Pro X or Piston Pro?

Same capacity and Add-Ons. The Pro X adds LED taillights, Kashima-coated struts, Galaxy Gray finish and a security tool that locks into the rack. The Piston Pro skips the lights and comes in Sandy Black.

Getting into the back of the van

A hitch rack blocks the Sprinter's rear doors. Put the Pro X on a KUAT Pivot XD swing-away and the rack swings aside with the bikes still on.

Fitment & Compatibility

Fits: Universal, any van with a 2 in hitch receiver, incl. Mercedes Sprinter

Not compatible with: 1.25 in receivers (this listing is 2 in); vans without a flat 4-pin or adapter for the lights; bike covers

Not sure your build qualifies? Reach out to our team.

Specifications

Brand	KUAT (Kuat Racks)
Model	Piston Pro X, 2-bike, 2 in receiver, Galaxy Gray
Fits	Universal, any van with a 2 in hitch receiver, incl. Mercedes Sprinter
Capacity	67 lb per bike (2 bikes); 50 lb (3 bikes); 40 lb (4 bikes)
RV use	2 in 2-bike only, chassis-mounted RV hitch, 42 lb per bike
Lights	Integrated LED taillights, flat 4-pin connector, 12V systems only
Wheel size	18 to 32 in
Max tire width	4.8 in (18 to 29 in wheels), 2.25 in (32 in wheels)
Max wheelbase	53 in (18 to 29 in wheels), 50 in (32 in wheels)
Locks	12mm cable lock (110 in), stainless hitch lock, locking security tool
Add-Ons	Pre-wired 1-bike and 2-bike Add-Ons, up to 4 bikes
Struts	Genuine Kashima-coated
Finish	Galaxy Gray powder coat
Rack weight	64 lb (2 in, 2-bike)
Shipping	78 lb, 35 x 28 x 10 in
Warranty	Kuat No Worries Limited Warranty

What's in the Box

Piston Pro X centerbeam assembly
2 pre-wired tire trays
Foot lever with M6 bolt and washer
2 M10 x 165 bolts and 2 M10 nuts
Flat 4-pin rack-to-car cable
Hitch pin and hitch lock
Cable lock
2 keys
8mm security hex key and 5mm hex key

Install Time30 min to 1 hour

DIY FriendlyYes, assembles in the hitch, no drilling

Drilling RequiredNo

The Pro X arrives as a centerbeam, trays and foot lever. The trays are pre-wired, so you plug each one in as you hang it. Plan on 30 minutes to an hour. Kuat's user guide shows each step.

Tips

Put the centerbeam in your hitch first. Kuat says it makes assembly much easier.
The 8mm security hex key lives at the front of the centerbeam. Unlock it, tighten the cam, and lock it back in.
Connect each tray's wiring harness before you hook it on, and feed extra wire into the centerbeam.
Torque the M10 x 165 tray bolts to 40 to 50 Nm, never over 50 Nm. The foot lever bolt is 15 Nm.

Lights on a Sprinter

The Pro X plugs into a flat 4-pin connector and needs a 12V system. If your van only has a 7-way connector, Kuat makes a 7 to 4 pin adapter. Some vans with factory tow packages flag LED lights as a burned-out bulb; an LED load adapter fixes that. Reach out to our team if you're not sure what your van has.

Mistakes to avoid

Using a bike cover or rain cover. Kuat says never. The wind load can break the rack.
Pinching the wiring. Feed extra wire into the centerbeam.
Stacking adapters on an RV. On a chassis-mounted RV hitch, use the 2-inch 2-bike setup only, at 42 lb per bike.

Questions? Reach out to our team at products@sandyvans.com or (619) 812-1903.

Tools You'll Need

8mm hex key and 8mm security hex key (included)
5mm hex key (included)
Torque wrench for 40 to 50 Nm

Download the install instructions (PDF)

See all Sandy Vans install videos & manuals →

How to choose a hitch bike rack for your van

1. Will it fit your hitch?

How to choose: Sprinter receivers are 2-inch. Buy the 2-inch version for full capacity and Add-On support.

2. Do your bikes block the taillights?

On a Sprinter, two bikes on a hitch rack can cover the brake lights.

How to choose: If they do, pick a rack with its own LED lights, like the Pro X. Check that your van has a flat 4-pin connector or plan on an adapter.

3. How heavy are your bikes?

How to choose: E-bikes need a rack rated for them. The Pro X carries up to 67 lb per bike on the 2-bike setup.

4. How many bikes, now and later?

How to choose: Pick a rack that takes Add-Ons if the crew might grow.

5. Can you still open the rear doors?

How to choose: Add a swing-away like the Pivot XD.

Before you order

2-inch receiver confirmed
Flat 4-pin connector, or a 7 to 4 pin adapter, for the lights
Bike weights and wheel sizes checked (18 to 32 in, 67 lb max each)
Swing-away decided

How the Piston Pro X stacks up

Fitment: 2-inch receivers, including the Mercedes Sprinter.
Visibility: built-in LED taillights.
Weight: 67 lb per bike with 2 bikes, e-bike ready.
Growth: up to 4 bikes with pre-wired Add-Ons.
Access: pairs with the Pivot XD and the Piston E-Bike Ramp.

Will the Piston Pro X fit my Mercedes Sprinter?

Yes. It fits any Sprinter with a 2-inch hitch receiver, and it's universal for any van, truck or SUV with one.

How do the lights connect?

Through the included flat 4-pin plug, on 12V systems only. If your van only has a 7-way connector, Kuat makes a 7 to 4 pin adapter. Reach out to our team if you're not sure what your van has.

My van shows a bulb-out warning with the rack plugged in. Why?

Some factory tow packages read LED lights as a burned-out bulb because LEDs draw so little current. An LED load adapter fixes it.

Can it carry e-bikes?

Yes. Up to 67 lb per bike on the 2-inch 2-bike setup. Add our Piston E-Bike Ramp to roll heavy bikes up.

What's the difference between the Pro X and the Piston Pro?

Same capacity and Add-Ons. The Pro X adds LED taillights, Kashima-coated struts, a Galaxy Gray finish and a locking security tool.

Can I use it on a camper van or RV?

Kuat approves the 2-inch 2-bike Pro X on chassis-mounted RV hitches at 42 lb per bike, with no Add-Ons, adapters or extenders. The hitch has to be chassis-mounted and within 64 in of the rear axle.

Why are my Kashima struts slightly different colors?

Kashima is a hard-anodizing process with natural batch-to-batch color variation. It doesn't affect performance.

Can I use a bike cover?

No. Kuat says covers create enough wind load to break the rack.
