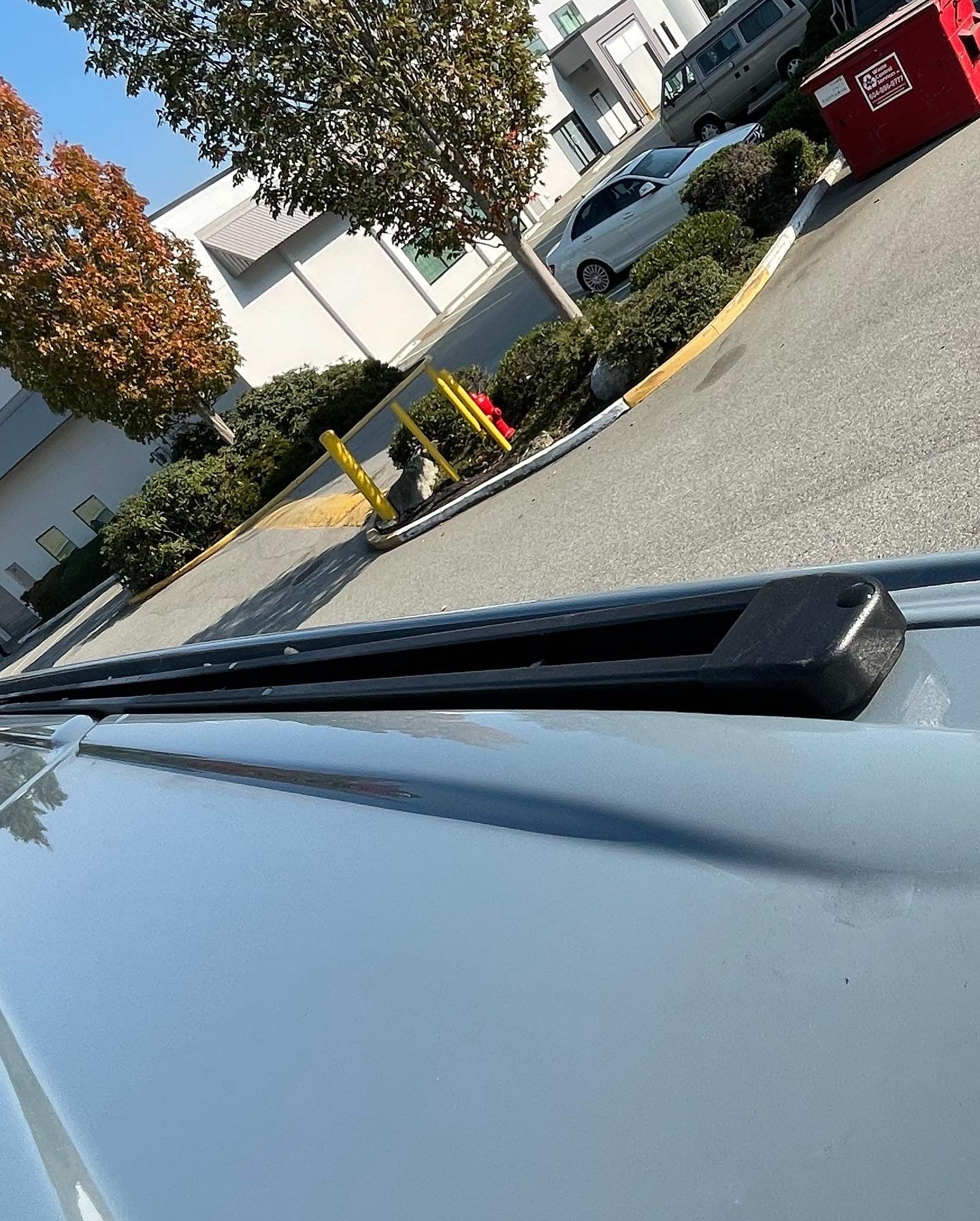

Black roof rail installed on a Mercedes Sprinter roof

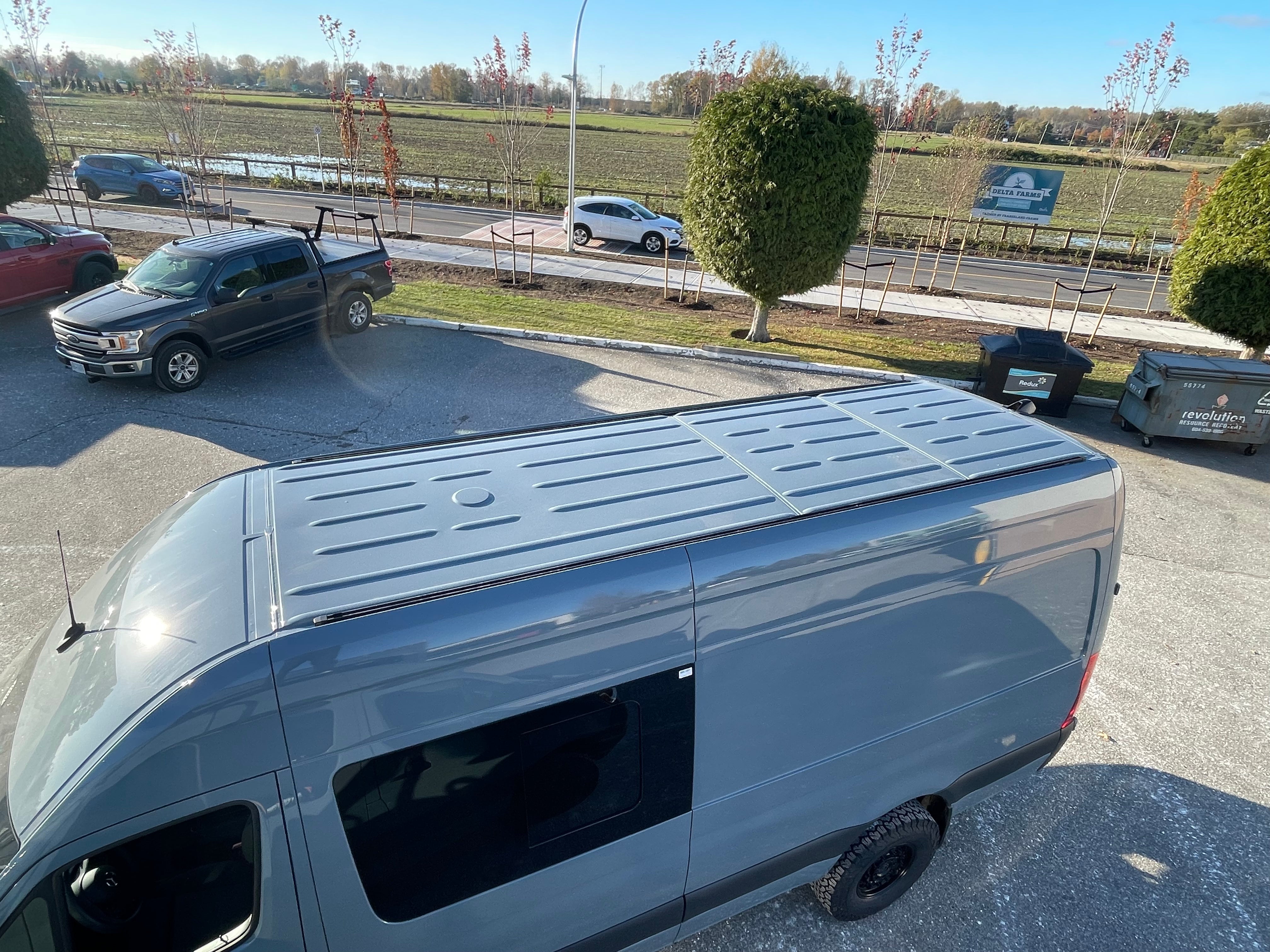

Mercedes Sprinter van with roof rails installed

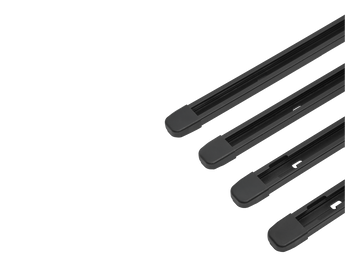

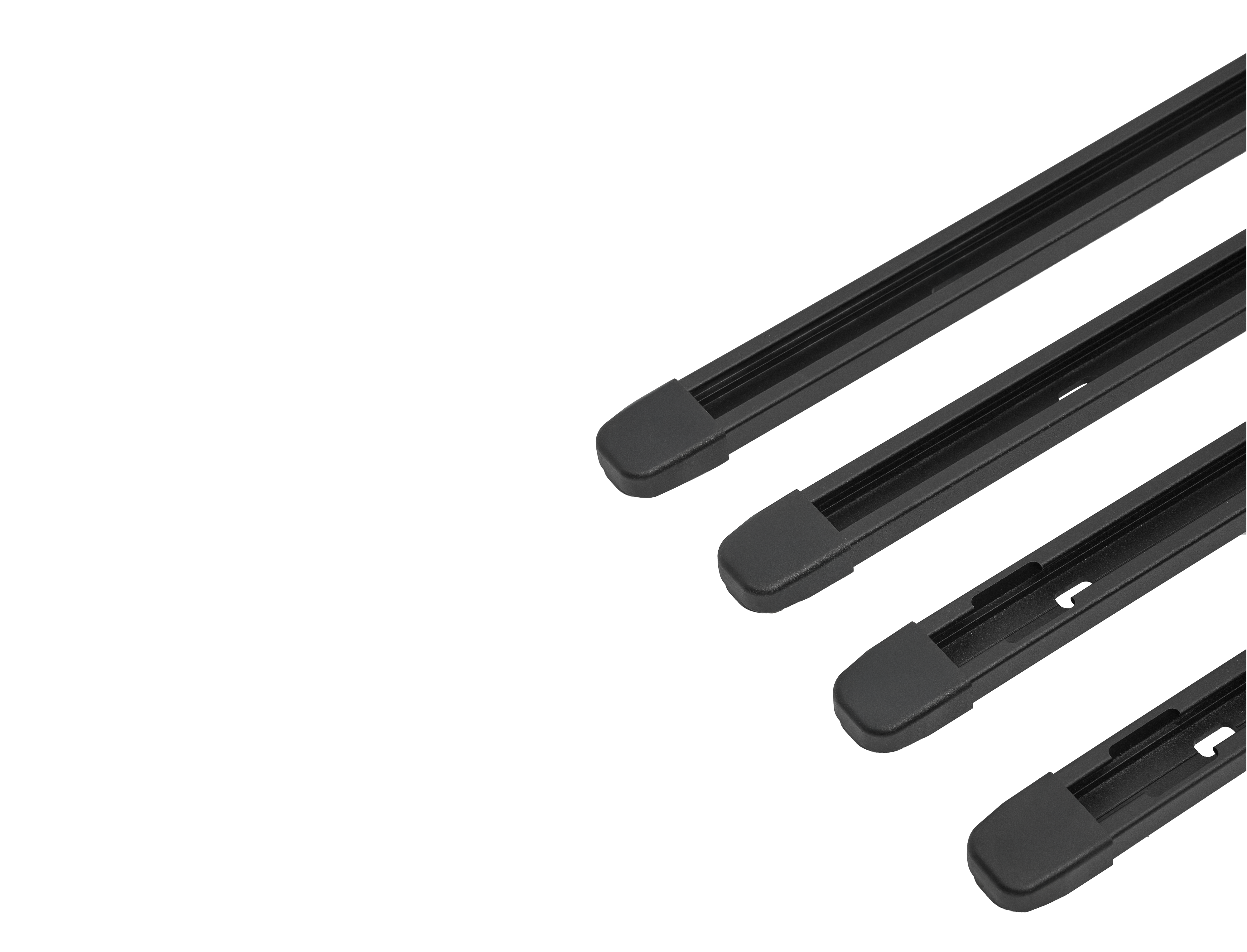

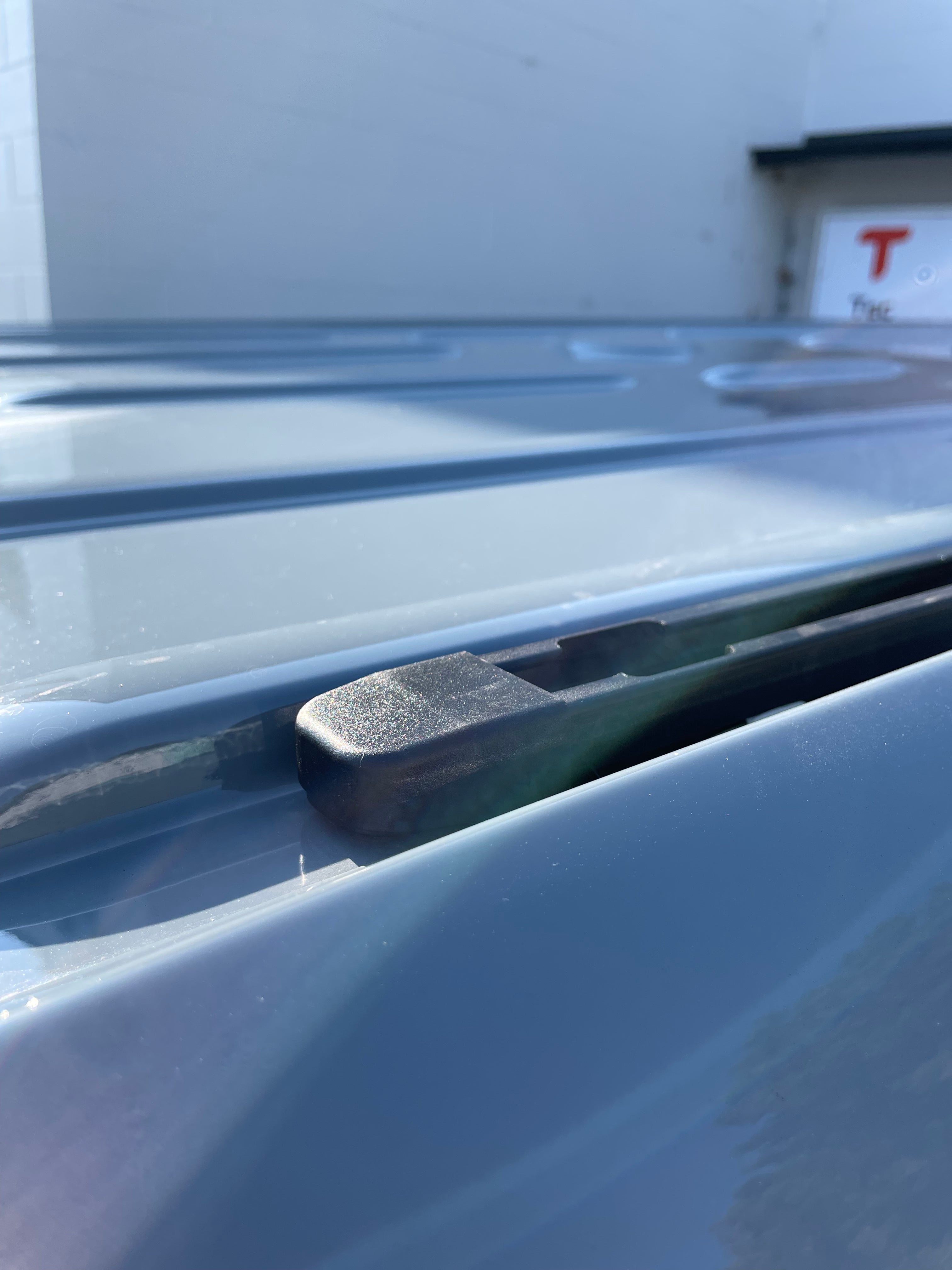

Close-up of a roof rail end cap on a Mercedes Sprinter

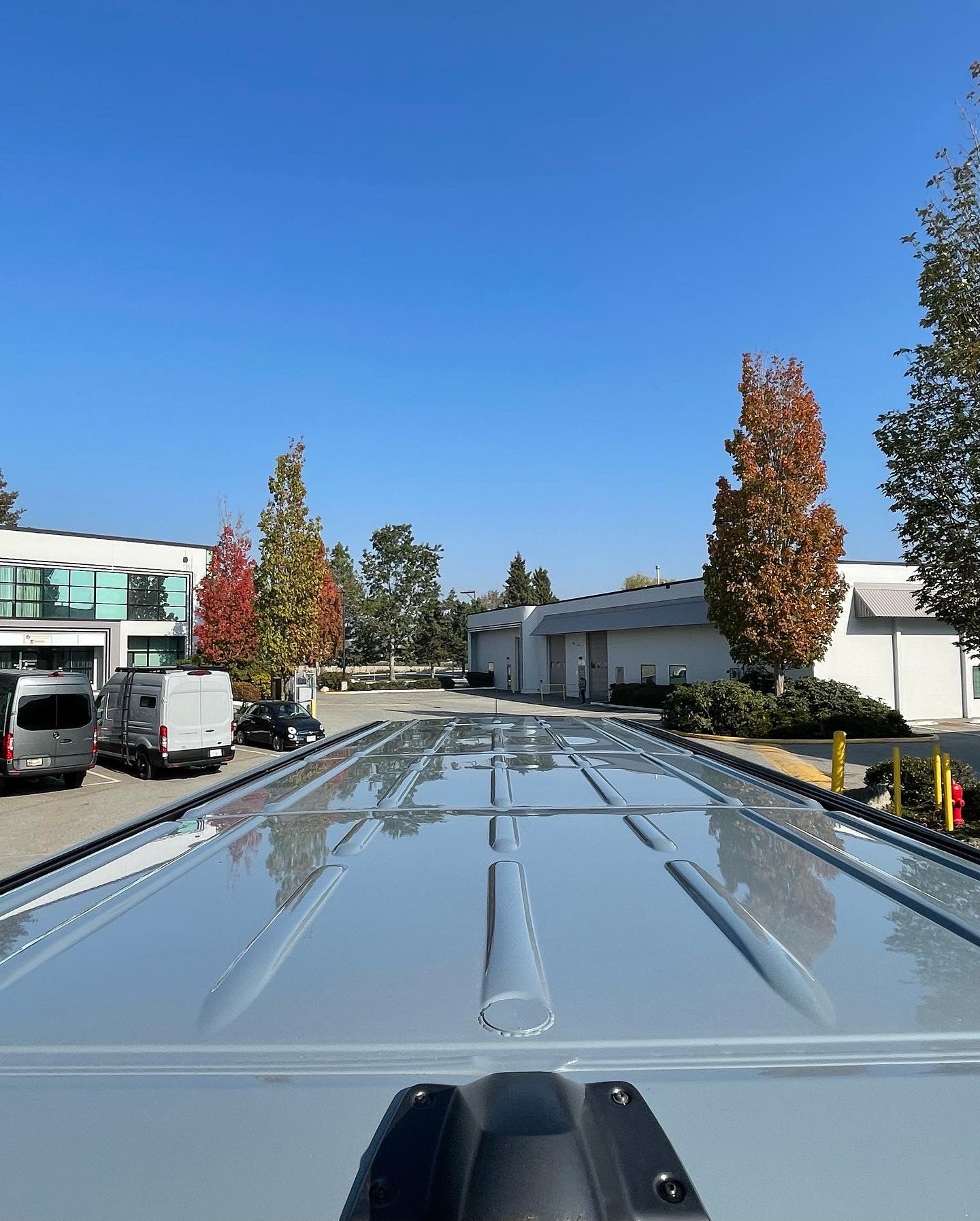

Roof rails running the length of a Mercedes Sprinter roof

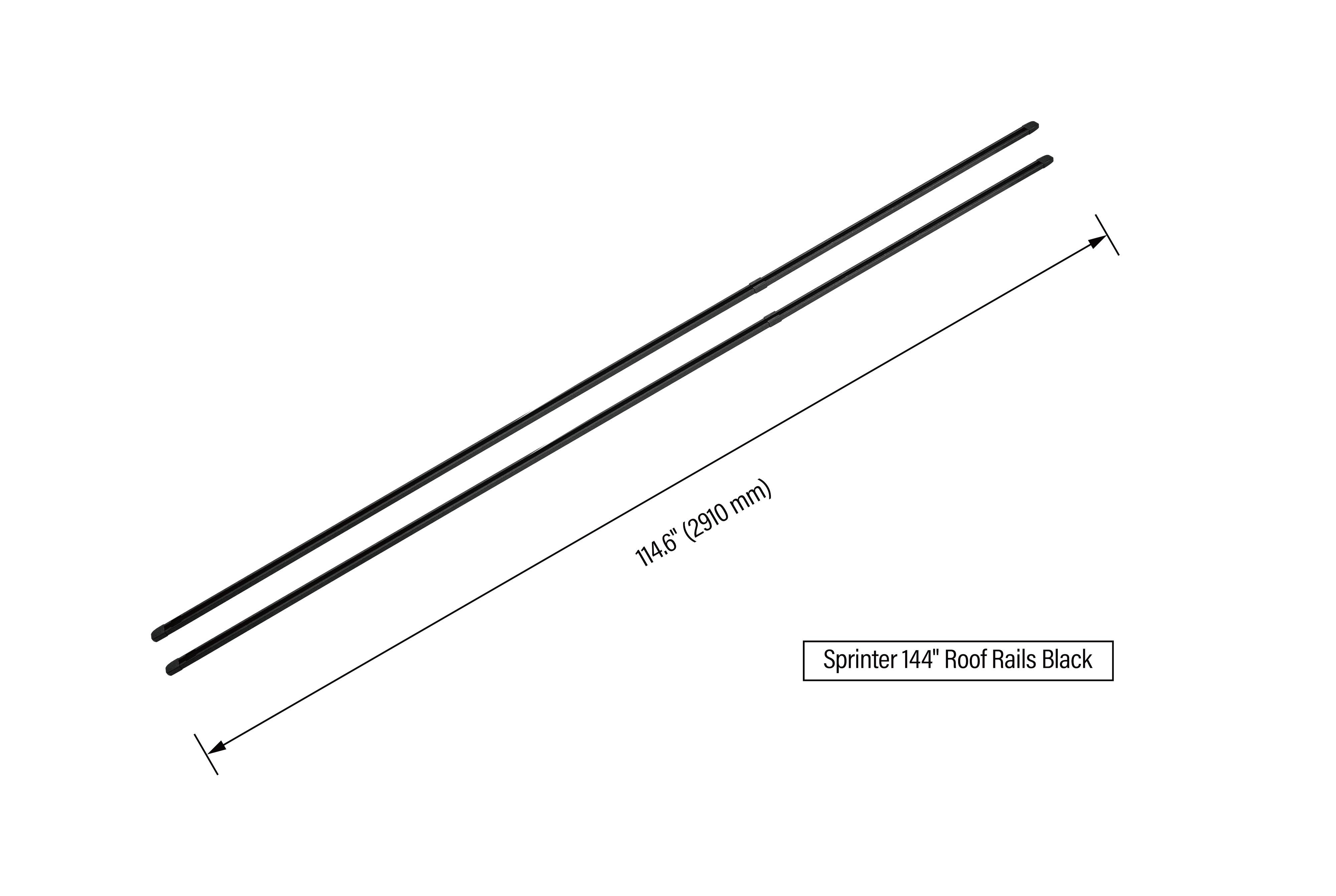

Sprinter 144 roof rails in black, 114.6 inch length drawing

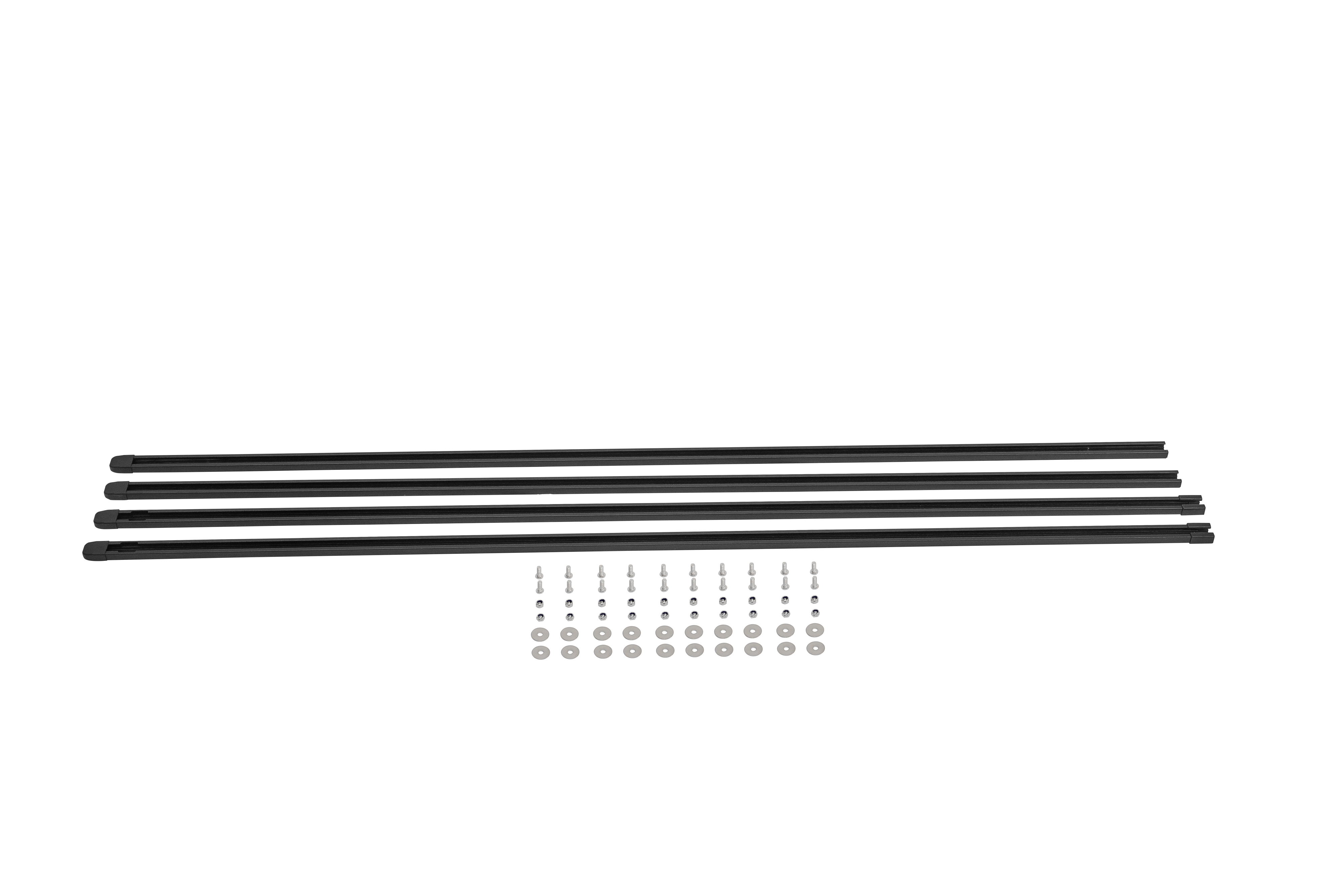

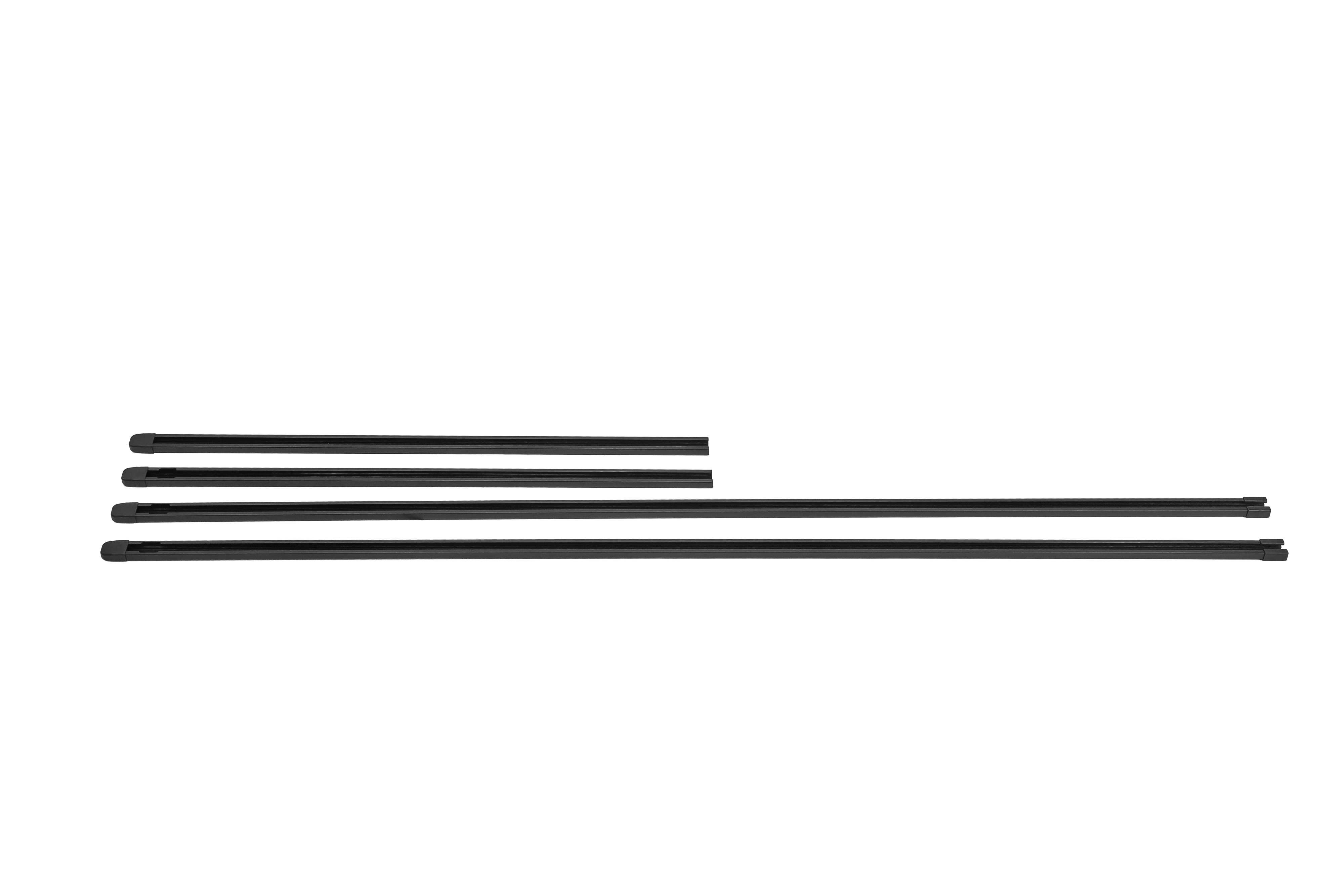

Black Sprinter roof rail kit with bolts, washers and nuts

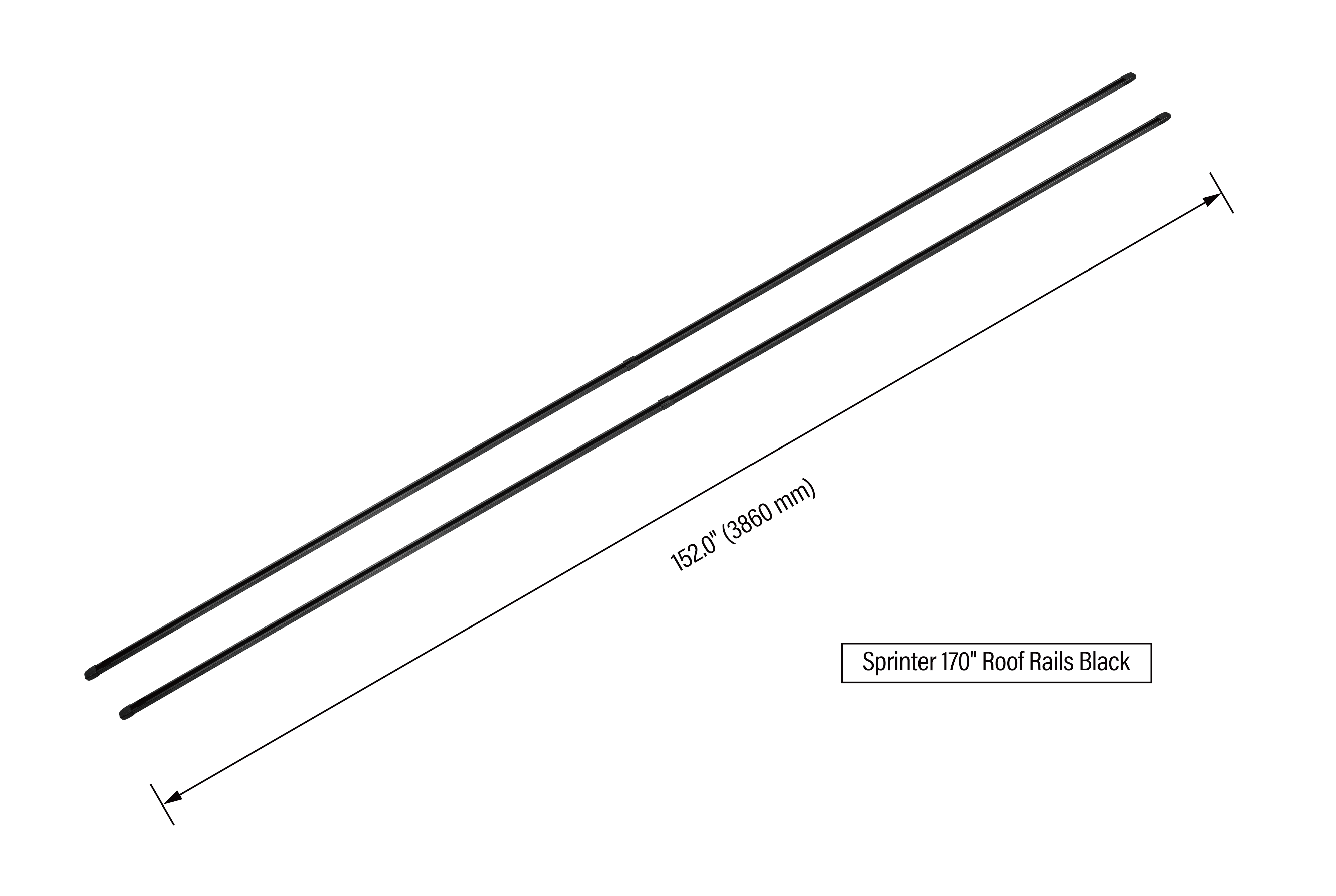

Sprinter 170 roof rails in black, 152 inch length drawing

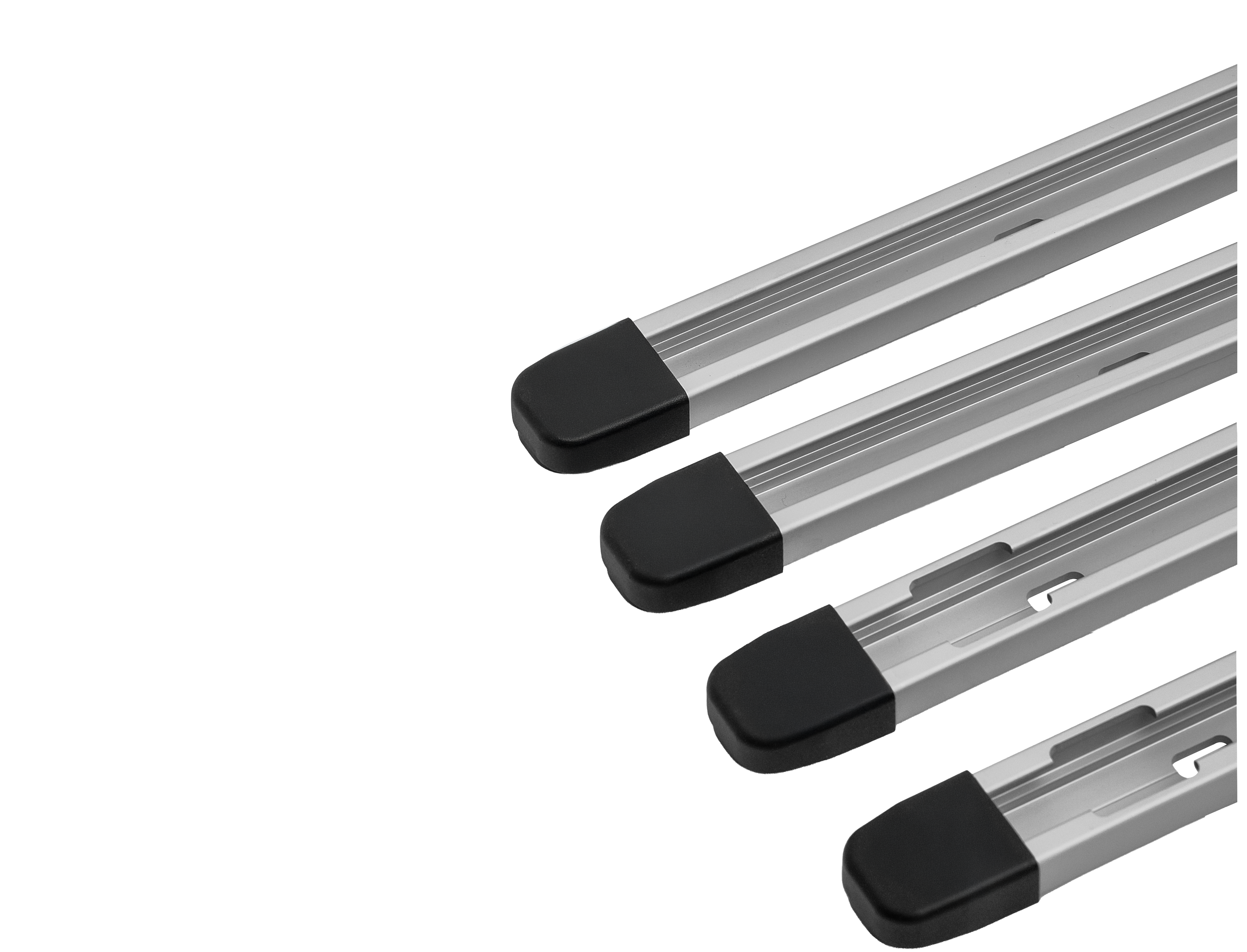

Satin silver Sprinter roof rails with end caps

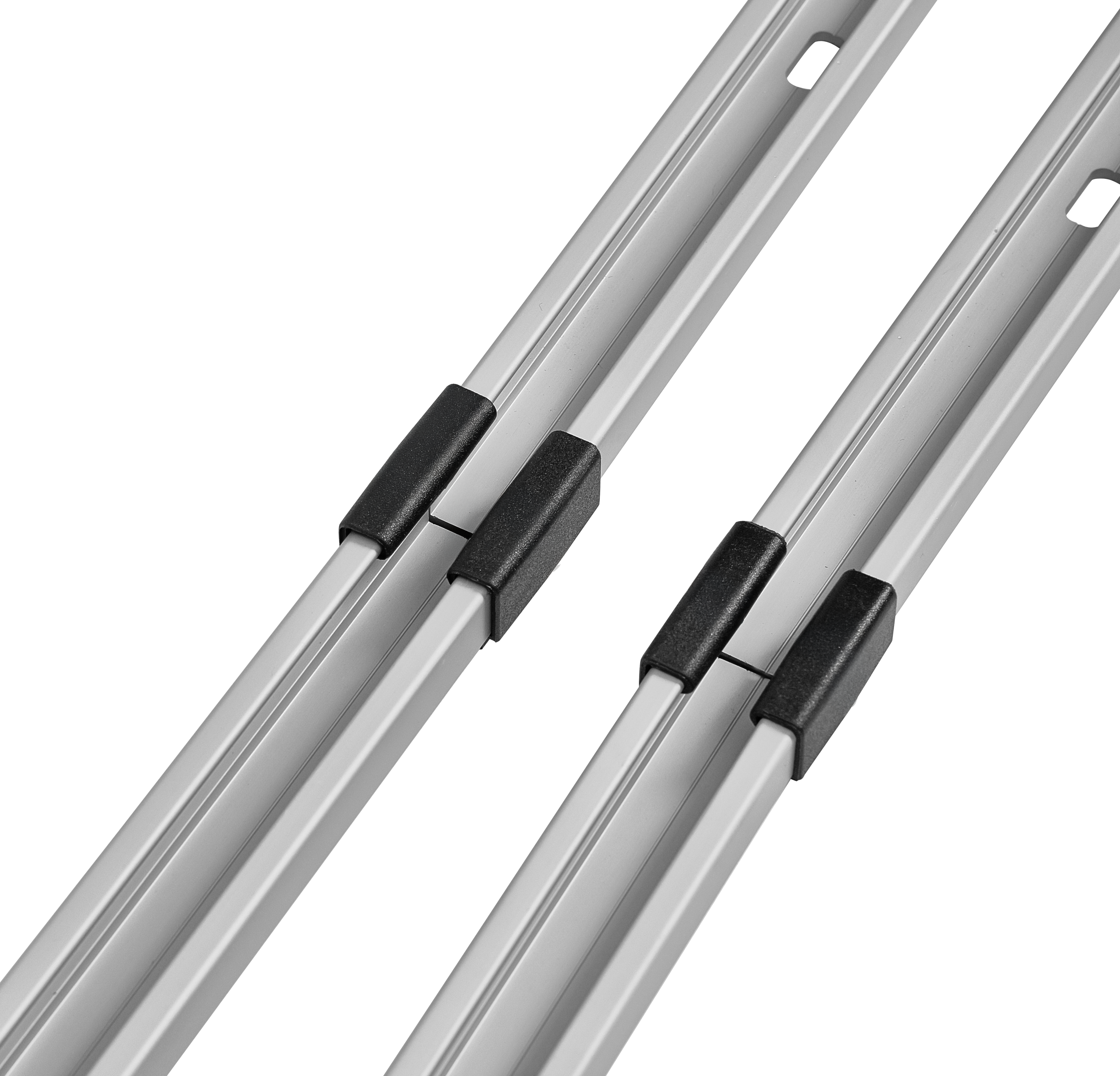

Joint between two satin silver roof rail sections

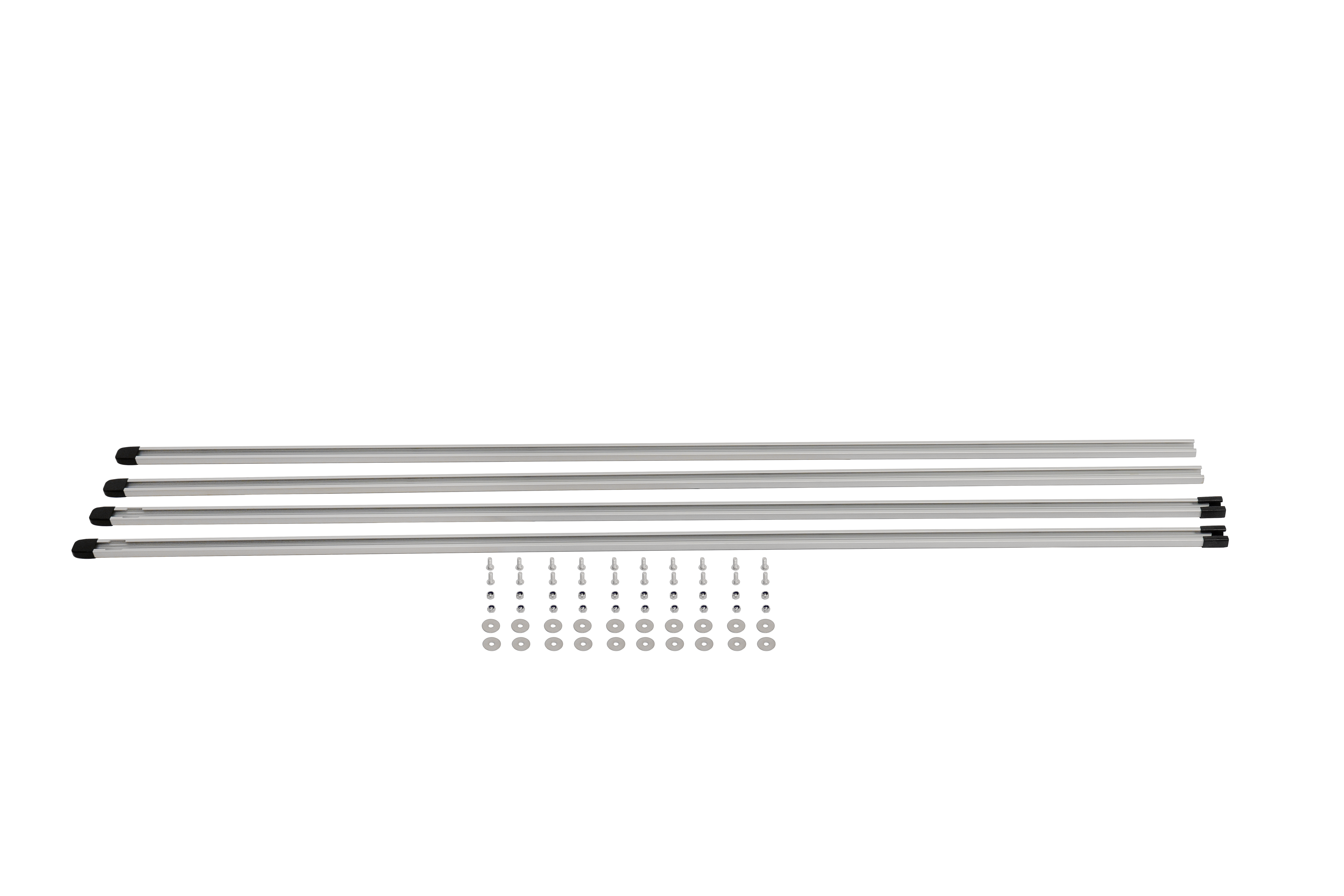

Satin silver Sprinter roof rail kit with hardware

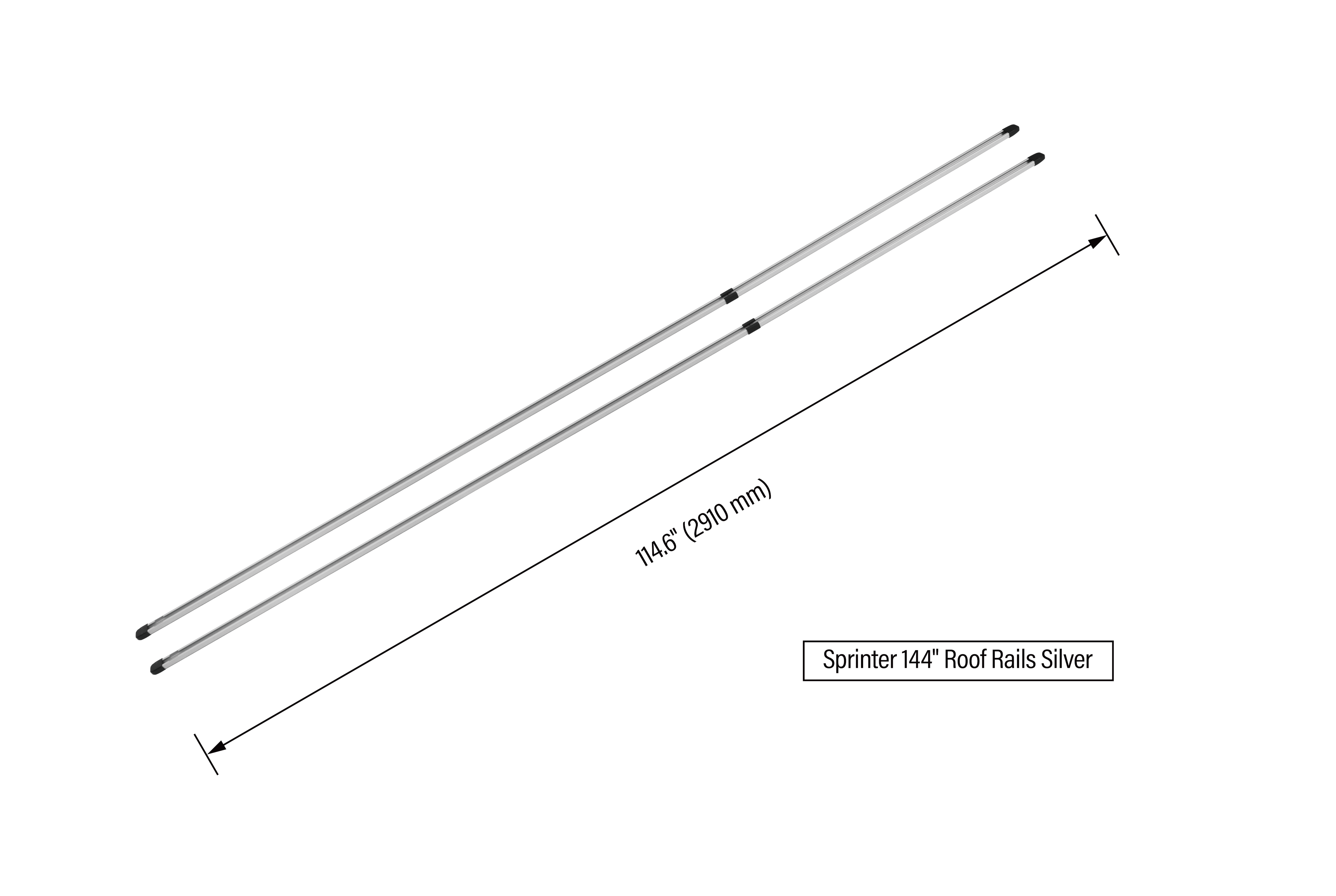

Sprinter 144 roof rails in silver, 114.6 inch length drawing

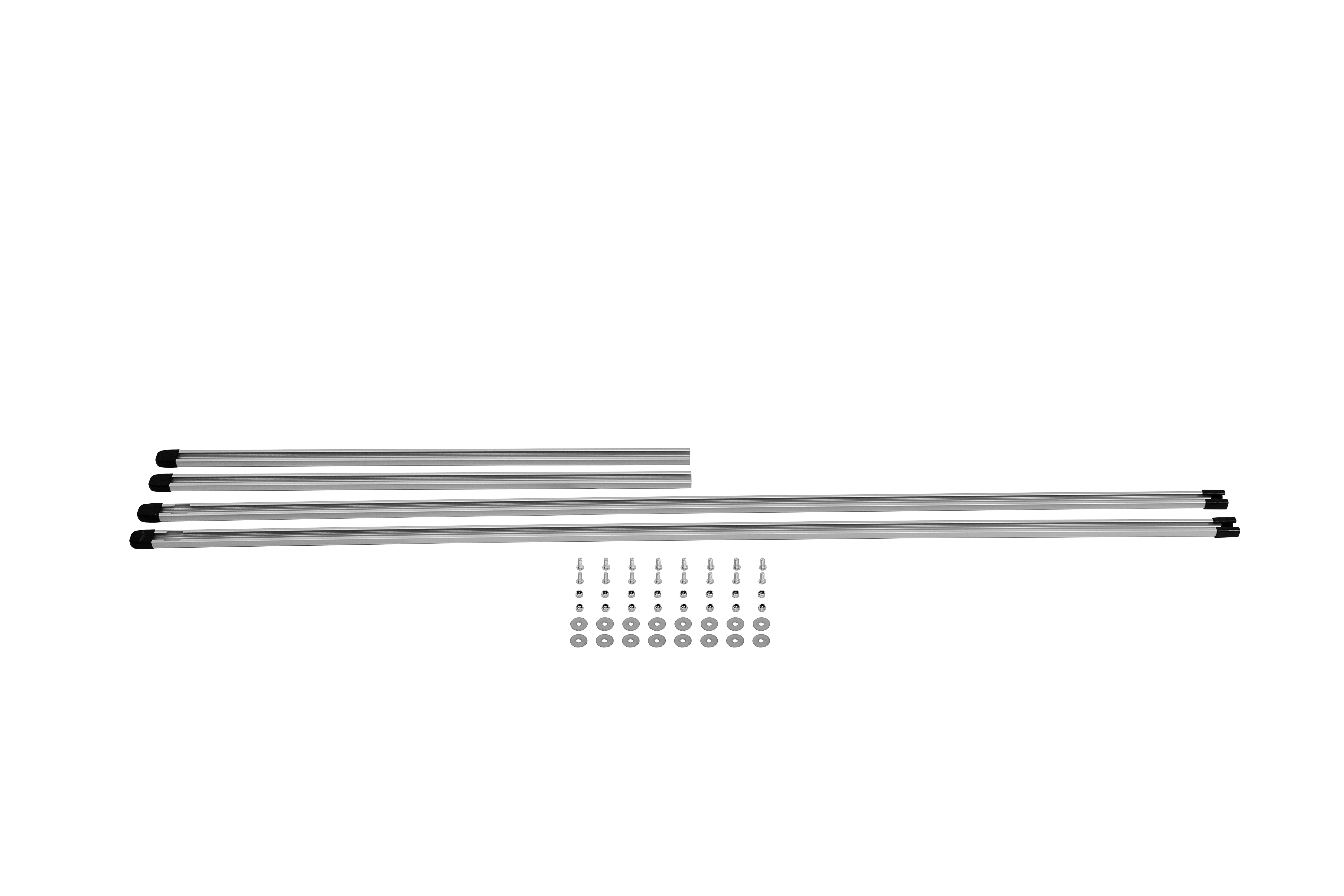

Satin silver Sprinter roof rail kit and mounting hardware

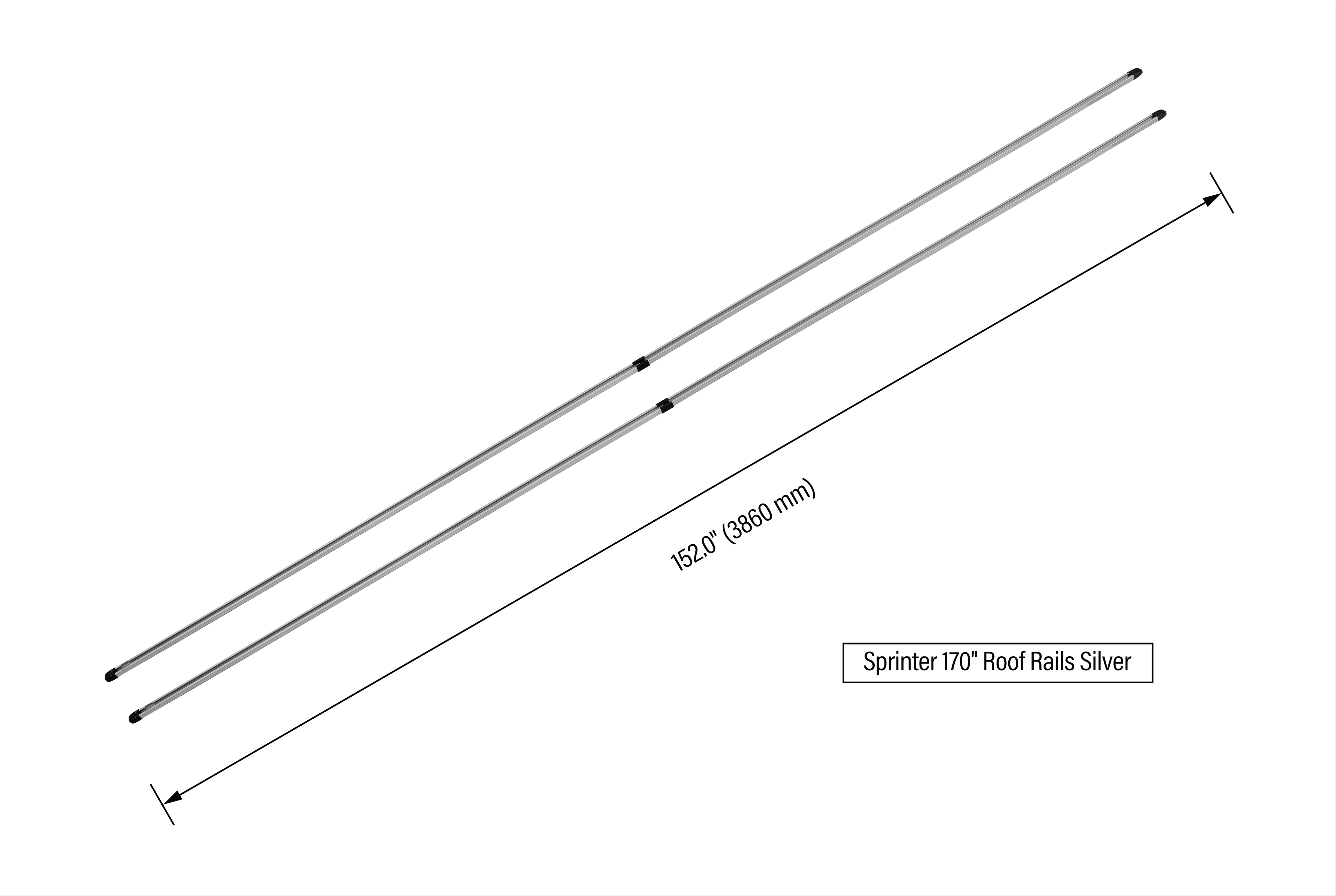

Sprinter 170 roof rails in silver, 152 inch length drawing

Tec Vanlife USA

Sprinter Roof Rails | Roof Tracks

~~$359.00~~ $299.00 Save 17%

Shop 5.0 Shop rating (174) on Google

Own this? Write the first review

Color: Anodized Black

Anodized Black Satin Silver

Product variants

A stronger base for everything on your roof.

These aluminum roof rails bolt into your Sprinter's factory roof holes and give racks, crossbars, solar and lighting a heavier-duty mounting base than the stock rails. Same mounting points as factory, beefier profile.

Fits: 2007+ Mercedes Sprinter, 144 in, 170 in or 170 in Extended (choose your variant). Interior ceiling panels must come out to reach the nuts.

No drilling: uses the factory roof holes
Heavier profile than the factory rails, same mounting points
M8 square-head bolts, washers, self-locking nuts and sealing tape included
About 30 minutes to 1 hour for two people

Choose your variant: 144 in kit (114.6 in rails) or 170 in kit (152.0 in rails) in anodized black or satin silver; 170 in Extended kit in anodized black.

Building a rack? Our SV Sandbar Roof Rack mounts to these rails; it's what we run on vans without factory rails. Mount accessories with the Sprinter Roof Rail T-Bolt 8 pack.

See it on your van. Add the Sprinter Roof Rails | Roof Tracks to your build in our 3D Van Builder and preview it on a real Sprinter before you buy.

Product Details

Why upgrade the roof rails

Every rooftop build starts at the rails. These follow the factory dimensions and mounting points, so they drop onto your Sprinter's existing roof holes, but the profile is heavier for more strength under racks, solar and gear.

What you get

Two roof rails (the 170 in kit ships as two pieces per side)
Custom M8 square-head bolts, washers and self-locking nuts
Weather sealing tape

Good to know

Built by Tec Vanlife.
Interior ceiling panels come out during install.

Fitment & Compatibility

Fits: Mercedes Sprinter 2007+, 144, 170 or 170 Extended wheelbase

Not sure your build qualifies? Reach out to our team.

Specifications

Material	Heavy duty aluminum extrusion
Rail width	1.26 in (32 mm)
Rail length	144 in kit: 114.6 in (2910 mm); 170 in kit: 152.0 in (3860 mm); 170 Extended: reach out
Finish	Anodized black or satin silver (170 Extended in black)
Hardware	Custom M8 bolts with 25 x 25 mm square heads, washers, self-locking nuts
Sealing	Weather sealing tape included
Mounting	Factory roof holes, no drilling
Install	2 people, about 30 min to 1 hr
Fits	2007+ Mercedes Sprinter 144, 170, 170 Extended

What's in the Box

Roof rails (170 in kit ships as two pieces per side)
Custom M8 square-head bolts
Washers
Self-locking nuts
Weather sealing tape

Install Time30 min to 1 hour

DIY FriendlyIntermediate

Drilling RequiredNo

Two people, standard tools, about 30 minutes to an hour once the ceiling panels are out. The rails bolt through the factory roof holes and tighten from inside the van with the included washers and self-locking nuts. The install manual is linked on this page. Reach out to our team at products@sandyvans.com or (619) 812-1903 with questions or to book a shop install in San Diego.

Mistakes to avoid

Forgetting the ceiling panels; you need inside access to every mounting point
Installing in a wet channel; dry it first so the bolts drop in smooth
Flipping the washer; the flat side goes against the roof
Skipping the sealing tape on any bolt

Tools You'll Need

Socket set or impact driver
Allen key or screwdriver to hold the bolt
Chisel and hammer for the roof caps
Solvent and rags
Ladder
A helper

Download the install instructions (PDF)

See all Sandy Vans install videos & manuals →

How to choose Sprinter roof rails

1. Wheelbase

Rails are cut to length for the 144 in, 170 in or 170 in Extended Sprinter.

How to choose: Order the kit that matches your wheelbase.

2. Factory or upgraded

Factory rails work for light loads. Upgraded rails use the same mounting points with a heavier profile.

How to choose: Planning a full rack, solar array or heavy gear? Upgrade.

3. What you'll mount

Racks, crossbars, solar, awnings and lights each need their own brackets or hardware.

How to choose: List your accessories first and confirm each has a mounting option for Sprinter rails.

4. Install access

The nuts tighten from inside, so ceiling panels or the headliner come out.

How to choose: Install rails before your ceiling goes in, or plan the time to pull it.

Before you order

Confirm wheelbase: 144, 170 or 170 Extended
Pick a finish
Plan ceiling access
Order extra T-bolts if you're mounting accessories

How these rails stack up

Fit: 2007+ Sprinter 144, 170 and 170 Extended
Strength: heavier profile than factory on the same mounting points
Install: no drilling, two people, about an hour
Rack: our SV Sandbar Roof Rack mounts to these rails
Accessories: mount with the Sprinter Roof Rail T-Bolt 8 pack

Which kit fits my van?

Match the kit to your wheelbase: 144 in, 170 in or 170 in Extended. Install is the same on every model; only the rail length changes.

Do I need to drill?

No. Pop off the factory plastic roof caps to expose the OEM mounting holes.

Do the ceiling panels have to come out?

Yes. The nuts and washers go on from inside the van, so the interior ceiling panels or headliner need to come out to reach the mounting points.

Can one person install them?

Plan on two: one on the roof holding the bolt, one inside tightening the nut. Experienced installers take about 30 minutes; first-timers about an hour.

Is it waterproof?

The kit includes weather sealing tape for each bolt. For extra protection many installers also add butyl tape or silicone around the hardware.

What can I mount to them?

Roof racks, crossbars, solar panels, awnings and lighting, using the right brackets or hardware for each accessory. Our SV Sandbar Roof Rack mounts to these rails, and it's what we use on vans without factory rails (the Sandbar is for high roof Sprinters).

What bolts do the rails use?

Standard M8 thread with custom 25 x 25 mm square heads that sit inside the rail channel. Extra bolts come in our Sprinter Roof Rail T-Bolt 8 pack.

Will they work on a passenger Sprinter?

Yes, but it's a big job. The full headliner has to come out to reach the mounting points from inside.

Black or silver?

Both finishes resist corrosion; pick the one that matches your van and rack. The 170 Extended kit comes in black.
