Agile Offroad Standard RIP Kit for 2500 2WD Sprinter components

Standard RIP Kit for 2500 2WD Sprinter overview video

Agile Offroad

Standard RIP Kit for 2500 2WD Sprinter

$3,318.85

Shop 5.0 Shop rating (174) on Google

Own this? Write the first review

Product variants

Pickup available at Sandy Vans HQ

Usually ready in 2-4 days

A 2500 2WD Sprinter that rides flat and stays composed with a full build on board.

The Agile Offroad Standard Ride Improvement Package (RIP) the entry point: FOX 2.0 rear shocks, custom leaf springs and a coil assist kit. Every kit is built to order with leaf springs matched to how much your van weighs.

Built to order and spec'd for your van. Pickup and install at our San Diego shop only.

Fits: Mercedes Sprinter 2500 2WD, NCV3 (2007-2018) and VS30 (2019+). Not compatible: 4WD/AWD Sprinters; Sprinter 3500.

Rear: FOX 2.0 Performance Series shocks
Front: Coil assist kit with coil covers
Custom leaf springs matched to your rear axle weight
Bolts to factory mounting points, no cutting or welding
Pickup and install at our San Diego shop

Choose your variant:

Rear spring rate: 4200 lb, 4700 lb, 5400 lb, matched to your loaded rear axle weight
Wheel hardware: Aftermarket Alloy 20mm, MB Factory Alloy 16mm, MB Factory Steel 20mm, matched to your wheels and stud size
Sprinter generation: NCV3 (2007-2018) or VS30 (2019+)

Other 2500 2WD kits: Premium, Pro.

See it on your van. Add the Standard RIP Kit for 2500 2WD Sprinter to your build in our 3D Van Builder and preview it on a real Sprinter before you buy.

Product Details

Why we install the Standard RIP Kit

Once a Sprinter carries a full build, the factory suspension sways, bottoms out and floats. The Agile Standard RIP Kit for the 2500 2WD the entry point: FOX 2.0 rear shocks, custom leaf springs and a coil assist kit, and it's tuned to your van's weight rather than sold one-size-fits-all.

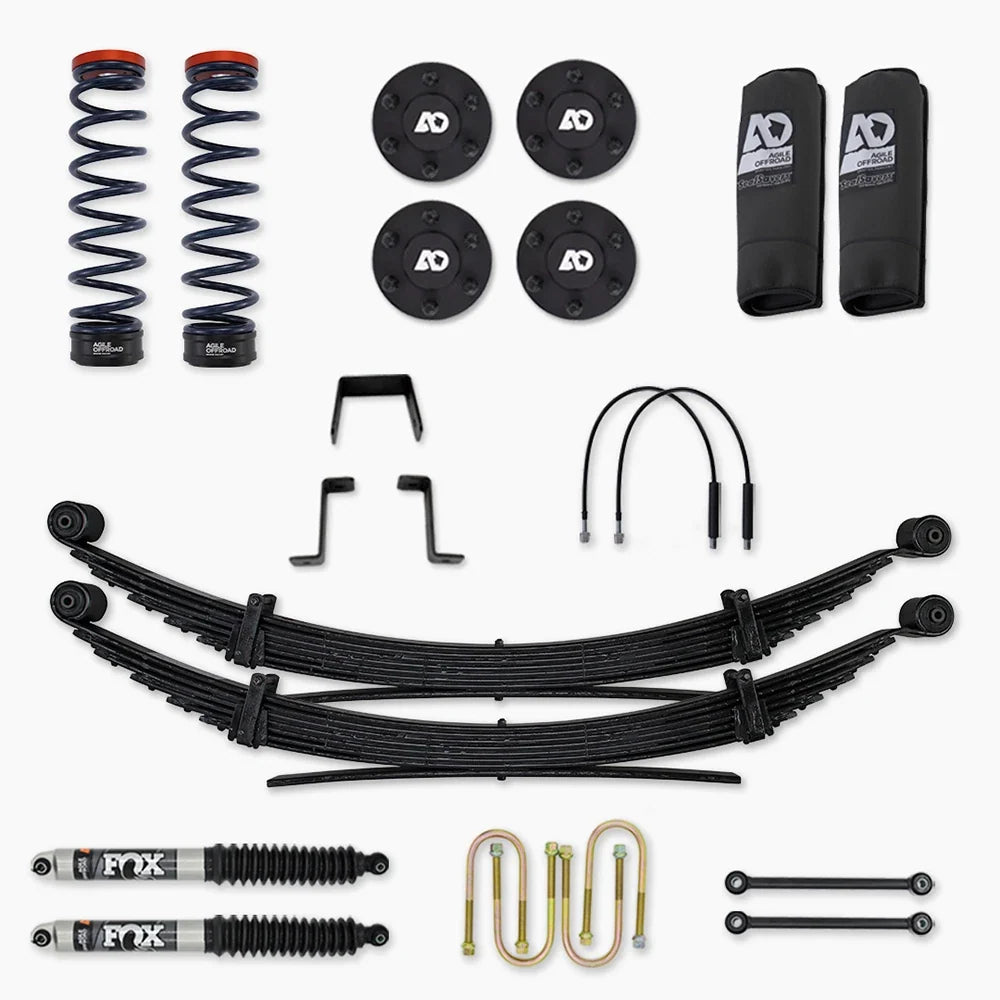

What's in the kit

FOX 2.0 rear shocks
Coil assist kit
Coil covers
E-brake relocation bracket
Extended brake lines
Sway bar links
Leaf spring U-bolts
Custom leaf springs (your rate)
Wheel spacer kit

Picking your options

The leaf springs are built to your loaded rear axle weight, so weigh the van first. Reach out and we'll help you choose the spring rate and the rest of the options.

See it in action

Watch our suspension overview video to see how Agile kits change the way a loaded Sprinter rides.

Fitment & Compatibility

Fits: Mercedes Sprinter 2500 2WD, NCV3 (2007-2018) and VS30 (2019+)

Not compatible with: 4WD/AWD Sprinters; Sprinter 3500

Also fits these Sprinter-platform RV & upfitter builds:

Winnebago Revel
Storyteller Overland (MODE, Beast Mode)
Outside Van
Airstream Interstate & Atlas
Grech RV (Strada, Turismo, Terreno)
Pleasure-Way Plateau
Leisure Travel Vans (Unity, Wonder)
Coachmen Galleria
Midwest Automotive Designs
Jayco Terrain
Tiffin Wayfarer
Thor Tranquility

Fitment depends on your exact model, year, suspension lift, and body kit. Confirm with our team before ordering.

Not sure your build qualifies? Reach out to our team.

Specifications

Brand	Agile Offroad
Kit	Standard RIP Kit for 2500 2WD Sprinter
Agile part number	AOR8601
Fits	Mercedes Sprinter 2500 2WD, NCV3 (2007-2018) and VS30 (2019+)
Rear	FOX 2.0 Performance Series
Front	Coil assist kit with coil covers
Rear spring rates	4200 lb, 4700 lb, 5400 lb
Wheel hardware	Aftermarket Alloy 20mm, MB Factory Alloy 16mm, MB Factory Steel 20mm
Sprinter generation	NCV3 (2007-2018), VS30 (2019+)
Lift	About 2 in up front from the coil assist kit (per Agile)
Installation	Bolt-on to factory mounting points, no cutting or welding
Availability	Pickup and install at our San Diego shop
Build time	Built to order

What's in the Box

FOX 2.0 rear shocks
Coil assist kit
Coil covers
E-brake relocation bracket
Extended brake lines
Sway bar links
Leaf spring U-bolts
Custom leaf springs (your rate)
Wheel spacer kit

Install Time7 to 8 hours

DIY FriendlyAdvanced; professional install recommended

Drilling RequiredNo

This is a professional-level install: the van comes off the ground on jack stands, the suspension comes apart front and rear, and the rear springs get swapped. Plan on 7 to 8 hours of shop time.

Before you start

Measure ride height front and rear first so you can see the change.
Weigh your rear axle loaded to confirm the spring rate.
Re-torque the suspension after the first miles and at service intervals.

Agile hasn't published a public install guide for this kit. We install it at our shop; reach out to our team for details.

Want us to install it? Reach out to our team at products@sandyvans.com or (619) 812-1903.

Tools You'll Need

Floor jacks and jack stands
Torque wrench
Metric and SAE sockets and wrenches
Pry bar and dead-blow hammer
Anti-seize and thread locker

See all Sandy Vans install videos & manuals →

How to choose a suspension kit for your Sprinter

1. Which Sprinter do you have?

How to choose: Agile kits are specific to 2500 or 3500 and 2WD or 4WD/AWD. This kit is for the 2500 2WD.

2. How heavy is your build?

How to choose: Weigh your rear axle loaded and pick the spring rate that matches.

3. How much rough-road driving?

How to choose: Mostly pavement and graded dirt: the Standard kit covers it. Frequent washboard and trails: step up to FOX 2.5 shocks and front auxiliary shocks. Racing pace or full-time overland: look at the adjustable FOX kits.

4. Do you have factory rear A/C?

How to choose: Front auxiliary shocks don't fit with factory rear A/C, so pick a kit or option without them.

Before you order

Sprinter 2500 2WD confirmed
Rear axle weight measured
Wheel type and stud size noted
Rear A/C noted
Install booked at our shop

The 2500 2WD lineup

Standard RIP Kit: the entry point: FOX 2.0 rear shocks, custom leaf springs and a coil assist kit.
Premium RIP Kit: steps up to larger FOX 2.5 rear shocks and Bilstein front struts.
Pro RIP Kit: adds rear upper and lower shear brackets to the Premium setup for hard off-road use.

Which spring rate should I pick for my 2500?

Weigh your van's rear axle loaded the way you travel, then pick the rate that matches. The 5400 lb rate is the one we put on most built 2500s. Not sure? Reach out and we'll spec it with you.

Which Sprinter generation do I have?

NCV3 covers 2007 to 2018 Sprinters and VS30 covers 2019 and newer. Pick the one that matches your van's model year.

What does wheel hardware mean?

It matches the wheel spacer kit to your wheels: aftermarket alloy, Mercedes factory alloy or Mercedes factory steel, and the 16mm or 20mm stud size. Pick the one that matches the wheels you'll run.

How is the Standard kit different from the other 2500 2WD kits?

The Standard kit the entry point: FOX 2.0 rear shocks, custom leaf springs and a coil assist kit. The Premium kit steps up to larger FOX 2.5 rear shocks and Bilstein front struts. The Pro kit adds rear upper and lower shear brackets to the Premium setup for hard off-road use.

Can I buy it shipped instead of installed?

We sell these for pickup and install at our San Diego shop. Reach out to our team at products@sandyvans.com or (619) 812-1903 to book.

Does it fit RV builds on the Sprinter chassis?

Often, yes. Fitment depends on the build's weight, trim and accessories, so reach out with your model and we'll confirm the right kit and spring rate.

Do you install products for customers?

Yes. Many SV products can be professionally installed at our San Diego shop. Reach out to our team to schedule. Email products@sandyvans.com or call 619-812-1903.

Can I reach a real person with questions?

Always. We are a small team in San Diego. Email products@sandyvans.com or call 619-812-1903 and you'll get a real answer, not a chatbot.

Where are you located?

9393 Trade Pl, San Diego, CA. Come visit the shop, we'd love to show you around.

Does Sandy Vans offer financing?

Yes. Many financing options are available. Set up a call with a sales associate to learn more.

Still have a question? Email the team and you'll get a real answer.
