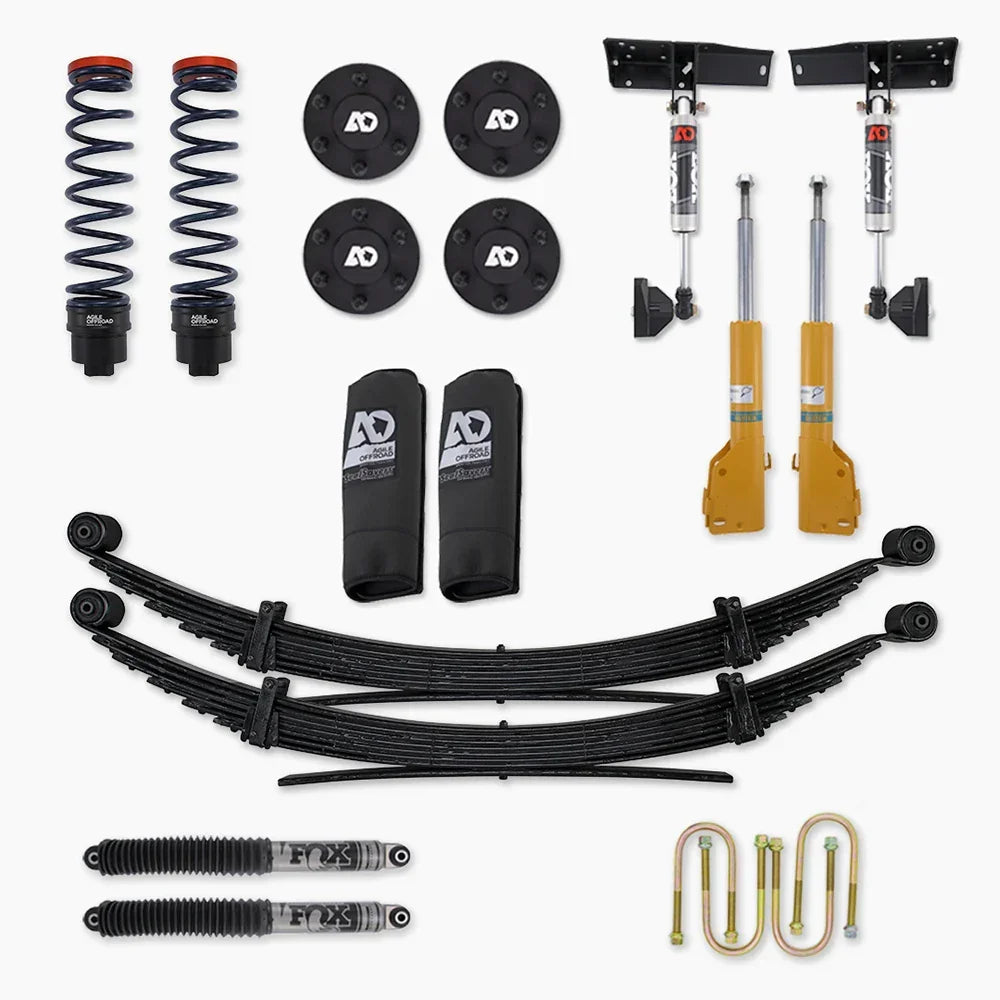

Agile Offroad Premium RIP Kit components: FOX 2.5 rear shocks, Bilstein B6 front struts, auxiliary shocks, leaf springs, coil covers, wheel spacers and U-bolts

Sandy Vans overview of the Agile Offroad suspension on a Sprinter

Agile Offroad

Premium RIP Kit for 2500 4WD/AWD Sprinter

Name: Premium RIP Kit for 2500 4WD/AWD Sprinter
Brand: Agile Offroad
Price: 4501.89 USD

$4,501.89

Shop 5.0 Shop rating (174) on Google

Own this? Write the first review

Product variants

Pickup available at Sandy Vans HQ

Usually ready in 2-4 days

A loaded Sprinter that rides flat, stops straight and stays composed on washboard.

The Agile Offroad Premium Ride Improvement Package (RIP) is built for 4WD and AWD Sprinter 2500 vans carrying a full build. It adds FOX 2.5 commercial rear shocks, Bilstein B6 front struts, a front auxiliary shock kit and custom leaf springs matched to your rear axle weight.

Built to order and spec'd for your van. Call us at (619) 812-1903 to set your spring rate and wheel hardware. Pickup at our San Diego shop only.

Fits: Mercedes Sprinter 2500 4WD/AWD, 2007 and newer (NCV3 and VS30). Not compatible: 2WD Sprinters or the 3500 (Agile makes separate kits).

FOX 2.5 commercial rear shocks for heat management and durability under load
Bilstein B6 front struts plus a front auxiliary shock kit to cut sway and nose dive
Custom leaf springs in 4200, 4700, 5400 or 6000 lb rear axle ratings (4200 also with a 1 in lift)
Wheel spacer kit and new U-bolts included
Installs on factory mounting points, no cutting or welding

Lighter build? See the Agile Standard RIP Kit.

See it on your van. Add the Premium RIP Kit for 2500 4WD/AWD Sprinter to your build in our 3D Van Builder and preview it on a real Sprinter before you buy.

Product Details

Why we install Agile suspension

We install Agile suspension at our San Diego shop. Once a Sprinter carries a full build, the factory suspension sways, bottoms out and floats. The Premium RIP Kit fixes that without turning the van into a rough-riding truck.

What's in the Premium kit

FOX 2.5 commercial rear shocks that hold up to the heat of a heavy van on long dirt roads
Bilstein B6 front struts for precise steering and stable braking
Front auxiliary shock kit that adds rebound control and cuts sway when you hit a dip
Custom leaf springs matched to your rear axle weight, with upgraded U-bolts
Coil assist kit, coil covers, brake line cover and wheel spacer kit

Picking a spring rate

The spring rate is matched to your rear axle weight. The 5400 lb package is the one we put on most Sprinters. If you carry more weight, go up to the 6000. Call us and we'll spec it with you.

Fitment & Compatibility

Fits: Mercedes Sprinter 2500 4WD/AWD, 2007+

Not compatible with: 2WD Sprinters; Sprinter 3500; auxiliary shocks with factory rear A/C

Not sure your build qualifies? Reach out to our team.

Specifications

Brand	Agile Offroad
Model and part no.	Premium RIP Kit for 2500 4WD/AWD Sprinter, AOR8608-01
Fits	Mercedes Sprinter 2500 4WD/AWD, 2007+ (NCV3 and VS30)
Rear shocks	FOX 2.5 commercial
Front struts	Bilstein B6
Front auxiliary shocks	Included (not installable with factory rear A/C lines)
Leaf spring options	4200, 4200 with 1 in lift, 4700, 5400, 6000 lb rear axle weight
Wheel hardware options	Aftermarket alloy 16 or 20 mm; MB factory alloy 16 mm; MB factory steel 16 or 20 mm
Also included	U-bolts, coil assist kit, coil covers, brake line cover, wheel spacer kit
Mounting	Factory mounting points, no cutting or welding
Kit shipping weight	About 400 lb
Availability	Built to order; pickup at our San Diego shop

What's in the Box

FOX 2.5 commercial rear shocks
Bilstein B6 front struts
Front auxiliary shock kit
Custom leaf springs (your spring rate)
Leaf spring U-bolts
Coil assist kit
Coil covers
Brake line cover
Wheel spacer kit

Install Time9 to 10 hours

DIY FriendlyAdvanced; professional install recommended

Drilling RequiredNo (fender liner trimming required)

The Premium RIP Kit is a professional-level install: the van comes off the ground on jack stands, the front struts come out, and the rear springs get swapped. Plan on 9 to 10 hours of shop time. Agile's installation guide covers each step.

Before you start

Measure ride height front and rear first so you can see the change.
The install requires trimming the plastic fender well liners.
Factory rear A/C: per Agile, the RIP Kit fits vans with factory rear A/C, but the auxiliary shocks and brackets can't be installed because they interfere with the rear A/C lines.

After install

Re-torque the suspension after the first miles and check it at service intervals. Ask our team for the torque specs.

Want us to install it? Reach out to our team at products@sandyvans.com or (619) 812-1903. We can often do same-week service.

Tools You'll Need

Floor jacks and jack stands
Torque wrench
Metric and SAE sockets and wrenches
T25 Torx and 3/16 in Allen drivers
Pry bar and dead-blow hammer
Panel clip tool
Anti-seize and thread locker

Download the install instructions (PDF)

See all Sandy Vans install videos & manuals →

How to choose a suspension kit for your Sprinter

1. Which Sprinter do you have?

How to choose: Kits are specific to 2500 or 3500 and 2WD or 4WD/AWD. This kit is for the 2500 4WD/AWD.

2. How heavy is your build?

How to choose: Weigh your rear axle loaded. Pick the spring rate that matches. The 5400 lb rate is the most common on built Sprinters.

3. How much off-road driving?

How to choose: If you run washboard and dirt roads often, step up to commercial-grade rear shocks and front auxiliary shocks.

4. Do you have factory rear A/C?

How to choose: The kit fits, but the auxiliary shocks can't go on with factory rear A/C lines. Call us to plan around it.

Before you order

Sprinter 2500 4WD/AWD confirmed
Rear axle weight measured or estimated
Rear A/C noted
Install booked or planned

How the Premium RIP Kit stacks up

Rear: FOX 2.5 commercial shocks and custom leaf springs.
Front: Bilstein B6 struts plus auxiliary shocks.
Fit: factory mounting points, no cutting or welding.
Lighter builds: see the Standard RIP Kit.

Will it fit my Sprinter?

It fits the Sprinter 2500 4WD/AWD, 2007 and newer. Agile makes separate kits for 2WD and 3500 vans. Reach out to our team at products@sandyvans.com or (619) 812-1903 if you're not sure.

Which spring rate do I need?

It depends on your rear axle weight. The 5400 lb rate is the one we install most on built Sprinters; heavier builds go to 6000. Call us at (619) 812-1903 and we'll spec it with you.

Does it lift the van?

It's built for ride quality, not lift. Depending on load you may see 1 to 2 in of rear lift, and Agile offers a 4200 lb spring option with a 1 in lift.

I have factory rear A/C. Will it fit?

Per Agile, the RIP Kit fits, but the auxiliary shocks and brackets can't be installed because they interfere with the rear A/C lines.

Can you install it?

Yes. Reach out to our team to book it; we can often do same-week service. Plan on 9 to 10 hours of shop time.

Can you ship it?

No. It's pickup only at our San Diego shop.
