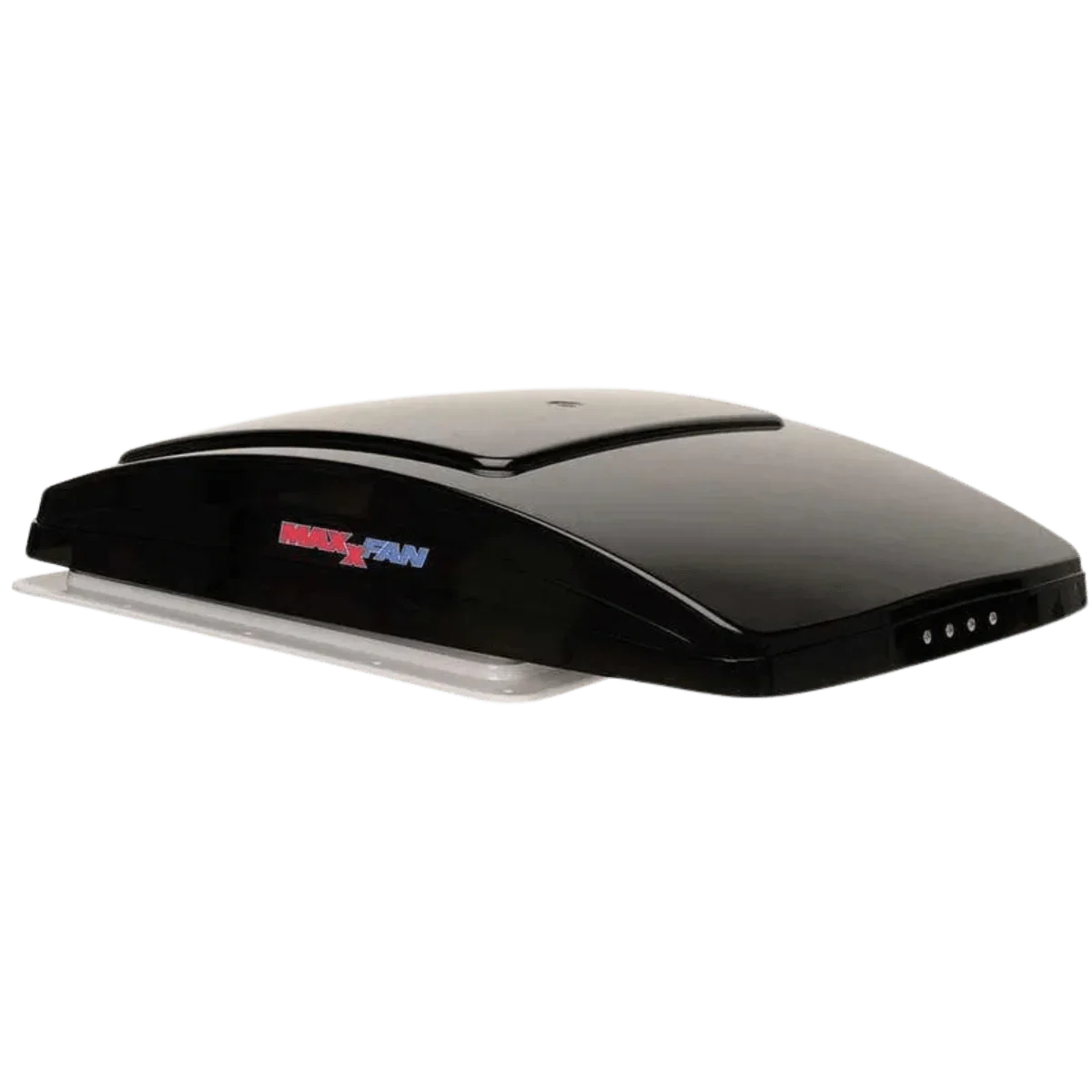

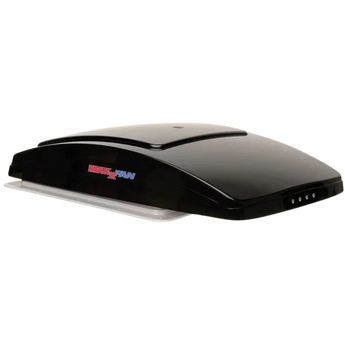

Maxxair MaxxFan Deluxe 7500K roof vent with the smoke lid closed

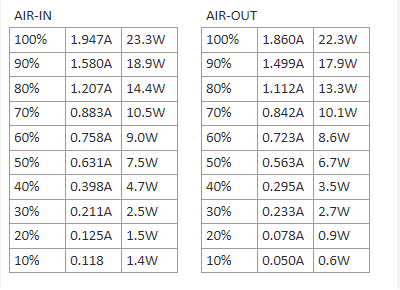

MaxxFan Deluxe 7500K amp and watt draw chart by fan speed for intake and exhaust

Maxxair

MAXXAIR MAXXFAN DELUXE RV ROOF VENT MODEL 7500K (SMOKE, WITH REMOTE)

Name: MAXXAIR MAXXFAN DELUXE RV ROOF VENT MODEL 7500K (SMOKE, WITH REMOTE)
SKU: MAXX-07500K
Price: 399.0 USD

~~$449.00~~ $399.00 Save 11%

Shop 5.0 Shop rating (174) on Google

Product variants

Pickup available at Sandy Vans HQ

Usually ready in 2-4 days

Fresh air in any weather, even with the lid open in the rain.

The Maxxair MaxxFan Deluxe 7500K is a roof vent, a 10-speed fan and a rain cover in one unit. The built-in rain shield lets you run it while it's pouring or while you're driving. Control it with the handheld remote or the keypad on the ceiling, and let the thermostat run the fan for you.

Fits: universal, any van or RV with a standard 14 x 14 in roof opening. Sprinters have no factory opening, so plan on cutting one. Not compatible: openings other than 14 x 14 in, or spots with less than 8 in of clear roof behind the fan.

Built-in rain shield: run the fan in rain or on the highway
10-speed reversible fan for intake or exhaust, with a thermostat
Remote control plus a backup keypad on the ceiling plate
Power-opening smoke lid, and a ceiling-fan mode that runs with the lid closed
Low draw: about 1.9A at full speed and 0.1A on the lowest setting
Tool-free insect screen and a 2-year warranty with a lifetime limited warranty on the lid

See it on your van. Add the MAXXAIR MAXXFAN DELUXE RV ROOF VENT MODEL 7500K (SMOKE, WITH REMOTE) to your build in our 3D Van Builder and preview it on a real Sprinter before you buy.

Product Details

Why the MaxxFan Deluxe

Most roof fans have to close when it rains. The MaxxFan Deluxe has its own rain shield, so you keep fresh air moving in a storm, while cooking or while parked overnight with the windows shut.

What you get

Fan, vent and rain cover in one unit with a smoke lid
10 speeds, intake or exhaust, with a thermostat
Handheld remote plus a ceiling keypad
Insect screen that comes out with four knobs

Plan the roof

The fan needs a 14 x 14 in opening and 8 in of clear roof behind it. Lay out your solar, rack and AC around that.

Fitment & Compatibility

Fits: Universal, any 14 x 14 in roof opening

Not compatible with: Openings other than 14 x 14 in; under 8 in of clear roof behind the fan

Not sure your build qualifies? Reach out to our team.

Specifications

Brand	Maxxair
Model	MaxxFan Deluxe 00-07500K
Lid	Smoke, power opening
Rain cover	Built in
Fan	12 in, 10-blade, 10 speeds, reversible intake/exhaust
Controls	Handheld remote and ceiling keypad
Thermostat	Yes
Power	12V DC; needs a 5A circuit
Measured draw	About 1.9A (23W) at 100%; about 0.1A (1.4W) at 10%
Roof opening	14 x 14 in
Roof thickness	1-1/8 to 6-1/2 in (build up thinner roofs at the ceiling opening)
Rear clearance	8 in of clear roof behind the fan for the louvers
Insect screen	Removes with 4 knobs, no tools
Warranty	2-year limited; lifetime limited on the lid (Maxxair)
Fitment	Universal, any 14 x 14 in roof opening

What's in the Box

MaxxFan Deluxe 7500K with smoke lid
Roof receiving flange
Interior garnish and control plate
Insect screen
Handheld remote
Installation instructions

DIY FriendlyIntermediate; roof cut and 12V wiring

Drilling RequiredYes, 14 x 14 in roof opening on vans

The MaxxFan installs into a 14 x 14 in roof opening with its roof receiving flange. On a Sprinter you'll cut the opening and build up the ceiling side so the total thickness falls between 1-1/8 and 6-1/2 in. Install time depends on your build; reach out to our team at products@sandyvans.com or (619) 812-1903 for a shop install.

Mistakes to avoid

Skipping the build-up on a thin van roof. The interior trim needs at least 1-1/8 in of total thickness.
Blocking the louvers. Keep 8 in of clear roof behind the fan.
Wiring polarity. The positive lead goes to 12V positive on a circuit rated for 5A.
Testing before power is reconnected. Re-apply 12V before testing with the remote.

Tools You'll Need

Jigsaw for the roof opening
Drill and driver
Sealant suited to your roof
Wire strippers and connectors
Saw to trim the interior garnish

See all Sandy Vans install videos & manuals →

How to choose a van roof fan

1. Does it fit your opening?

How to choose: Most fans use a 14 x 14 in opening. Check your roof layout for 8 in of clear space behind a rear-louvered fan.

2. Will you use it in the rain?

How to choose: If yes, pick a fan with a built-in rain cover like the MaxxFan Deluxe.

3. How do you want to control it?

How to choose: A remote and thermostat let the fan run itself. The 7500K has both, plus a ceiling keypad.

4. Power budget

How to choose: Fans are light loads. The 7500K draws about 1.9A at full speed.

Before you order

Roof spot with 8 in of clearance behind it
Plan to build up a thin van roof
12V circuit rated for 5A

How the MaxxFan Deluxe 7500K stacks up

Weather: built-in rain shield.
Control: remote, keypad and thermostat.
Airflow: 10 speeds, intake or exhaust.
Warranty: 2 years, lifetime on the lid.

Can I run it in the rain?

Yes. The built-in rain shield moves into place whenever the lid is open, so you can run the fan in rain or while driving.

Will it fit my Sprinter?

It fits any 14 x 14 in roof opening. Sprinters have no factory opening, so you'll cut one. The fan is built for roofs 1-1/8 to 6-1/2 in thick; a van roof is thinner, so build up the thickness at the ceiling opening with wood or another solid material.

How much power does it use?

About 1.9A at full speed and around 0.1A on the lowest setting. Maxxair calls for a 12V circuit that can supply 5A.

Does it need space around it on the roof?

Yes. The louvers face the rear, so keep at least 8 in of clear roof behind the fan, away from air conditioners, racks or boxes.

Can it run with the lid closed?

Yes. Ceiling-fan mode keeps the fan running with the lid down to move air around inside.

Can Sandy Vans install it?

Yes. Install time depends on your build. Reach out to our team at products@sandyvans.com or (619) 812-1903.
