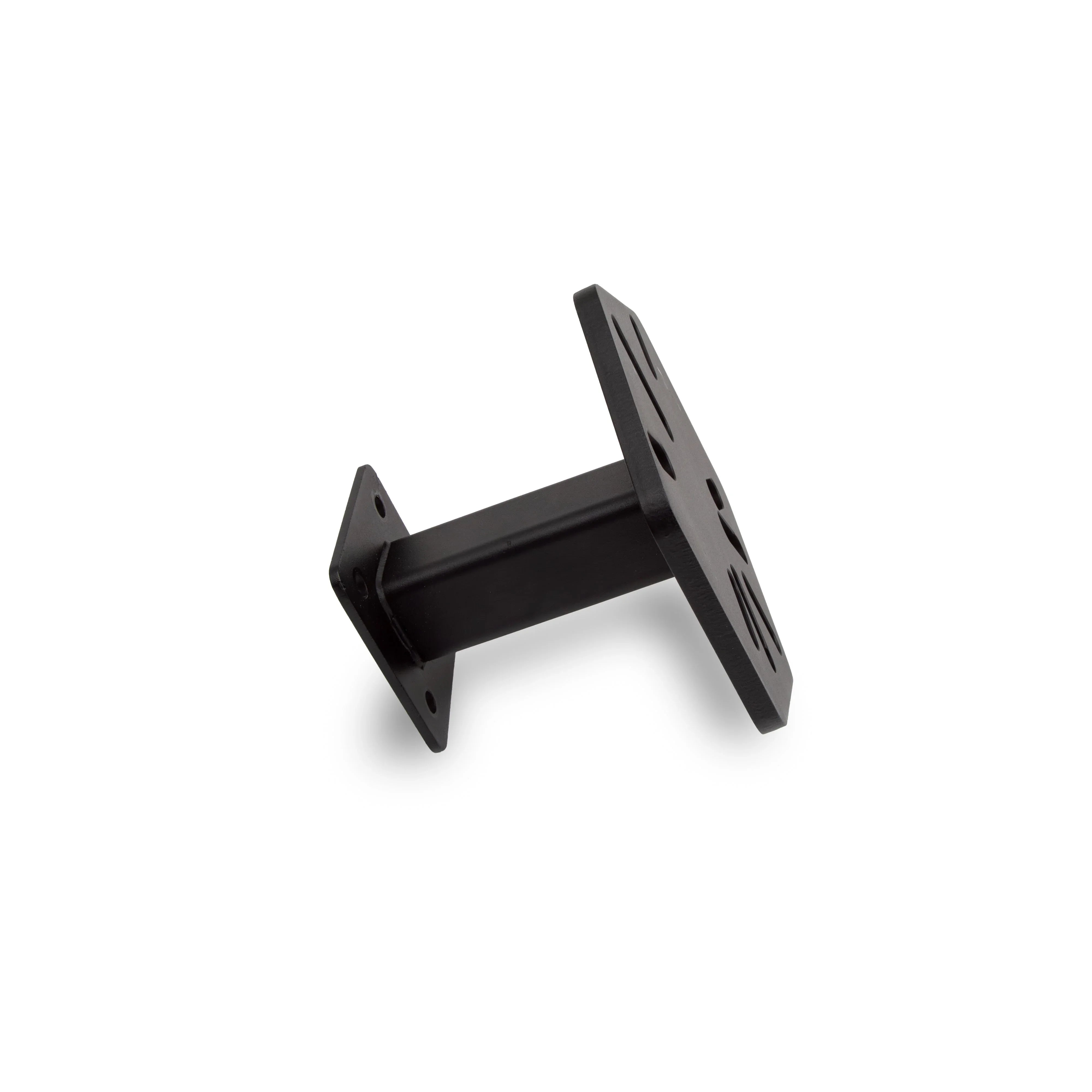

KUAT Pivot XD Spare Tire Adapter, 150mm depth, side view

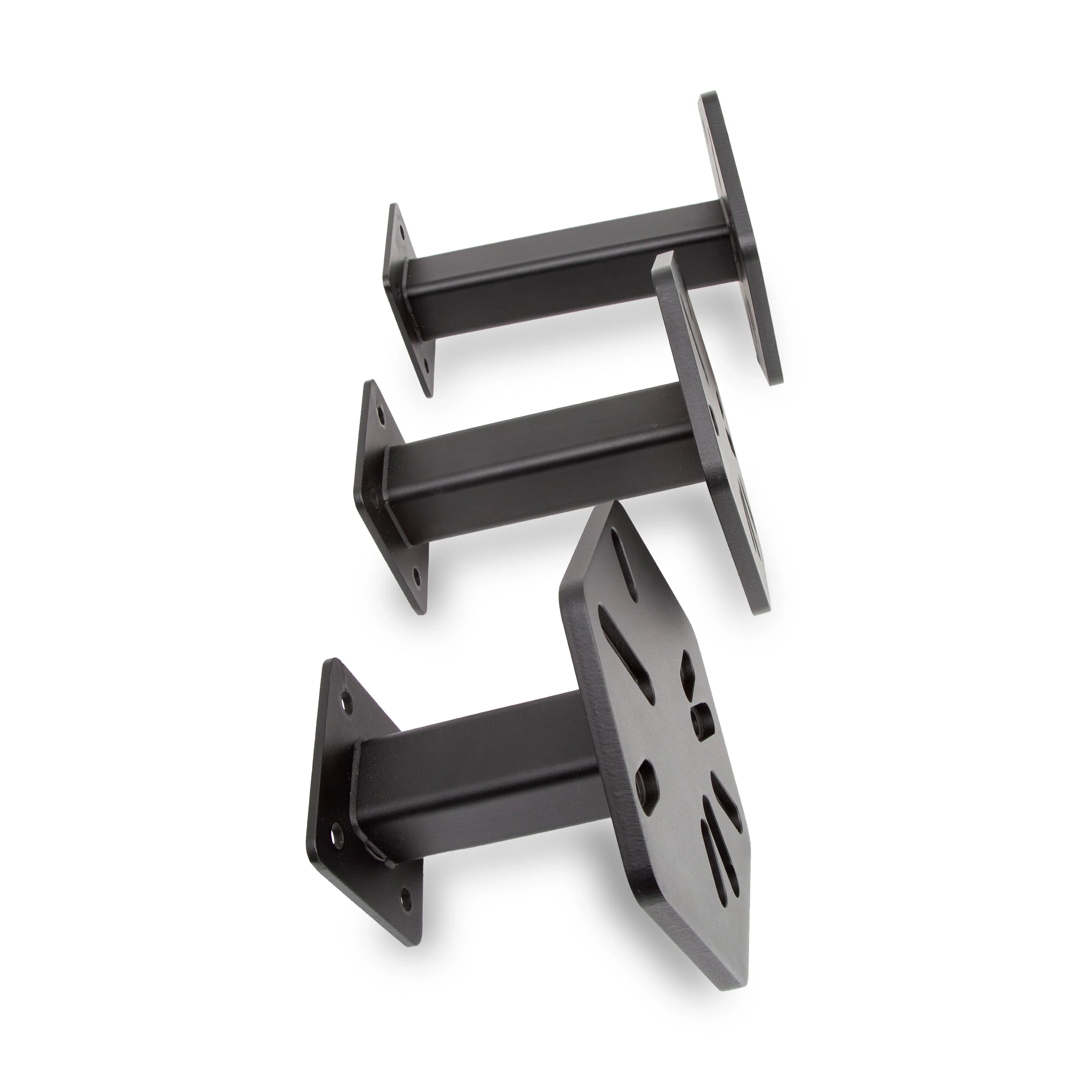

KUAT Pivot XD Spare Tire Adapter in 150mm, 200mm and 250mm depths

KUAT Pivot XD Spare Tire Adapter holding a full-size spare on the MOLLE hoop

Side view of the KUAT spare tire adapter carrying a spare on the Pivot XD

KUAT spare tire adapter mounted on the Pivot XD MOLLE hoop, no tire

KUAT Pivot XD with MOLLE hoop and spare tire adapter assembled

KUAT spare tire adapter highlighted on top of the MOLLE hoop

KUAT spare tire adapter mounting plate shown through the spare wheel

KUAT spare tire adapter hex mounting plate with slotted lug holes

KUAT spare tire adapter mounting plate and bracket, angled view

KUAT spare tire adapter studs, lug nuts, washers and hex keys

KUAT spare tire adapter M10 mounting bolts, nuts, washers and wrench

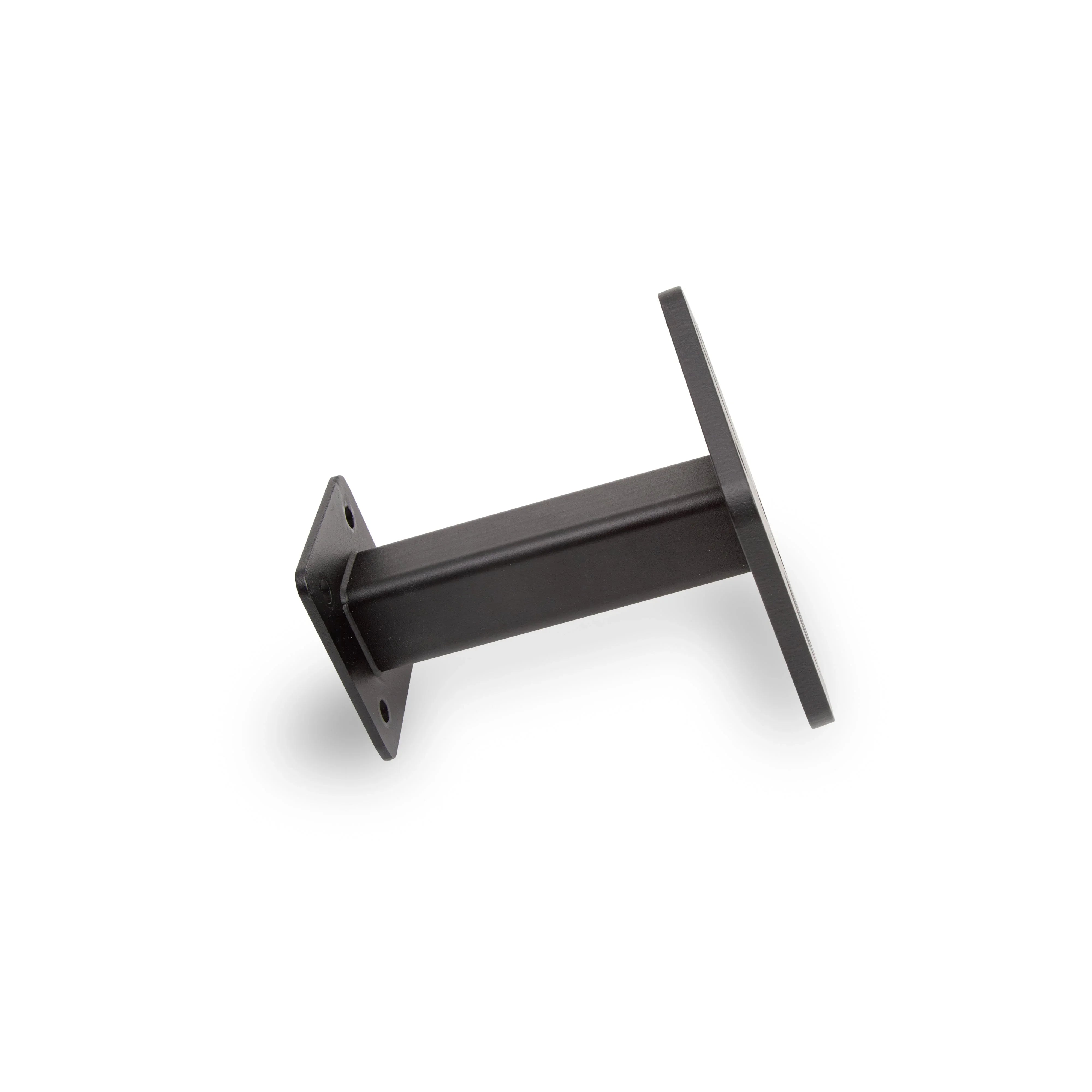

KUAT Pivot XD Spare Tire Adapter, 200mm depth, side view

KUAT Pivot XD Spare Tire Adapter, 250mm depth, side view

Kuat

Pivot™ XD Spare Tire Adapter

$98.00

Shop 5.0 Shop rating (174) on Google

Own this? Write the first review

Product variants

Pickup available at Sandy Vans HQ

Usually ready in 2-4 days

Your full-size spare, on the hitch, swinging out of the way with everything else.

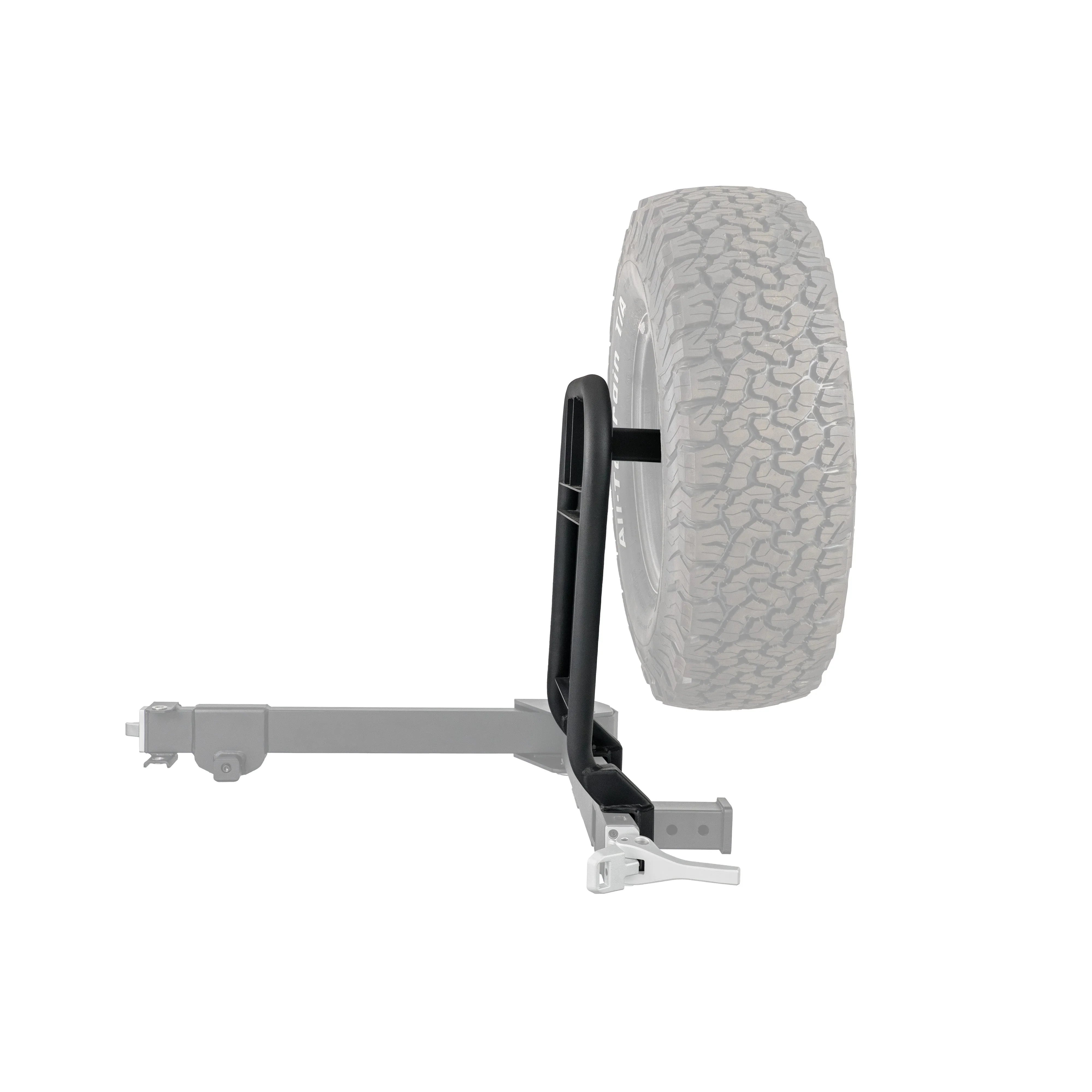

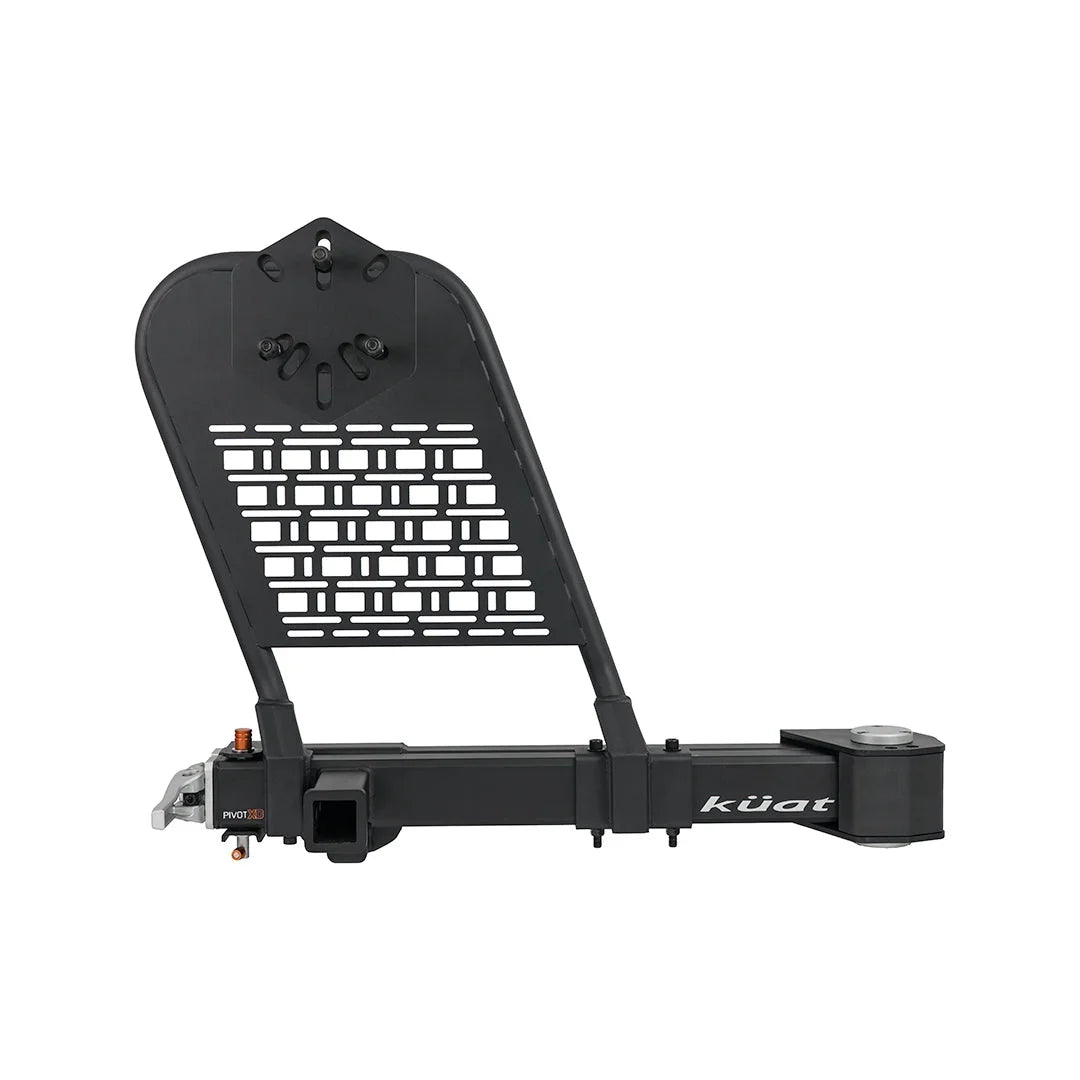

The KUAT Pivot XD Spare Tire Adapter mounts on top of the MOLLE Accessory Hoop and carries a full-size spare up to 37 in diameter. It swings with the Pivot XD, so the spare, your bike rack and the bikes all move aside together when you open the rear doors.

Requires the KUAT Pivot XD Accessory Hoop with MOLLE Panel (sold separately) and the KUAT Pivot XD.

Fits: KUAT Pivot XD with the MOLLE Accessory Hoop, on any van, including the Mercedes Sprinter. Most 5, 6 and 8 lug wheels, tires up to 37 in. Not compatible: use without the MOLLE hoop, the Pivot v3, or other swing-aways.

100 lb capacity for the spare tire
Tires up to 37 in in diameter
Fits most 5, 6 and 8 lug wheels with slotted mounting holes
All hardware included: 3 studs (75mm) and 3 lug nuts (M12 x 1.5)
Rigid steel, matte Sandy Black powder coat, Kuat No Worries Limited Warranty

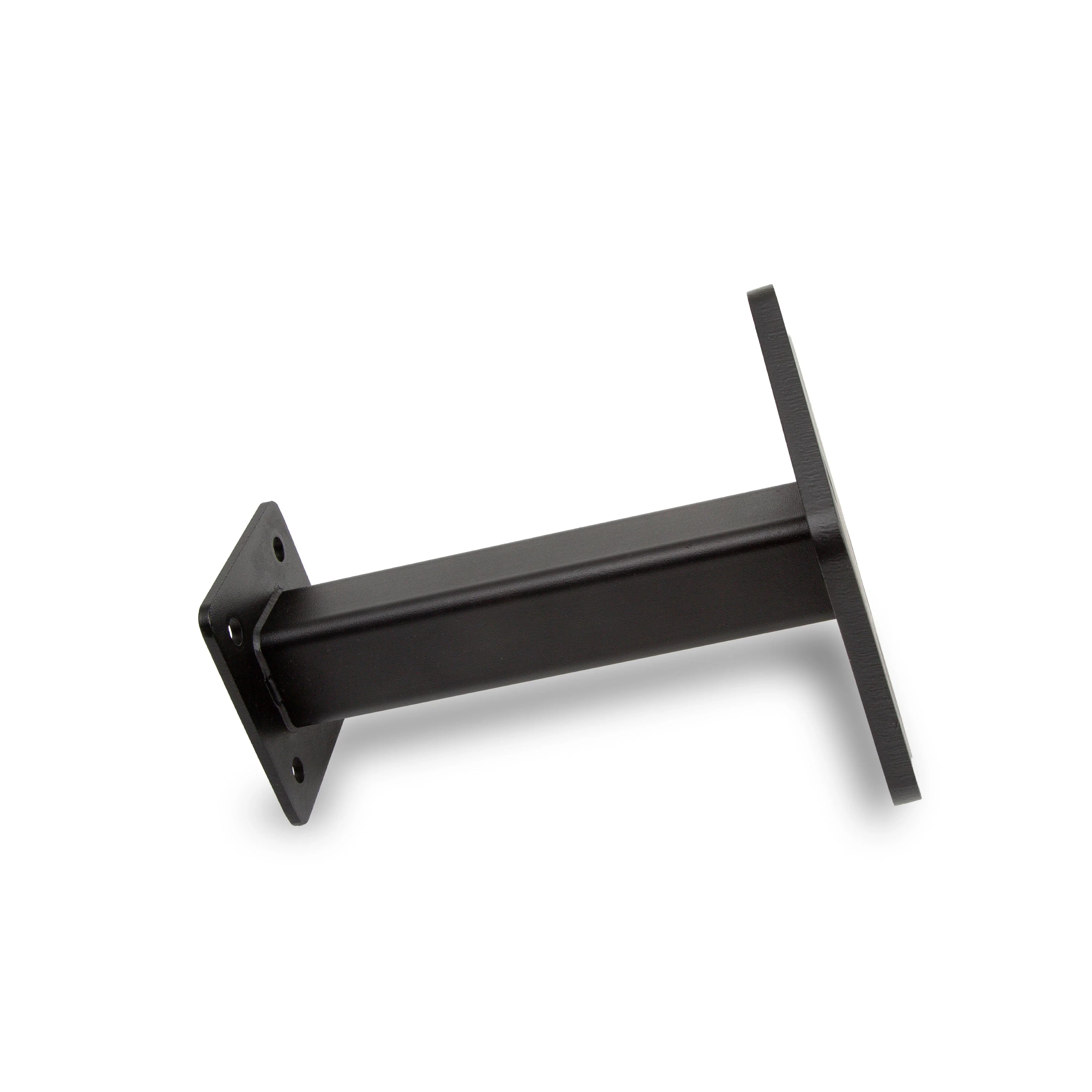

Choose your mount depth: 150mm (5.9 in), 200mm (7.8 in) or 250mm (9.8 in). Measure your spare's backspacing and pick a depth equal to or greater than it. Between two sizes, size up. See the Buying Guide tab for how to measure.

Needs: MOLLE Accessory Hoop + KUAT Pivot XD.

See it on your van. Add the Pivot™ XD Spare Tire Adapter to your build in our 3D Van Builder and preview it on a real Sprinter before you buy.

Product Details

Why we carry the Spare Tire Adapter

A full-size spare in a Sprinter usually means giving up space under the van or inside it. The Spare Tire Adapter moves the spare to the hitch on the Pivot XD, where it swings out of the way when you need the rear doors.

How it works

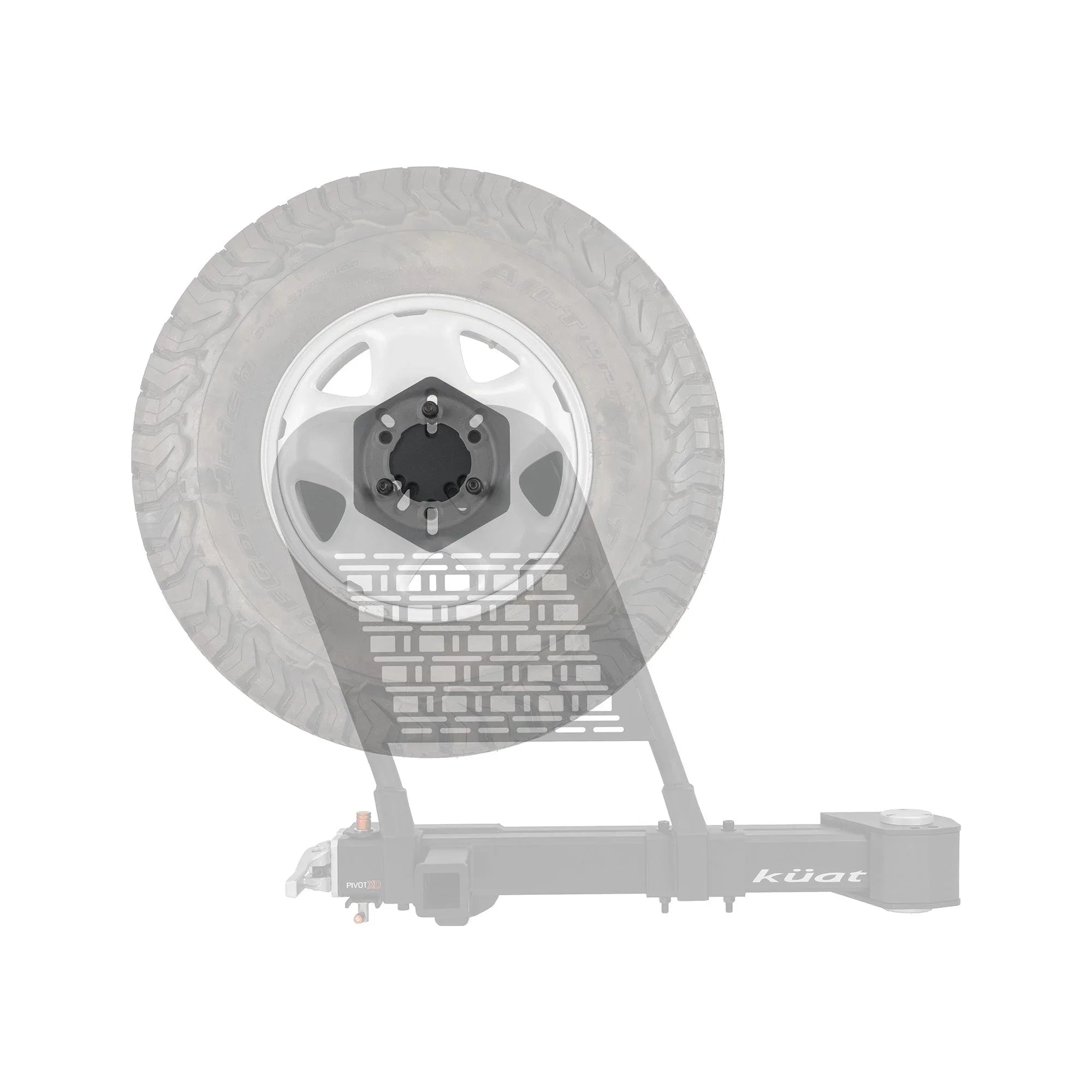

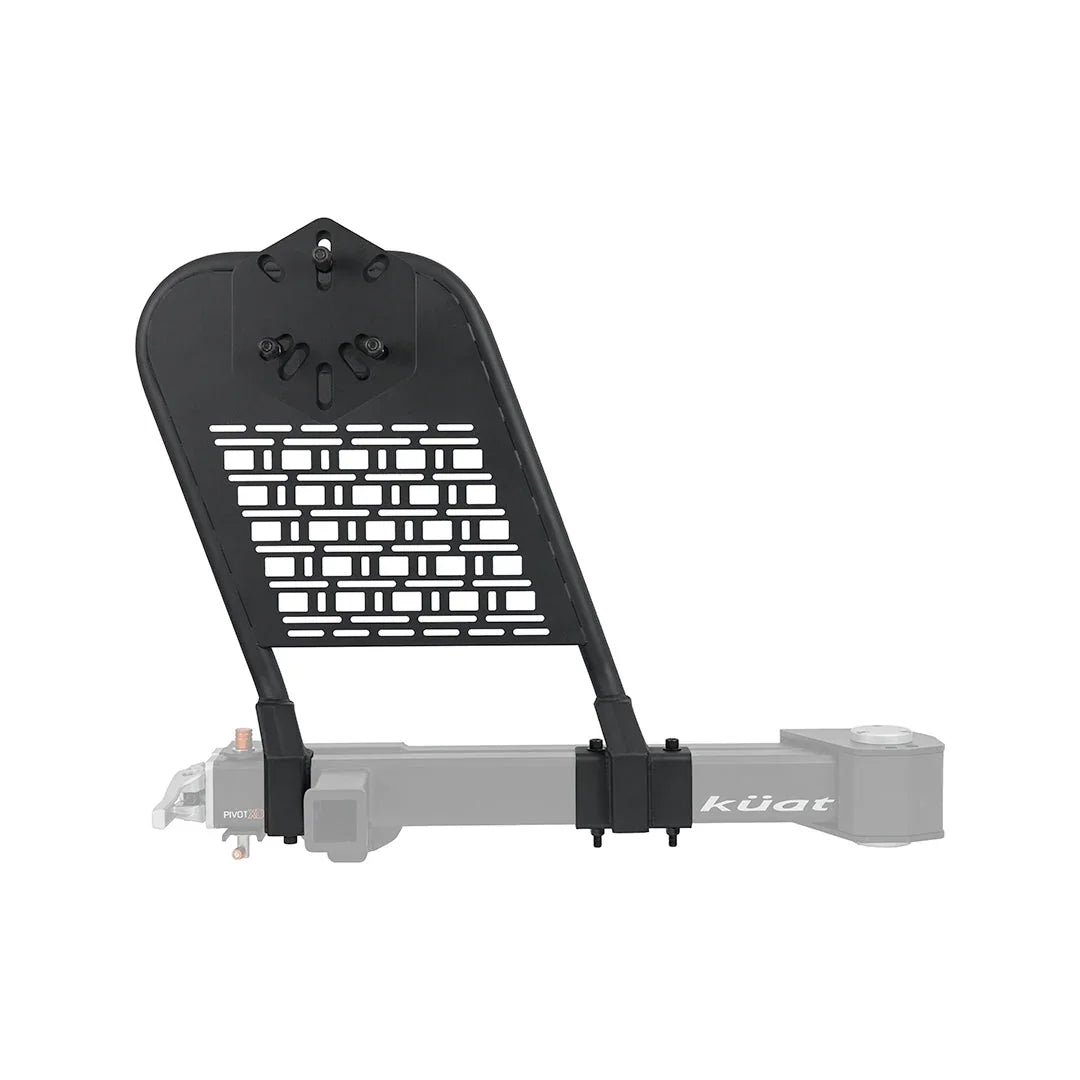

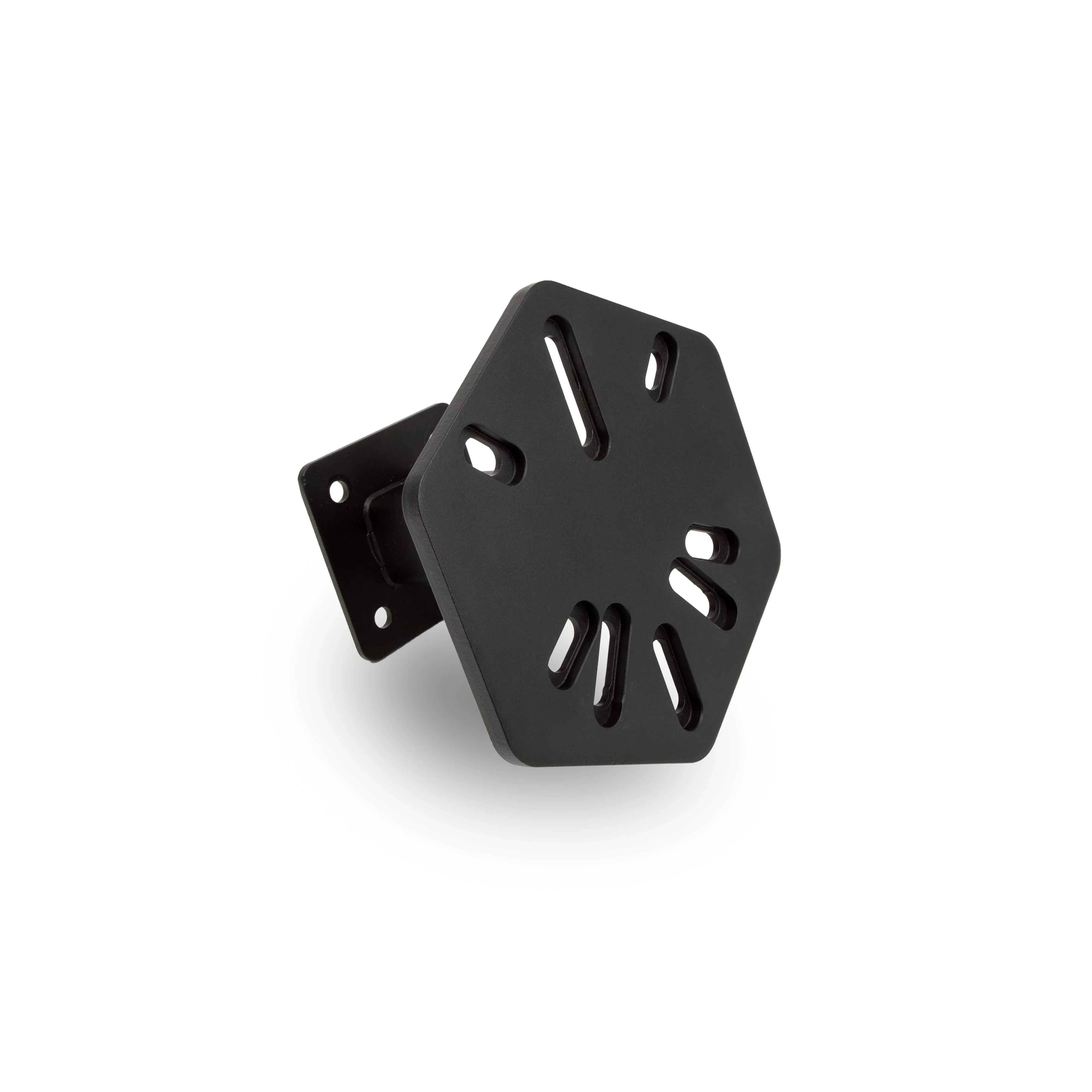

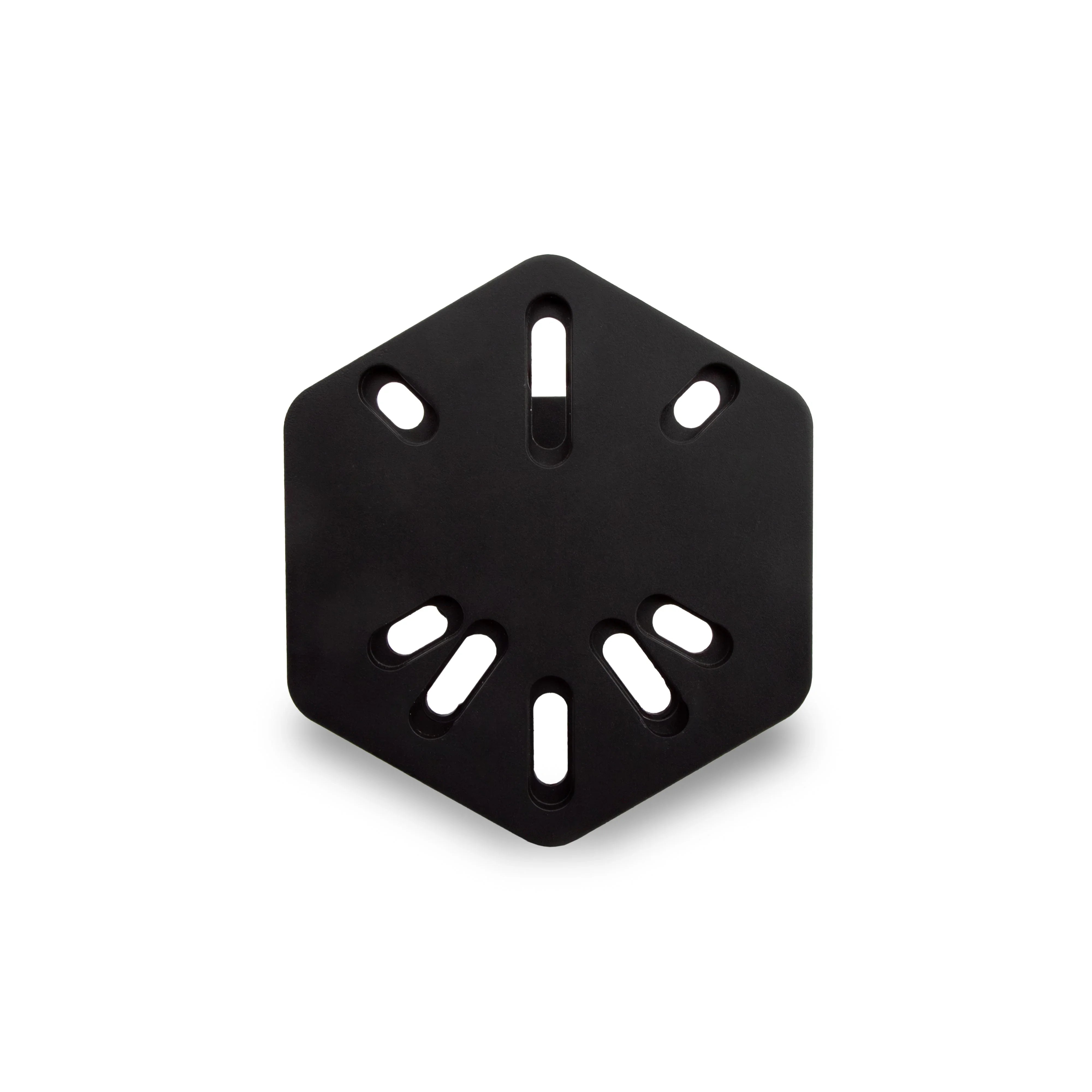

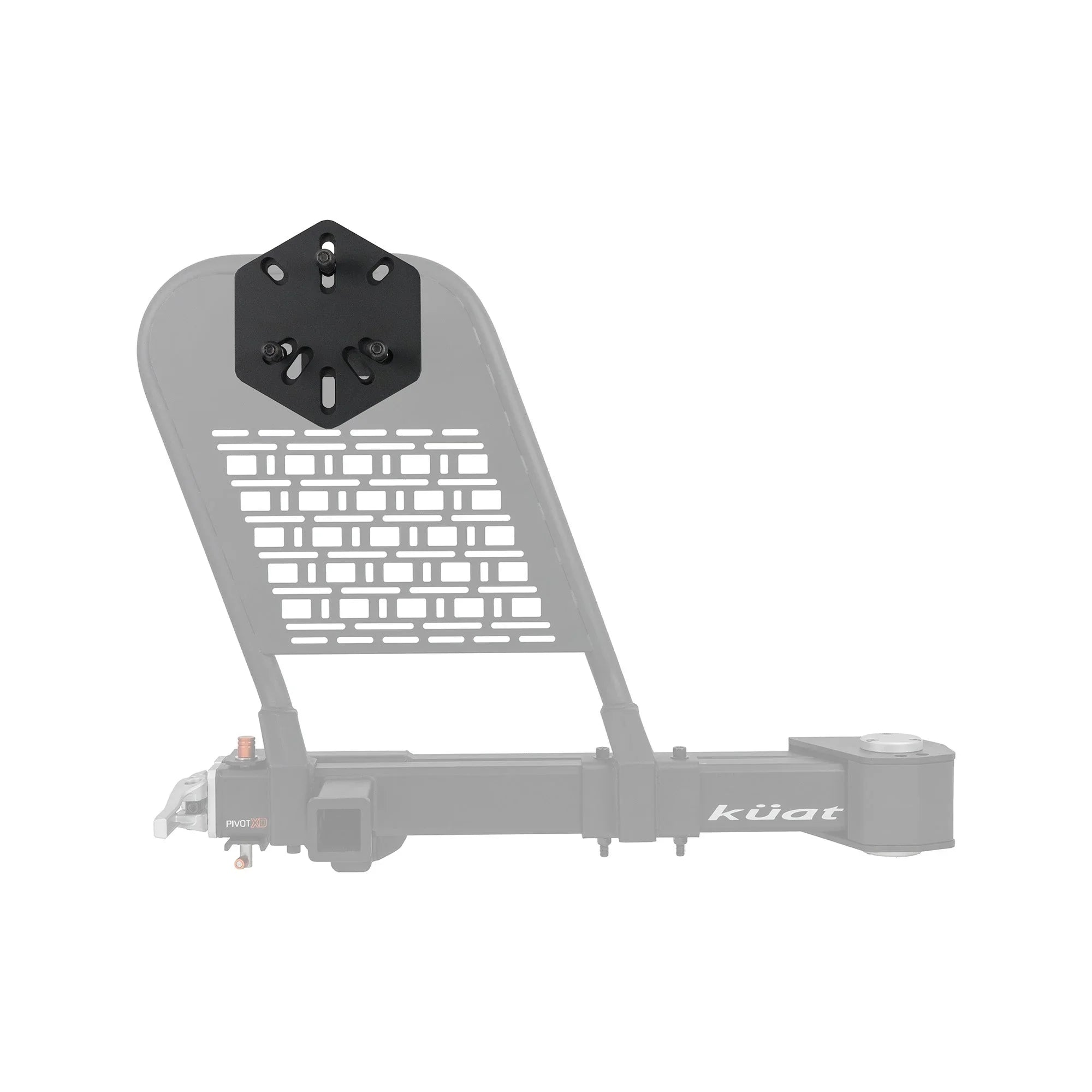

The adapter bolts to the top of the MOLLE Accessory Hoop. A hex mounting plate with slotted holes takes three studs set to your wheel's lug pattern, and the included lug nuts hold the wheel on. Your bike rack stays in the Pivot XD receiver, and you can fold it up or swing the whole setup open with the spare in place.

How the weight adds up

The adapter carries a spare up to 100 lb.
The spare counts toward the Pivot XD's 350 lb limit. The adapter's own weight doesn't.
With the MOLLE panel and spare both maxed out, the rack or cargo in the Pivot XD receiver is limited to 200 lb.

Fitment & Compatibility

Fits: KUAT Pivot XD with MOLLE Accessory Hoop, any van incl. Mercedes Sprinter

Not compatible with: Use without the MOLLE Accessory Hoop; KUAT Pivot v3 or other swing-aways; tires over 37 in or 100 lb

Not sure your build qualifies? Reach out to our team.

Specifications

Brand	KUAT (Kuat Racks)
Model	Pivot XD Spare Tire Adapter
SKU by depth	A48-101-56-04 (150mm), A48-101-57-04 (200mm), A48-101-58-04 (250mm)
Requires	KUAT Pivot XD and Pivot XD Accessory Hoop with MOLLE Panel
Mount depth	150mm (5.9 in), 200mm (7.8 in) or 250mm (9.8 in), choose your variant
Capacity	100 lb
Max tire diameter	37 in
Wheel fit	Most 5, 6 and 8 lug patterns
Hardware	3 studs (M12 x 75), 3 lug nuts (M12 x 1.5), adapter bolts and washers
Torque	40 Nm
Construction	Rigid steel, matte Sandy Black powder coat
Product weight	13 lb (150mm), 14 lb (200mm), 15 lb (250mm)
Shipping weight	16 lb (150mm), 17 lb (200mm), 18 lb (250mm)
Warranty	Kuat No Worries Limited Warranty

What's in the Box

KUAT Pivot XD Spare Tire Adapter

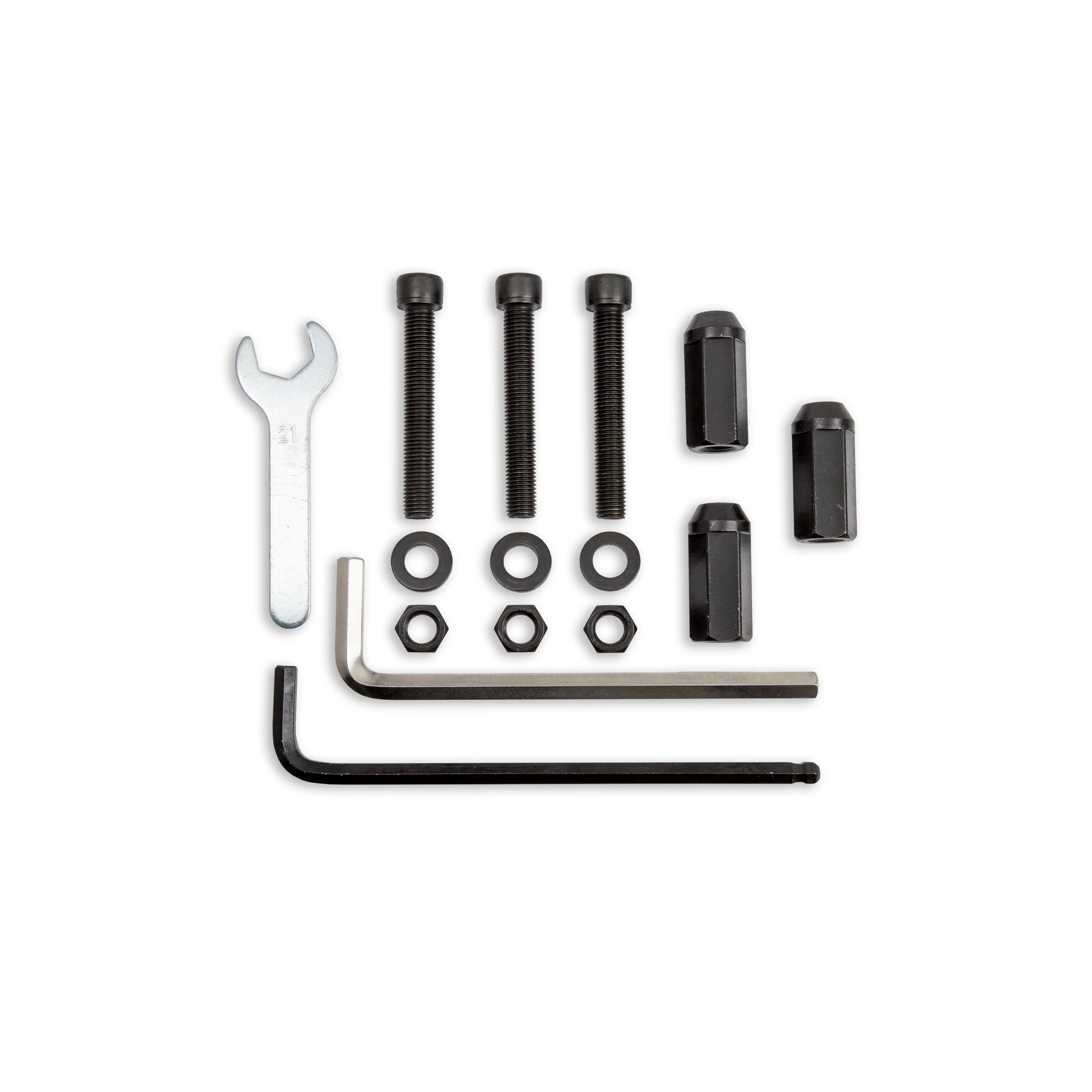

3 M12 x 75 studs
3 M12 hex jam nuts
3 12mm washers
3 open lug nuts (M12 x 1.5)

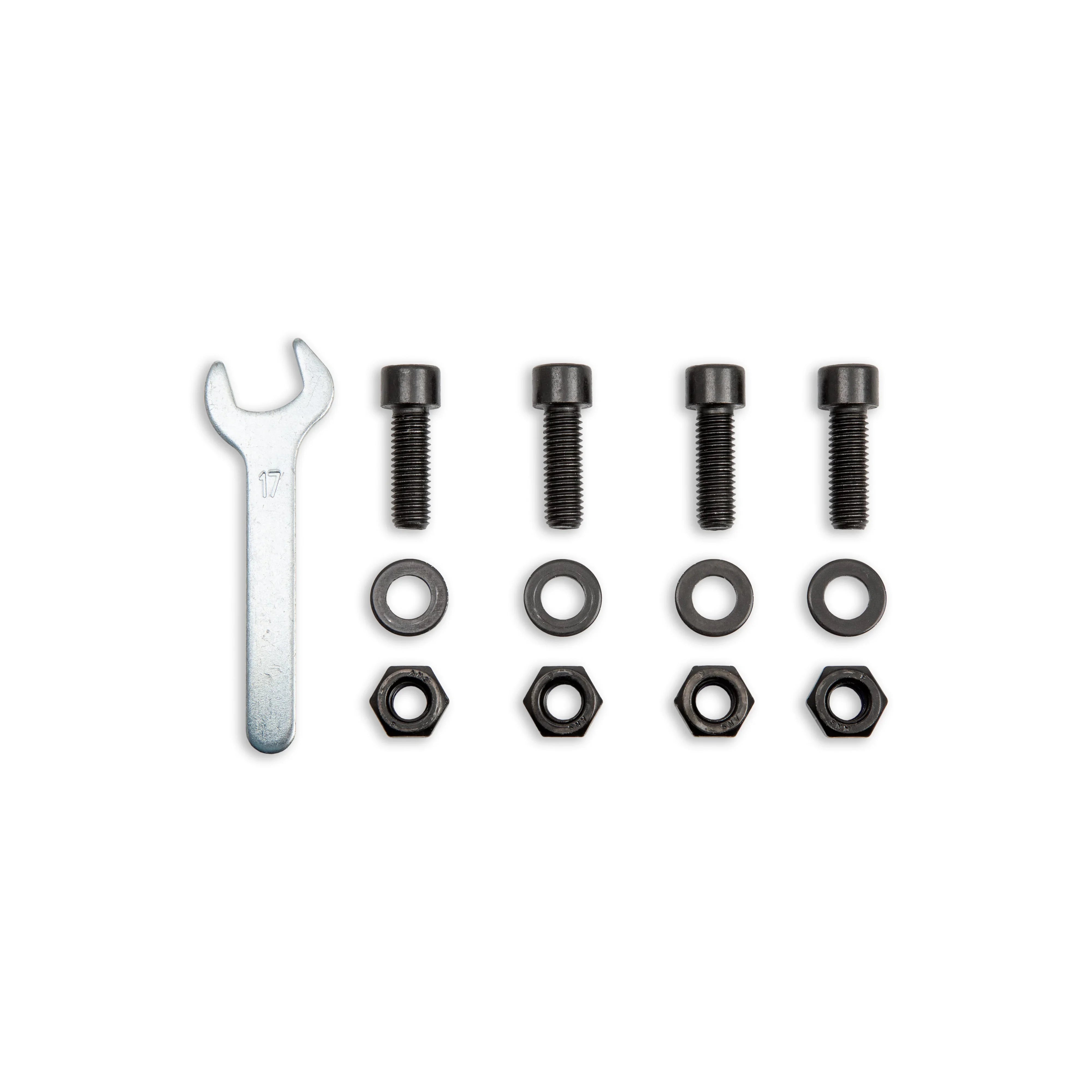

4 M10 x 30 bolts
4 M10 nuts
4 10mm washers

Install Time30 min to 1 hour

DIY FriendlyYes, bolts to the MOLLE hoop, no drilling

Drilling RequiredNo

Plan on setting the studs to your wheel first, then mounting the adapter, then hanging the tire. The MOLLE hoop has to be on the Pivot XD before you start. Kuat's user guide shows each step.

Tips

Lay the wheel face down on the ground and set the adapter plate inside it to find which slots line up with your lug pattern.
Mount the adapter with the Pivot XD swung fully open to 90 degrees.
Install the adapter angled slightly toward the top of the van. Kuat says this helps fit and stability.
Torque the studs, the adapter bolts and the lug nuts to 40 Nm (about 30 ft-lb). You'll need a torque wrench.
A full-size spare is heavy. Have a helper lift it onto the studs.

Mistakes to avoid

Skipping the MOLLE hoop. The adapter mounts only to the hoop.
Choosing too short a depth. Measure backspacing first, and size up when you're between sizes.
Using these lug nuts on your van. The included lug nuts are only for the spare on the adapter.
Going over 100 lb. Weigh your spare if it's an oversized off-road tire.

Questions? Reach out to our team at products@sandyvans.com or (619) 812-1903.

Tools You'll Need

17mm and 21mm stamped wrenches (per Kuat parts list)
8mm and 10mm hex keys (per Kuat parts list)
Torque wrench for 40 Nm
A helper to lift the spare

Download the install instructions (PDF)

See all Sandy Vans install videos & manuals →

How to choose a spare tire mount for your swing-away

1. Does it fit your setup?

How to choose: This adapter needs the Pivot XD and the MOLLE Accessory Hoop. If you don't have both, order them together.

2. Will your tire fit?

How to choose: Tires up to 37 in diameter and 100 lb. Most 5, 6 and 8 lug wheels work.

3. Which mount depth do you need?

The three depths match different wheel backspacing. The mount has to be at least as deep as your backspacing so the tire clears the panel.

Lay a straight edge across the inside (back) face of the tire.
Measure from the wheel's mounting flange to the straight edge.
Pick a mount depth equal to or greater than that number.

Example: a 175mm backspace needs the 200mm adapter. The 250mm also works and leaves more room for gear on the MOLLE panel.

How to choose: Keep the tire as close to the van as your backspacing allows. Size up if you're between sizes or you plan to mount gear on the MOLLE panel.

4. How much else are you carrying?

How to choose: Add the spare, the MOLLE gear and your rack. With both the panel and spare maxed out, the Pivot XD receiver load drops to 200 lb.

Before you order

Pivot XD and MOLLE Accessory Hoop on the van or in the cart
Tire diameter 37 in or less, weight 100 lb or less
Backspacing measured and mount depth picked
Torque wrench on hand

How the Spare Tire Adapter stacks up

Fitment: made for the Pivot XD and MOLLE hoop, passenger or driver.
Tire size: up to 37 in and 100 lb.
Wheels: most 5, 6 and 8 lug patterns, hardware included.
Access: the spare swings out with the Pivot XD and your bike rack.

Do I need the MOLLE hoop to use the Spare Tire Adapter?

Yes. The adapter mounts directly to the KUAT Pivot XD Accessory Hoop with MOLLE Panel, which bolts to the Pivot XD. You need all three.

Which mount depth do I need?

Measure your spare's backspacing: lay a straight edge across the back of the tire and measure from the wheel's mounting flange to the edge. Pick the 150mm, 200mm or 250mm adapter that's equal to or deeper than that measurement. If you're between sizes, size up.

Can I just buy the 250mm to be safe?

You can, and it gives more room for gear on the MOLLE panel. The tradeoff is the tire sits farther from the van, which adds leverage. Kuat's advice is to keep the load as tight to the van as your backspacing allows.

What size tire will it carry?

Full-size spares up to 37 in in diameter and 100 lb, on most 5, 6 and 8 lug wheels.

Does the spare count toward the Pivot XD's capacity?

Yes. The spare counts toward the Pivot XD's 350 lb limit, but the adapter itself doesn't. With the MOLLE panel and spare both maxed out, the rack or cargo in the Pivot XD receiver is limited to 200 lb.

Can I use the included lug nuts on my van?

No. Use the included lug nuts only to hold the spare on the adapter.

Does it fit the Pivot v3?

No. It's made for the Pivot XD with the MOLLE Accessory Hoop.

Do you install products for customers?
