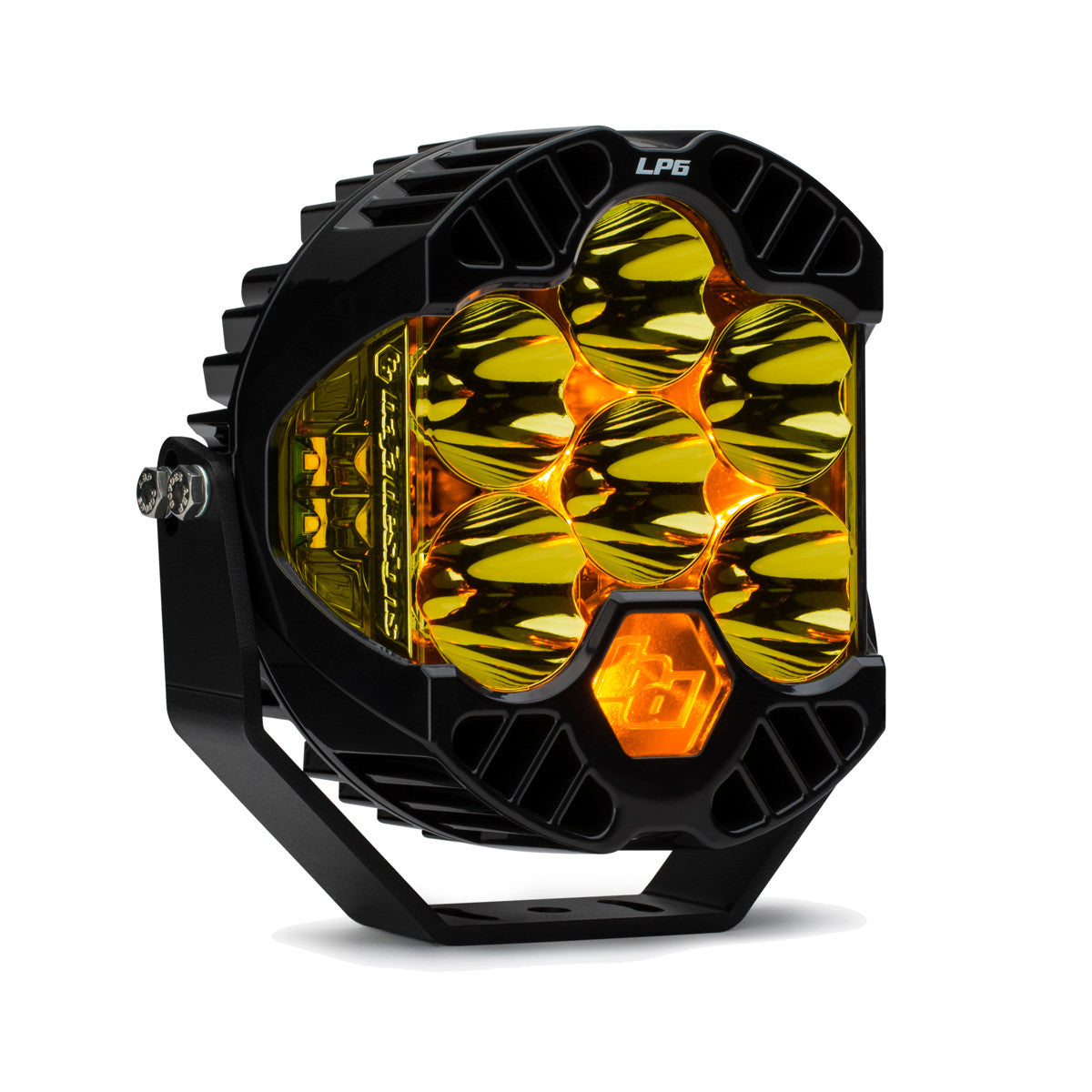

Baja Designs LP6 Pro 6-inch LED light pod — Spot beam pattern, Baja Amber lens, van build auxiliary lighting

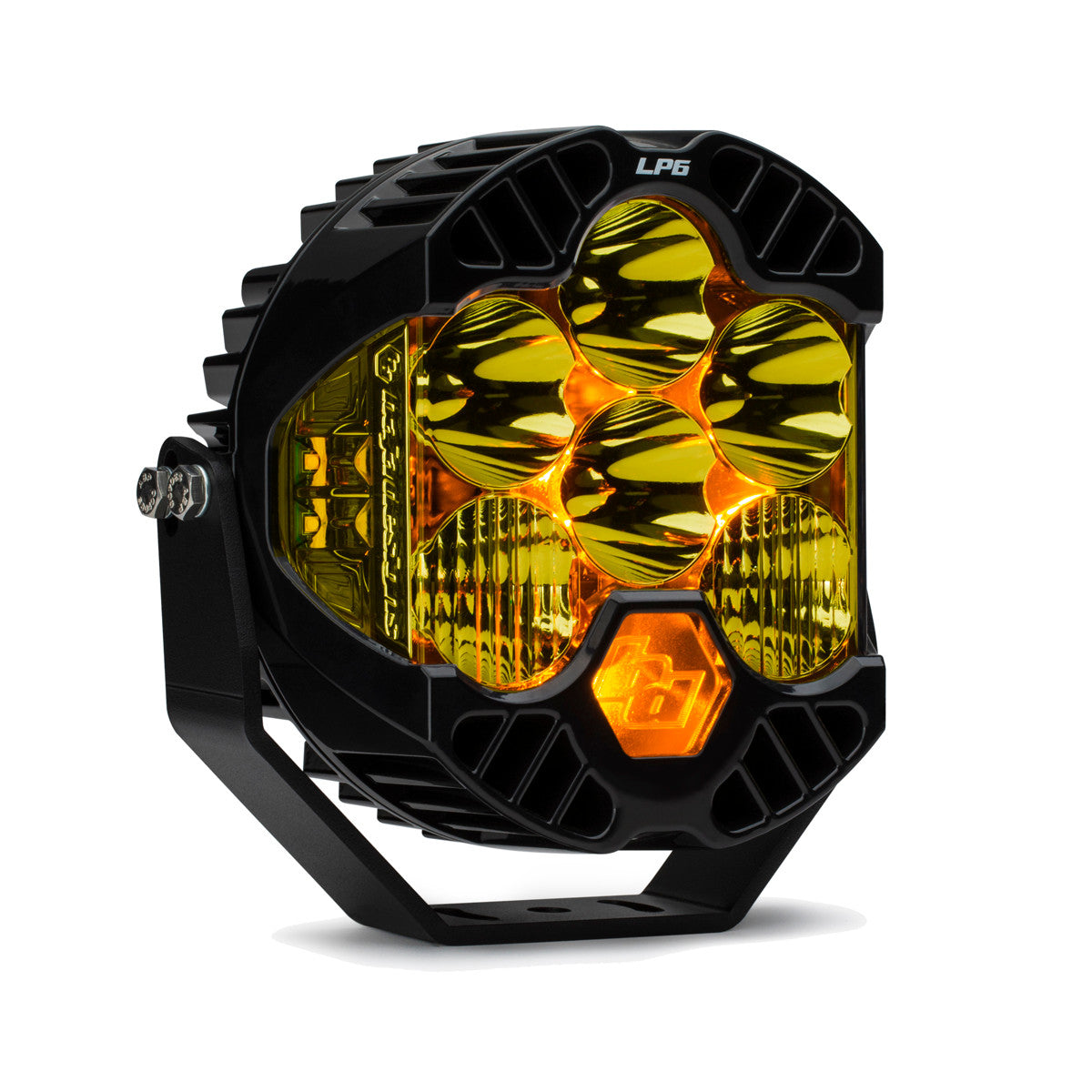

Baja Designs LP6 Pro 6-inch LED light pod — Driving/Combo beam pattern, Baja Amber lens, IP69K waterproof
Baja Designs LP6 Pro LED auxiliary light pod rear angle — powder coat aluminum housing, MIL-STD-810G rated
Baja Designs LP6 Pro 6-inch LED light pod — Driving/Combo beam pattern, clear lens, 11,225 lumens
Baja Designs LP6 Pro 6-inch LED light pod — Spot beam pattern, Baja Amber lens, van build auxiliary lighting
Baja Designs LP6 Pro 6-inch LED light pod — Driving/Combo beam pattern, Baja Amber lens, IP69K waterproof

Baja Designs

Baja Designs LP6 Pro LED Auxiliary Light Pod

$524.95
Beam Pattern
Lens Color: Clear

The LP6 Pro is a 6-inch powerhouse delivering 11,225 lumens and a 200-degree spread of usable LED light through Baja Designs' Integrated Peripheral Technology (IPT). Direct Ducted Cooling (DDC) keeps the unit running efficiently, while high beam, low beam, and daytime running backlight modes give you full flexibility on and off the trail.

Available in two beam patterns and two lens colors to match your build and lighting zone setup.

  • Spot — Tight 8-degree beam. Maximum throw distance. Ideal paired with wider auxiliary lights for Zones 4 & 5.
  • Driving/Combo — Blends 42-degree driving and 8-degree spot optics. Maximum trail coverage for near-field and distance lighting.

Specs

  • Lumens: 11,225
  • LEDs: 6 forward + peripheral backlight (amber standard)
  • Dimensions: 6.5" × 6.5" × 3.2"
  • Housing: Powder Coat Cast Aluminum
  • Lens: Hardcoated Polycarbonate
  • Waterproof: IP69K (submersible to 9 ft, pressure washable)
  • Impact: IK10 Compliant
  • Durability: Exceeds MIL-STD-810G
  • Voltage: 12–36V DC
  • Warranty: Limited Lifetime + 30-Day Satisfaction Guarantee

Wiring harness sold separately. Single-light harness (640172) or two-light harness (640167).
