3M™ Thinsulate™ Van Insulation Kit for Mercedes Sprinter
Note: Please allow 1-2 weeks before shipping. Low-roof 144" option currently unavailable.
Need a Thinsulate insulation kit for your Sprinter camper van conversion? This pre-cut 3M™ Thinsulate™ Van Insulation Kit for Mercedes Sprinter gives you all the insulation you'll need for your Mercedes Sprinter camper van in one easy, ready-to-install bundle. This Thinsulate van insulation has been precisely cut to conform to the interior cavities in your Mercedes Sprinter cargo van.
Using this pre-cut van insulation kit will save you lots of time trying to cut Thinsulate insulation to size to fit all the irregular nooks and crannies inside your Sprinter van interior. The insulation kit comes with a diagram that shows the correct location for all the Sprinter camper van insulation pieces.
This insulation kit is designed to fit 2007+ Mercedes Sprinter cargo vans, including:
- low-(currently unavailable) and high-roof Mercedes Sprinter 144"WB vans
- high-roof Mercedes Sprinter 170"WB and 170" extended vans
Use the drop-down to select the model of Sprinter van you have.
Note: Includes precut material to cover cargo area ceiling, walls, and doors open cavities. If you have windows, you'll have extra pieces. Does not include material for cab area or any portion of the vehicle floor. Does not include material to stuff between beams, fully covered cavities, or partially covered cavities. The Kit focuses on the main large cavities/open sections for 2007+ Mercedes Sprinter cargo vans.
3M™ Thinsulate™ is a unique non-woven acoustic absorber composed of polyester and polypropylene fibers. The polypropylene fibers are extremely fine, producing a high-energy absorption characteristic with low weight. The polyester fibers are added to strengthen the web, while the scrim protects and contains the fibers. The fine microfibers absorb high frequency noise, and the thicker fibers provide recovery and loft. It is compressible, lightweight, and conformable.
FREE SHIPPING on this item in the lower 48 US states.
Key Features: 3M™ Thinsulate™ Van Insulation Kit for Mercedes Sprinter
- Made to fit Mercedes Sprinter cargo vans vans, including the low-roof and high-roof Mercedes Sprinter 144"WB, high-roof Mercedes Sprinter 170"WB and 170EXT cargo van models.
- Delivers more acoustic absorption per unit weight vs. competitive products
- Extremely lightweight, helps your van conversion build stay light and efficient
- Non-woven sound-absorbing fibers create a quieter vehicle environment
- Hydrophobic fibers resist moisture, mold and mildew

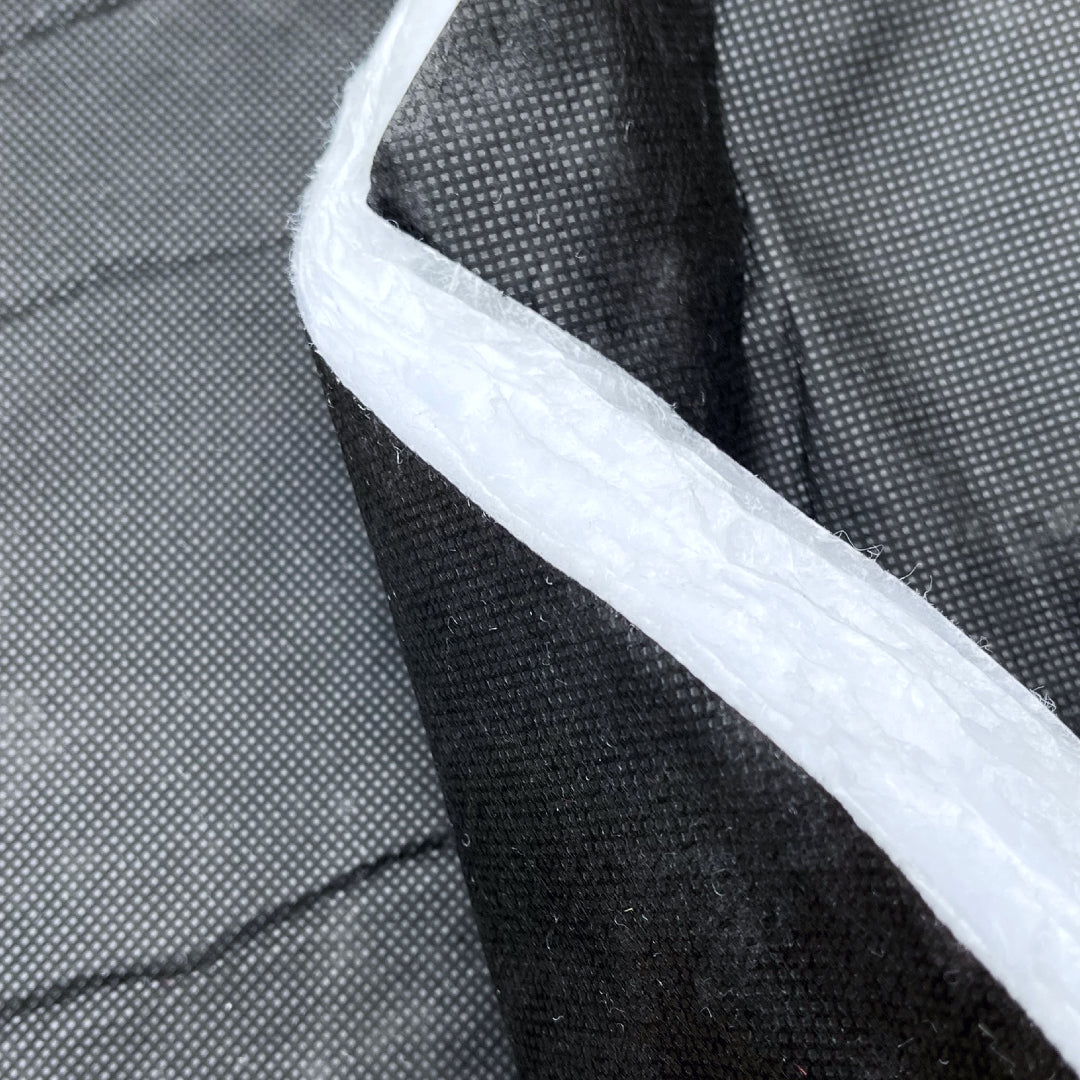

- Fibers are contained in a double black, double embossed scrim.
Specifications: 3M™ Thinsulate™ Van Insulation Kit for Mercedes Sprinter
| Type | 3M Thinsulate AU6002 |
| Fire Resistance | Certified to FMVSS 302 standard for fire-resistance |
| Roll Width | 60" |
| Thickness | 44mm |
| Density | 16.1 kg/m3 |
| R-Value | 5.45 per inch (RSI 0.96) |
| Quiet | 3M™ Thinsulate™ has highly efficient acoustic absorption, particularly in middle- to high-frequency ranges. |
| Light | Thinsulate acoustic insulation products are made from lightweight polyester and polypropylene non-woven fibers. |
| Easy to Install | Lightweight and easy to handle compared to other insulation materials. Can easily be die-cut, heat sealed, and thermally or sonically bonded to many other substrates. |
| Mold, Mildew and Moisture Resistant | 3M™ Thinsulate™ has exceptional moisture resistance, no need to install an additional waterproof layer. 3M™ Thinsulate™ is also resistant to mildew growth, minimizing the risk of offensive odors. |
Video: 3M™ Thinsulate™ Van Insulation Kit for Mercedes Sprinter
