Double FoldAway Seat Kit with Bellagio 3PT Seat and Mounting Plate (Streetside)
Pickup available at Sandy Vans HQ
Usually ready in 2-4 days
Crash-tested rear seating that folds out of the way when you need the floor.
The Fenton Double FoldAway Kit pairs a Freedman Bellagio 3-point double seat with Fenton's patented mounting plate. It bolts straight to your van's factory chassis floor with no welding, has been tested to forces over 14,000 lb, and folds up when you need cargo space. The kit includes Fenton's Double Foldaway trim kit.
Ships by flat-rate freight to the lower 48. Please allow 3-5 days for order processing.
Fits: Mercedes Sprinter, Ford Transit and RAM ProMaster, streetside (driver side) mounting. Not compatible: Curbside mounting (reach out and we'll quote it).

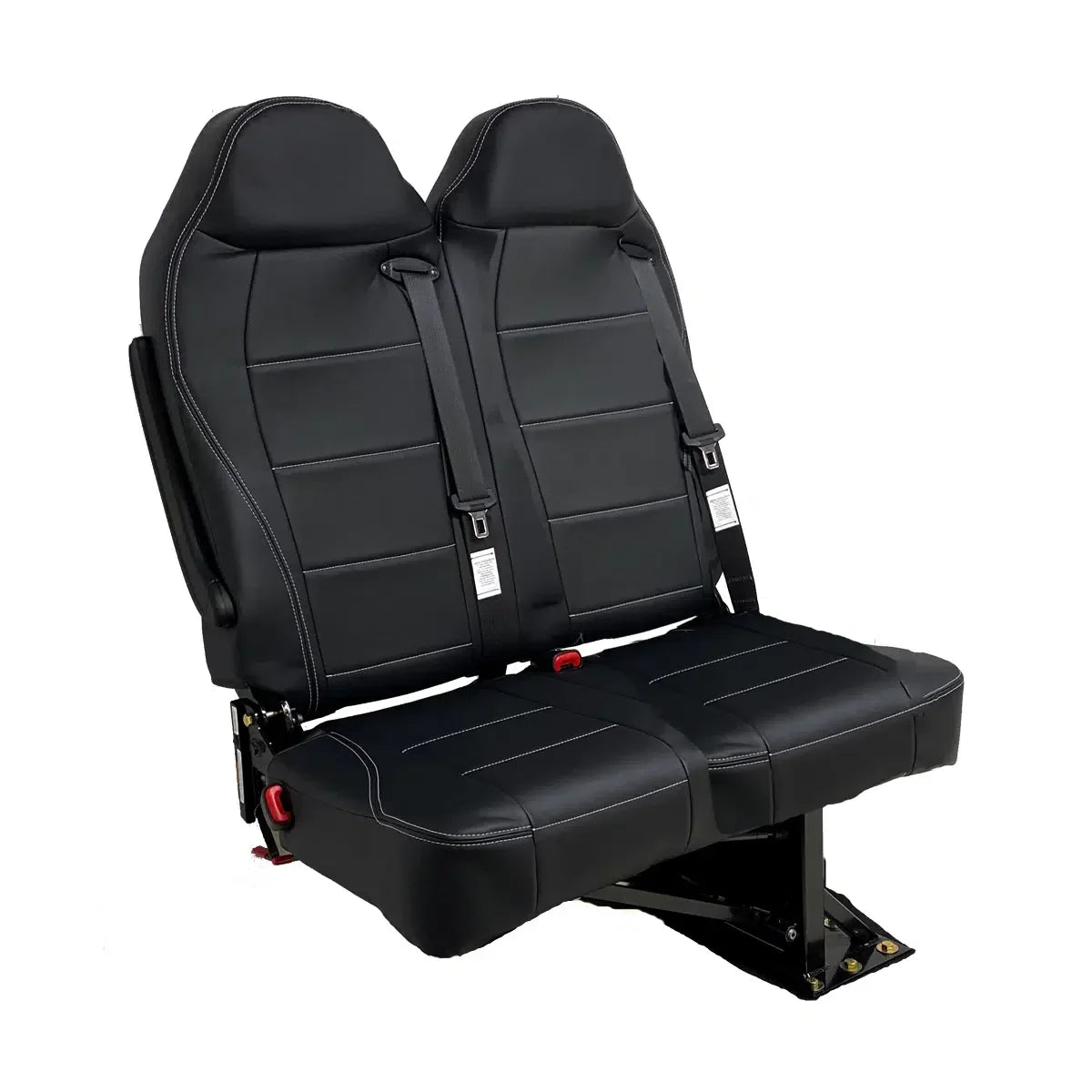

- Freedman Bellagio 3PT double seat with right-hand armrest, dual child seat hooks and a map pocket

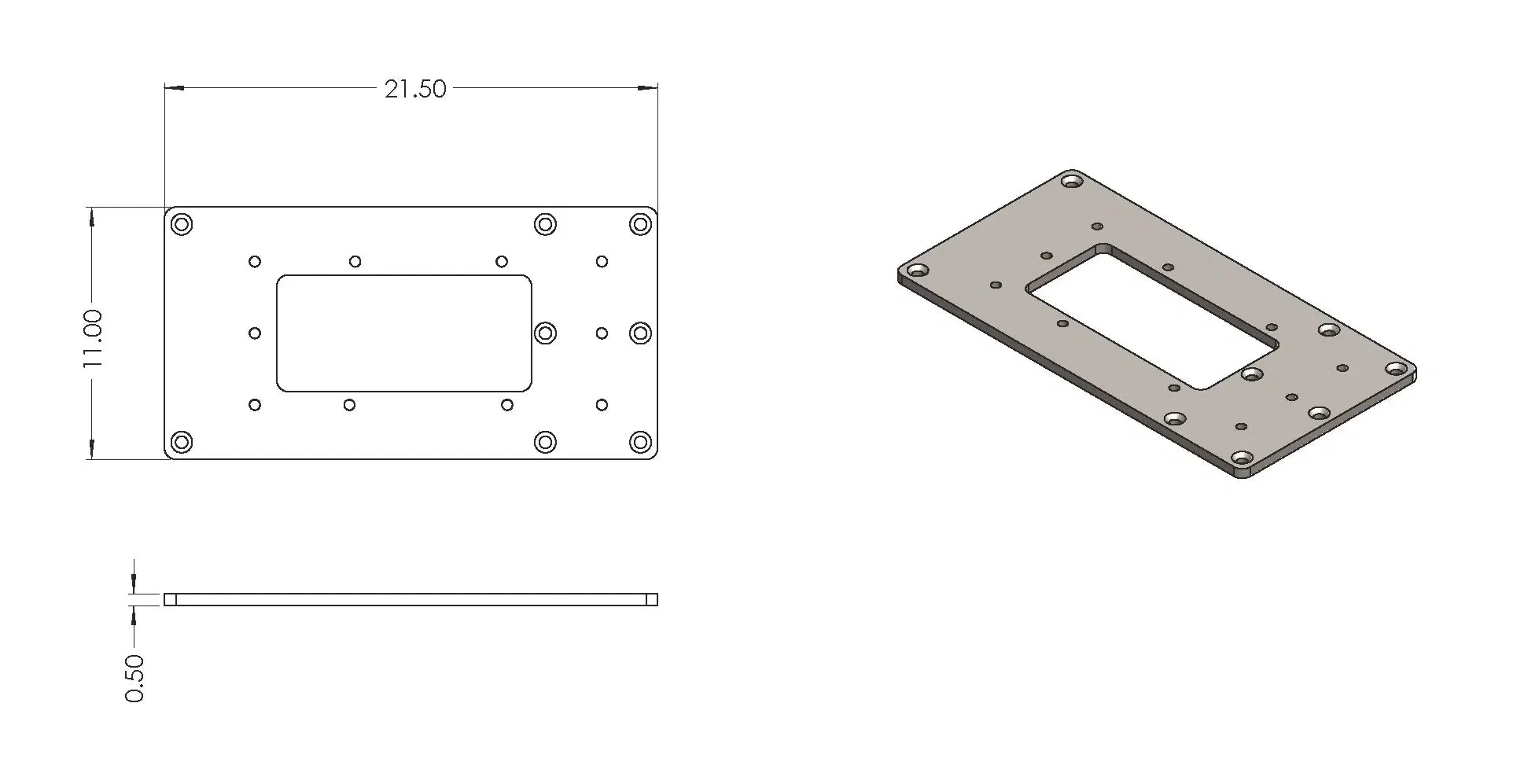

- Fenton mounting plate in 0.5 in A514 high-strength steel, black powder coat
- FMVSS and CMVSS tested, plate and seat

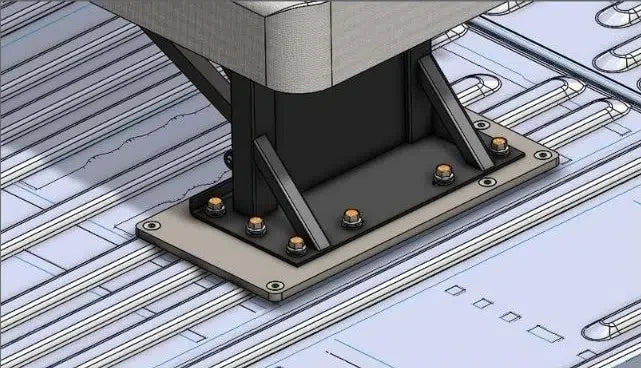

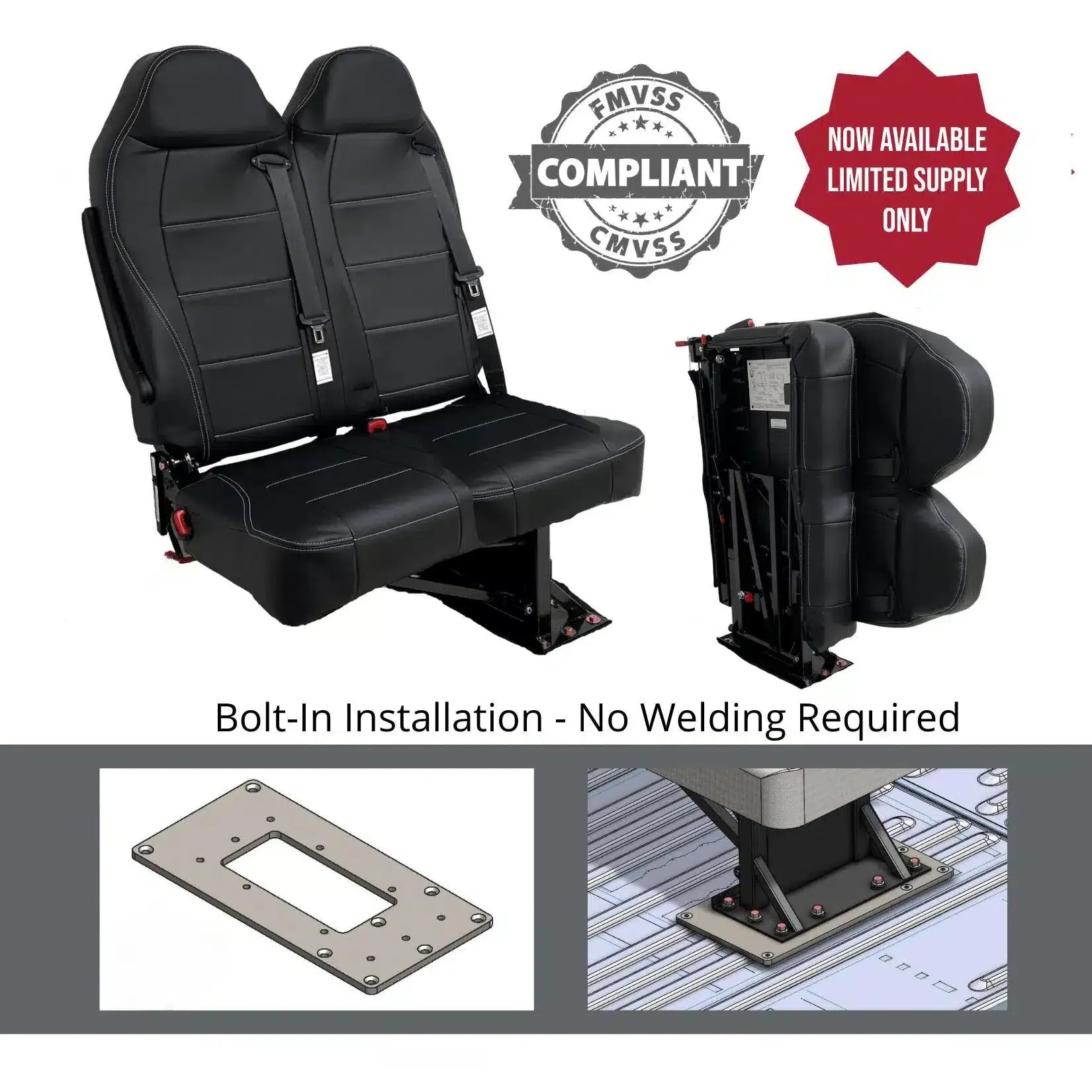

- 100% bolt-in to the OEM chassis floor, no welding

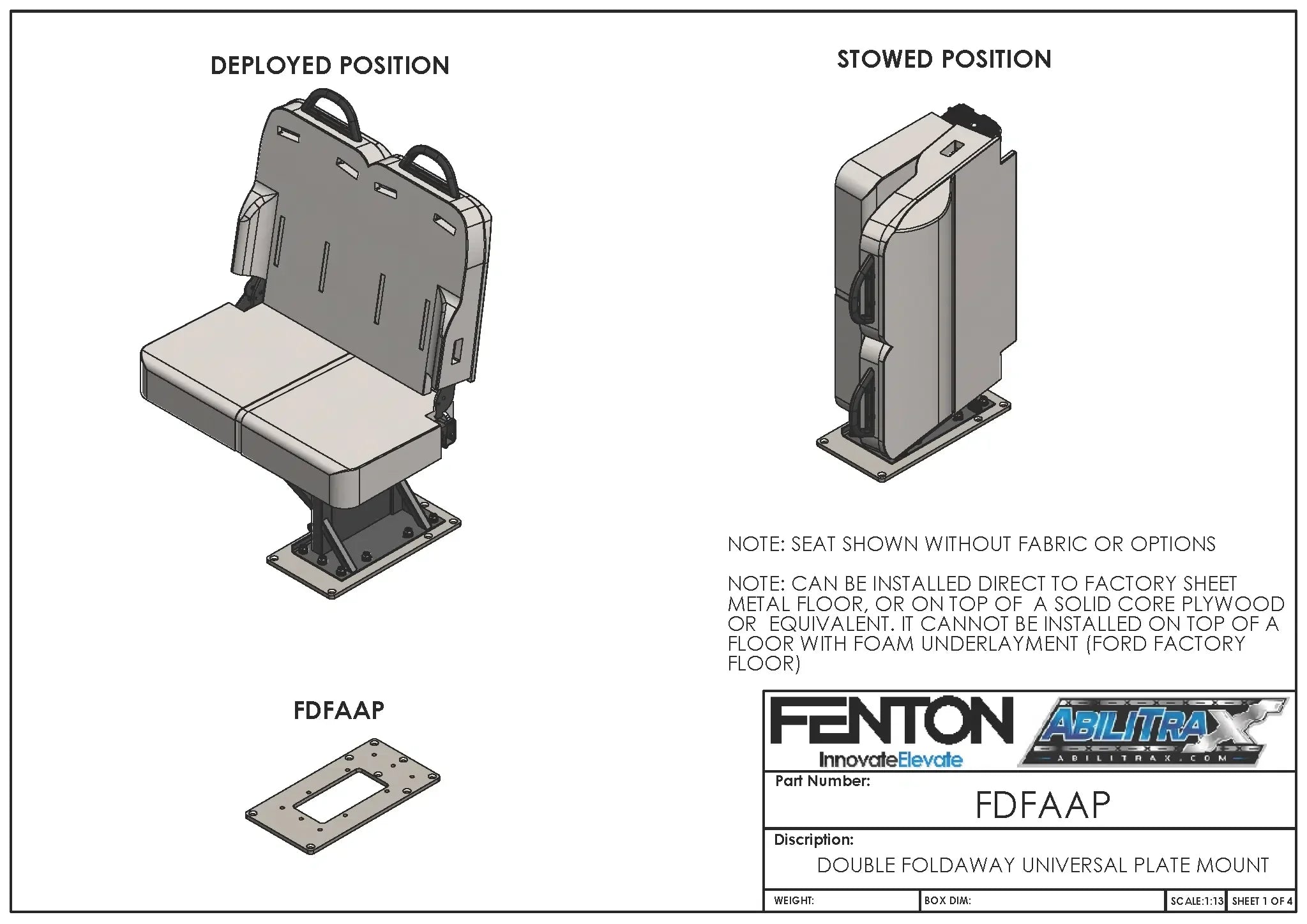

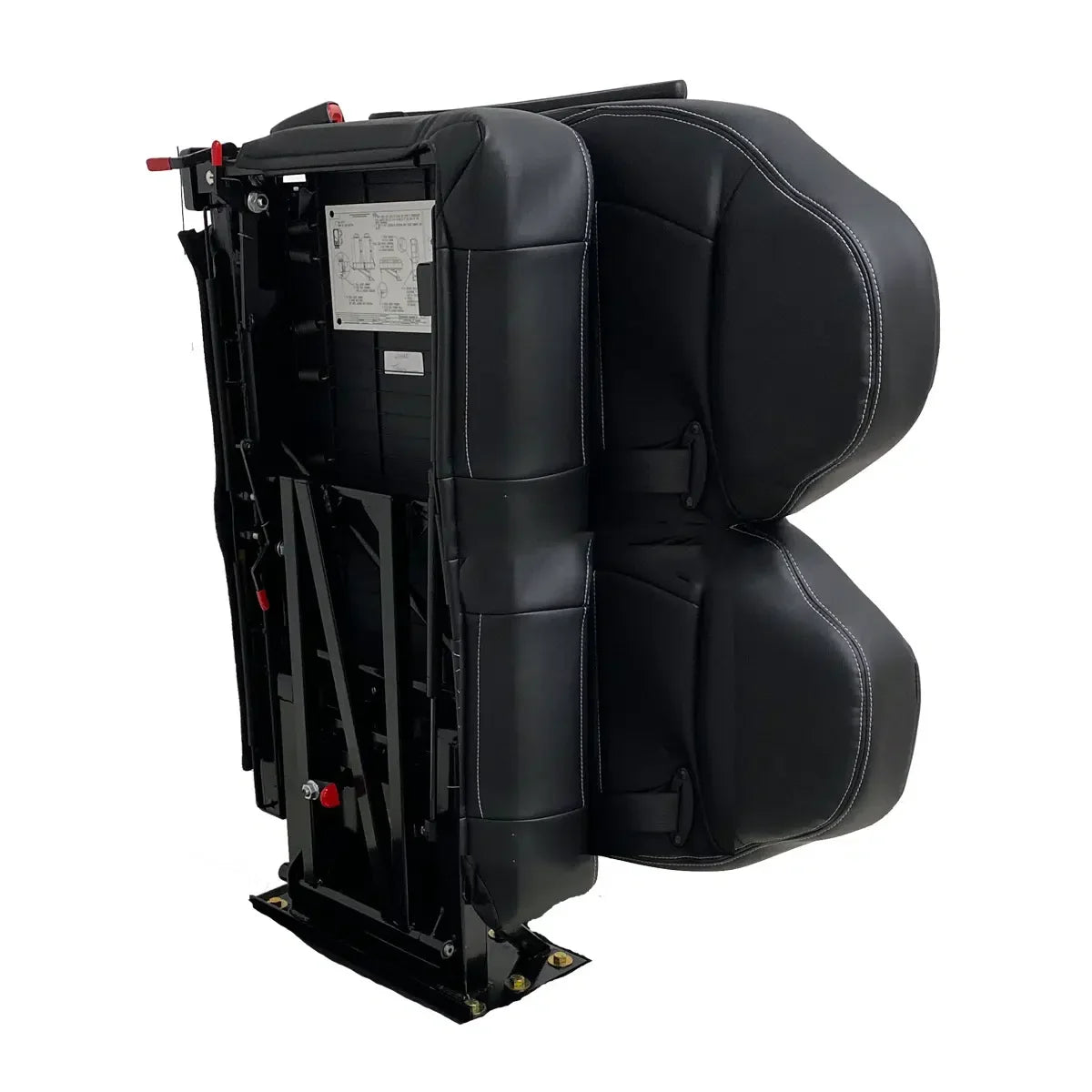

- Folds away for cargo and gear
- Made in the USA, patented
Product Details
Fitment & Compatibility
Fits: Mercedes Sprinter, Ford Transit and RAM ProMaster, streetside (driver side) mounting
Not compatible with: Curbside mounting (reach out and we'll quote it)
Also fits these Sprinter-platform RV & upfitter builds:
- Winnebago Revel
- Storyteller Overland (MODE, Beast Mode)
- Outside Van
- Airstream Interstate & Atlas
- Grech RV (Strada, Turismo, Terreno)
- Pleasure-Way Plateau
- Leisure Travel Vans (Unity, Wonder)
- Coachmen Galleria
- Midwest Automotive Designs
- Jayco Terrain
- Tiffin Wayfarer
- Thor Tranquility
Fitment depends on your exact model, year, suspension lift, and body kit. Confirm with our team before ordering.
Not sure your build qualifies? Reach out to our team.
Specifications
| Brand | Fenton Mobility |
|---|---|
| Seat | Freedman Bellagio 3PT Double FoldAway, streetside (FMS-ELZ-82880-001) |
| Upholstery | Level 5 Milano Black fabric |
| Seat features | Right-hand armrest, dual child seat hooks, vinyl map pocket |

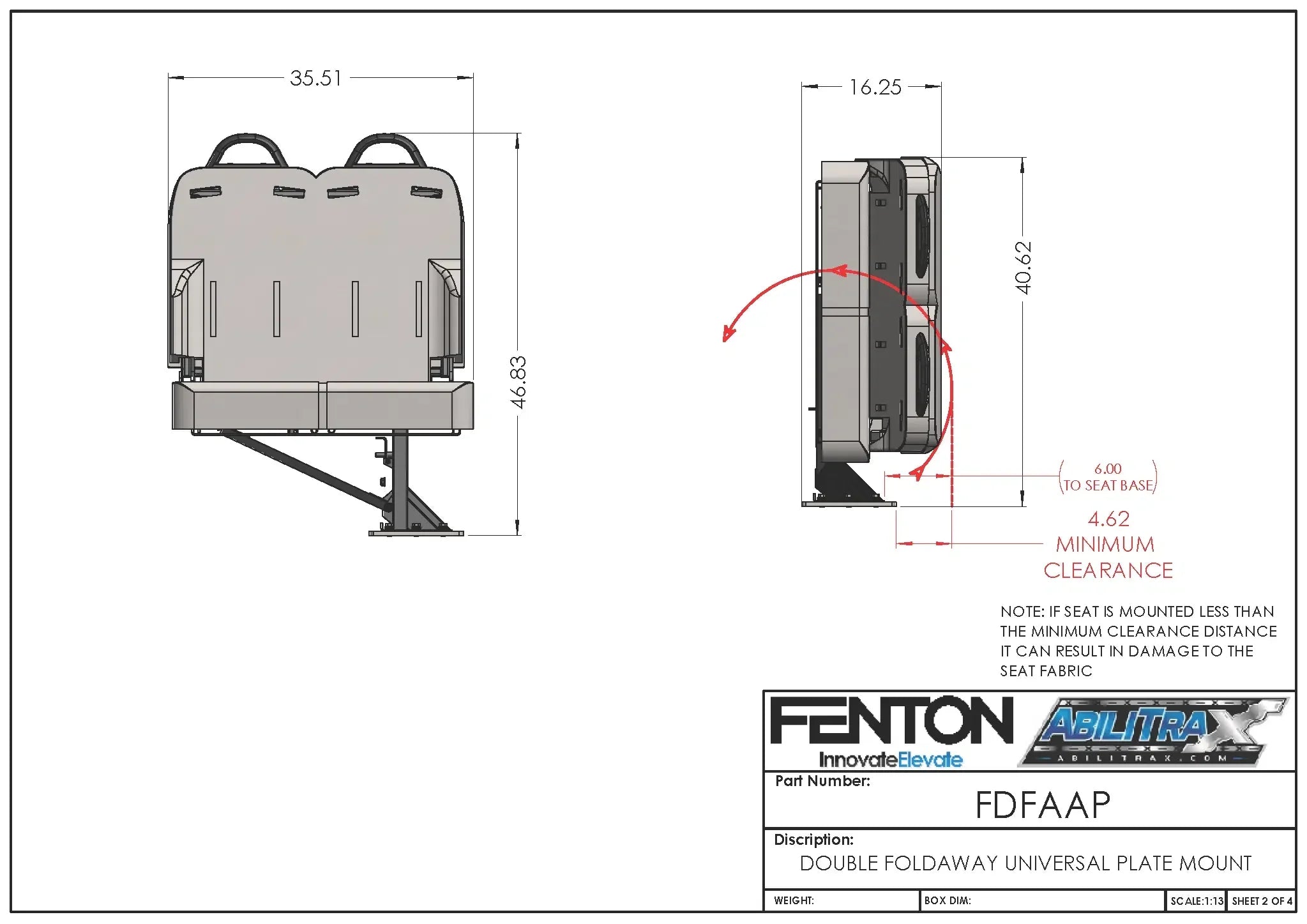

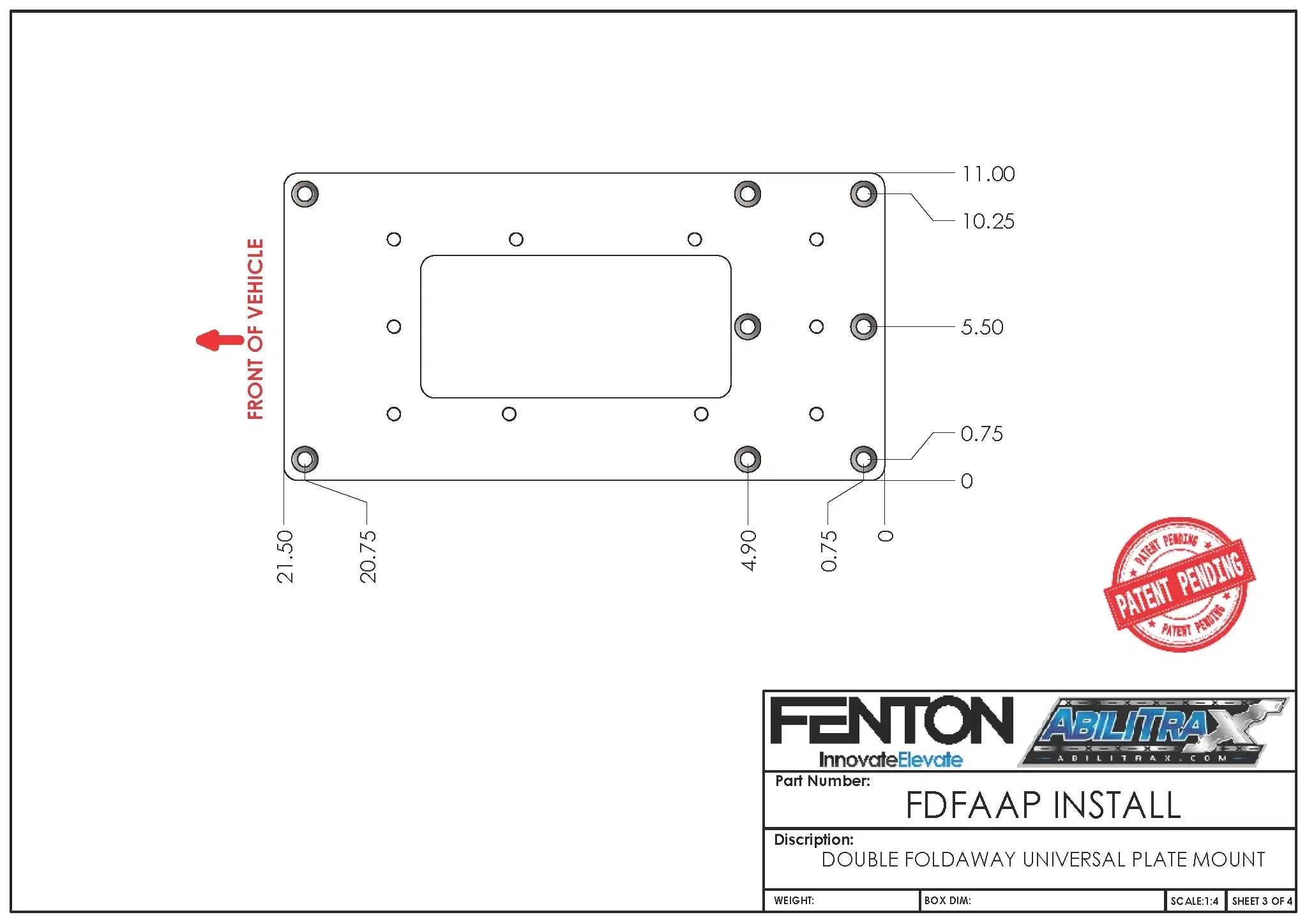

| Mounting plate | Fenton FDFAAP, 0.5 in A514 high-strength steel, black powder coat |
| Trim | Double Foldaway trim kit (FDFAAPTK) included |
| Testing | FMVSS / CMVSS compliant, tested to forces over 14,000 lb |
| Install | Bolt-in to OEM chassis floor, hardware included |
| Kit weight | About 180 lb |
| Fits | Sprinter, Transit, ProMaster |
| Shipping | Flat-rate freight, lower 48 |
| Made in | USA |
What's in the Box
- Freedman Bellagio 3PT Double FoldAway seat, streetside
- Fenton Double Foldaway mounting plate (FDFAAP)
- Double Foldaway trim kit (FDFAAPTK)
- Corrosion-resistant installation hardware
- Install instructions
Tools You'll Need
- Drill and bits
- Socket set and torque wrench
- Floor jack or helper (the kit is about 180 lb)
