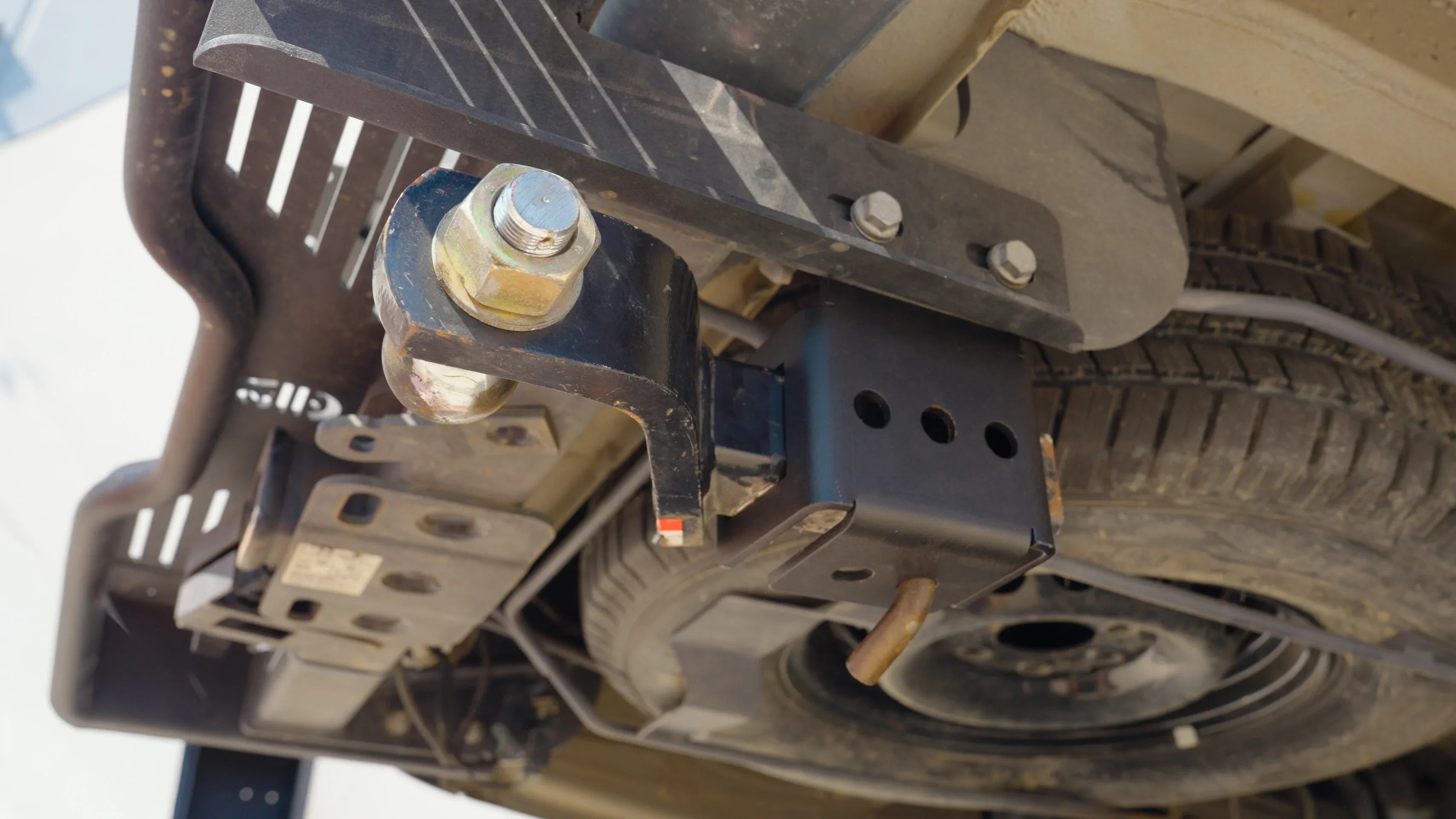

SV Hidden Hitch Holder bolted to the side of the factory tow hitch on a Mercedes Sprinter

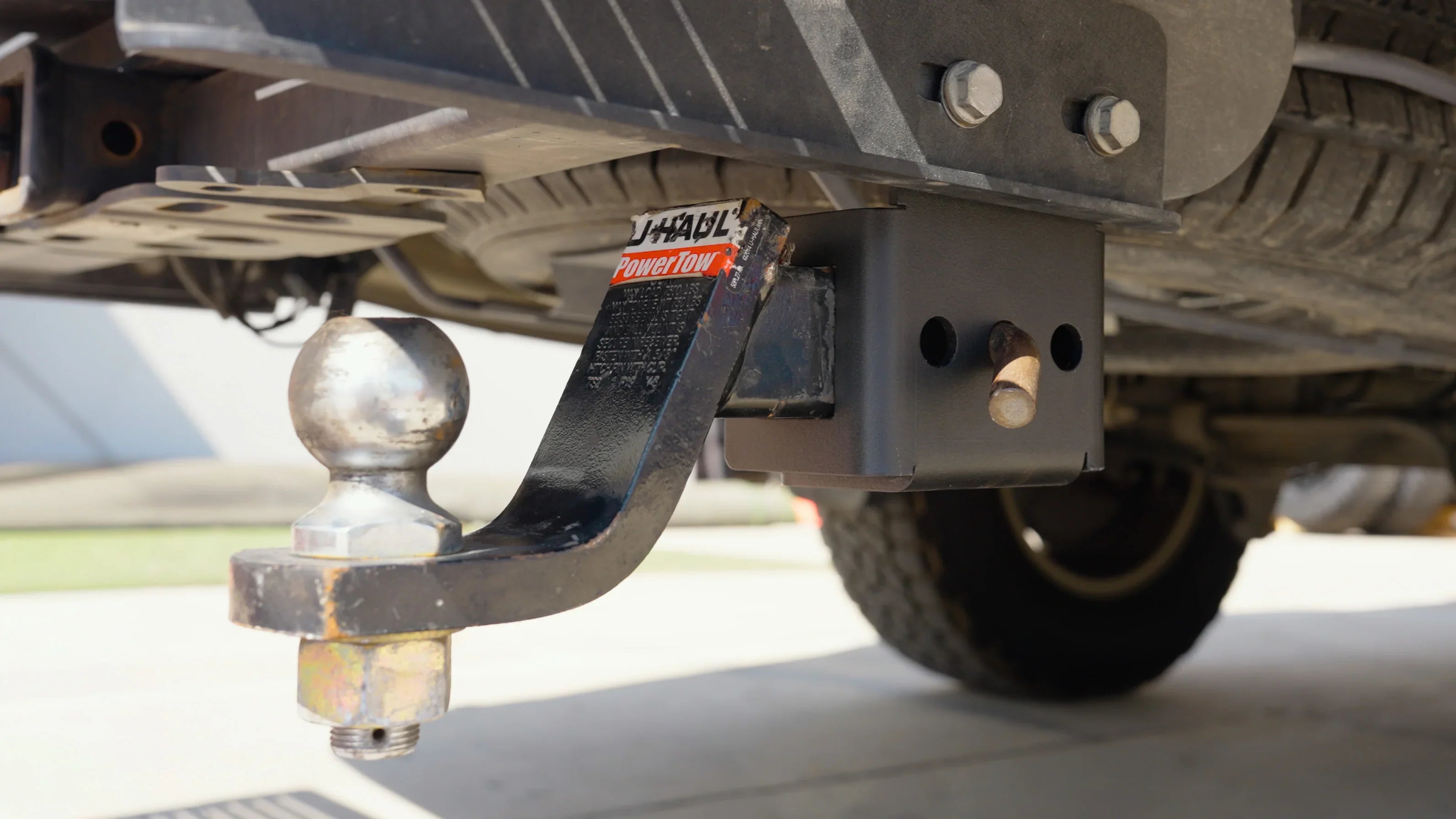

Ball mount stored in the SV Hidden Hitch Holder under a Mercedes Sprinter, out of the way of your shins

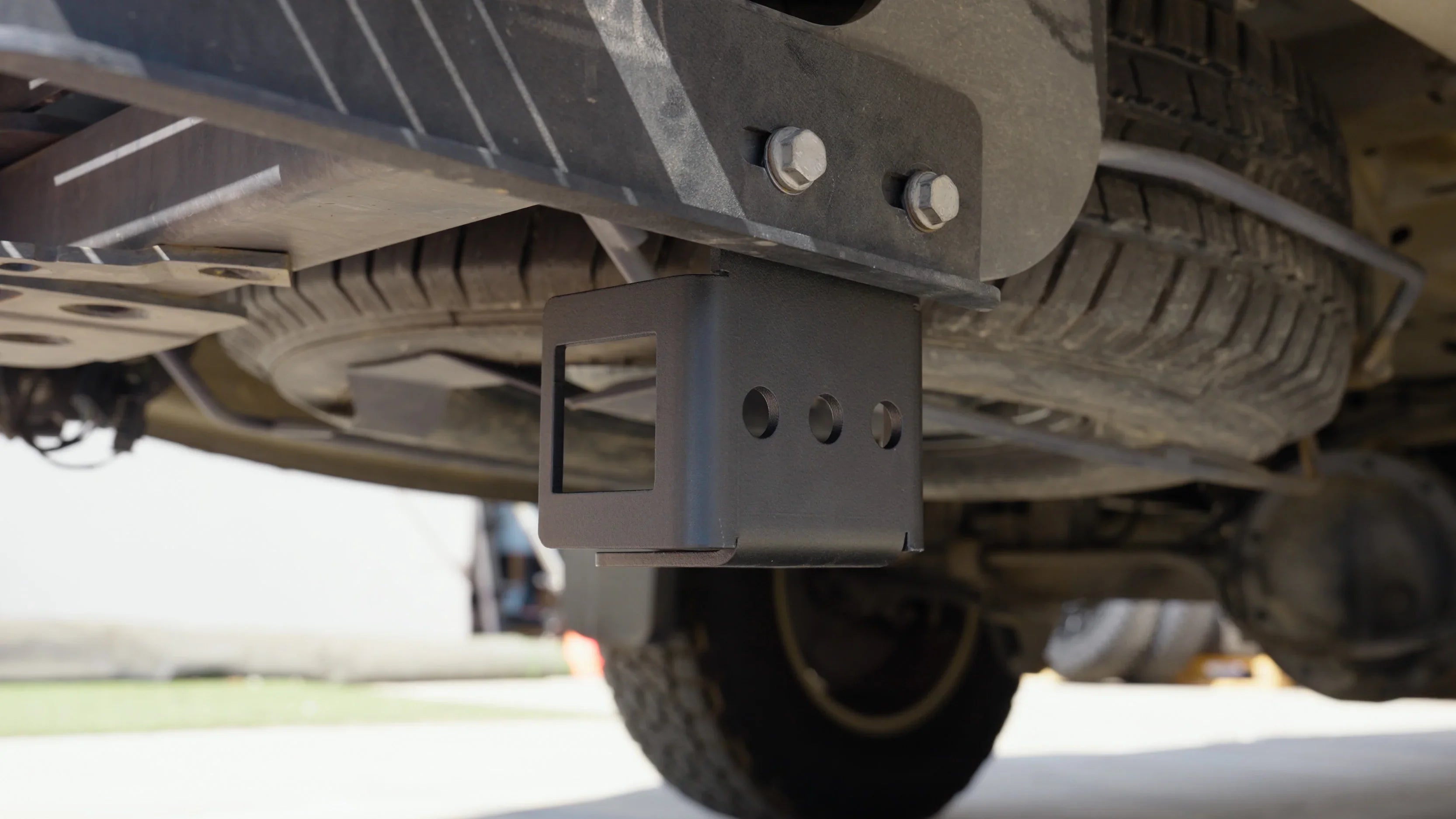

Empty SV Hidden Hitch Holder bracket mounted on a Mercedes Sprinter tow hitch

Sandy Vans

SV Hidden Hitch Holder

Name: SV Hidden Hitch Holder
SKU: SV-HIT-HLD
Price: 69.0 USD

$69.00

Shop 5.0 Shop rating (174) on Google

Own this? Write the first review

Product variants

Pickup available at Sandy Vans HQ

Usually ready in 2-4 days

Bring the hitch. Keep your shins.

The SV Hidden Hitch Holder bolts to the side of your factory Sprinter tow hitch and stores your ball mount on the van, tucked out of the way. No more leaving it at home, buying another one at the rental counter, or cracking your shins on it in the driveway.

Fits: 2019+ Mercedes-Benz Sprinter (VS30) factory tow hitch, using the existing side frame holes.
Other hitches: Can be adapted by drilling two mounting holes.

Bolts into the existing side holes on the 2019+ factory hitch with 2 supplied bolts
Heavy-duty steel bracket
Locks your hitch in with your hitch pin and clip
Long-drop hitch? Turn it 90 degrees and store it sideways for more clearance
Swap from stored to towing in a couple of seconds

Hauling bikes or gear off the back? See the SV Rear Door Molle Panels and the rest of the SV exterior line.

See it on your van. Add the SV Hidden Hitch Holder to your build in our 3D Van Builder and preview it on a real Sprinter before you buy.

Product Details

Your hitch goes where your van goes

If you tow trailers around the shop, take the boat out for the weekend, or pick up a rental trailer once in a while, you want your ball mount with you. Leave it in the receiver and you'll find it with your shins. Leave it at home and you're buying another one.

The Hidden Hitch Holder gives your hitch a home on the van. It bolts into the side of the factory tow hitch, out of the way of your legs, and keeps your ball mount ready whenever you need it.

Works with short and long drops

Slide a normal-drop hitch straight in, line up the front and back holes, and pin it. If your hitch has a much longer drop, turn it 90 degrees, slide it in, and pin it through a hole on the bottom side. It stores sideways and gives you more ground clearance.

Made by Sandy Vans

We built it because we tow all the time and got tired of buying ball mounts. It's heavy-duty steel and uses two bolts, so it goes on once and stays put.

Fitment & Compatibility

Fits: 2019+ Mercedes-Benz Sprinter (VS30) with factory tow hitch

Not compatible with: Other hitches need two holes drilled to adapt

Also fits these Sprinter-platform RV & upfitter builds:

Winnebago Revel
Storyteller Overland (MODE, Beast Mode)
Outside Van
Airstream Interstate & Atlas
Grech RV (Strada, Turismo, Terreno)
Pleasure-Way Plateau
Leisure Travel Vans (Unity, Wonder)
Coachmen Galleria
Midwest Automotive Designs
Jayco Terrain
Tiffin Wayfarer
Thor Tranquility

Fitment depends on your exact model, year, suspension lift, and body kit. Confirm with our team before ordering.

Not sure your build qualifies? Reach out to our team.

Specifications

Fits	2019+ Mercedes-Benz Sprinter (VS30) factory tow hitch
Other hitches	Adaptable by drilling two mounting holes
Material	Heavy-duty steel
Mounting	2 bolts into the hitch's existing side frame holes
Hardware included	2 bolts, 4 washers, 2 nuts
Hitch included	No

What's in the Box

Hidden Hitch Holder bracket (hitch not included)
2 bolts
4 washers
2 nuts

Install Time1 hour

DIY FriendlyYes, two bolts

Drilling RequiredNo on the 2019+ factory hitch

Pro InstallFree at SV HQ, San Diego

On a 2019+ Sprinter factory hitch, the holder bolts into the existing side frame mount holes with the 2 bolts, 4 washers and 2 nuts in the box. No drilling. Plan on about an hour, or have us install it free at SV HQ in San Diego.

Other hitches can be adapted by drilling two mounting holes for the bracket. Reach out before you drill and we'll help you plan it.

There's no printed manual. The video below shows the holder on the van and how to store your hitch, both straight and sideways.

Mistakes to avoid

Not sliding the hitch all the way through. Line up both the front and back holes before you put the pin in.
Forgetting the clip. Pin it and clip it every time, just like you would in the receiver.
Storing a long-drop hitch straight. Turn it 90 degrees and use a bottom hole for more clearance.

Tools You'll Need

Wrench or socket set for the supplied bolts
Your hitch pin and clip

▶ Watch the install video

See all Sandy Vans install videos & manuals →

How to choose a hitch storage setup

Here's what customers ask, in order.

1. What van and hitch do you have?

The holder is made for the factory tow hitch on 2019+ Mercedes-Benz Sprinters (VS30). It bolts into the hitch's existing side frame holes.

How to choose: 2019+ Sprinter with the factory hitch: it bolts right on. Other hitch: plan to drill two holes.

2. How long is your ball mount's drop?

Normal drops store straight. Longer drops can store sideways for more clearance.

How to choose: If your hitch hangs low when stored straight, turn it 90 degrees and pin it sideways.

3. Do you want it installed?

It's a two-bolt install you can do in your driveway. We'll also install it free at SV HQ in San Diego.

How to choose: Have a wrench or socket set? Do it yourself. Coming by the shop? Let us handle it.

Before you order

Confirm you have a 2019+ Sprinter factory hitch, or plan to drill for other hitches
Check that your ball mount has a pin hole that lines up with the holder
Have your hitch pin and clip handy

How the SV Hidden Hitch Holder stacks up

Fitment: uses the factory hitch's existing holes on 2019+ Sprinters
Clearance: straight or sideways storage for long drops
Build: heavy-duty steel, two bolts, no drilling on the factory hitch

Will it fit my van?

It's made for the factory tow hitch on 2019+ Mercedes-Benz Sprinters and uses the hitch's existing side frame holes. Other hitches can be adapted by drilling two mounting holes.

Will my ball mount fit?

It holds standard ball mounts that slide in and pin through. If you're not sure about yours, send a photo to products@sandyvans.com and we'll confirm.

My hitch has a long drop. Will it hit the ground?

Turn it 90 degrees, slide it in, and pin it through a hole on the bottom side. It stores sideways for more clearance.

Does it come with a hitch?

No. It holds your existing ball mount. The box includes the holder bracket and mounting hardware.

Do I need to drill?

Not on a 2019+ Sprinter factory hitch. Other hitches need two holes drilled for the bracket.

Will this fit my Winnebago Revel, Storyteller Overland or other Sprinter-based RV?

Most Sprinter-based RVs share the same factory body, so it often fits. Fitment can change with trim level and factory accessories, so reach out to our team at products@sandyvans.com or (619) 812-1903 with your RV model and year and we'll confirm before you order.

Do you install products for customers?

Yes. Many SV products can be professionally installed at our San Diego shop. Reach out to our team to schedule. Email products@sandyvans.com or call 619-812-1903.

What is your shipping and return policy?

Most SV products ship free. For returns, see our Returns & Refunds policy or reach out to our team at products@sandyvans.com.

Can I reach a real person with questions?

Always. We are a small team in San Diego. Email products@sandyvans.com or call 619-812-1903 and you'll get a real answer, not a chatbot.

Where are you located?

9393 Trade Pl, San Diego, CA. Come visit the shop, we'd love to show you around.

Does Sandy Vans offer financing?

Yes. Many financing options are available. Set up a call with a sales associate to learn more.

Still have a question? Email the team and you'll get a real answer.
