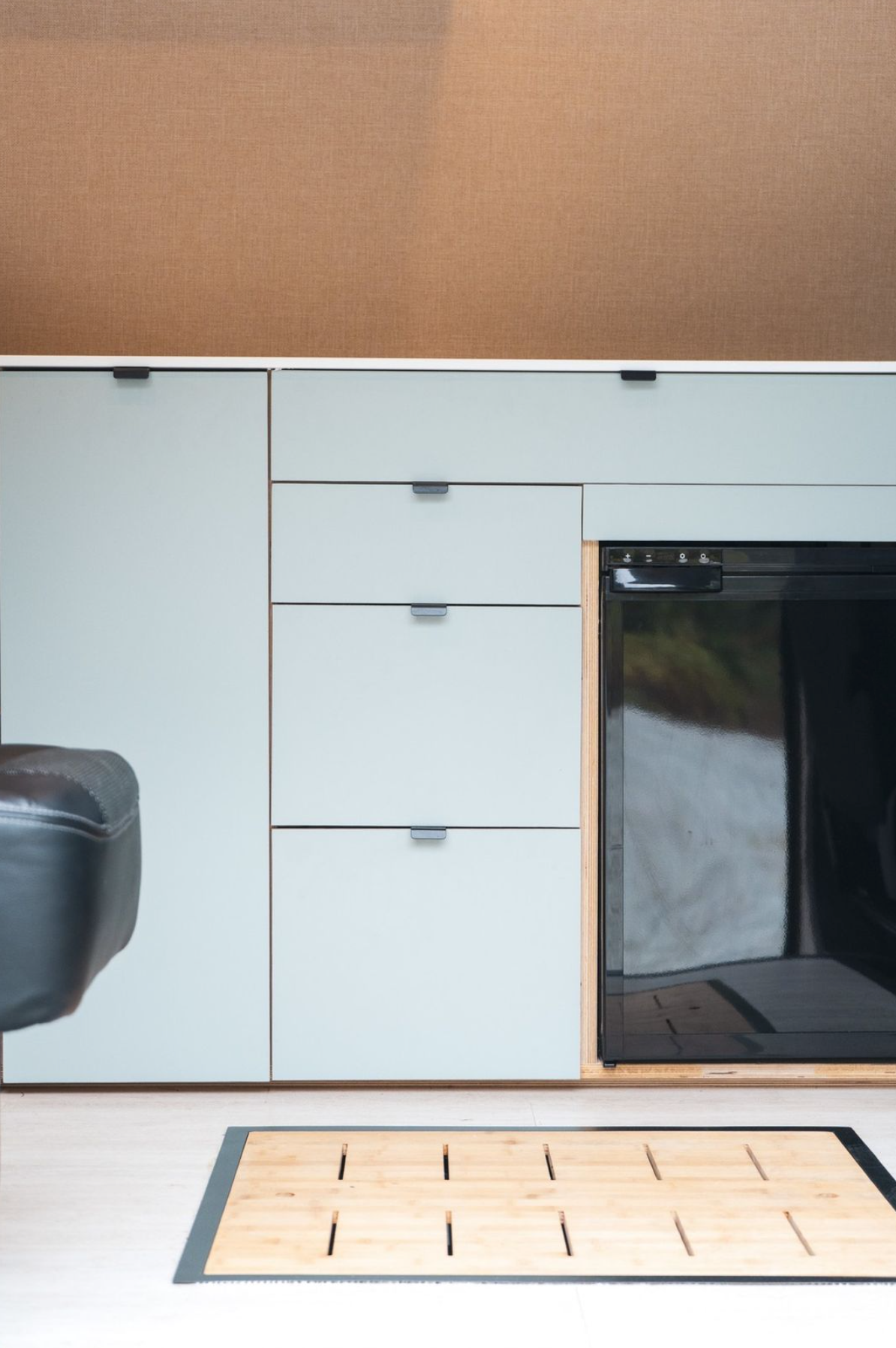

Bamboo covered shower pan in a camper van floor beside the galley

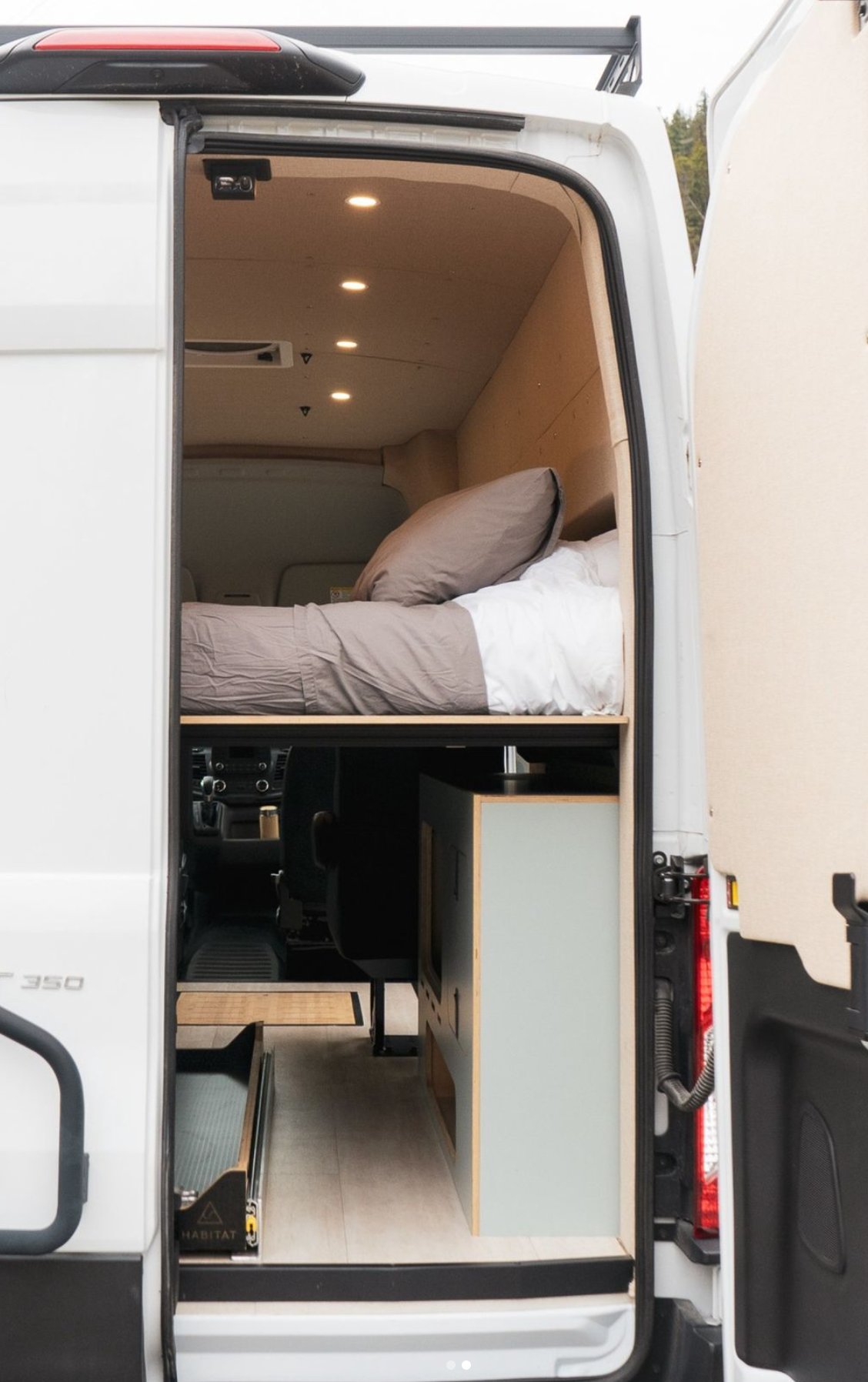

Camper van interior with a recessed shower pan seen from the rear doors

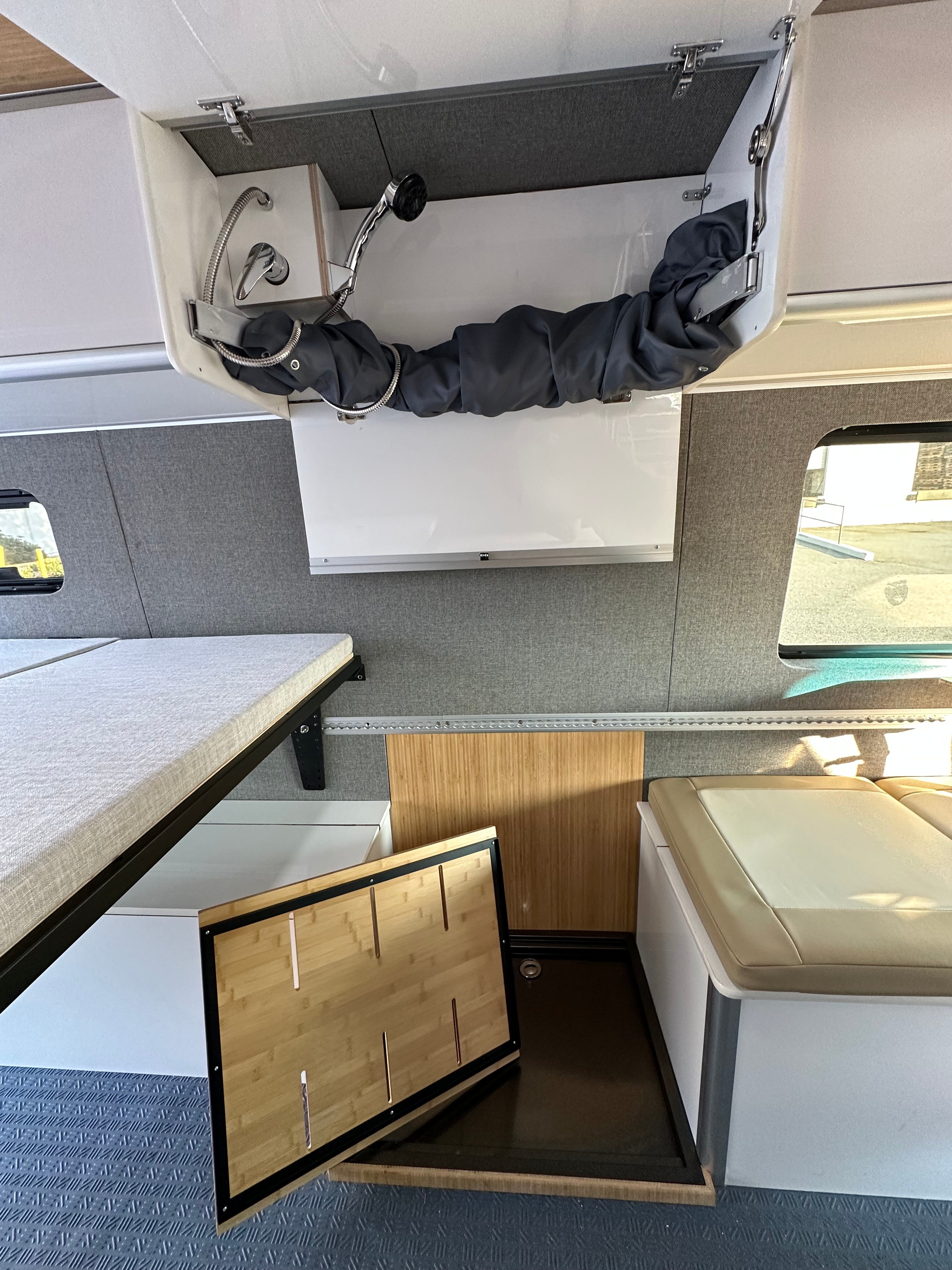

Bamboo cover flipped to hold a magnetic shower curtain in a camper van

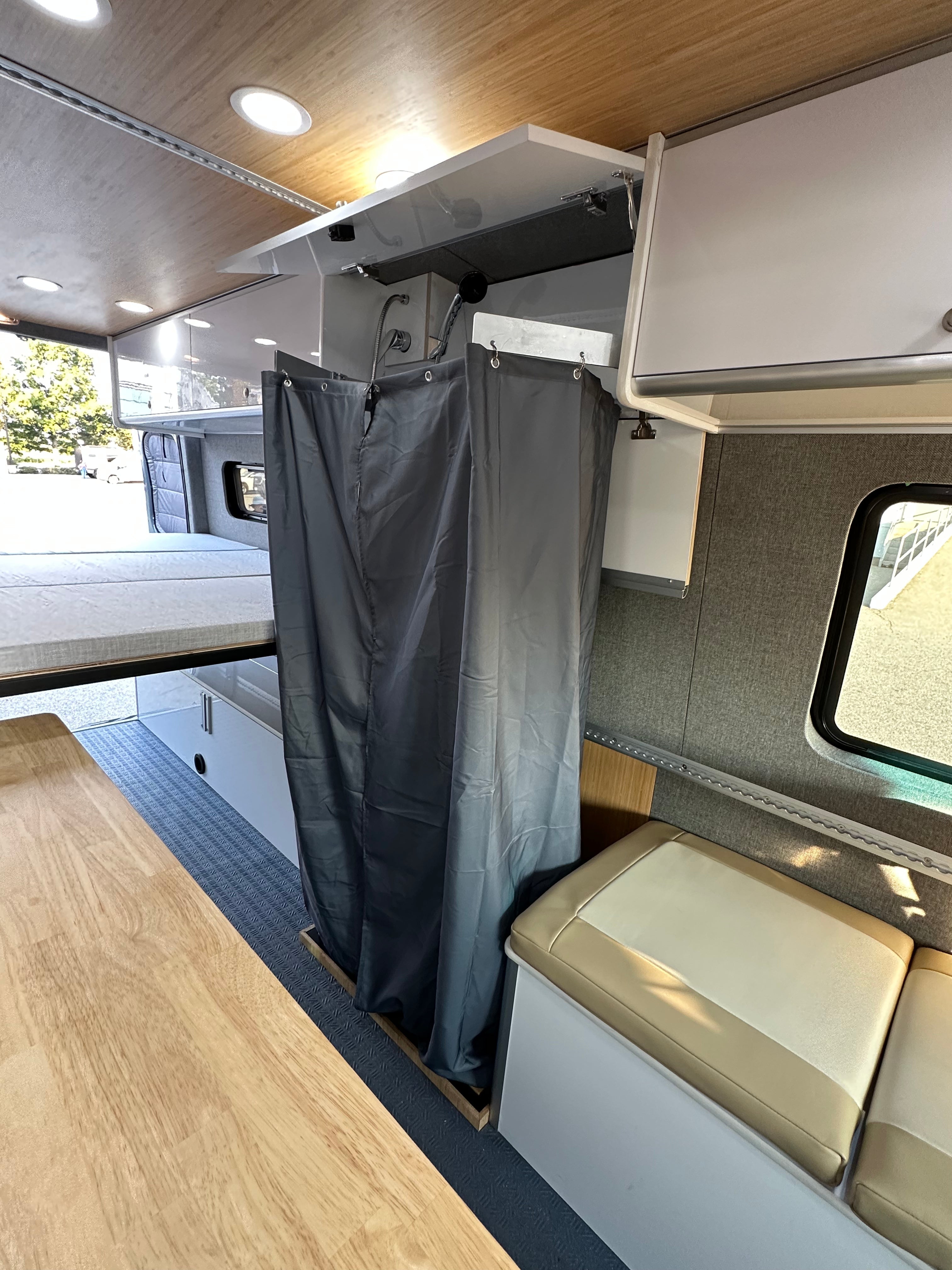

Magnetic shower curtain set up over the recessed pan in a camper van

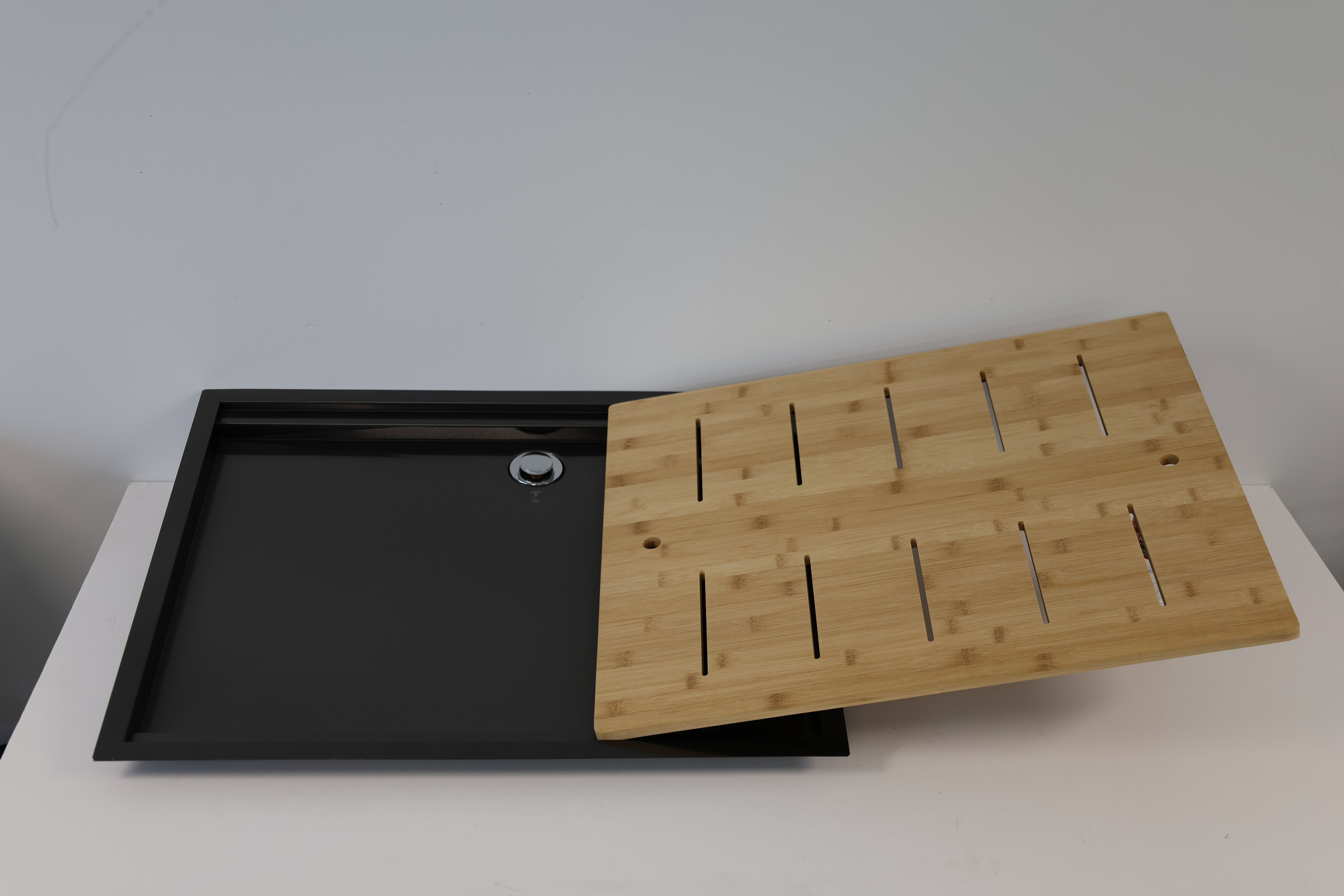

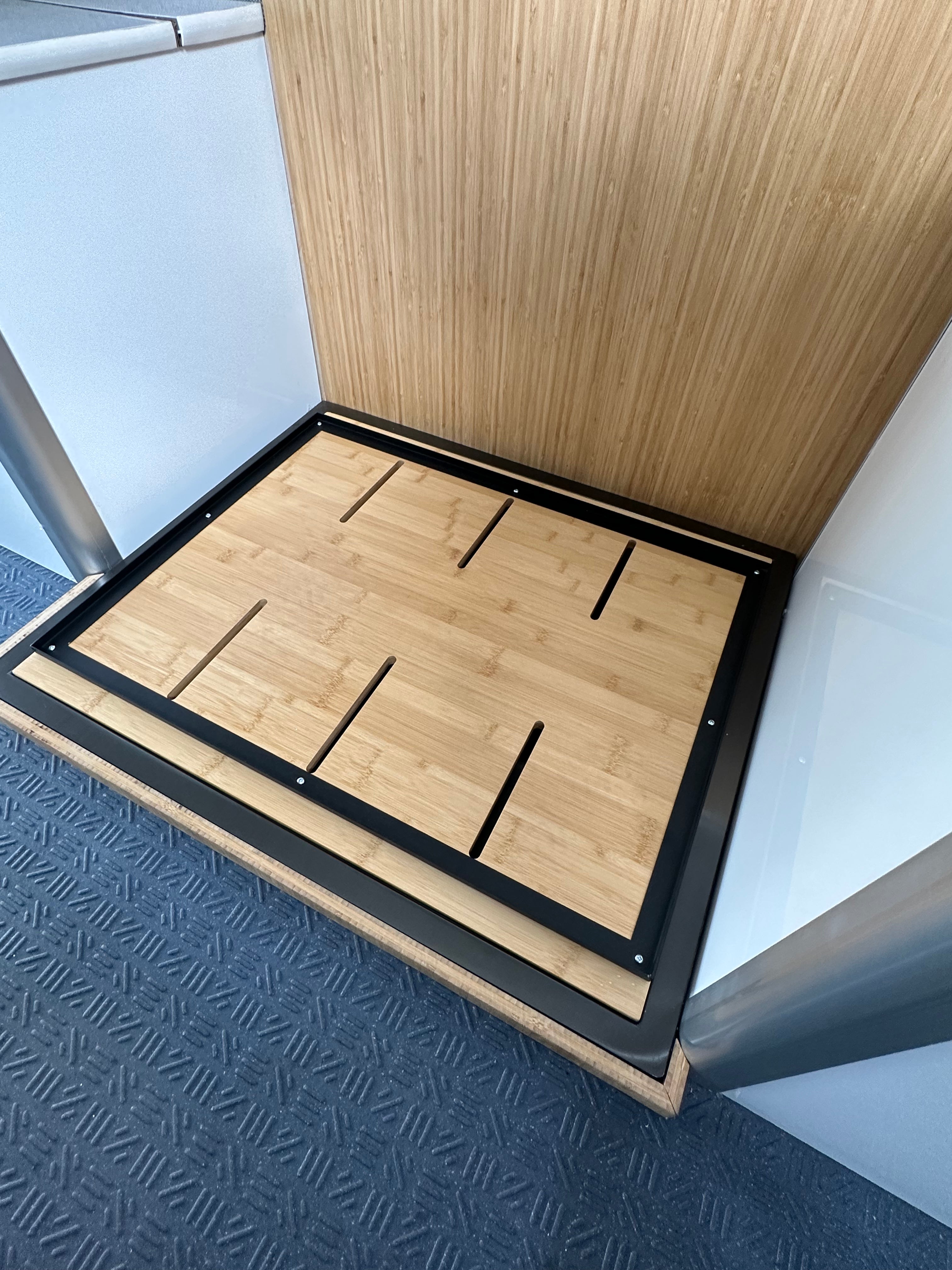

Bamboo cover sitting in an installed recessed shower pan

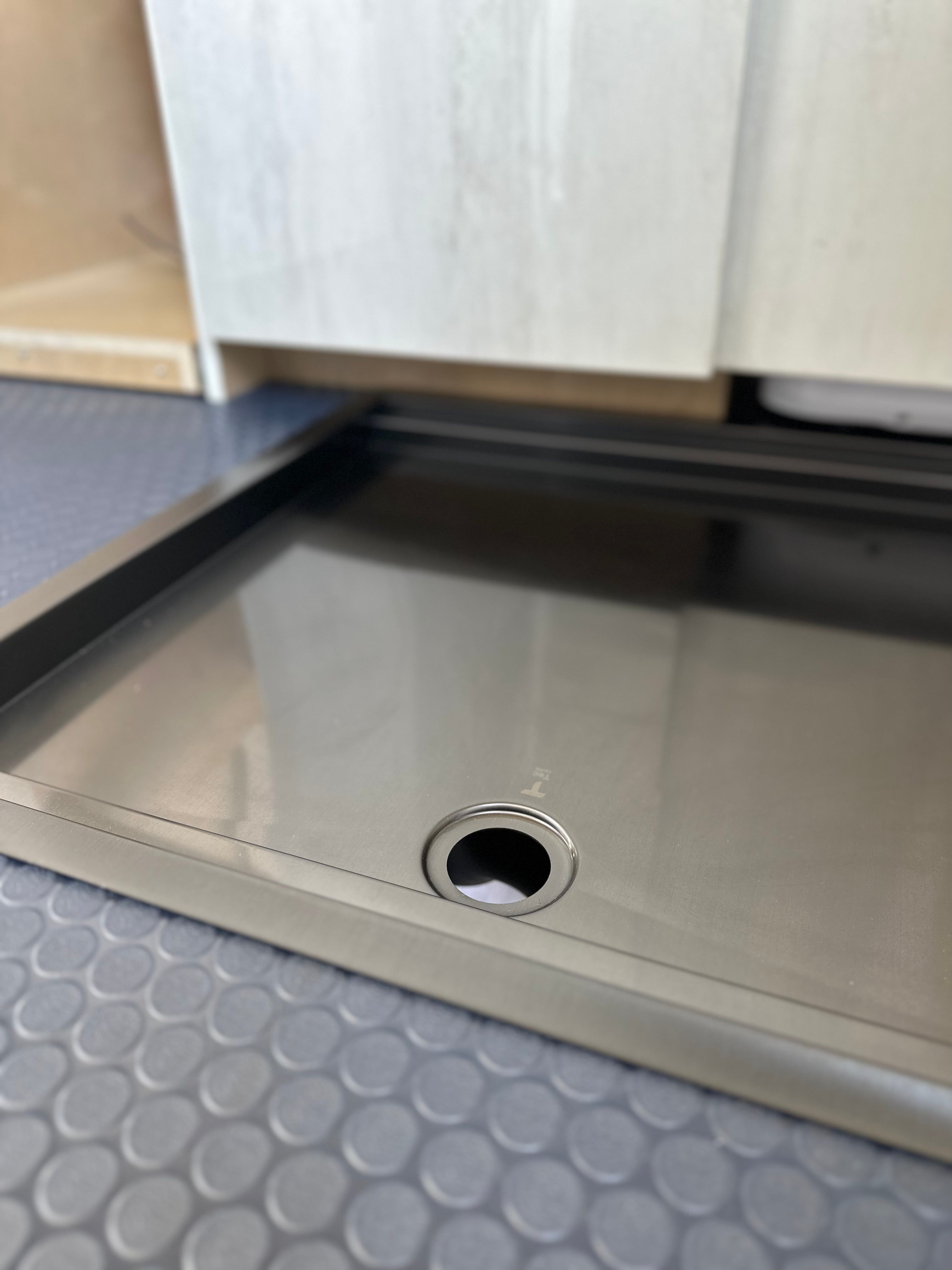

Close-up of the recessed shower pan drain

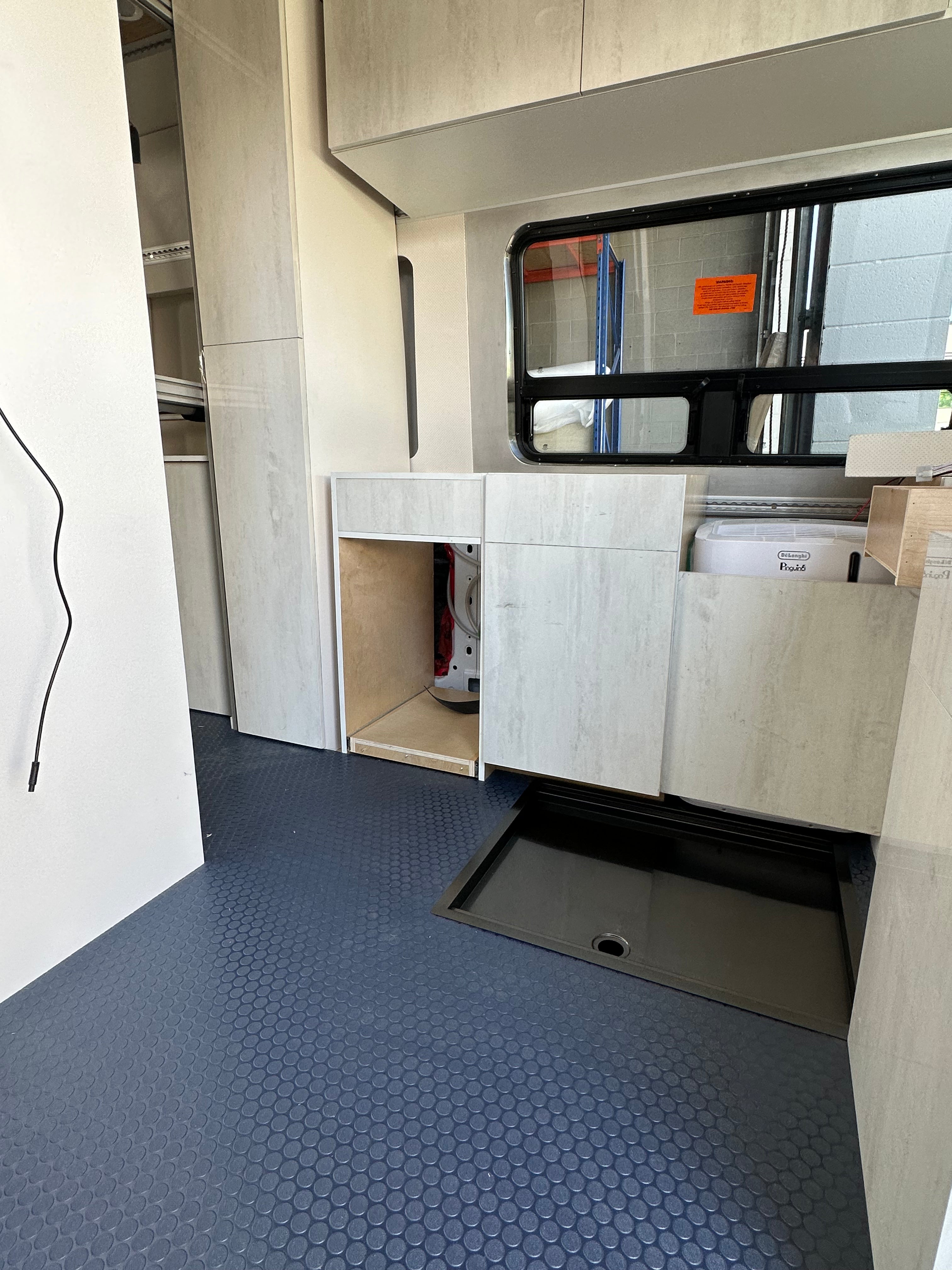

Recessed shower pan in a camper van floor layout

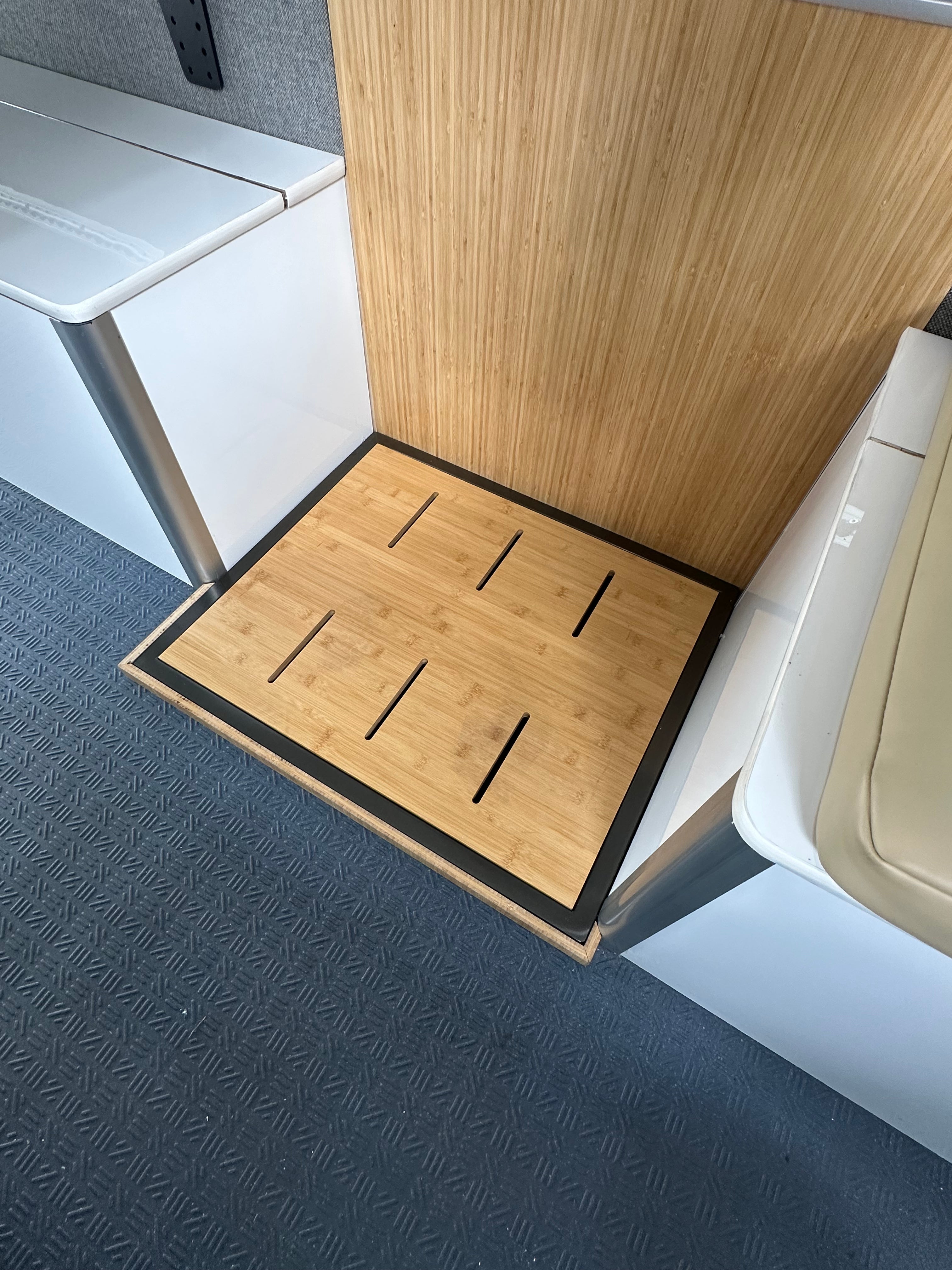

Bamboo shower cover flush with a camper van floor

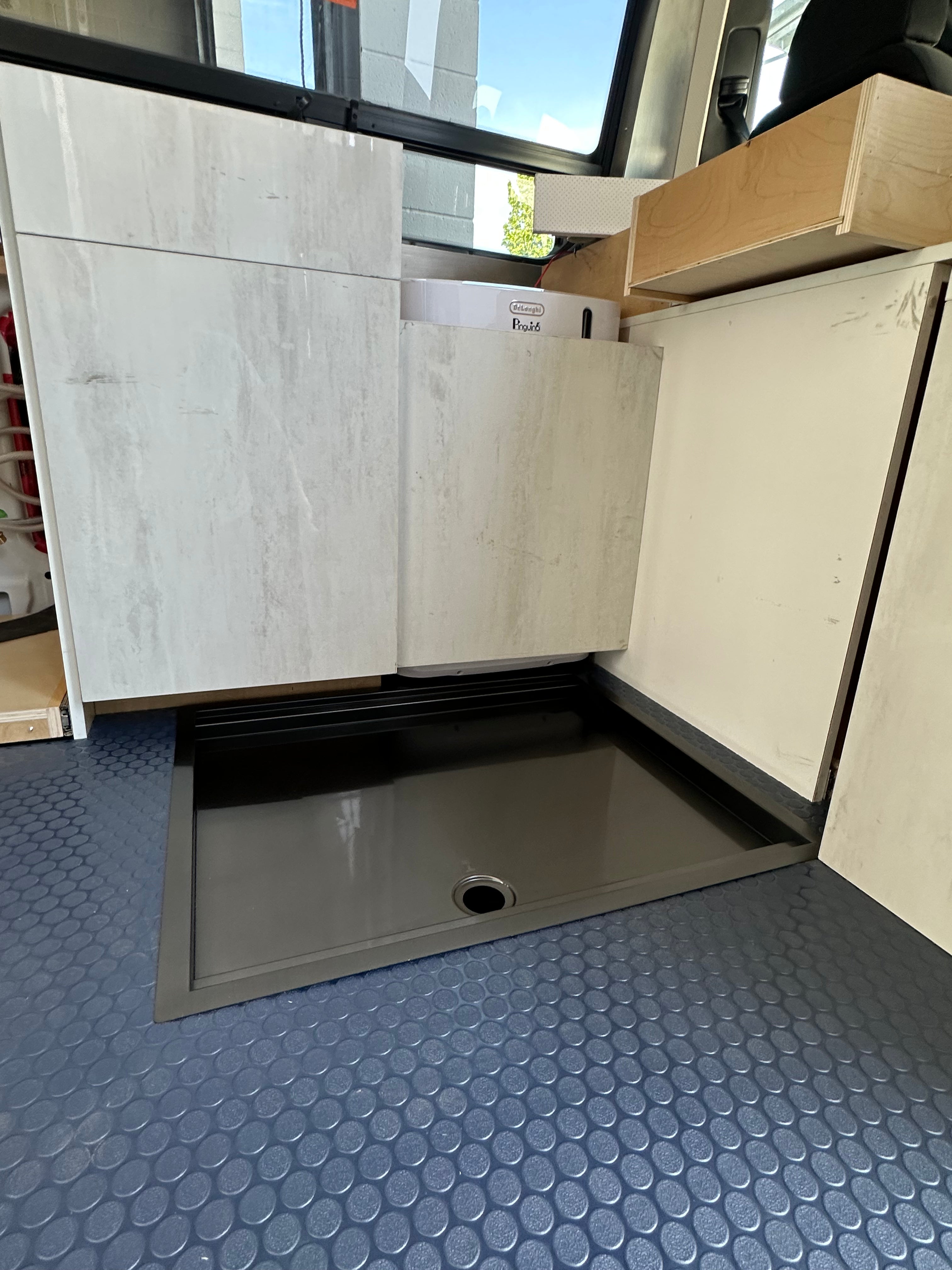

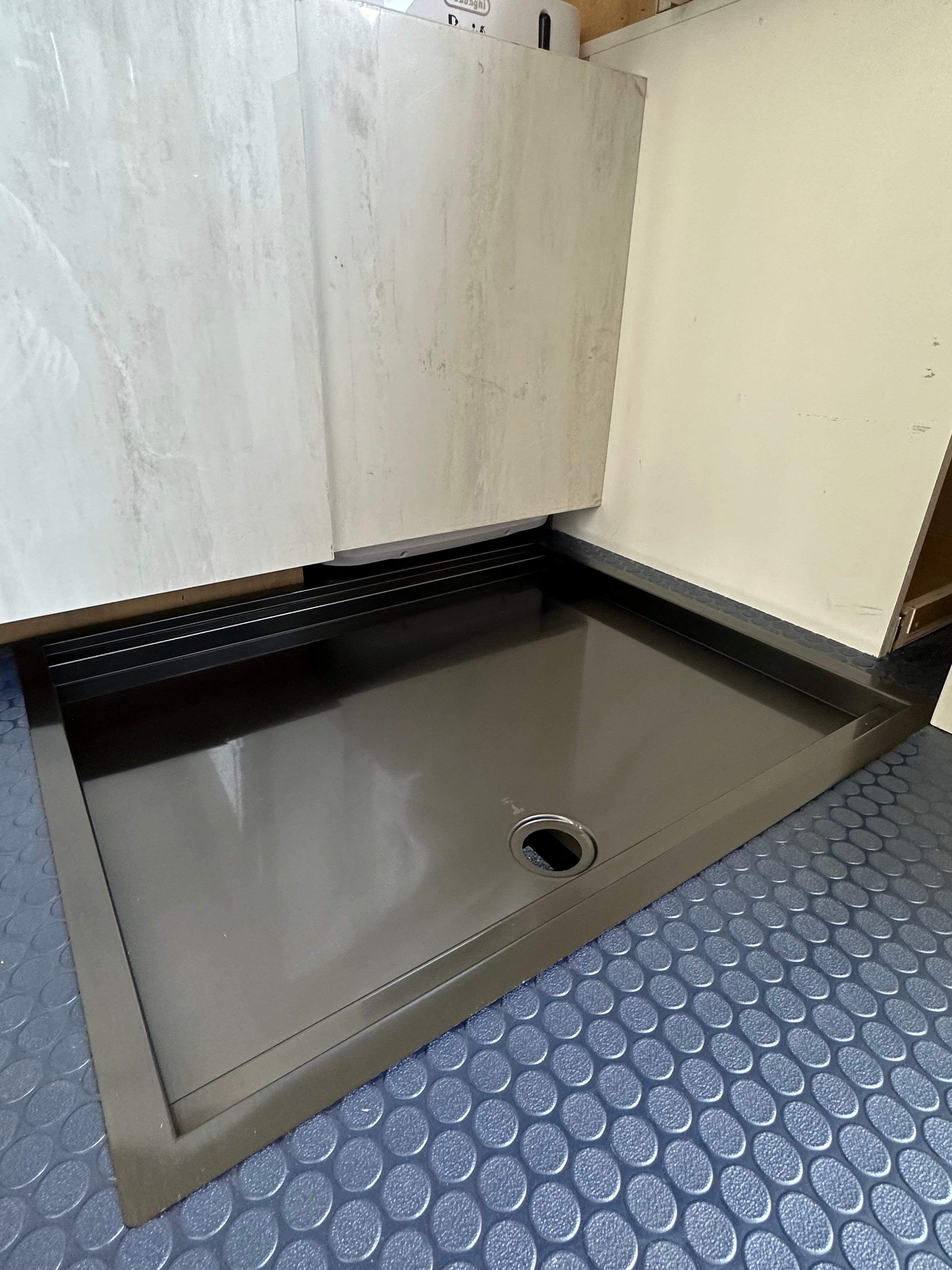

Uncovered recessed shower pan in a camper van

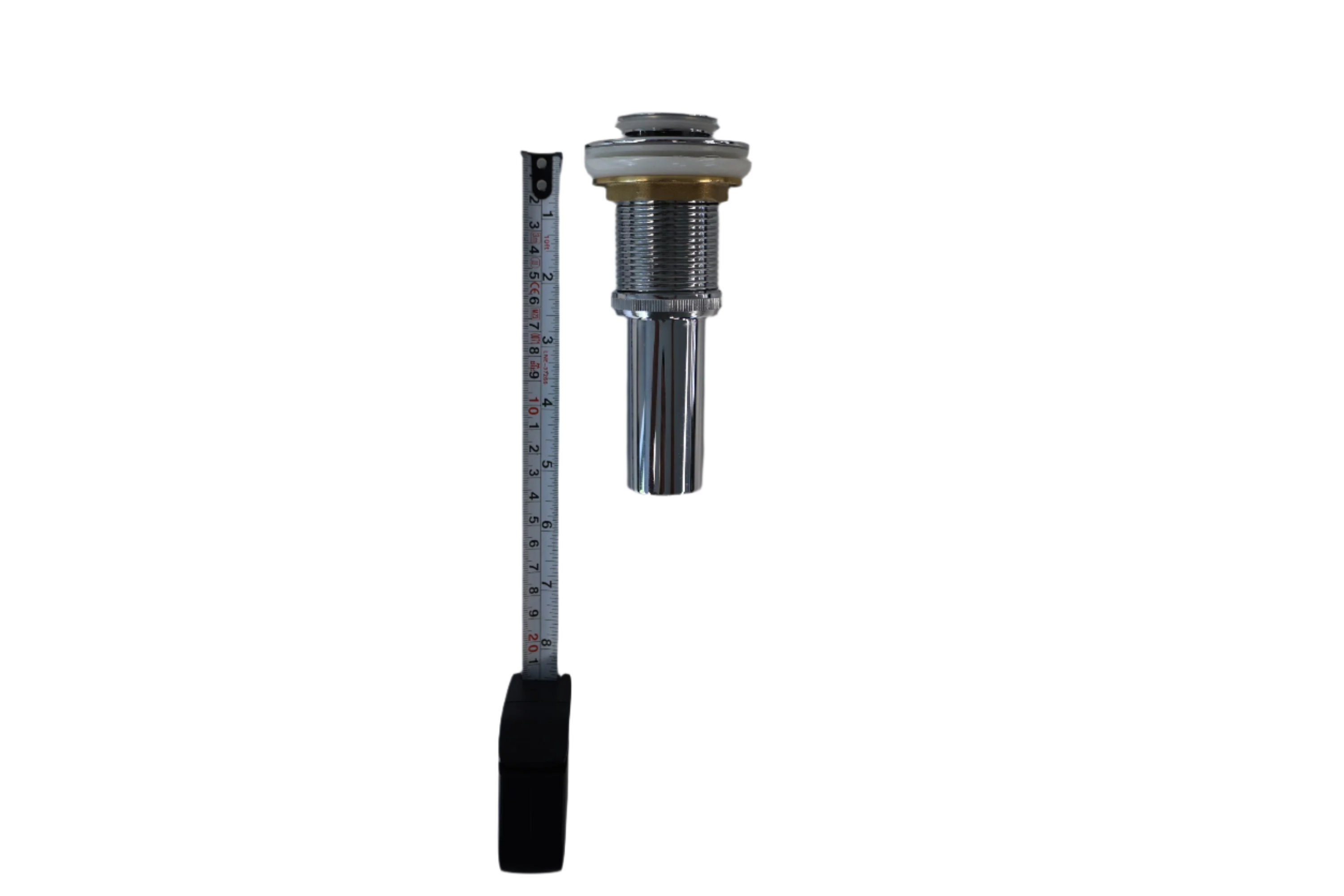

Chrome pop-up drain included with the shower pan

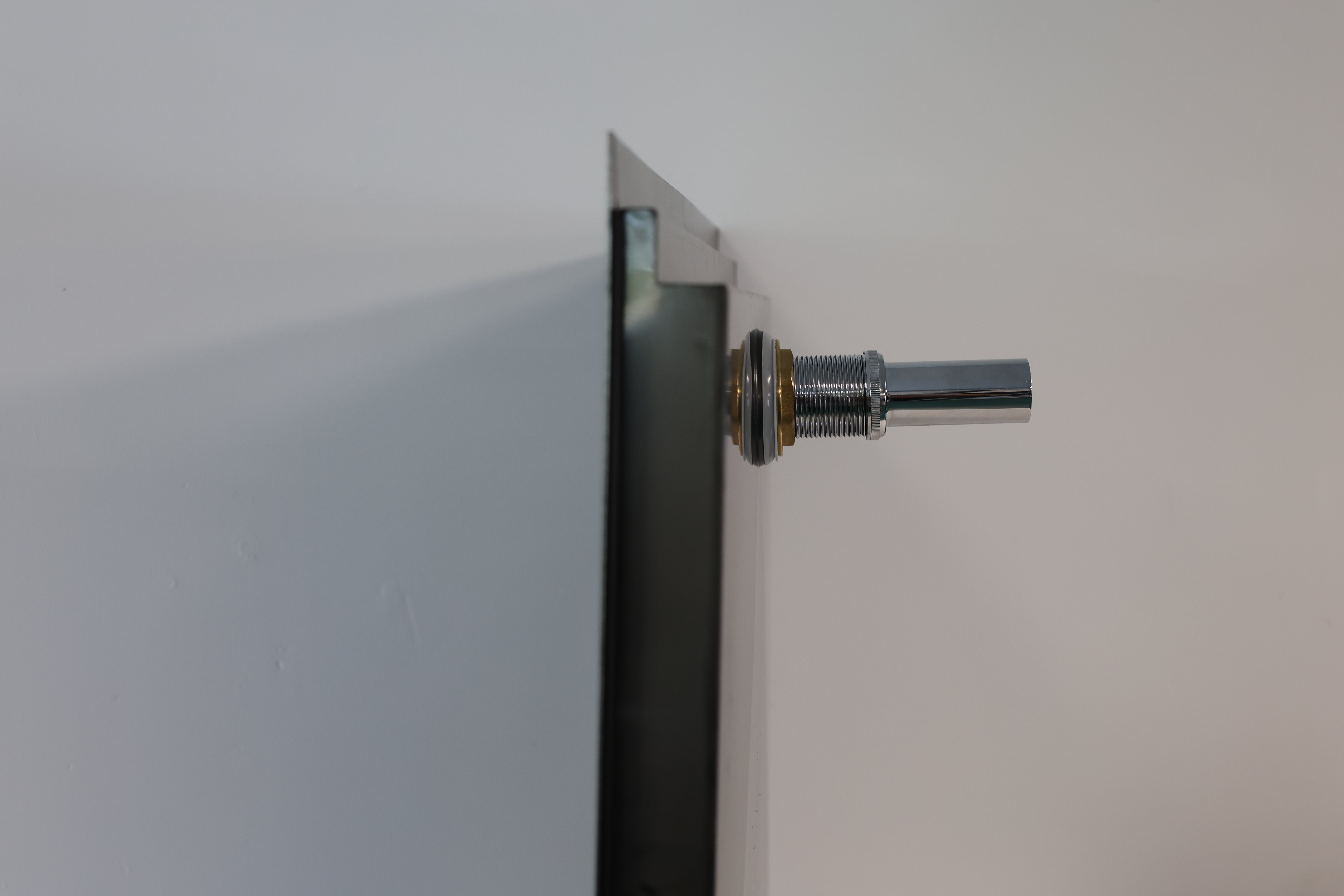

Side view of the shower pan with pop-up drain installed

Tec Vanlife USA

Ultra Low Profile Shower Pan / Recessed Shower Pan

~~$535.00~~ $449.00 Save 16%

Shop 5.0 Shop rating (174) on Google

Own this? Write the first review

Product variants

A real shower that disappears into the floor.

This 1.5 in deep pan recesses into your van floor, and the reversible bamboo cover turns it back into walking space when you're done. Flip the cover and its stainless rim holds magnetic curtain weights to keep water in the pan.

Fits: Universal, any van with room to recess a 28 x 23.6 in pan. The off-center drain suits common spots in Sprinter, Transit and ProMaster builds: beside the sliding door, ahead of the driver side wheel well or near the rear doors.

Recessed, 1.5 in deep to keep your floor clear
Reversible bamboo cover: walking surface one side, curtain rim the other
Welded construction with fewer seams and leak points
Chrome pop-up drain with 1 1/4 in outlet included
Stain and scratch resistant coating

Choose your variant: "Shower Pan + Bamboo Shower Mat" or "Bamboo Shower Mat + Flange + Magnetic Curtain set" (curtain arm not included). Not sure which you need? Reach out and we'll confirm what ships in each.

See it on your van. Add the Ultra Low Profile Shower Pan / Recessed Shower Pan to your build in our 3D Van Builder and preview it on a real Sprinter before you buy.

Product Details

Why a recessed shower pan

A fixed shower stall eats floor space you use every day. This pan sits flush in the floor and the bamboo cover makes it part of the walkway until you need it.

When it's shower time, flip the cover: the stainless rim on its underside holds magnetic curtain weights so water stays in the pan.

What you get

Ultra low profile shower pan with reversible bamboo cover and chrome pop-up drain
Flange and magnetic curtain set on the curtain set option (confirm contents with our team)

Good to know

Built by Tec Vanlife.
The curtain arm is not included.

Fitment & Compatibility

Fits: Universal, any van with room to recess a 28 x 23.6 in pan

Not sure your build qualifies? Reach out to our team.

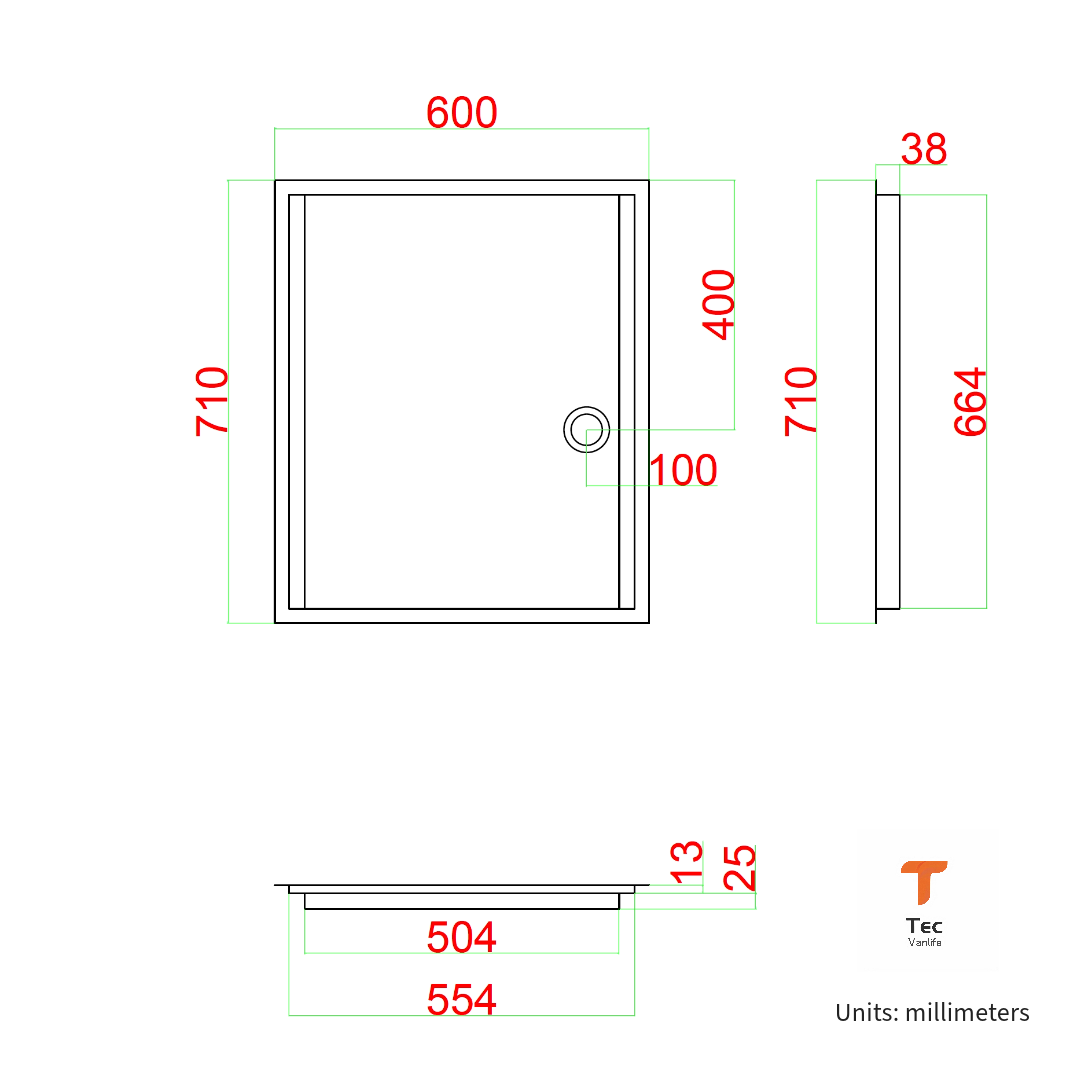

Specifications

Pan size	28 x 23.6 in (710 x 600 mm)

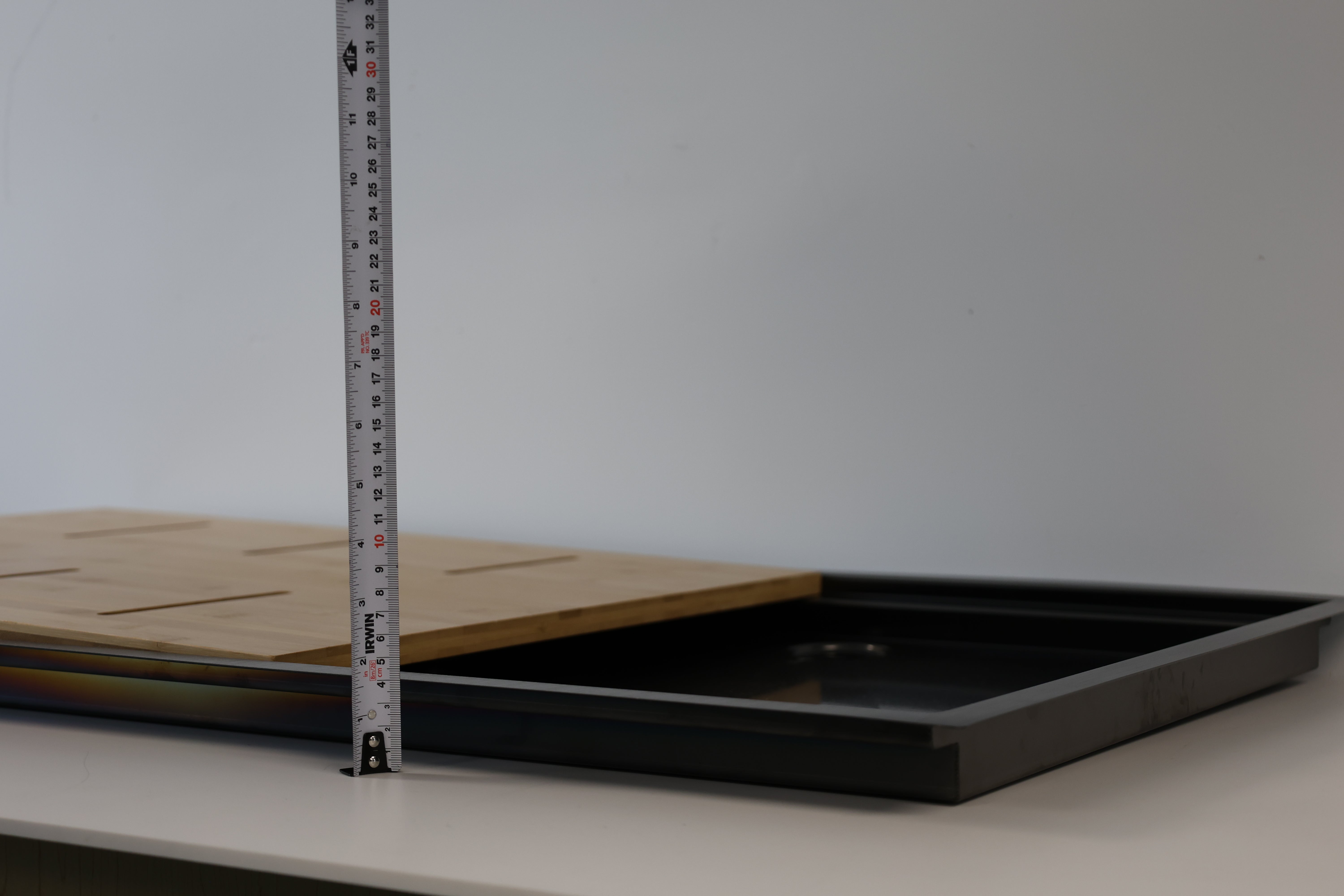

Depth	1.5 in (38 mm)
Bamboo cover	25.98 x 22.13 x 0.39 in (660 x 562 x 10 mm)
Drain opening	3 1/2 in
Drain outlet	1 1/4 in, chrome pop-up drain included
Construction	Welded, stain and scratch resistant coating
Fitment	Universal, any van with room to recess the pan

What's in the Box

Shower pan and reversible bamboo cover
Chrome pop-up drain (1 1/4 in outlet)
Flange and magnetic curtain set (curtain set option)

DIY FriendlyAdvanced

Drilling RequiredYes, the subfloor is cut to recess the pan

The pan drops into an opening cut in your subfloor, sits on a bed of low expansion spray foam and drains through the included pop-up drain to your gray water line. Placement depends on your layout and floor framing. Reach out to our team at products@sandyvans.com or (619) 812-1903 with planning questions or to book a shop install in San Diego.

Mistakes to avoid

Cutting the floor before mapping framing and the drain line
Setting the pan on bare high spots; support it with low expansion foam
Using standard expanding foam, which can push the pan up

Tools You'll Need

Jigsaw or track saw
Low expansion spray foam
Drain fittings and hose
Tape measure and level

See all Sandy Vans install videos & manuals →

How to choose a van shower pan

1. Space

Measure the floor spot first: this pan needs 28 x 23.6 in and 1.5 in of depth.

How to choose: If you can't give up the floor full time, choose a recessed pan with a cover.

2. Drain location

The off-center drain is placed to dodge common floor framing.

How to choose: Map your floor framing and gray tank route before picking the spot.

3. Curtain setup

The cover's stainless rim holds magnetic curtain weights.

How to choose: Want the curtain set too? Choose the curtain set option, add a curtain arm, and check with us on contents.

Before you order

Measure your floor spot
Plan the drain run to your gray tank
Decide on the curtain set

How this pan stacks up

Space: recessed 1.5 in with a walk-on bamboo cover
Drain: off-center, pop-up drain included
Build: welded, coated, fewer leak points

Will it fit my van?

It's universal. You need a 28 x 23.6 in spot where the floor can be recessed 1.5 in. Common spots are beside the sliding door, ahead of the driver side wheel well and near the rear doors, depending on your floor framing.

Do I need to buy a separate drain?

No. A chrome pop-up drain with a 1 1/4 in outlet is included.

What comes in each option?

The options follow the manufacturer's names: "Shower Pan + Bamboo Shower Mat" and "Bamboo Shower Mat + Flange + Magnetic Curtain set". The curtain arm isn't included. Reach out to our team and we'll confirm exactly what ships in each before you order.

How do I support the pan?

Van floors are rarely flat. The manufacturer recommends low expansion spray foam between the pan and the van floor for support, stability and insulation.

Can I use it for more than showers?

Yes. It's a handy wash spot for pets, boots and muddy gear.

How does shipping work on this item?

This item ships direct from the manufacturer, Tec Vanlife. Shipping is calculated at checkout for your address and may arrive separately from other items in your order.

Do you install products for customers?

Yes. Many SV products can be professionally installed at our San Diego shop. Reach out to our team to schedule. Email products@sandyvans.com or call 619-812-1903.

What is your shipping and return policy?

Most SV products ship free. For returns, see our Returns & Refunds policy or reach out to our team at products@sandyvans.com.

Can I reach a real person with questions?

Always. We are a small team in San Diego. Email products@sandyvans.com or call 619-812-1903 and you'll get a real answer, not a chatbot.

Where are you located?

9393 Trade Pl, San Diego, CA. Come visit the shop, we'd love to show you around.
