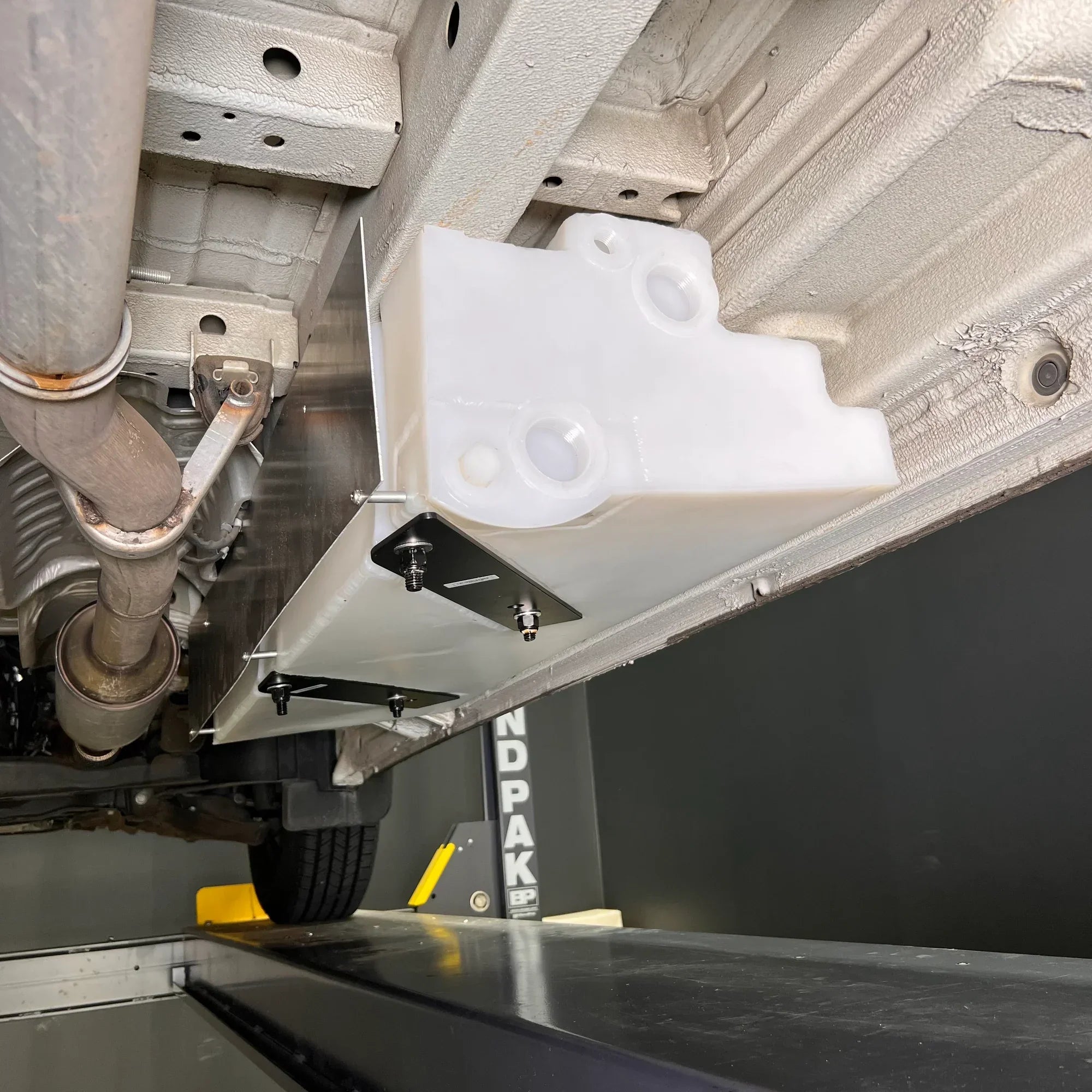

16 gallon passenger-side undercarriage water tank mounted under a Sprinter

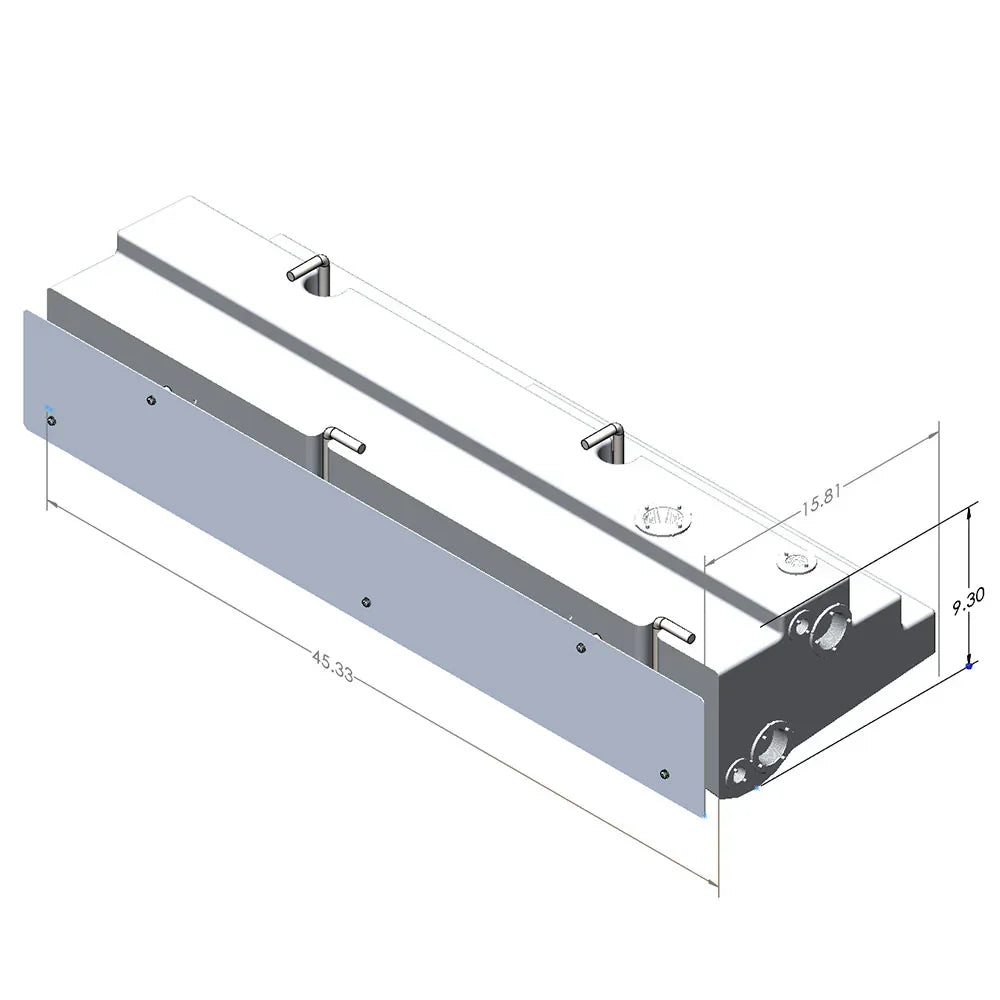

16 gallon Sprinter undercarriage water tank dimensions drawing

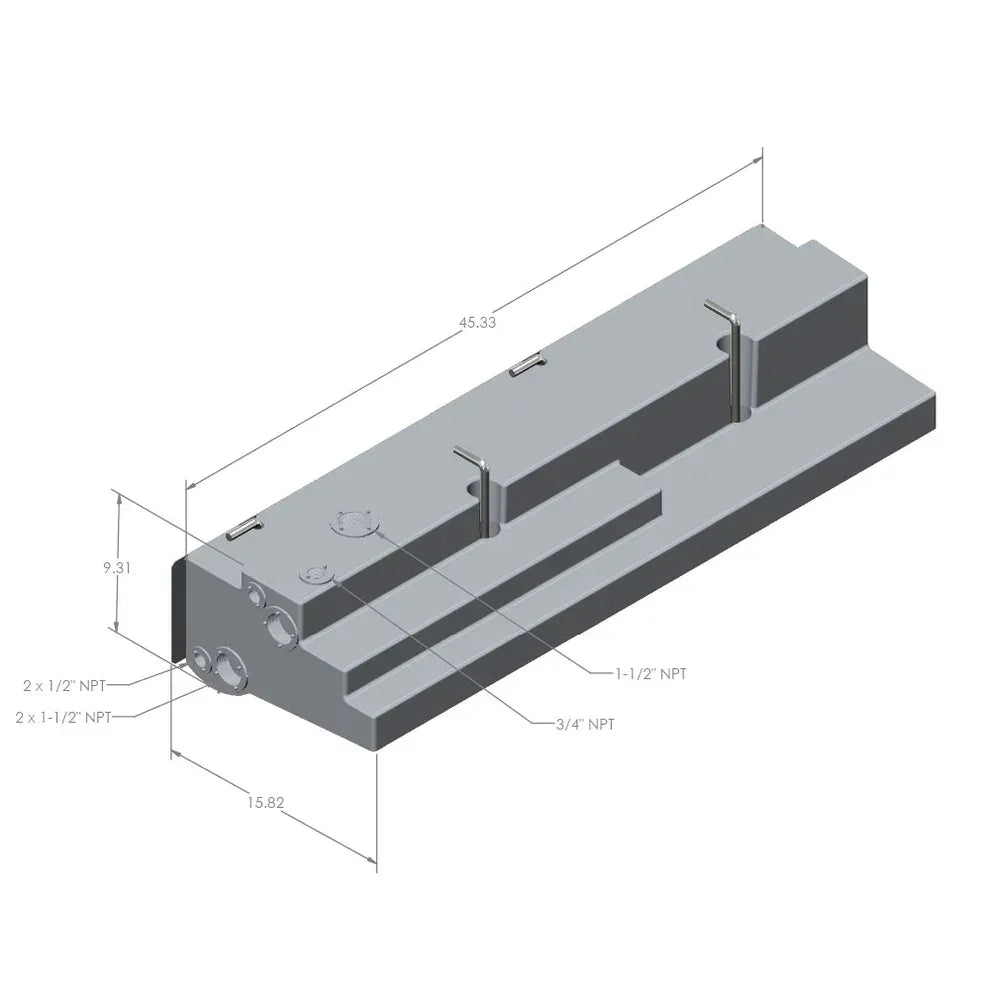

16 gallon Sprinter water tank 3D drawing with mounting points

SB Filters

16 Gallon Undercarriage Fresh Water Tank for Sprinter, Passenger Side

Name: 16 Gallon Undercarriage Fresh Water Tank for Sprinter, Passenger Side
Brand: SB Filters
Price: 349.0 USD

$349.00

Shop 5.0 Shop rating (174) on Google

Own this? Write the first review

Product variants

Pickup available at Sandy Vans HQ

Usually ready in 2-4 days

16 gallons of fresh water stored under the van, not inside it.

This undercarriage tank tucks into otherwise wasted space under a 2007-2025 Sprinter 144 or 170, freeing interior room for storage. It's TEI tested and listed, RVIA approved and BPA free.

Not compatible with AMP side steps. Confirm your van has inboard hanger holes before ordering.

Fits: Mercedes Sprinter 144 and 170 in wheelbase, 2007-2025, with inboard hanger holes. Not compatible: Vans with AMP Research side steps.

16 gallons of fresh water
Undercarriage mount keeps interior space free
TEI tested and listed, RVIA approved, BPA free
Fits 144 and 170 in wheelbase Sprinters

See it on your van. Add the 16 Gallon Undercarriage Fresh Water Tank for Sprinter, Passenger Side to your build in our 3D Van Builder and preview it on a real Sprinter before you buy.

Product Details

Why underbody water

A 16 gallon tank inside a van takes cabinet space you could use for storage. Moving it underneath frees that space.

What you get

16 gallon undercarriage fresh water tank

Fitment & Compatibility

Fits: Mercedes Sprinter 144 and 170 in wheelbase, 2007-2025, with inboard hanger holes

Not compatible with: Vans with AMP Research side steps

Also fits these Sprinter-platform RV & upfitter builds:

Winnebago Revel
Storyteller Overland (MODE, Beast Mode)
Outside Van
Airstream Interstate & Atlas
Grech RV (Strada, Turismo, Terreno)
Pleasure-Way Plateau
Leisure Travel Vans (Unity, Wonder)
Coachmen Galleria
Midwest Automotive Designs
Jayco Terrain
Tiffin Wayfarer
Thor Tranquility

Fitment depends on your exact model, year, suspension lift, and body kit. Confirm with our team before ordering.

Not sure your build qualifies? Reach out to our team.

Specifications

Capacity	16 gallons
Dimensions	45.33 L x 15.5 W x 8.31 H in (±0.5 in)
Fits	Sprinter 144 and 170 in WB, 2007-2025
Requires	Inboard hanger holes
Clearance	About 0.8 in between the tank and the body at the side step mounts
Certifications	TEI tested and listed, RVIA approved, BPA free

DIY FriendlyIntermediate

Drilling RequiredNo

The tank hangs from the van's inboard hanger holes and plumbs into your water system. Reach out to our team at products@sandyvans.com or (619) 812-1903, or text photos of your underbody to check fit.

Tools You'll Need

Floor jack
Socket set
Plumbing fittings for your water system

See all Sandy Vans install videos & manuals →

How to choose a van water tank

1. Inside or under?

How to choose: Underbody tanks save interior space but need freeze planning.

2. Side steps

How to choose: Check clearance with any steps you run.

3. Capacity

How to choose: 16 gallons covers a few days for most couples.

Before you order

Inboard hanger holes confirmed
Side step compatibility checked

How it stacks up

16 gallons
Underbody mount
RVIA approved

Will it fit with my side steps?

Not with AMP steps. There's only about 0.8 in between the tank and the body where side steps mount. Text photos of your setup to (619) 812-1903 and we'll check.

What are inboard hanger holes?

Factory mounting holes under the van. Confirm your van has them before ordering.

Will it freeze?

It's mounted outside the van, so plan freeze protection if you camp in cold weather.
