The short answer
Skip floating click-lock planks. In a van, cabinets, bed frames, and L-track pin the floor down, and temperature swings break the click joints. The longest-lasting option is a single sheet of commercial vehicle-rated vinyl, glued to a properly prepped plywood subfloor. One sheet means no seams for water to get through and nothing to lift.
Flooring is one of the first things that goes into a van build and one of the last things you want to redo. Once the cabinets, bed platform, and seat bases are bolted down, pulling up a failed floor means pulling out half the build.
The most common choice we see is click-lock vinyl plank from a big-box store. It's affordable, it looks good in the showroom, and it snaps together on a Saturday. Then a summer in the desert and a winter ski trip later, the seams are gapping, the edges are peaking, and the floor clicks and shifts underfoot.
This guide covers why that happens, what the other options are, and why the floor we install in our own customer builds is a single full sheet of commercial transit vinyl, glued down. We'll use the Sprinter as the reference since that's what we build, but the logic applies to Transit and ProMaster too.
1. Why Click-Lock Planks Pop Up in Vans
This is the question we get most, usually from someone looking at a floor that's already failing.
Click-lock luxury vinyl plank (LVP) and laminate are floating floors. The planks lock to each other, not to the subfloor. That design only works if the whole floor is free to expand and contract as one piece, which is why every manufacturer calls for an expansion gap around the edges and tells you to install cabinets first, then lay the floor around them. One flooring manufacturer's support guide puts it plainly: cabinets installed on top "pin the floor in place and can cause buckling or joint failure over time."
Now look at a van build. Cabinets are screwed through the floor. The bed frame is bolted down. L-track runs the length of the floor. Seat bases are bolted through to the chassis. Every one of those pins the floating floor in place, so it can't float. When the planks try to move, the only thing that can give is the click joint.
Then add the temperature swings. An Arizona State University study of cars parked in the sun on summer days with temperatures in the 100s found cabin air averaged 116°F within an hour, with dashboards averaging 157°F. A van that bakes in a trailhead parking lot in July might sit below freezing at a ski resort in January. That's well outside what home flooring is built for.
You don't have to take our word on this. Home Depot's own house brand, LifeProof rigid core LVP, says it right in the installation instructions:
"DO NOT install in any outside areas, sunrooms/solariums, saunas, seasonal porches, camping trailers, boats, RVs, 3-season rooms, lanais, rooms that are prone to flooding, or rooms or homes that are not temperature-controlled."
The same guide calls for room conditions between 50°F and 100°F. A parked van blows through both ends of that range, and the guide also warns that long-term direct sunlight can cause the product to "discolor, fade, or buckle."
Some RV owners do report floating floors holding up, especially in trailers with minimal built-ins and an open floor plan. But in a van with cabinets, a bed platform, and L-track all fastened through the floor, the floor can't do what a floating floor needs to do.
How to choose: If anything in your build will be screwed or bolted through the floor (and in a van, something always is), skip floating click-lock flooring. Choose a floor that's fully adhered to the subfloor so it moves with the van instead of against it.
2. One Full Sheet vs. Planks and Seams
Once you've decided on a glued-down floor, the next question is how many pieces it comes in.
Every seam is a weak point. It's where water from wet boots, a leaking water jug, or a spilled cooler finds its way down to your plywood. Plywood that stays damp under a vinyl floor is how you end up with soft spots, mold, and rot that you won't see until it's a problem. Builders who have documented their own sheet vinyl installs point out the main advantage: a single sheet has "no seams or planks, so liquid can't pass through."
Seams are also where floors start to lift. Glued planks and multi-piece sheet installs depend on every edge staying bonded through years of vibration and flex. Commercial installers close seams in sheet vinyl with a heat welder for exactly this reason. Altro's own installation guide for its transit flooring specifies that seams must be heat welded.
A Sprinter 144" cargo floor is narrow enough to be covered by one sheet of 2-meter-wide commercial vinyl. That's the approach we use: one full sheet, cut to the floor profile, glued down edge to edge. No seams in the cargo area to weld, seal, or worry about.
How to choose: Fewer seams means fewer places for water to get in and fewer edges to lift. If you can cover your cargo floor with one sheet, do it. If your floor needs multiple pieces, plan to heat weld or properly seal every seam.
3. Material Grade: Residential, Marine, or Transit
Not all vinyl is built for a moving vehicle. There are three tiers you'll run into when shopping.
Residential vinyl and LVP (LifeProof and similar big-box lines) is designed for a flat, rigid, climate-controlled house. Wear layers on LifeProof click-lock planks range from about 6 to 22 mil depending on the line, and pricing typically runs a few dollars per square foot. It's the cheapest option up front, and as covered above, the manufacturer doesn't support installing it in RVs or campers.
Marine and RV sheet vinyl (Lonseal LonMarine is the best-known) is a big step up. LonMarine is about 0.080" thick with a 0.020" (20 mil) wear layer, is FMVSS 302 rated, and is sold by the linear foot in a 6-foot width. Retail runs around $54 per linear foot, which works out to roughly $9 per square foot. It's a proven van floor and plenty of good builds use it. G-Floor is another option you'll see: a heavy coin-pattern or ribbed vinyl made for garages. It's tough and grippy, but it reads as a utility floor, not a living space.
Commercial transit vinyl is made for buses and other passenger vehicles that run all day, in every season. The material we use, Altro Transflor Artis, is 2.2 mm thick with a 0.7 mm (about 27 mil) wear layer, passes FMVSS 302 for vehicle interior flammability, carries an R10 slip rating, and is rated for 0.4% or less dimensional change in Altro's testing. In plain terms: it's thicker on top where wear happens, it grips when wet, and it holds its size when the temperature swings.
Altro makes thicker transit floors too. We chose the 2.2 mm Artis for this kit, and it's the gauge we install in our own builds. If your van will see heavier commercial or gear-hauling use and you want a thicker gauge, reach out and we can talk through options.
| Big-box click-lock LVP | Marine sheet vinyl | Transit sheet vinyl (ours) | |
|---|---|---|---|
| Install | Floating, click-lock | Glued, cut from roll | Glued, one pre-cut sheet |
| Wear layer | ~6 to 22 mil | 20 mil (LonMarine) | ~27 mil (0.7 mm) |
| Vehicle use | Excluded by manufacturer | Marine / RV rated | Built for transit vehicles |
| FMVSS 302 | Not stated | Yes | Pass |
| Seams in cargo area | Every plank | Depends on width and cut | None |
How to choose: If the flooring doesn't carry a marine, RV, or commercial vehicle rating, it's residential. It will look fine on day one and rough by year two. Between marine and transit, compare wear layer thickness and how many seams your floor will have.
4. Subfloor Prep and Adhesive: Where Glued Floors Go Wrong
A glued-down floor solves the floating problem, but it puts all the weight on the bond. When glued floors fail, it's almost always prep or adhesive, not the vinyl. These are the mistakes we see most:
- Screw heads and panel joints telegraphing through. Thin vinyl shows every ridge and dip underneath it. Fill screw holes, fastener heads, and plywood seams with body filler and sand flush before you glue anything.
- The wrong adhesive for the subfloor. Water-based acrylic adhesives like Ecofix+ are made for absorbent substrates like plywood. Gluing to bare metal or aluminum needs a different adhesive entirely. Match the glue to what's under it.
- Laying vinyl into wet adhesive. Most flooring adhesives need open time to get tacky before the vinyl goes down. Lay it too early and you trap air and moisture, which shows up as bubbles you can't roll out.
- Skipping the roller. Hand pressure isn't enough. A 100 lb floor roller, run in multiple directions, is what pushes out air and gets full contact. Most tool rental shops have one.
- Cold vinyl. Vinyl stored in a cold garage is stiff and won't lie flat. Let it acclimate for 48 hours at 60 to 80°F before installing.
- Trapping water under the subfloor. Think about where condensation and spills will go before you seal everything in. Sheet vinyl helps by keeping water on top, and finishing the perimeter edges and any floor penetrations (L-track, seat bases) with trim or a flexible sealant keeps it from wicking underneath.
How to choose: Budget as much time for subfloor prep as for laying the floor. If you're installing over plywood, a water-based acrylic adhesive is the right call. If you're not sure what you're gluing to, ask before you buy.
5. The Look: Why Wood-Look Sheet Vinyl Reads High End
Function aside, the floor is the biggest single surface you see every time you open the slider. Click-lock planks show a seam every few inches, and once those seams open up, the whole floor looks tired. Garage-style coin vinyl is practical but looks like a work truck.
A full sheet of wood-look vinyl gives you the warmth of a wood floor with none of the plank lines breaking up the space. That's the main reason it's our favorite. It makes a van interior look finished, pairs naturally with wood cabinetry and upholstered walls, and the gloss easy-clean surface wipes from muddy boots to clean in a minute.
We offer eight wood tones. Lighter colors (Farmhouse Oak, Autumn Maple, Spiced Bamboo) work with natural birch and light-stained wood. Darker tones (Antique Walnut, Tudor Oak, Urban Cherry) pair with dark-stained or painted cabinetry and hide dirt better. Century Oak and Oak Riche sit in the middle.
How to choose: Pull a photo or sample of your wall panel and cabinet material and pick the floor against it, not in isolation. If your van will see a lot of dirt and dogs, lean darker.
6. Pre-Cut Kit vs. Cutting Your Own From a Roll
Buying sheet vinyl off the roll gives you the most flexibility, but cutting it accurately is the hardest part of the job. You need a clean, flat surface bigger than the van floor, a template of the floor profile including the wheel wells, and confidence in every cut, because sheet vinyl doesn't forgive a mistake. A full roll of 2-meter commercial vinyl is also awkward to get into a cargo bay.
A pre-cut sheet takes that step off your plate. The floor arrives shaped to the cargo area, so the job becomes: prep, dry fit, glue, roll.
How to choose: If you have a standard 144" 2500 cargo floor, pre-cut saves time and removes the riskiest step. On a different Sprinter, or a layout that departs from the factory floor? We sell the same transit vinyl uncut, so you can template and cut it yourself.
Before You Order: Checklist
- Will anything be screwed or bolted through the floor? (If yes, rule out floating floors.)
- Can your cargo area be covered with one sheet, or will you need seams?
- Does the flooring carry a marine, RV, or commercial vehicle rating?
- What's your subfloor: plywood, bare metal, or something else? Does your adhesive match it?
- Are your screw heads and plywood joints filled and sanded flush?
- Do you have access to a 100 lb floor roller?
- Can the vinyl acclimate for 48 hours at 60 to 80°F before install?
- Have you picked your color against your actual cabinet and wall materials?
- For a pre-cut kit: is your Sprinter a 144" 2500 (not a 170", 170" EXT, or 3500 dually)?

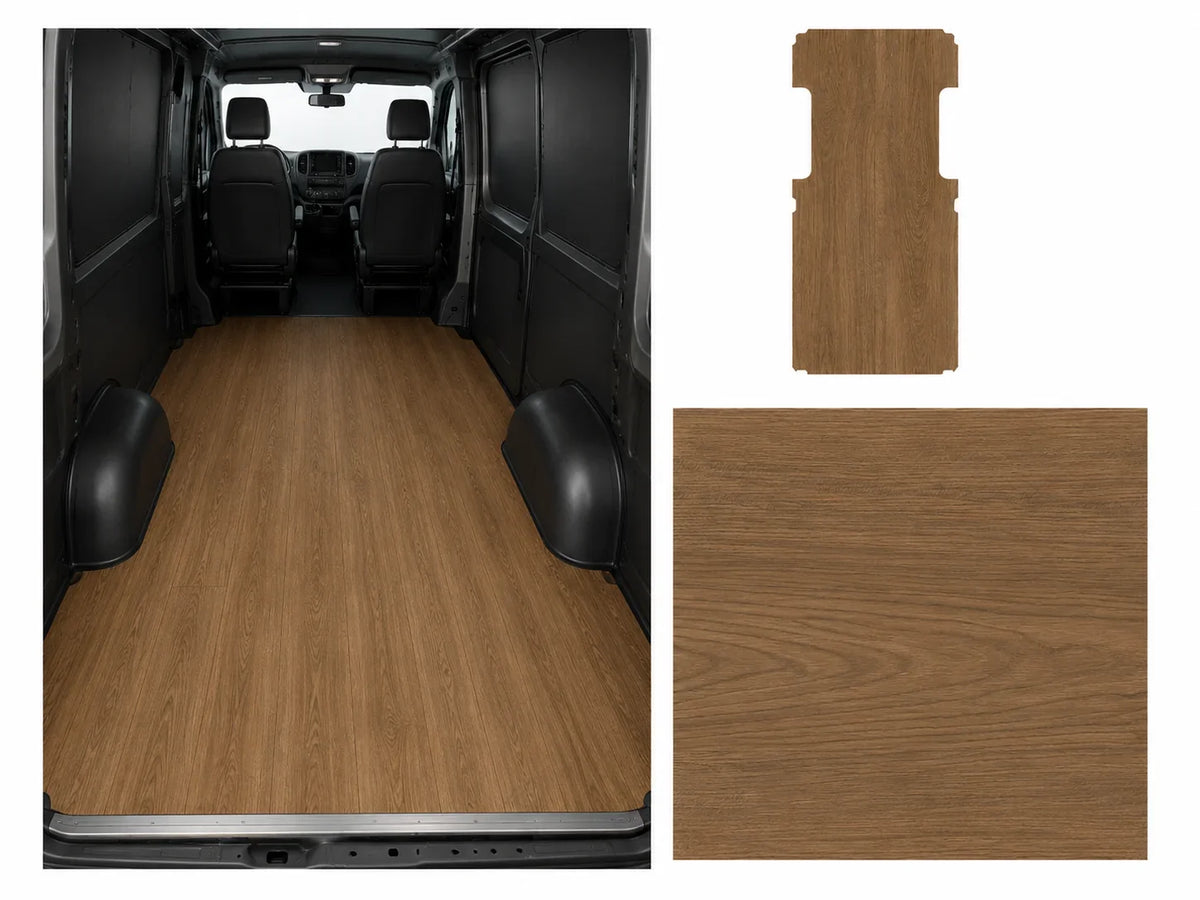

The Sandy Vans Pre-Cut Wood-Look Floor Kit

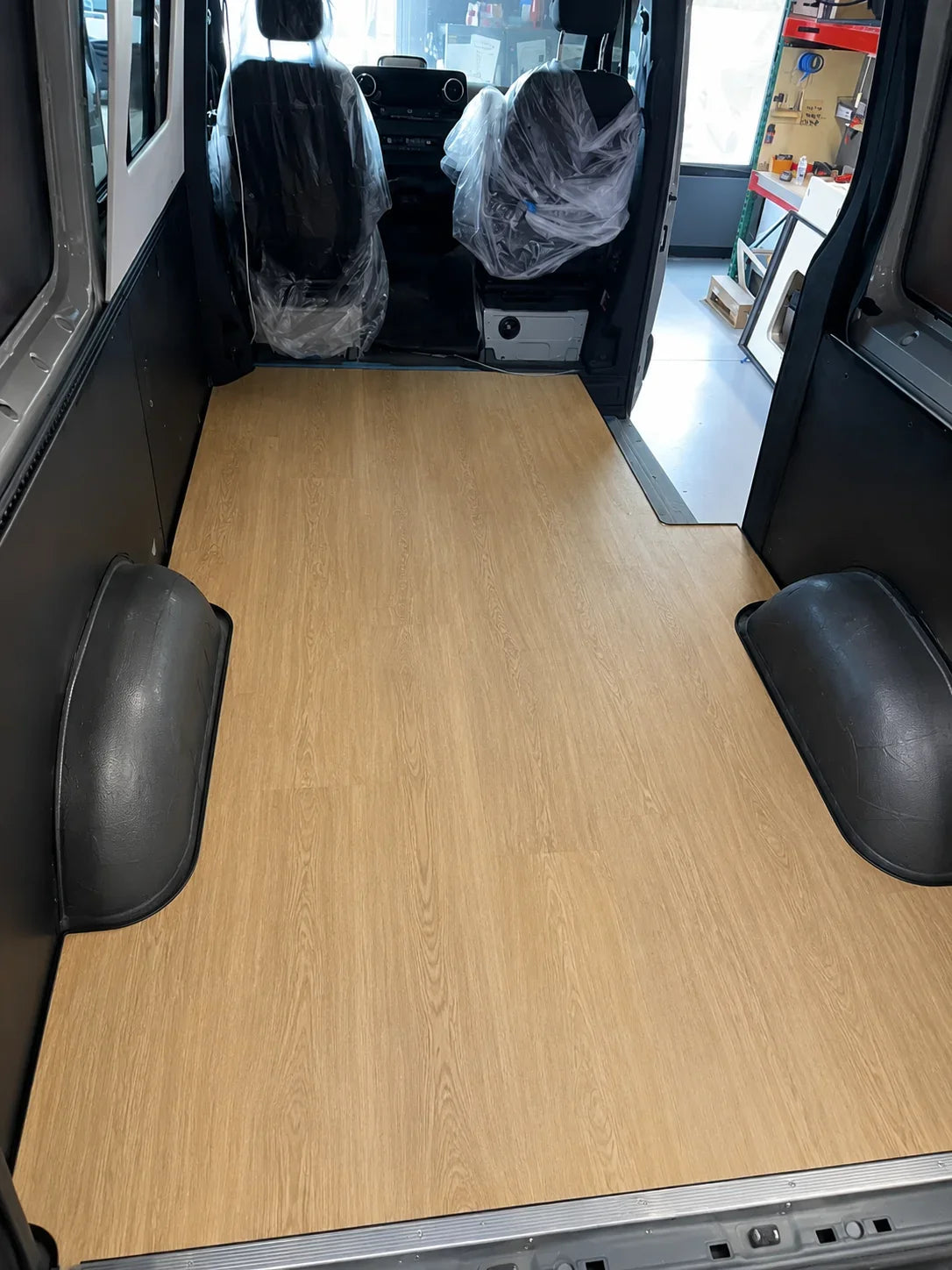

This is the floor we install in our own customer builds, and we turned it into a kit so DIY builders can get the same floor. Here's how it lines up with everything above:
- Glued down, not floating (Factor 1). Fully adhered to your plywood subfloor, so cabinets, bed frames, and L-track can be fastened through it without pinning anything.
- One full sheet (Factor 2). The entire cargo area is a single piece, cut to the floor profile and notched for the wheel wells. No seams to weld or seal.
- Commercial transit grade (Factor 3). Altro Transflor Artis: 2.2 mm thick, about 27 mil wear layer, FMVSS 302 pass, R10 slip resistance, and a 10-year warranty.
- Correct adhesive in the box (Factor 4). Ships with Ecofix+ water-based acrylic adhesive, made for plywood subfloors.
- High-end look (Factor 5). Eight wood-look colors with a gloss easy-clean finish.
- Pre-cut (Factor 6). Arrives shaped to the 2007-current Sprinter 144" 2500 cargo floor. Most builders finish the install in 2 to 4 hours, plus prep time.
Fits: 2007-current Mercedes-Benz Sprinter 144" 2500, cargo area only. Does not fit: 170", 170" EXT, or 3500 dual rear wheel. The cab and step area are not included. Each kit is cut to order, so plan on roughly 4 weeks of lead time.
If you're redoing the floor in a Sprinter-based RV, the kit is also a match to look at for many popular coaches built on the Sprinter, including the Winnebago Revel, Storyteller Overland (MODE, Beast Mode), Outside Van, Airstream Interstate & Atlas, Grech RV (Strada, Turismo, Terreno), Pleasure-Way Plateau, Leisure Travel Vans (Unity, Wonder), Coachmen Galleria, Midwest Automotive Designs, Jayco Terrain, Tiffin Wayfarer, and Thor Tranquility. Fitment depends on your trim level, wheelbase, and existing accessories, so reach out with questions before ordering.
Pre-cut kits for more Sprinter floor plans are on the way. Until then, you can order the same Altro transit vinyl from us uncut for a 170", 170" EXT, 3500, or custom layout. Building a ProMaster or Transit? Reach out and we can discuss options. We also carry a 2tec2/Lonseal pre-cut Sprinter floor if you want a different look.
